Lindell audio LiNTEC

  • Read reviews (0)
  • Related accessories
  • Similar products

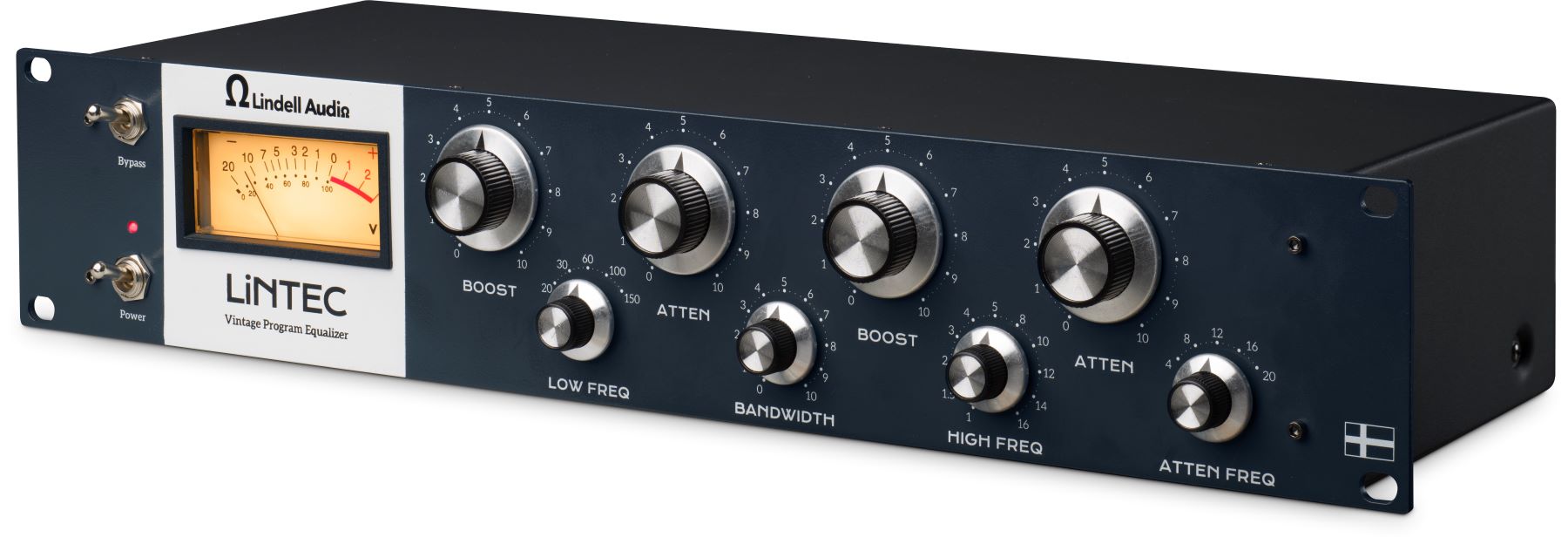

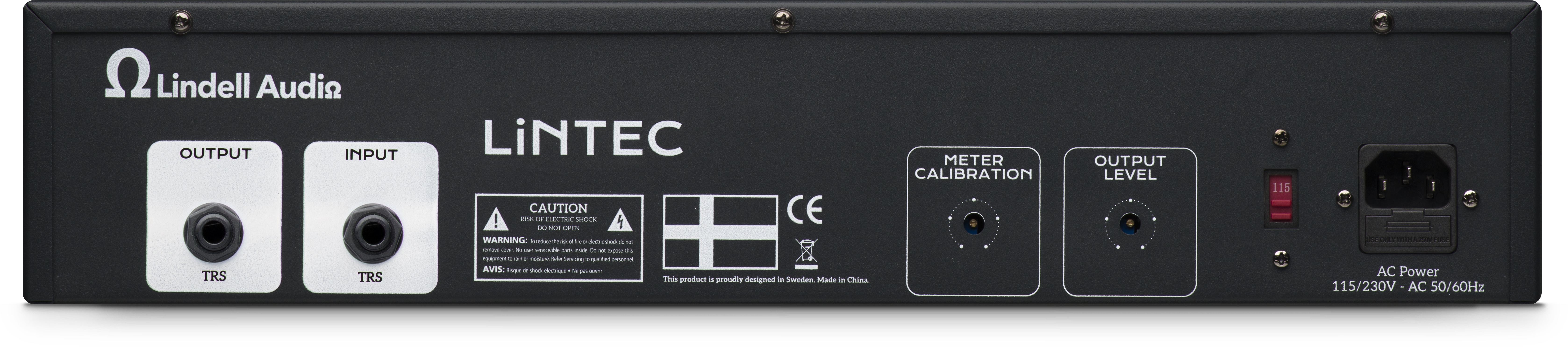

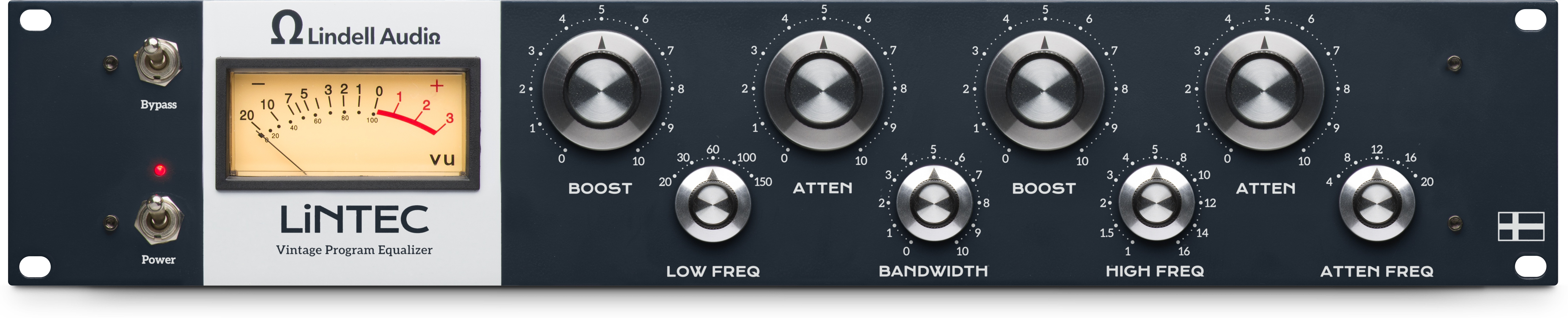

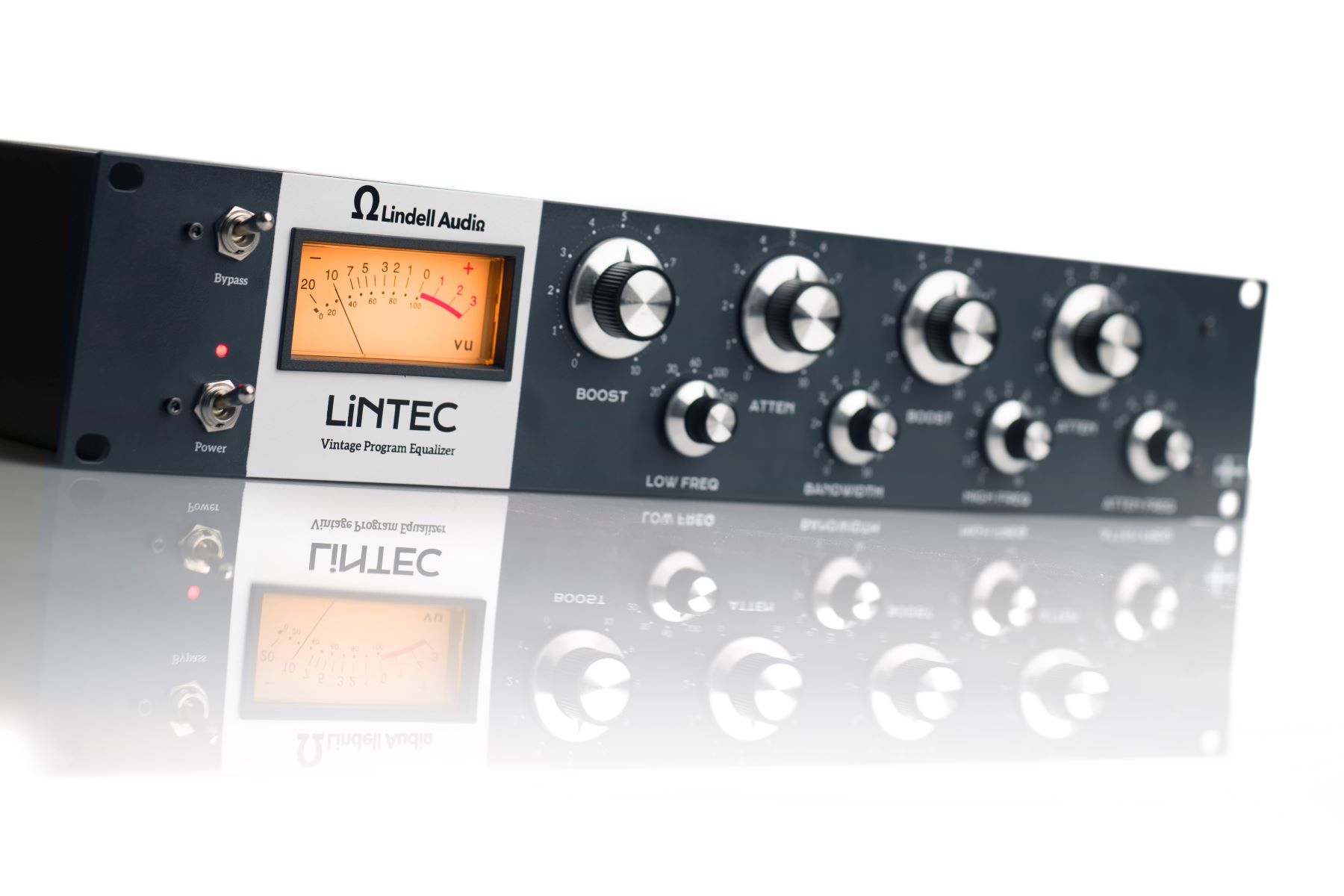

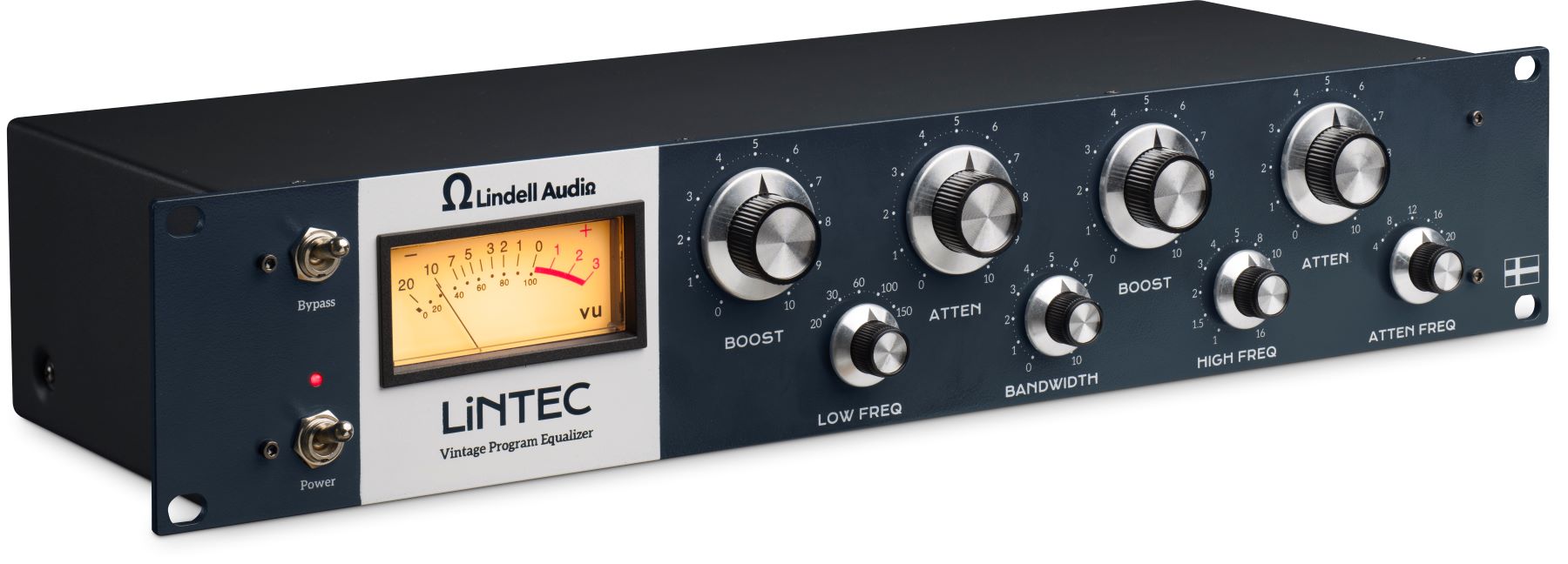

  • Lindell Audio Lintec - Equalizer / channel strip - Main picture
  • Lindell Audio Lintec - Equalizer / channel strip - Variation 1
  • Lindell Audio Lintec - Equalizer / channel strip - Variation 2
  • Lindell Audio Lintec - Equalizer / channel strip - Variation 3
  • Lindell Audio Lintec - Equalizer / channel strip - Variation 4
  • 529.00 €
  • Ref : 112151
473,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 2 years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Lindell audio

Learn more about the Lindell audio brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Equalizer / channel strip

The LiNTEC is a parametric equalizer offered by the Lindell Audio brand.

The most legendary studio equalizer now at your fingertips!

With LiNTEC, you carve your tracks like the classic Pultec. Bring air and space to vocals and stringed instruments, boost bass drums and basses, or add a touch of warmth and weight to an entire bus. Once you've run your tracks through a LiNTEC, you'll wonder how you ever managed without it!

The LiNTEC's sleek, classic design features shared LF Boost & Cut controls for low frequencies, plus independent HF Boost and HF Cut controls with adjustable bandwidth. You'll be able to precisely sculpt the sound of your song without compromising midrange clarity. LiNTEC's graduated potentiometers ensure easy stereo pairing when used in pairs. Its filters are inspired by the legendary EQP1A, complemented by our own innovative gain structure.

LiNTEC is also great for adding warmth and harmonics to programmed instruments, even when the EQ is set flat.
Lire la suite

Technical sheet

  • Type of equalizer Parametric
  • Design
    • Semiconductors for faster transients and reduced noise
  • Operational Amplifier
    • OPA 1731
  • Switchable LF-EQ at 5 levels with boost and attenuation
    • 20, 30, 60, 100, 150 Hz (+/- 10%)
  • Switchable HF-EQ at 11 levels with boost and attenuation
    • 1, 1.5, 2, 3, 4, 5, 6, 10, 12, 14, and 16 kHz (+/- 10%)
  • Switchable HF-EQ attenuation at 5 levels
    • 4, 8, 12, 16, and 20 kHz (+/- 10%)
  • Adjustable Bandwidth (Q)
    • Yes
  • Stepped Potentiometers
    • Yes
  • Gain
    • Up to 40 dB (+/- 1 dB)
  • Line Input
    • 6.3 mm Jack (balanced)
  • Line Output
    • 6.3 mm Jack (balanced)
  • Adjustable Output Level
    • For stereo operation of two devices
  • VU Meter Calibration
    • Yes
  • VU Meter
    • Vintage style
  • Bypass Switch
    • Yes
  • On/Off Switch
    • Yes
  • Enclosure
    • Steel
  • Voltage
    • 115 / 230 V AC (switchable at the back)
  • Rack Format
    • 19" / 2U
  • Dimensions (W x H x D)
    • 438 x 88 x 250 mm
  • Weight
    • 3.5 kg
