Analog mixing desk

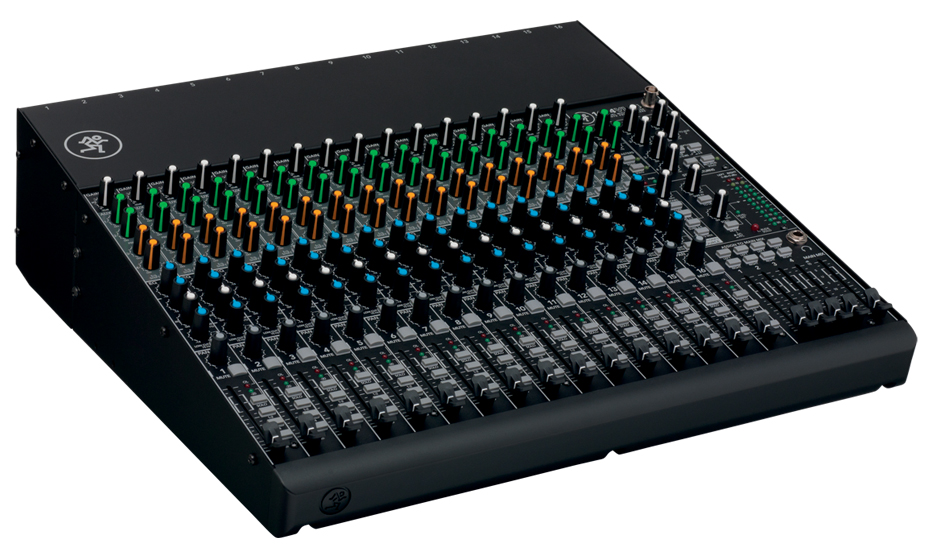

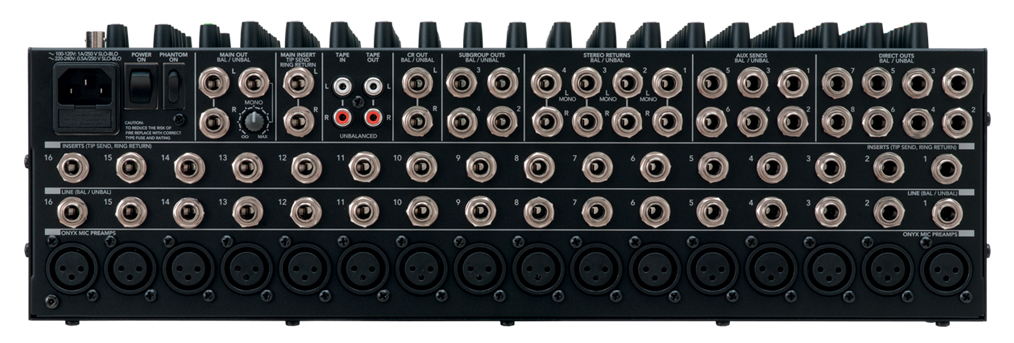

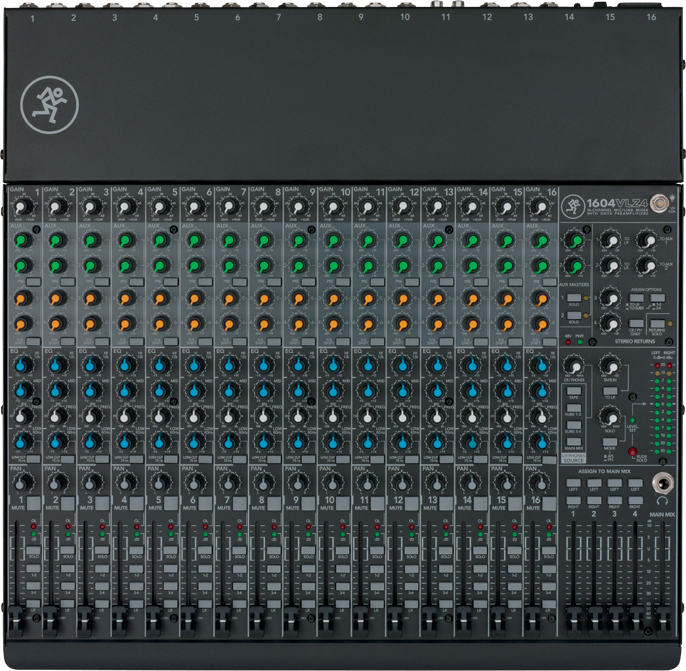

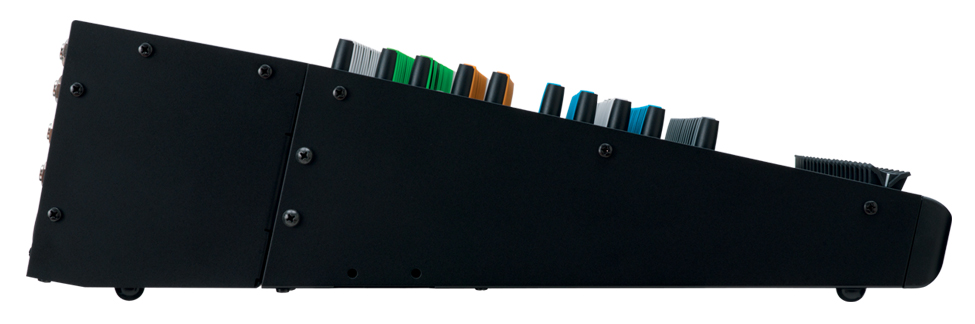

Analog mixing desk MACKIE 1604vlz4.
Technical sheet
- Mixer connectivity Without computer connection
- Number of channel mixing desk 10 to 22 channels
- Number of channels 16 channels
- 16-channel mixer featuring Mackie signature high-headroom/low-noise design
- 16 boutique-quality Onyx mic preamps
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz – 50kHz)
- Phantom power for studio condenser mics
- Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- 16 high-headroom line inputs with +4/-10 operation control
- 16 balanced inserts perfect for integrating outboard gear
- 3-band EQ with sweepable midrange
- 18 dB/oct 75Hz low-cut filter on mic input channels
- 4 aux sends, level, pan, solo and overload/mute LEDs on each channel
- 4 stereo returns, 8 direct outs and 4 group/bus outputs
- 60mm long-wearing log-taper faders
- Control room / phones multi-input source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary control resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
- Rack-mountable design with three physical configurations via Rotopod accessory (sold separately)
- Multi-voltage power supply for worldwide use
More specifications
Fewer specifications
Often purchased with Mixing Desk & Controller
-
POWER ACOUSTICS

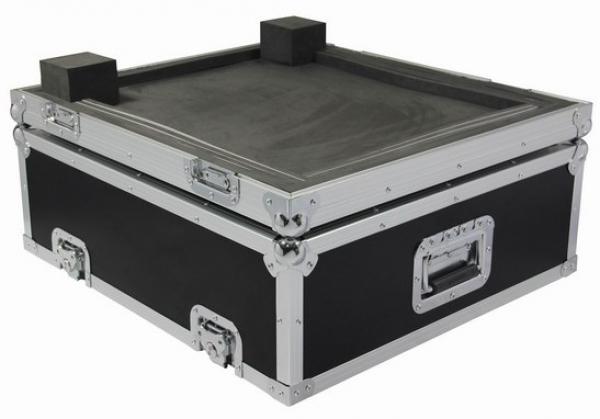

FCM MIXER XS
