Reverb, delay & echo effect pedal

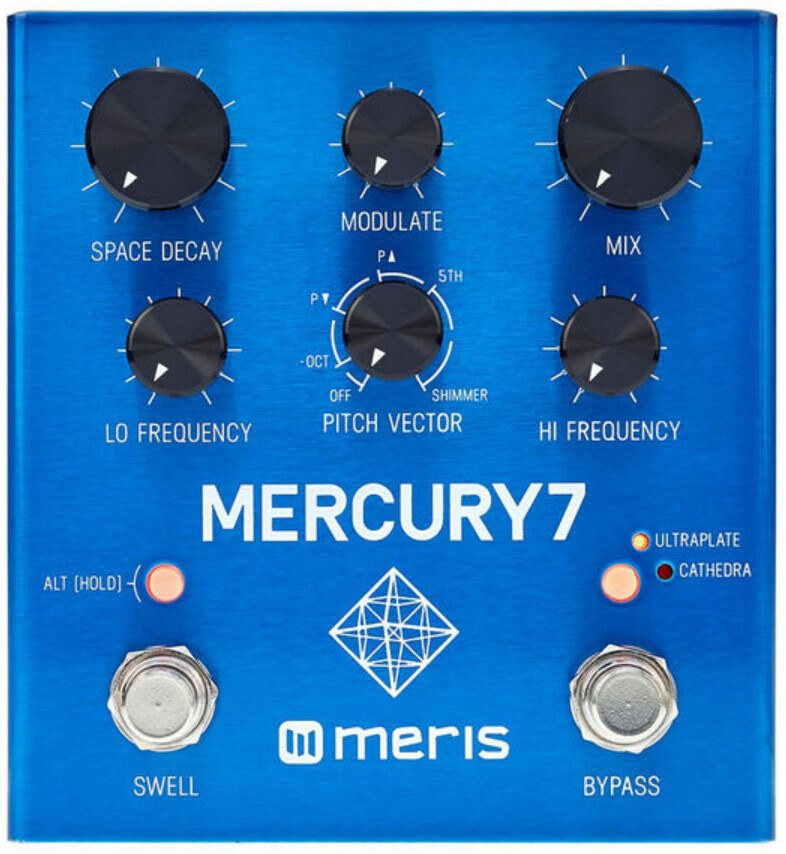

A pedal-format version of the Meris 500 Mercury 7 series, the MERIS Mercury 7 Reverb Pedal is a studio-grade reverb that perfectly combines analog and digital technologies. To sum up: two custom algorithms, stereo inputs and outputs, adjustable input/output levels for guitar/synth/line, presets storable via optional dedicated switch or MIDI, Tap Tempo via dedicated switch or synchronizable via MIDI, real-time parameter controls via optional expression pedal in TRS mode.
Lire la suite
Technical sheet
- for electric guitar Yes
- MERIS Mercury 7 Reverb Pedal
- SKU M7P-DLR
- High-performance delay effect pedal
- Made in the USA.
- 2017
- Mixed analog signal and 24-bit AD/DA w/32 bit floating point DSP
- Analog JFET input section
- 2 reverb algorithms
- Separate controls for interaction of high and low frequencies with reverb algorithms
- Up to 16 presets storable via MIDI
- Bypass selectable (True/Relay Bypass or buffered)
- Selectable reverb trails
- Switchable headroom for guitar/synth/line input level
- Automatic swell envelope function
- MIDI In/Out/preset selection/external tap tempo available via EXP socket
- Analog wet/dry mix
- Preset selection via external 4-Preset switch or MIDI
- Controls: Space Decay, Modulate, Mix, Lo Frequency, Pitch Vector and Hi Frequency
- Alt (Hold) button to activate alternative control functions
- Algorithm button for Ultraplate/Cathedral selection)
- 6.3 mm stereo jack input (switchable stereo/mono)
- 6.3 mm mono jack (L/R) outputs
- Exp/Tap Tempo/external footswitch/MIDI plug on 6.3 mm stereo jack
- Status LEDs
- Metal case
- Optional 9V DC adapter (2.1 mm x 5.5 mm coaxial plug, center polarity, power consumption < 150 mA)
- No battery operation
- L x W x D 115 mm x 107 mm x 67 mm
- 410 g
- English manual: https://www.meris.us/wp-content/uploads/2017/03/Meris-Mercury7-Manual-v2.pdf
