Boss Micro BR BR-80

Name: Micro BR BR-80
Brand: Boss
SKU: 18125
Availability: InStock
Rating: 3.8 (2 reviews)

Read reviews (2)
Related accessories

257.00 €

215,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-Years warranty
Ref : 18125

In stock

shipped under 8/10 days

Stock in store

Not available in store

The brand Boss

Learn more about the Boss brand and discover the entire catalog.

Discover

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

find out more

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Multi tracks recorder

Don’t be fooled by its size — this little BOSS BR-80 is loaded! The MTR (Multi-Track Recorder) mode offers 64 V-Tracks with eight simultaneous playback tracks. In addition, a dedicated stereo rhythm track is provided, as well as an onboard library of great grooves to choose from.
The MICRO BR BR-80’s eBand mode offers musicians a fun way to play along with their favorite songs. With the bundled eBand Song List Editor software, you can import CD, MP3, and WAV audio files from a computer via USB.

Technical sheet

Three modes: MTR (multi-track recorder), eBand, and Live Rec
Records directly to SD/SDHC memory card (up to 32 GB)
High-quality stereo condenser microphone built in for instant audio capture
64 V-Tracks and eight simultaneous playback tracks
eBand function for phrase training and play-along tracks
Huge library of built-in backing and rhythm patterns
World-class COSM amps and effects onboard
Use as a USB audio interface with built-in effects
SONAR X1 LE software included
Tracks
MTR Mode:
Tracks: 8
Simultaneously recording track: 2
V-Track: 64 (8 V-Tracks per each Track)
eBand Mode:
Tracks: 2 (stereo)
Simultaneously recording track: 2 (stereo)
LIVE REC Mode:
Tracks: 2 (stereo)
Simultaneously recording track: 2
*Either the playback or the recording
Recording Media:
SDHC Memory Card (4 GB to 32 GB)
SD Memory Card (1 GB to 2 GB)
Data Type
MTR Mode:
Linear (Bit Depth: 16 bits)
eBand Mode:
eBand Songs (Recording/Playback)
WAV (Bit Depth: 16 bits, Playback only)
MP3 (Bit Rates: 64 kbps to 320 kbps, Playback only)
LIVE REC Mode:
WAV (Bit Depth: 16 bits, Recording/Playback)
MP3 (Bit Rates: 64 kbps to 320 kbps, Recording/Playback)
AD/DA
AD Conversion:
24 bits
DA Conversion:
24 bits
Sample Rate:
44.1 kHz
Recording Time (conversion in one track):
MTR Mode
3 hours (1 GB), 100 hours (32 GB)
eBand Mode:
eBand Song: 4 hours (1 GB), 130 hours (32 GB)
WAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB)
MP3 128 kbps, stereo: 16 hours(1 GB), 550 hours (32 GB)
LIVE REC Mode:
WAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB)
MP3 128 kbps, stereo: 16 hours (1 GB), 550 hours (32 GB)
* The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.
* The above number of the MTR mode is the total for all the tracks that are used. If each of the eight tracks contain an equal amount of data, the length of the resulting song will be approximately 1/8 of the above.
Other
Nominal Input Level
GUITAR/MIC IN jack: -20 dBu (GUITAR/MIC SW = GUITAR), -40 dBu (GUITAR/MIC SW = MIC)
LINE IN jack:-10 dBu
Input Impedance:
GUITAR/MIC IN jack: 1M ohm (GUITAR/MIC SW = GUITAR), 6k ohms (GUITAR/MIC SW = MIC)
LINE IN jack: 10k ohms
Nominal Output Level:
PHONES/LINE OUT jack: -14 dBu
Output Impedance:
PHONES/LINE OUT jack: 22 ohms
Display:
Graphic LCD 128 x 64 dots (with backlit)
USB Functions
24-bit/44.1 kHz USB-AUDIO (Hi-Speed USB)
USB Mass Storage Class (Hi-Speed USB)
BUS Power operation

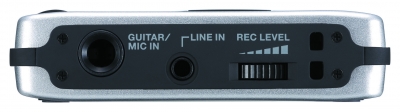

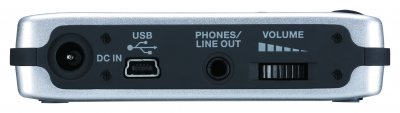

Connectors
GUITAR/MIC IN jack (1/4" phone type)
LINE IN jack (Stereo miniature phone type)
PHONES/LINE OUT jack (Stereo miniature phone type)
USB connector (mini-B type)
DC IN jack
Power Supply
DC 9V: AC Adaptor (sold separately)
Alkaline battery (AA, LR6) x 2
Rechargeable Ni-MH battery (AA, HR6) x 2
USB Bus Power
Expected battery life: Approximately 6 hours (Alkaline dry cell batteries/with continuous playback of 8 tracks, power save function)
* May vary according to usage conditions, batteries used, and type of SD card used.
Current Draw: 130 mA (DC IN)
Accessories: SD Memory Card, SONAR X1 LE DVD-ROM, USB Cable (mini-B type), Alkaline battery (AA, LR6) x 2, Owner's Manual
Options (sold separately): AC Adaptor (PSA series), Silicone Rubber Case and Carrying Pouch: BA-BR80S
Dimensions: 136mm x 88mm x 22mm
Weight: 140g

More specifications

Fewer specifications
