Moog DFAM

  • Read reviews (3)
  • Related accessories
  • Similar products

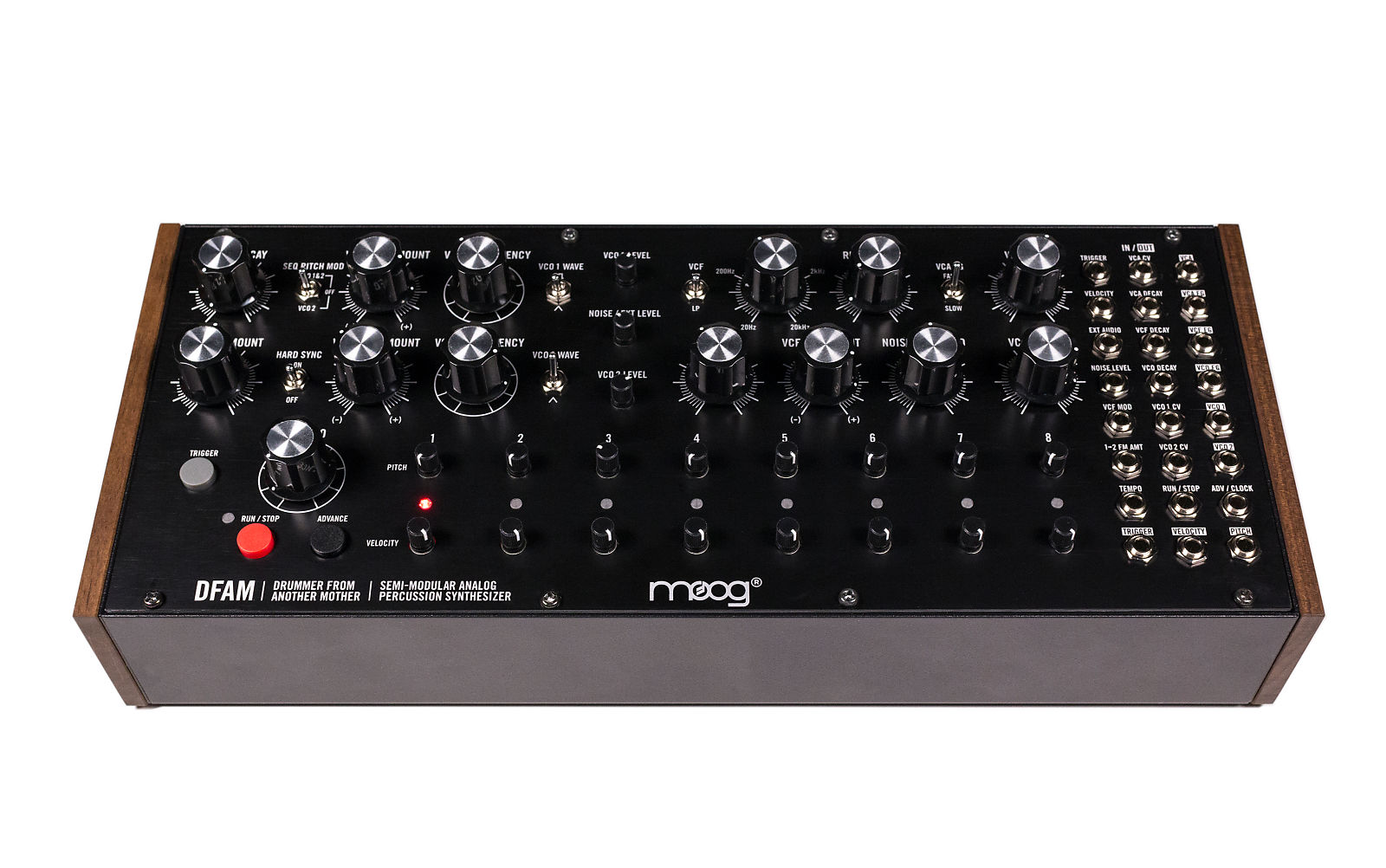

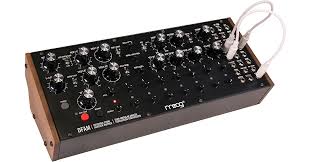

  • Moog Dfam - Drum machine - Main picture
  • Moog Dfam - Drum machine - Variation 1
  • Moog Dfam - Drum machine - Variation 2
  • Moog Dfam - Drum machine - Variation 3
  • Moog Dfam - Drum machine - Variation 4
VIDEO
VIDEO
699,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 78485
Last one!
1 piece available.
shipped under 2/3 days
Stock in store
See availability. Store
Star's Music Paris
Other version(s) or associated product(s)

The brand Moog

Learn more about the Moog brand and discover the entire catalog.

Synthetizer and drum machine buying guide

Synthetizer and drum machine buying guide

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Drum machine

DFAM is the first addition to the Mother ecosystem of synthesizers and presents an expressive hands-on approach to percussive pattern creation. It requires no patching, and absolutely no experience is needed for human-beings of any age to quickly begin synthesizing new and unique rhythmic compositions.

Activated by an easy-to-use analog sequencer, DFAM’s emotive sound begins with a white noise generator and two wide-range analog oscillators - effortlessly transitioning between rhythmic pulsations, resounding bass and resonant bells in an instant. DFAM’s distinctive voice is then shaped by a classic Moog Ladder filter with two selectable modes: Low Pass mode imparts impact and dimension to each sound it touches, while High Pass mode opens the door to naturally expressive strikes, spikes and clangorous accentuations.

DFAM behaves much like a living organism, reacting in different ways to different individuals. 3 dedicated analog envelopes work dynamically with the sequencer to ensure that tribal toms breathe, industrial impacts evolve, and sonic chaos can be created or subdued at the turn of a knob.

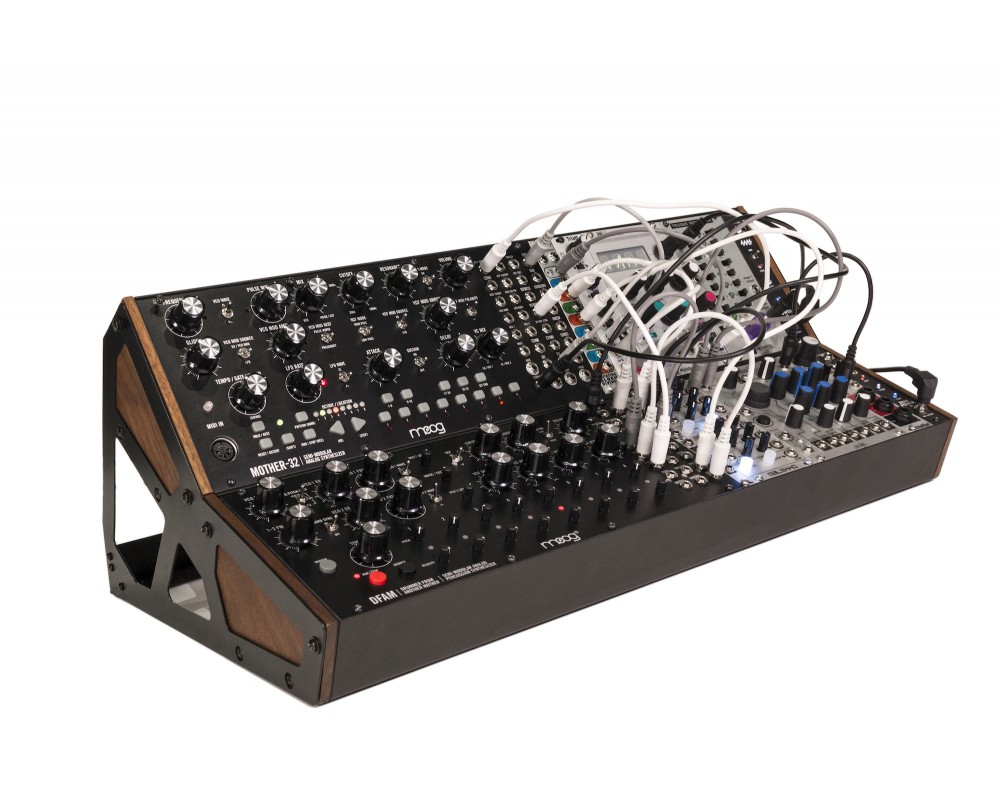

Each DFAM ships with a package of Moog patch cables that unlock access to the 24-point modular patchbay. Use it to create new sounds or bizarre behaviors, synchronize an unlimited number of DFAM and Mother-32 units together, or fully integrate your analog instrument into a modular Eurorack production environment.

Through exploration and experimentation, the vast potential of this expressive analog instrument is realized.
Lire la suite

Technical sheet

  • 8-step analog sequencer with pitch and velocity steps, Tempo, Run / Stop, Trigger and Advance functions
  • 2 oscillators with waveforms in square and triangle
  • A white noise generator
  • External audio input
  • Frequency control on +/- 5 octaves
  • Mixing section to manage the levels of the two oscillators, the noise generator and the external audio input
  • Four-pole transistors ladder switchable high-pass and low-pass filter with a frequency range of 20 Hz - 20 kHz
  • Envelope generators for VCO and VCF with voltage control of decline and control of bipolar quantity
  • Envelope generator for VCA with voltage control of decline and choice of attack time (fast or slow)
  • 24 patch points on 3.5mm mini-jack, with Trigger inputs, VCA voltage control (CT), velocity, VCA decay, external audio, VCF decay, noise level, VCO decay, modulation of the VCA VCF, CT of VCO 1, amount of frequency modulation 1> 2, CT of VCO 2, tempo, Run / Stop, Advance / Clock; VCA outputs, envelope generators for VCA, VCF and VCO; VCO 1, VCO 2, Trigger, velocity and pitch
  • Line / headphone output on TS 6.35 mm / TRS 6.35 mm
  • Universal power supply 100 V - 240 V AX
  • Eurorack 60 HP format
