Description

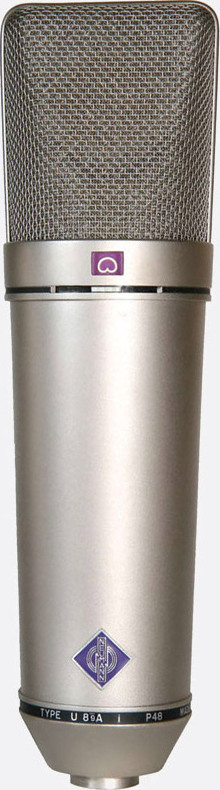

The U89Ai is a dual-diaphragm studio microphone.
The U 89 is a universal studio microphone in its applications. Its grille protects a dual-diaphragm capsule. A rotary switch under the grille allows a choice of five different polar patterns; consequently, the microphone adapts easily to large sound sources, when musicians are spread over a wide area, or to recording at great distances.
A more sophisticated version of the classic U 87 model, with 5 polar patterns, a two-position high-pass filter and a switchable attenuator, provides maximum flexibility.
The integrated preamp accepts sound pressure levels of up to 134 dB SPL without distortion - a figure that can rise to 140 dB. Another rotary switch activates a high-pass filter, which is effective from 80 Hz or 160 Hz.
The U 89 is a universal studio microphone in its applications. Its grille protects a dual-diaphragm capsule. A rotary switch under the grille allows a choice of five different polar patterns; consequently, the microphone adapts easily to large sound sources, when musicians are spread over a wide area, or to recording at great distances.
A more sophisticated version of the classic U 87 model, with 5 polar patterns, a two-position high-pass filter and a switchable attenuator, provides maximum flexibility.
The integrated preamp accepts sound pressure levels of up to 134 dB SPL without distortion - a figure that can rise to 140 dB. Another rotary switch activates a high-pass filter, which is effective from 80 Hz or 160 Hz.
Lire la suite
Technical sheet
- Acoustic operating principle: Pressure gradient transducer
- Directionality: Omnidirectional, wide cardioid, cardioid, hypercardioid, bidirectional (figure of 8)
- Frequency response: 20 Hz to 20 kHz
- Sensitivity at 1 kHz, load 1 kOhm: 8 mV/Pa
- Nominal output impedance: 150 Ohm
- Recommended load impedance: 1 kOhm
- Equivalent noise level, according to CCIR1): 28 dB
- Equivalent noise level, A1-weighted: 17 dB (A)
- Signal-to-noise ratio, according to CCIR1) (at 94 dB SPL): 66 dB
- Signal-to-noise ratio, A1-weighted (at 94 dB SPL): 77 dB
- Maximum SPL level at THD = 0.5%2): 134 dB
- Maximum SPL level at THD = 0.5%2) with pre-attenuation activated: 140 dB
- Maximum output voltage: 800 mV
- Phantom power supply voltage: 48 V ± 4 V
- Current consumption: 0.8 mA
- Output connector: XLR 3M
- Weight: 400 g
- Diameter: 46 mm
- Length: 185 mm
- Silver" version
