Sampler

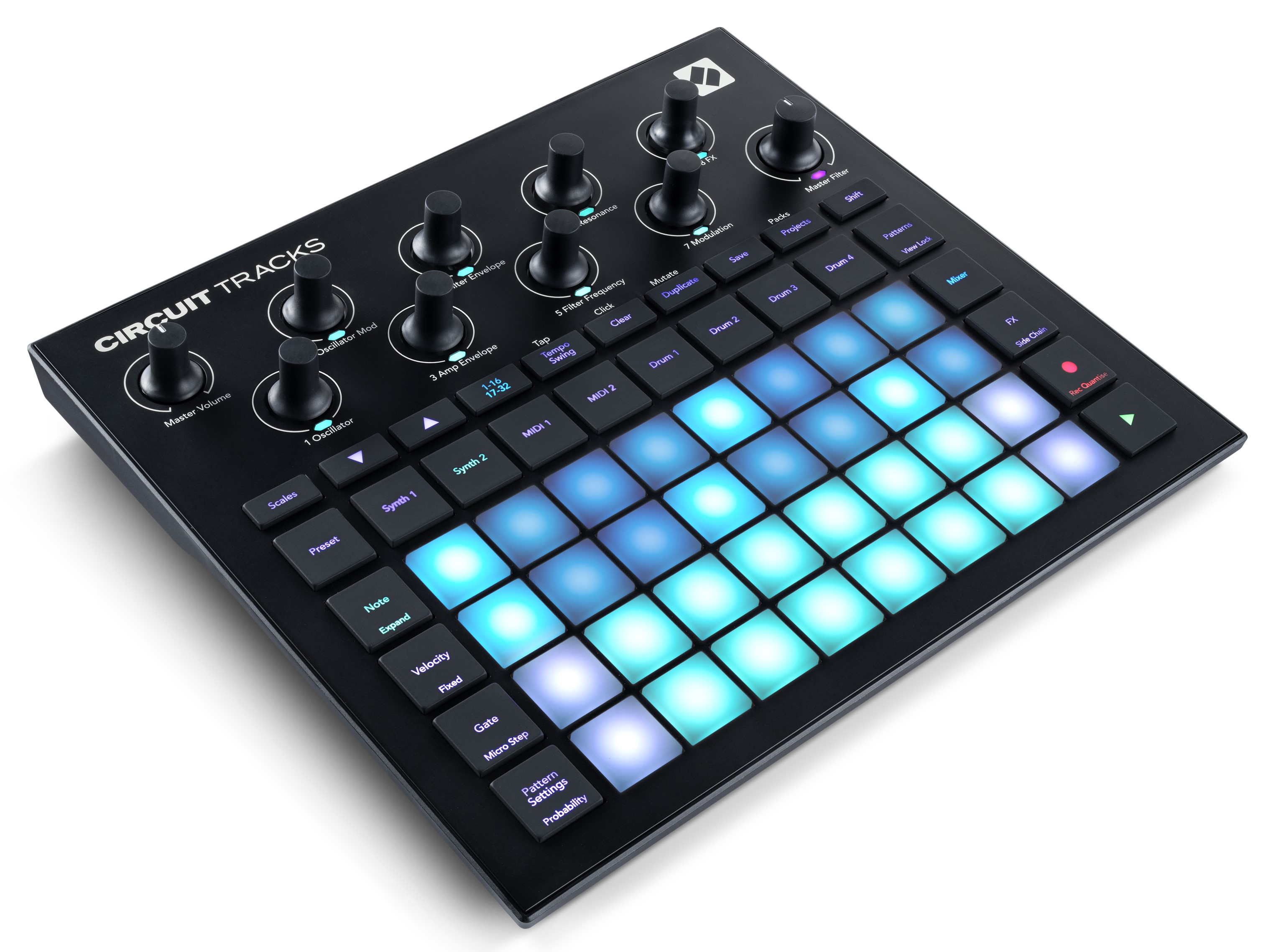

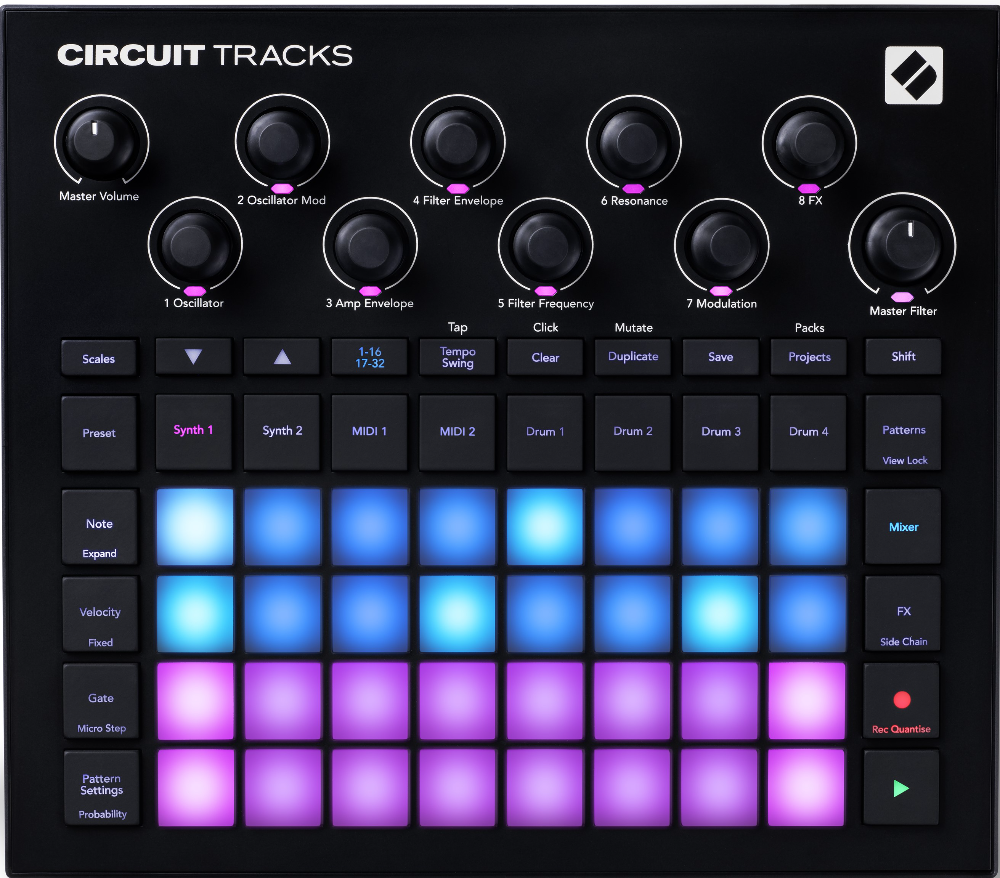

Circuit Tracks is a groovebox from Novation.
Circuit Tracks highlights
- 60 seconds total sample storage time [UPDATE v1.1.5: total time extended to 196 sec] and a MicroSD port for storing up to 32 packs in total.
- Two dedicated MIDI tracks and effects allow it to be integrated into any setup
- Battery-powered, it's also the ideal companion for musicians on the move
Circuit Tracks Key Features
Versatile with long battery life for unlimited creativity
Control your external hardware with precision, thanks to two dedicated MIDI tracks for sending notes and CC automations. This controller features three five-pin MIDI ports (In, Out, Thru), an analog sync output, two audio inputs, two audio outputs and a headphone output, so you can handle any situation. What's more, its rechargeable battery provides up to four hours of autonomy, so you can compose, play and mix your music anywhere.
Enriched sound experience
Explore new sounds with two polyphonic synth tracks. Import and perfect your own samples with four dedicated drum tracks. Refine each element by applying delay and reverb effects to synth tracks, drum tracks and incoming audio signals. Mix everything together using the sidechain and optimize the final result with the integrated master compressor.
Expert advice
- Novation Circuit Tracks is an essential studio companion for DJs and producers. Its ability to easily integrate samples and manipulate loops in real time is exceptional.
- Velocity-sensitive pads and the ability to record sequences quickly make this quality product an essential tool for modern music composition at a more than affordable price.
Technical sheet
- Velocity-sensitive RGB backlit pads
- 32
- RGB Backlit buttons
- 28
- Power button with LED charge indicator
- Present
- USB-C connector
- Present
- Kesington Minisaver slot
- Present
- 3x MIDI DIN (In, Out, THru)
- Present
- MicroSD card slot
- Present
- 3.5 mm Sync Out
- Present
- Mono audio inputs
- 2
- Stereo Out
- Present
- Headphone output
- Present
- Infinite potentiometers with RGB indicators
- 8
- Volume potentiometer
- Present
- Master Filter potentiometer
- Present
- Edit and create synth patches, add samples, save projects and much more with Novation Components (web and standalone)
- Present
- Maximum time available to store your samples
- 60 sec
- Update v1.1.5: maximum duration extended to 196 sec
- Present
- Powered via USB mains (1.5m USB-A/USB-C cable included)
- Present
- Rechargeable lithium battery (4h autonomy)
- Present
- Weight
- 0.78 kg
- Dimensions
- 45 x 240 x 210 mm
