Reverb, delay & echo effect pedal
Nux expands its Mini Core series with new mini pedals that are as compact as they are powerful! With its digital signal processing (DSP) and various bypass (true/buffered) and signal (mono/stereo) options, functionality is extensive and modern, while sound reproduction remains natural and dynamic with a dry analog signal for noise- and latency-free sound! Mini Core pedals are designed to inspire and transcend your playing! The Edge Delay lets you add different repeats to your sound, with 3 legendary delay types selectable (digital, analog, tape echo). The three control knobs fine-tune the delay time, the number of repeats, and the mix in your signal. The footswitch has a secondary Smart Tap Tempo function, allowing you to set the delay time by foot (press twice to activate this mode). The maximum delay time is 1500 ms. Several rhythmic subdivisions are available to nuance your repetitions. The buffer bypass mode also lets you keep the delay tail if you deactivate the effect while playing. Very compact yet full of possibilities with its many modern options, the Edge Delay is a versatile concentrate of inspiring delays!
Lire la suite
Technical sheet
- for electric guitar Yes
- Mini digital delay pedal - 3 modes/tap tempo + Mono/Stereo + True/Buffer bypass
- Delay modes: digital, analog, tape
- Settings: mix, repeat, time (subdivisions with max 1500 ms)
- Bypass modes: true, buffered (trails)
- DSP processing: 48 kHz / 32 bit
- A/D-N/A sampling frequency: 48 kHz / 24 bit
- Analog "Dry" signal for latency- and noise-free sound
- Footswitch with secondary Smart Tap Tempo function
- 6.35mm mono input/output jack + TRS mode for stereo signal support

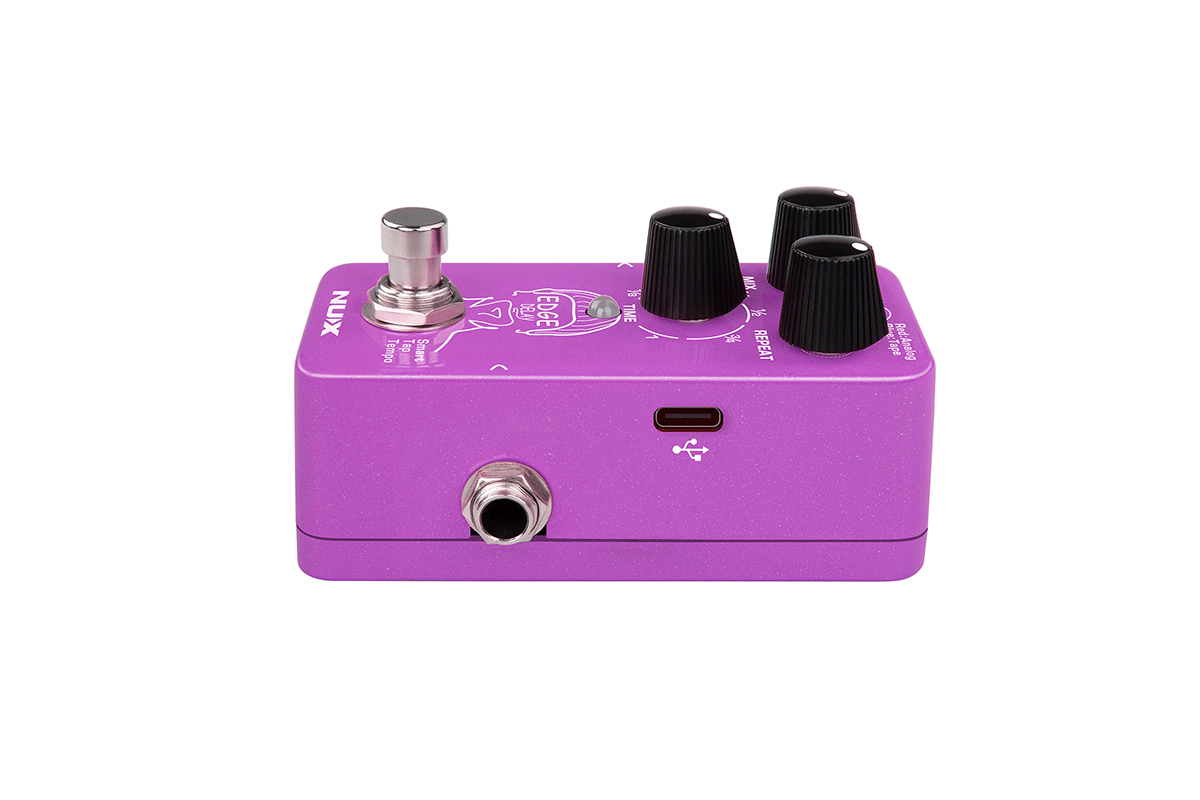

- USB-C port for firmware update via PC
- Power supply (not included): 9V DC negative center (MNU ACD006A optional)
- Weight and dimensions: 175 g, 94 x 53 x 51 mm
