Omnitronic PM-202F

Read reviews (0)
Related accessories
Similar products

Ref : 117811

149,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty

Pre-order

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

The brand Omnitronic

Learn more about the Omnitronic brand and discover the entire catalog.

Discover

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

find out more

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Analog mixing desk

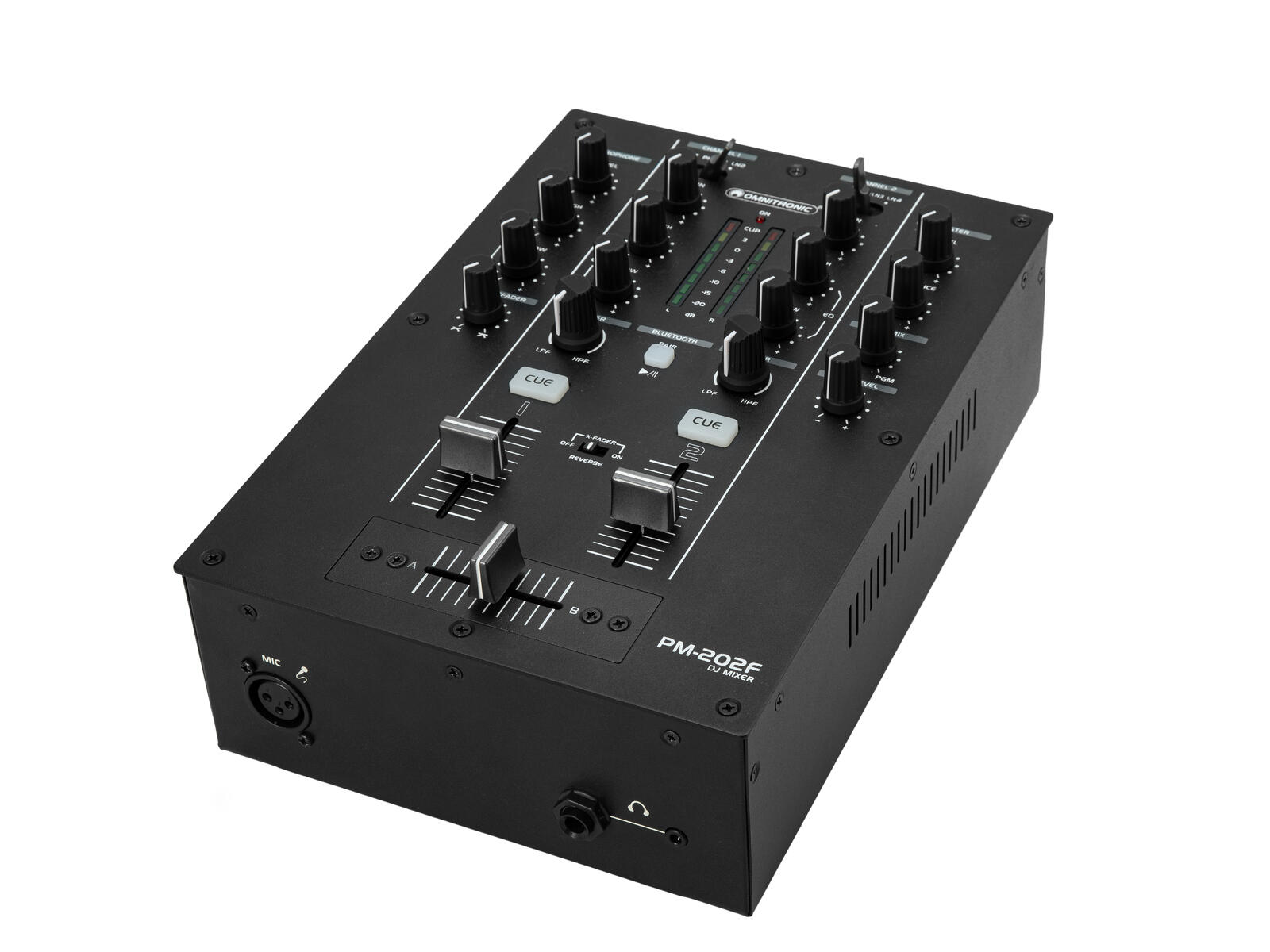

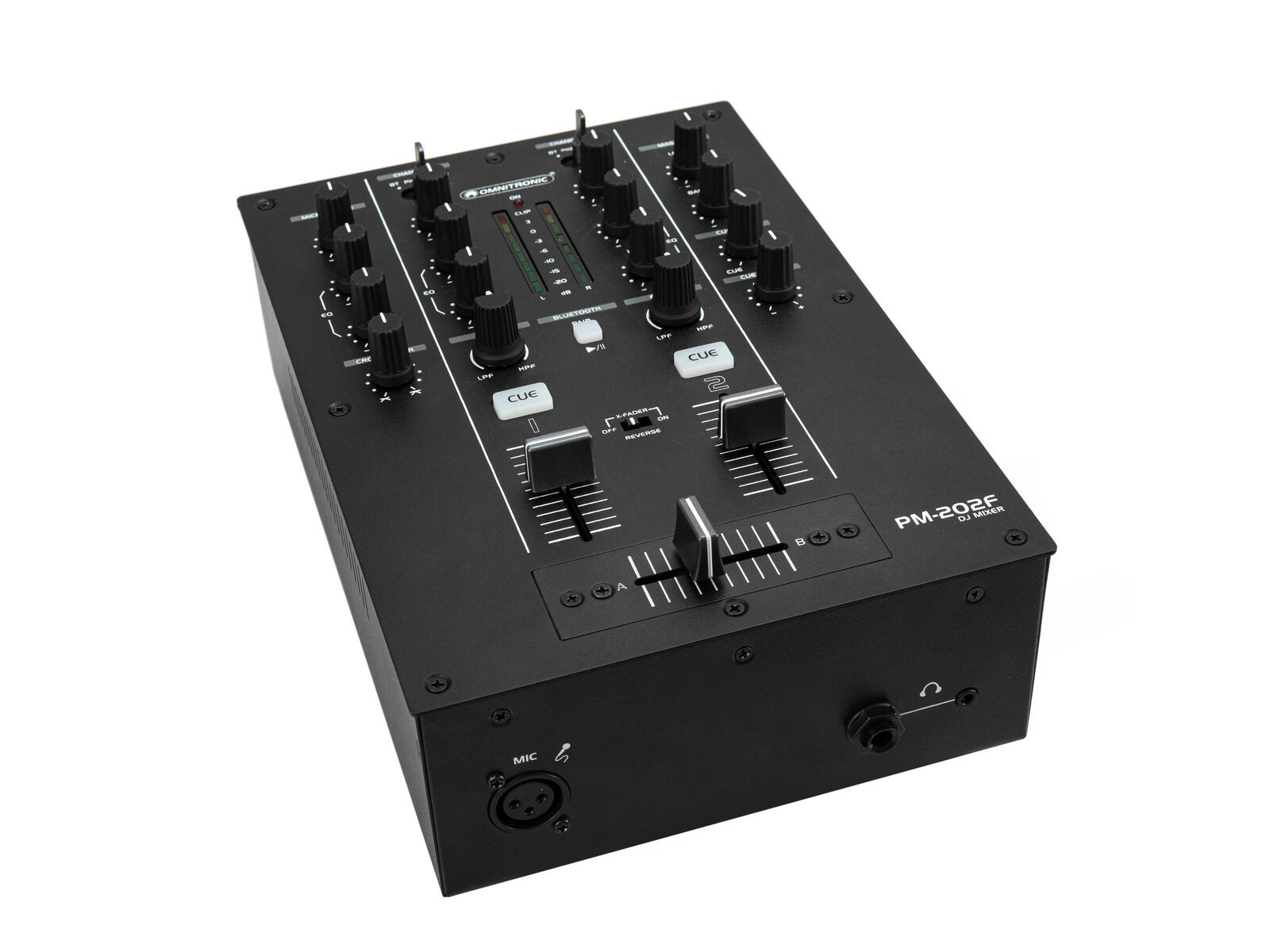

Omnitronic's PM-202 F is a compact 2-way DJ mixer designed for mobile DJs events and fixed installations such as bars or converted cellars. cellars. Thanks to its integrated Bluetooth connectivity and essential features, it lets you mix easily from a wireless source (Smartphone) or with classic analogue turntables.

Key features

4 line inputs + 2 phono inputs (vinyl turntables) (RCA)
Stereo headphone output with adjustable volume
Mic track with dedicated volume control and 2-band equalizer
Curve-adjustable crossfader + Reverse switch
Pre-listening on all channels (including master)
Bluetooth and intelligent routing
Bluetooth signal routable to channels 1 and 2
Range up to 15 m
Frequency range: 20 Hz to 20 kHz
Signal-to-noise ratio : >80 dB
Harmonic distortion: <0.1
Bipolar DJ LPF/HPF filter per channel for creative mixing

Recommended applications

Beginner or mobile DJs looking for a simple, functional setup
Small-scale mixing (bars, parties, home studio)
Solo artist with fast audio mixing needs from smartphone or turntables

Technical sheet

Mixer connectivity Without computer connection
Number of channel mixing desk 4 channels and less
Number of channels 2 channels

Power supply
100-240 V AC, 50/60 Hz
Total connection power
max. 8 W
Protection class
SK II
Electrical connection
Power supply via built-in C8 small appliances (shaver socket), cable with euro plug (included)
Frequency range
20 - 20000 Hz
S/N ratio
>80 dB
Harmonic distortion
<0.1% at 1 kHz
DJ Filter
Per channel: LPF/HPF bipolar
Control
Bluetooth
Bluetooth name: PM-202F
Range: up to 15 m
Crosstalk attenuation
>60 dB

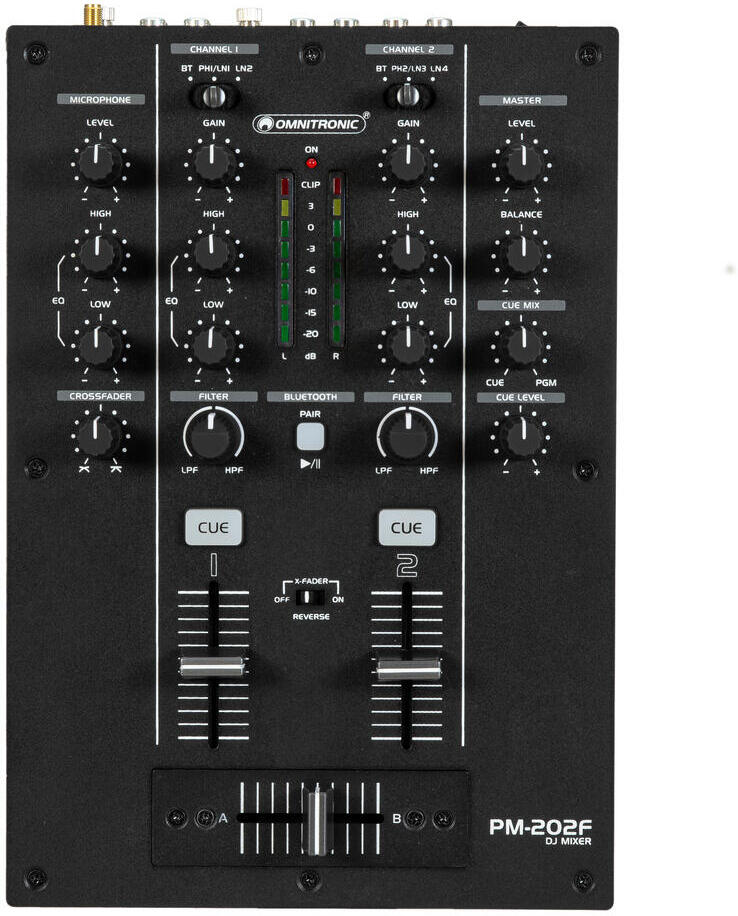

Control elements
Crossfader
Crossfade-Curve control
Crossfader switch (inversion)
FX control Parameters
Power switch
LED status
Power
Master level indicator

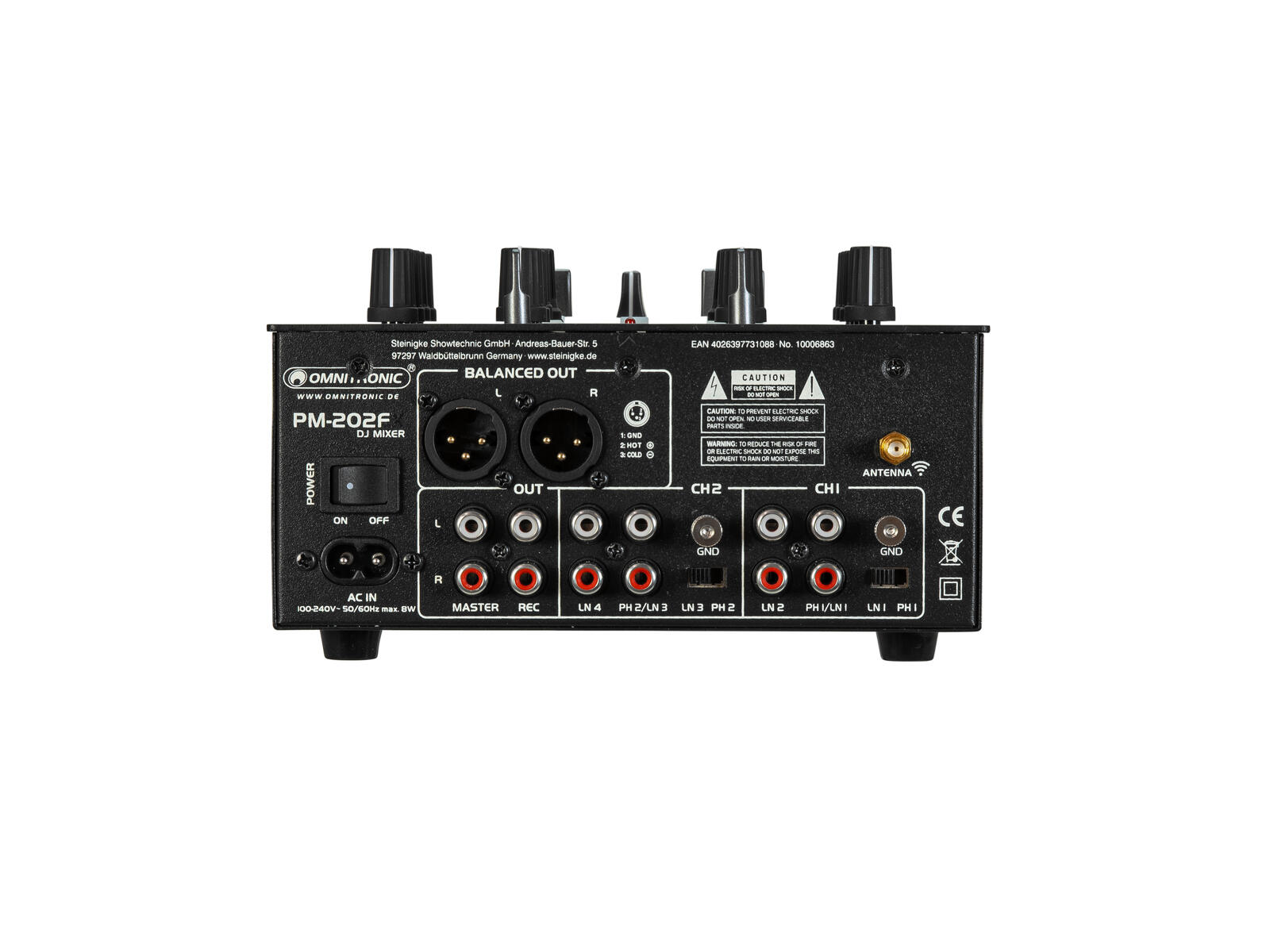

Connections
Input: Line/Phono via 2 x stereo RCA
Input: Line via 2 x stereo RCA
Input: Microphone via 1 x XLR (F) flush mount
Input: Antenna via 1 x SMA (F) flush-mounted
Input: Earth via 2 x screw terminal
Output: Master via 2 x XLR (M) flush-mounted
Output: Master via 1 x stereo RCA
Output: Rec via 1 x stereo RCA
Output: Headphone via 1 x 6.3 mm stereo jack, flush-mounted
Output: Headphone via 1 x 3.5 mm stereo flush-mount jack
Channels
Input: 2 x Stereo with Line/Phono/Bluetooth switch via RCA
60 mm fader control, 2-band EQ, gain, CUE switch
Microphone: 1 x Mono via XLR, rotary knob adjustment, 2-band EQ
Master: 1 x Stereo via XLR/RCA, rotary knob adjustment, balance
Headphones: Stereo via jack, rotary knob adjustment, Cue-Mix function
Rec: Stereo via RCA
Material
Metal
Color
Black
Case design
Console housing
Dimensions (L x W x H)
30.5 x 19.0 x 11.0 cm
Weight
2.18 kg
Power supply cable
Length: 2.10 m (removable)
