Speaker merger

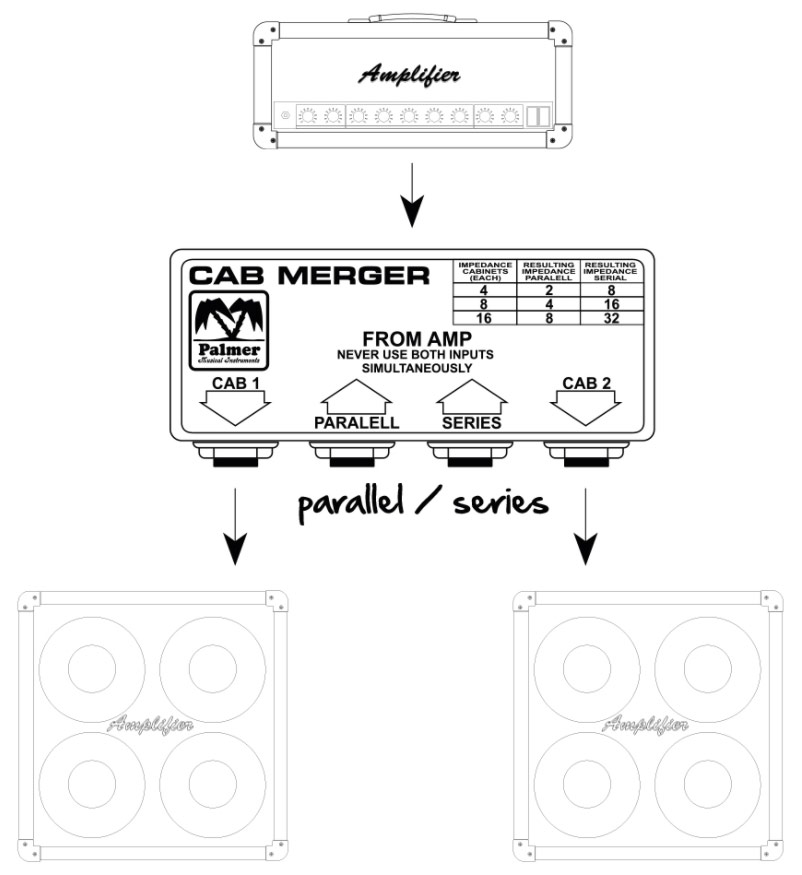

The PALMER Cab Merger is a guitar cabinet summing unit that allows 2x speakers with the same impedance to be connected in series or parallel to the speaker output of an amplifier. 2x speaker cabinets connected in series add up to a total impedance of 16 ohms (2x 8-ohms), while 2x speaker cabinets connected in parallel divide up to a total impedance of 4-ohms (2x 8-ohms).
Lire la suite
Technical sheet
- PALMER Cab Merger
- SKU PCABM
- Passive guitar speaker cabinet summing unit
- Allows 2x speakers of the same impedance to be connected in series or parallel to the hp output of an amplifier.
- 2x 6.35mm jack inputs
- 1x 6.35mm jack serial output
- 1x parallel 6.35mm jack output
- The impedance of 2x speaker cabinets connected in series is added together (2x 8-ohms = 16-ohms).
- Total impedance of 2x speaker cabinets connected in parallel is divided (2x 8-ohms = 4-ohms)
- W x D x H 105 x 35 x 35 mm
- 0.13 kg
- Die-cast aluminum case
