Palmer PAN01

Read reviews (0)
Related accessories
Similar products

49,30 €

Low prices guaranteed
Satisfied or refunded
3-years warranty
Ref : 30891

In stock

shipped under 8/10 days

Stock in store

Not available in store

The brand Palmer

Learn more about the Palmer brand and discover the entire catalog.

Discover

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

find out more

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

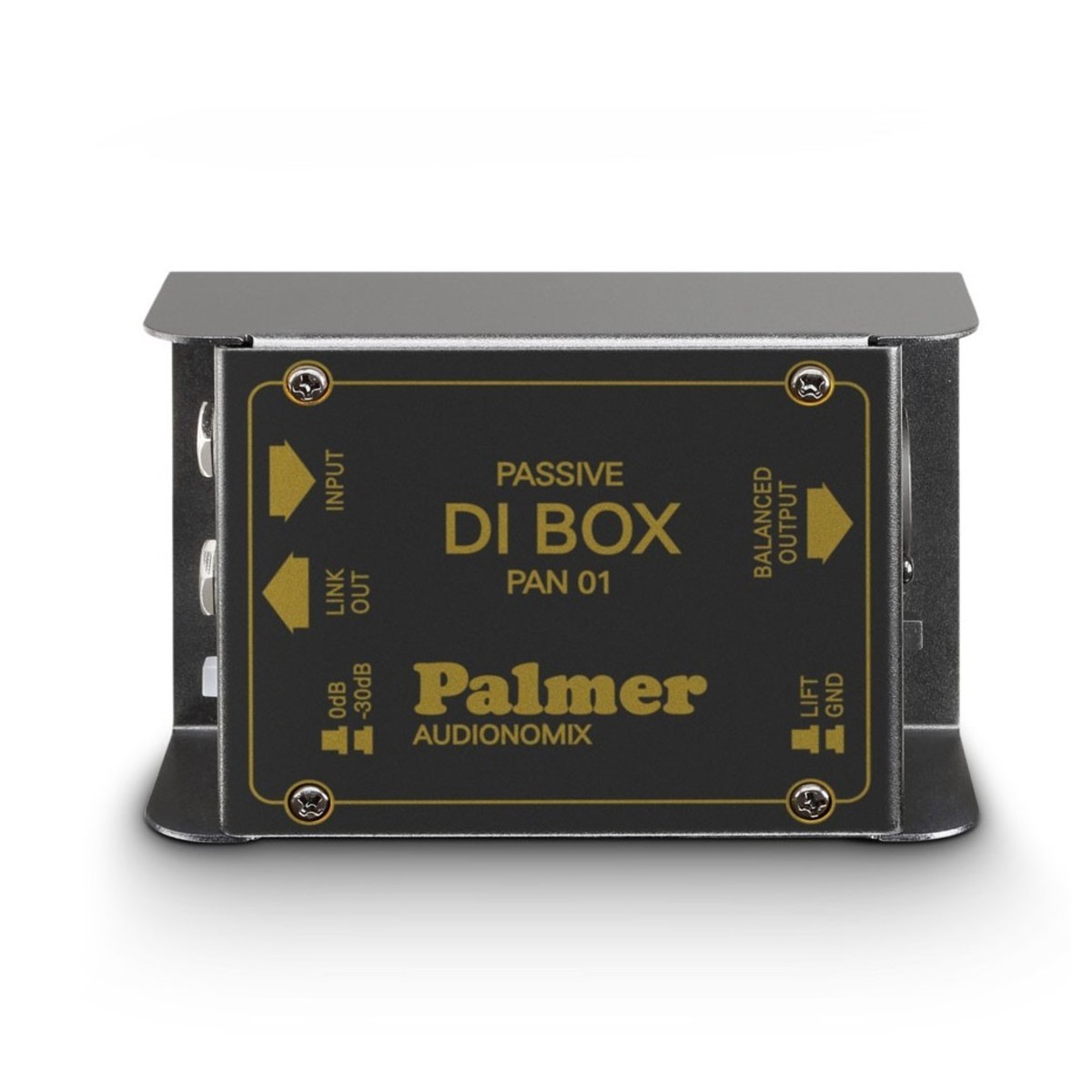

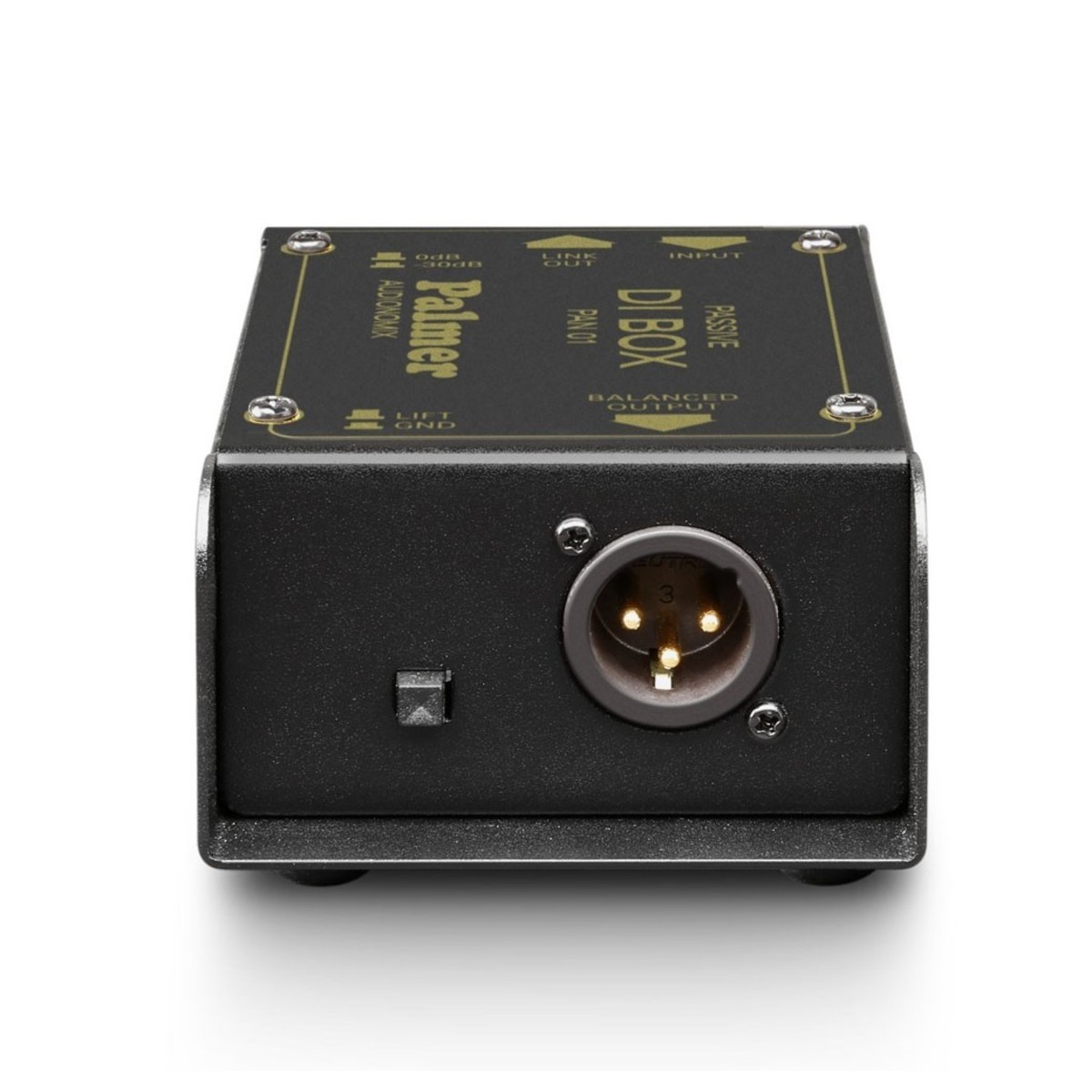

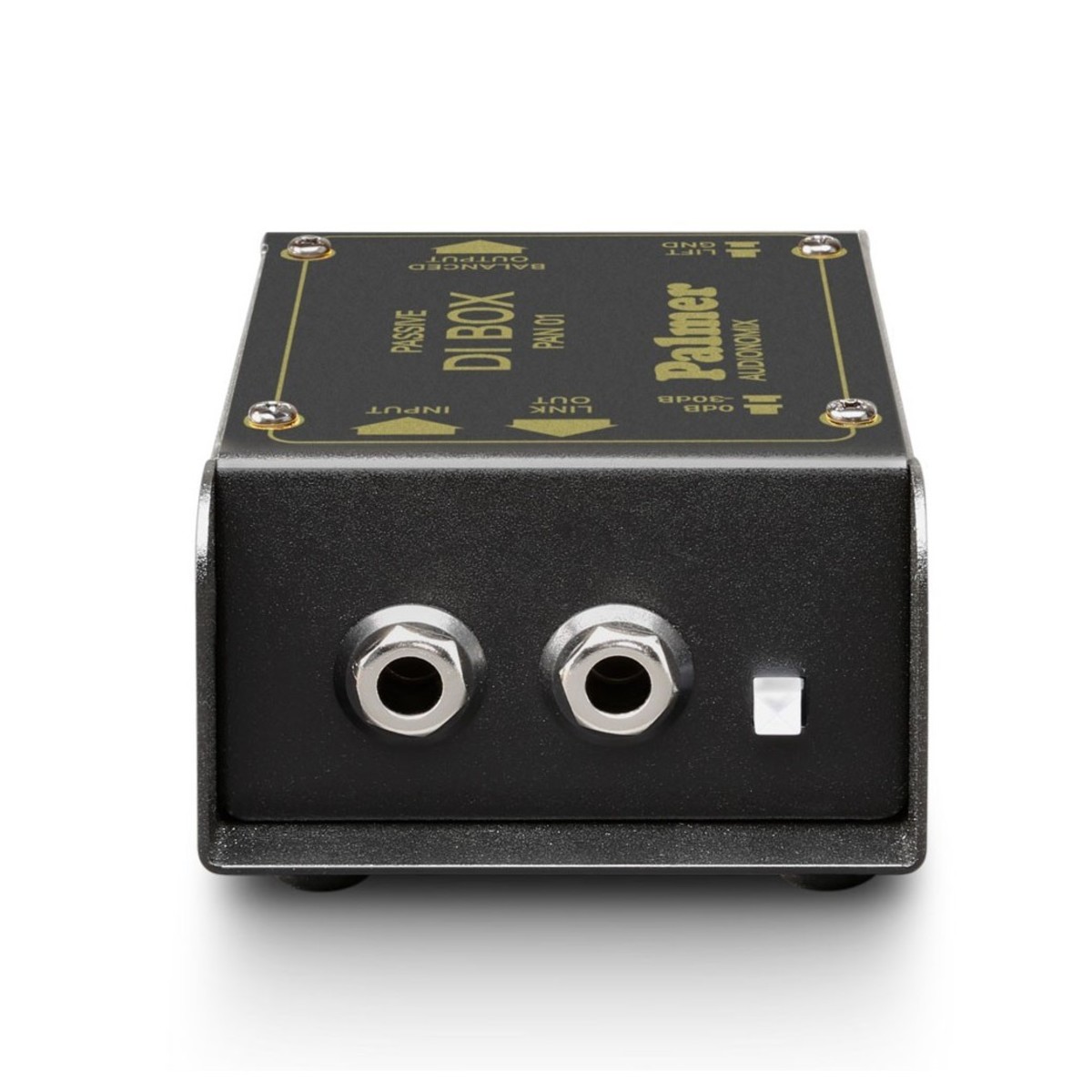

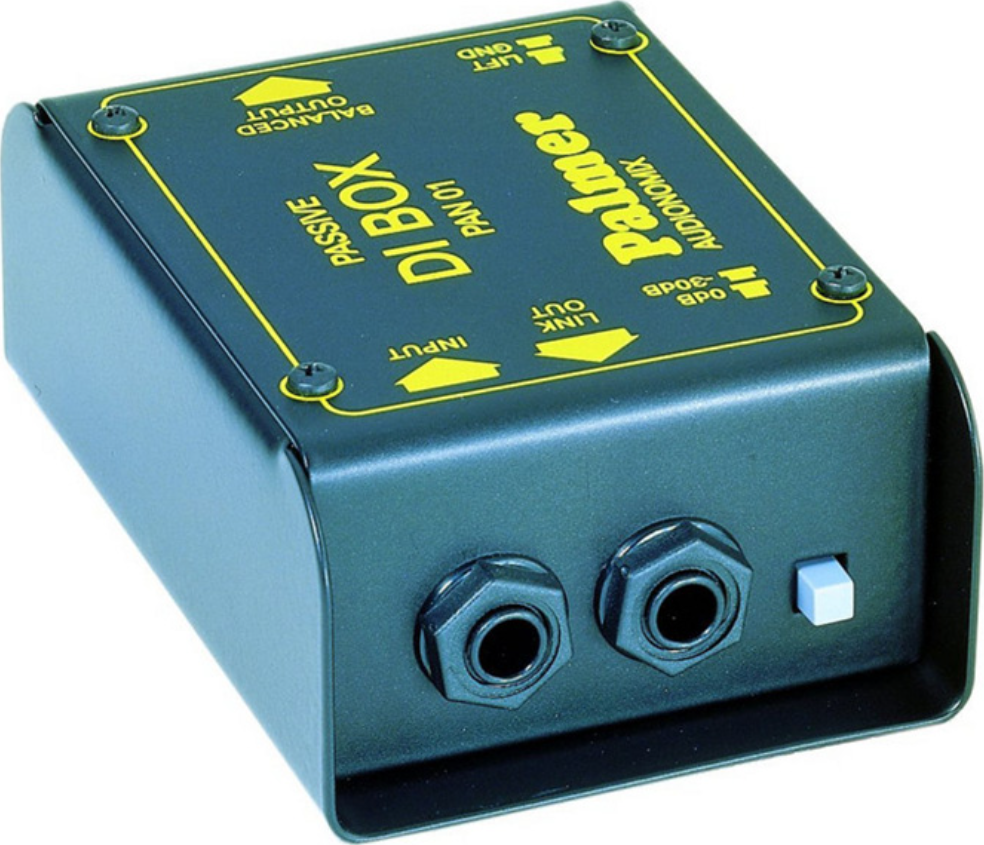

Di box

Standard passive DI box for line and loudspeaker levels.
Jack input with parallel "THRU" output, transformer balanced XLR output. Attenuable input sensivity, can handle both line level and speaker level singals.

Technical sheet

Passive DI box
Jack input with paralell “THRU” output, transformer balanced XLR output
Attenuable input sensitivity, can handle both line level and speaker level signal
Input sensitivity adjustable
Input impedance 68,000 ohms
Output impedance 600 ohms
Transformer ratio 10 : 1
Maximum output +6 dB
Ground lift switch
Attenuator -30 dB
Input/Output gain -20 dB
Frequency Range 2K Source Imp. -1dB 10 Hz - 40 kHz
