Palmer PAN08

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Palmer Pan08 - DI Box - Main picture
  • Palmer Pan08 - DI Box - Variation 1
  • Palmer Pan08 - DI Box - Variation 2
  • Palmer Pan08 - DI Box - Variation 3
  • Palmer Pan08 - DI Box - Variation 4
439.00 €
381,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 78762
In stock
shipped under 8/10 days
Stock in store
Not available in store
Other version(s) or associated product(s)

The brand Palmer

Learn more about the Palmer brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Di box

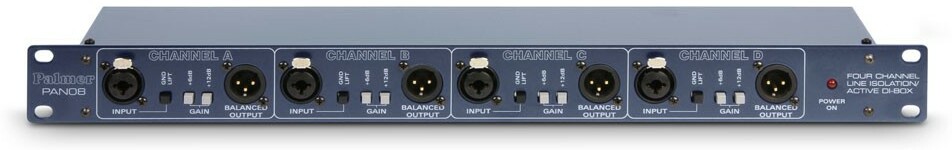

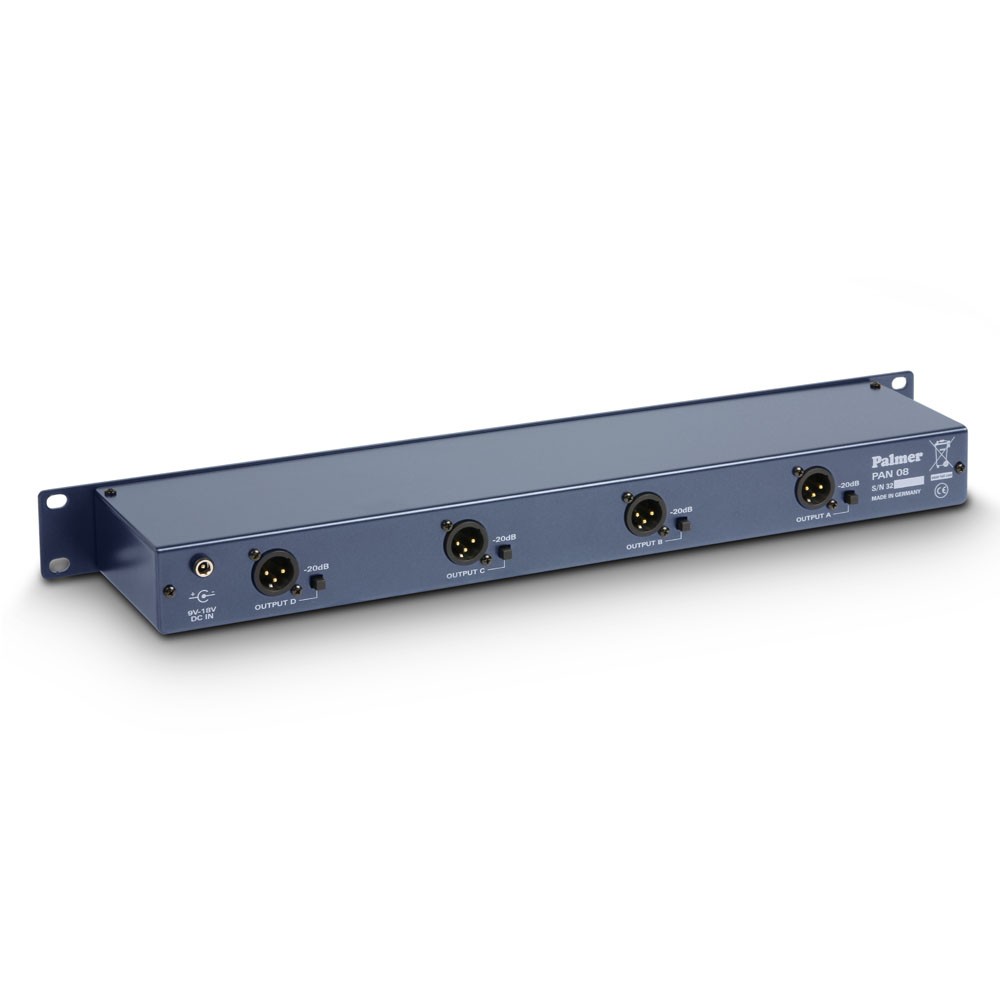

The PAN08 is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box or booster. The combination socket input accepts unbalanced and balanced signals. The output has dual transformer balanced XLR jacks (front and rear).

The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets even high professional standards. One special feature that is worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used without mains power outdoors.
Lire la suite

Technical sheet

  • Type: active
  • Channels: 4
  • Inputs: 4
  • Input: connectors 6.3 mm jack , XLR
  • Max. input level: +12 dBu
  • Input impedance: Balanced: 20k Ohm(s)
  • Outputs: 8
  • THRU outputs/channel: 0
  • Output connectors: XLR
  • Max. output level: +12 dBu
  • Output impedance: 600 Ohm(s)
  • Frequency response: 20 - 20000 Hz
  • Transformer balanced: yes
  • Ratio: Variabel
  • Indicators: Power
  • Controls: 2 x gain , attenuator , ground lift
  • Operating voltage: 9 V DC power supply
  • Cabinet material: sheet steel
  • Cabinet surface: powder coated
  • Width: 480 mm
  • Width: 19 "
  • Depth: 90 mm
  • Height: 45 mm
  • Height: 1 U
  • Weight: 1,59 kg
