Switch pedal

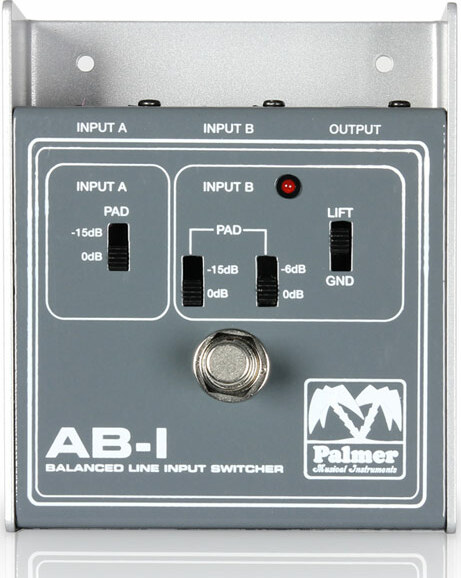

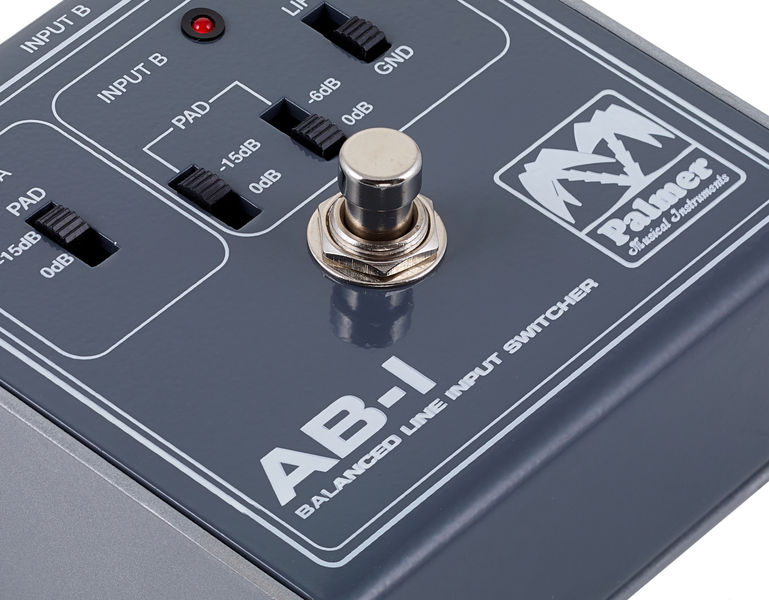

The Palmer PEABI is more than a simple switcher for two sources; simultaneously, the PEABI also handles level adjustment for various sources. Whether microphone or line signal, the PEABI toggles silently between the two inputs and thus permits fast and simple comparison between signals or connection of various sources to one input. Three slide switches make it possible to select various attenuation levels (6, 15 or 21 dB attenuation) individually for both inputs. A ground lift helps to avoid ground loop hum. Housed in a solid metal case with extended edges for optimum protection of the in- and outputs. A red LED clearly indicates which input is currently active. Pre-drilled holes permit simple and secure mounting in a rack or on a pedal board. The PEABI's strictly passive circuitry means that it requires no power supply at all. A 9-volt block battery is required to power the LED.
Lire la suite
Technical sheet
- Technical Specifications
- Product type: switcher
- Type: passive
- Switch function: Input switcher
- Number of channels: 2
- Number of Inputs: 2
- Input connections: XLR
- Number of outputs: 1
- Output connections: XLR
- Outputs transformer balanced: no
- Controls: Groundlift, Input PAD
- Indicators: Channel number
- Power Supply: 9-V block battery
- Case Material: Sheet steel
- Case surface: Powder coated
- Dimensions (W x H x D): 100 mm x 60 mm x 120 mm
