Peavey PVXP-10BT

  • Read reviews (0)
  • Related accessories
  • Similar products

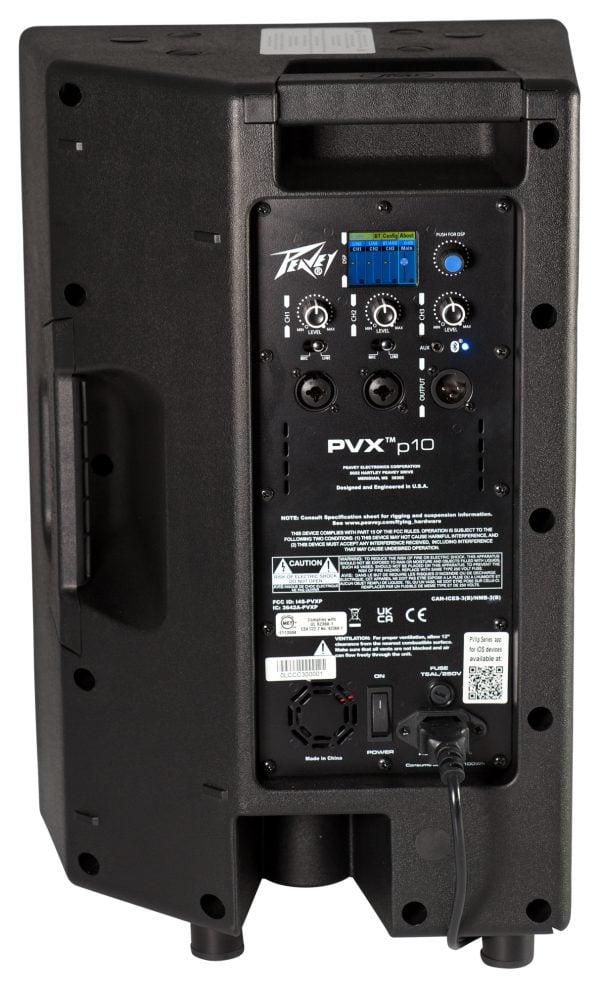

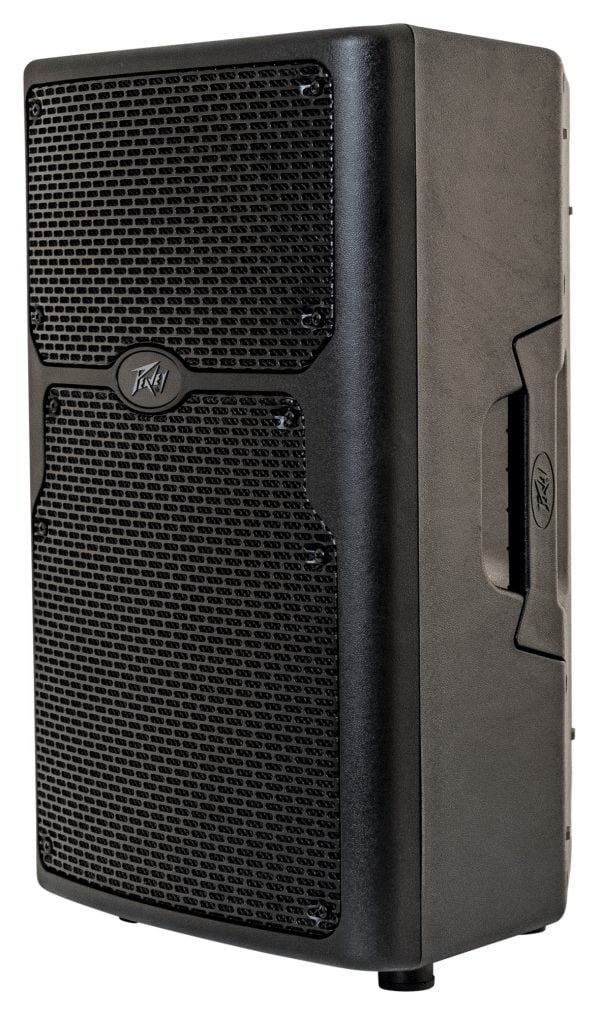

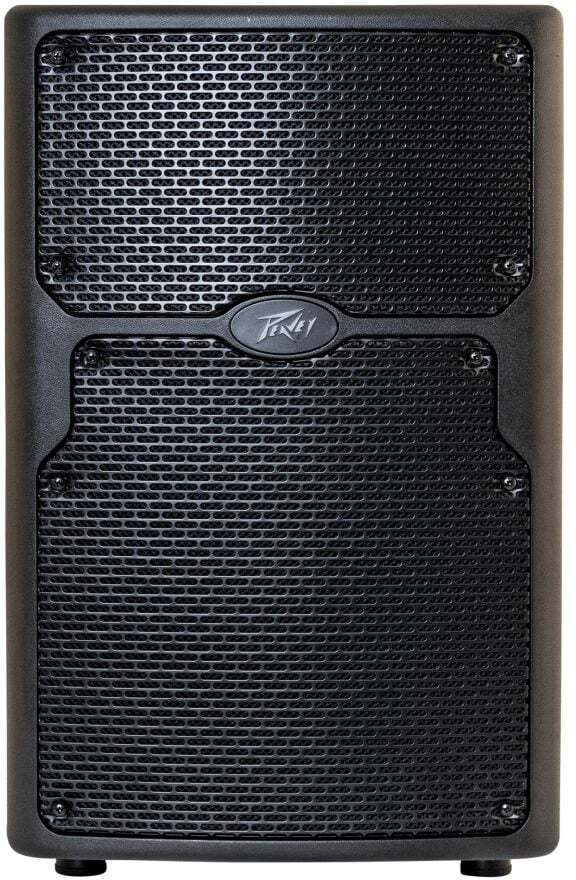

  • Peavey Pvxp-10bt - Active full-range speaker - Main picture
  • Peavey Pvxp-10bt - Active full-range speaker - Variation 1
  • Peavey Pvxp-10bt - Active full-range speaker - Variation 2
  • Peavey Pvxp-10bt - Active full-range speaker - Variation 3
  • 755.00 €
  • Ref : 117896
699,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
shipped under 5/8 days
Stock in store
Not available in store

The brand Peavey

Learn more about the Peavey brand and discover the entire catalog.

How to choose your PR System Buying guide

Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Active full-range speaker

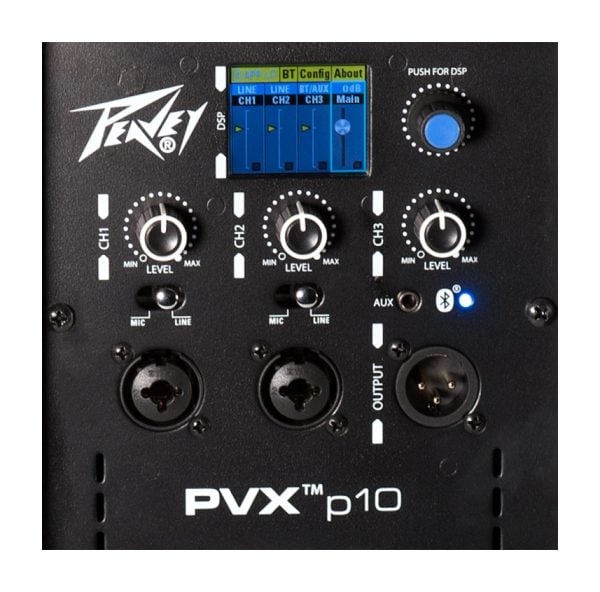

The Bluetooth PVXp 10 features a reliable bi-amplified power section that delivers a total of 520 Watts of peak dynamic power with DSP-based compression and limiting. This speaker features a robust 10-inch woofer with a 2 3/8-inch voice coil and 50-ounce magnet, and an RX10 compression driver with a 1-inch titanium diaphragm on a 100-degree horizontal x 60-degree vertical asymmetrical horn. The Bluetooth PVXp 10 offers two channels with balanced input via a combination jack that accepts a 1/4" TRS balanced input as well as an XLR balanced input. A switch allows you to switch from line-level gain to microphone-level gain. A third channel is intended for a Bluetooth source or a 1/8" AUX input jack. Each channel features an adjustable level control and a three-band equalization section. A balanced XLR male output allows mixed signals from all three channels to be routed to another component. An LED indicator on the front baffle can be set to light up when the unit is switched on and the "soft-limit" DDT circuit is activated, or it can be switched off completely. The LCD display and EQ presets, as well as other DSP operating parameters, are accessed via a one-button selector switch.
Lire la suite

Technical sheet

  • PA power speaker 301 to 600 watts RMS
  • Type of PA speaker Stage & FOH monitor
  • Type
    • 2-way bi-amplified PA speaker system
  • Speakers
    • 10" woofer with 2 3/8" coil and 50 oz magnet
    • RX™10 compression driver with 1" titanium diaphragm
  • Power
    • 520W dynamic peak
  • Amplification
    • Vented amplifiers with DSP protection
  • Digital processing
    • DSP I/O: 48 kHz / 24 bits
    • Internal processing: 56-bit double precision
    • Precise crossover, EQ and limiter management
  • Connectivity
    • Analog inputs: XLR female combo / 1/4" TRS jack (balanced)
    • Bluetooth or AUX input via 1/8" mini-jack
    • Mix/Thru output: male XLR
  • Channels
    • 3 channels: 2 analog, 1 Bluetooth/AUX
    • Each channel features level control and 3-band EQ
  • Technologies
    • Peavey Quadratic Throat Waveguide™ 100° x 60°
    • Asymmetrical 10° downward-facing horn
  • Construction
    • Plastic injection-molded trapezoidal housing
    • Perforated steel grille with resistant powder coating
    • Integrated stand mounting (1 3/8" diameter)
    • Upper and lower suspension points
    • Right-tilt for use in stage returns
  • Packaged dimensions (L x W x H)
    • 57 x 40.5 x 36.5 cm
  • Packed weight
    • 15.5 kg / 34.18 lb
