Compressor, sustain & noise gate effect pedal

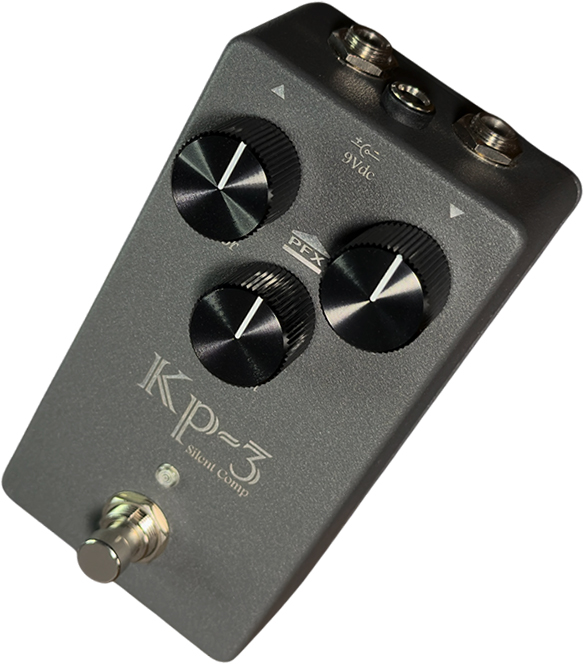

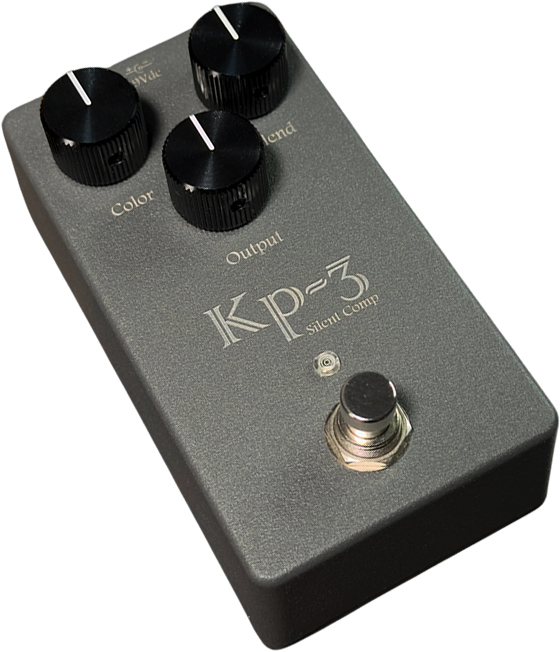

Designed and produced in France, the PFX CIRCUITS KP-3 Silent Compressor/Limiter pedal is a silent, versatile and intuitive compressor. Offered at a reasonable price, it's uncompromising on build and sound quality.

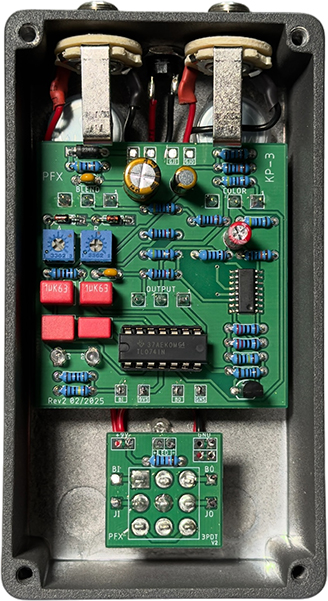

Hand-crafted from audio-grade thru-hole components, the KP-3's sophisticated circuitry is inspired by the PFX KP-1 and incorporates a parallel-connected LM13700 dual OTA. The KP-3 gives you subtle, automated control over compression. Three simple parameters are directly accessible: Color to choose between a warm, transparent sound or a brighter, more dynamic one, Blend to adjust the compression in parallel with the direct sound, Output to determine the output volume.
For the more demanding musician, pre-set Attack and Release controls are available inside the box for everyday use, but can be adjusted as required.
Hand-crafted from audio-grade thru-hole components, the KP-3's sophisticated circuitry is inspired by the PFX KP-1 and incorporates a parallel-connected LM13700 dual OTA. The KP-3 gives you subtle, automated control over compression. Three simple parameters are directly accessible: Color to choose between a warm, transparent sound or a brighter, more dynamic one, Blend to adjust the compression in parallel with the direct sound, Output to determine the output volume.
For the more demanding musician, pre-set Attack and Release controls are available inside the box for everyday use, but can be adjusted as required.
Lire la suite
Technical sheet
- for electric guitar Yes
- PFX CIRCUITS KP-3 Silent Compressor/Limiter
- SKU PFX Circuits KP3
- Compression inspired by PFX KP-1
- For electric guitar
- Compact effects pedal
- Handcrafted in France
- Analog circuit
- Audio quality thru hole components
- Color: adjusts the color of your pre-compression sound from high-pitched and dry to transparent and warm.
- Blend: lets more or less of your clean sound pass through (parallel compression). It's a compression ratio (with a maximum setting, you get a limiter).
- Output: output volume
- Attack and Release presets adjustable internally
- Connections: see images
- Automatic input level protection
- Automatic treble boost
- True Bypass circuit
- 125b powder-coated case, laser-engraved silk-screen printing
- Power supply via 9V battery or optional 9VDC mains adapter (2.1 mm barrel plug, negative center)
- Power consumption 20 mA
- 12.8 x 6.4 x 5.8 cm
