Active studio monitor

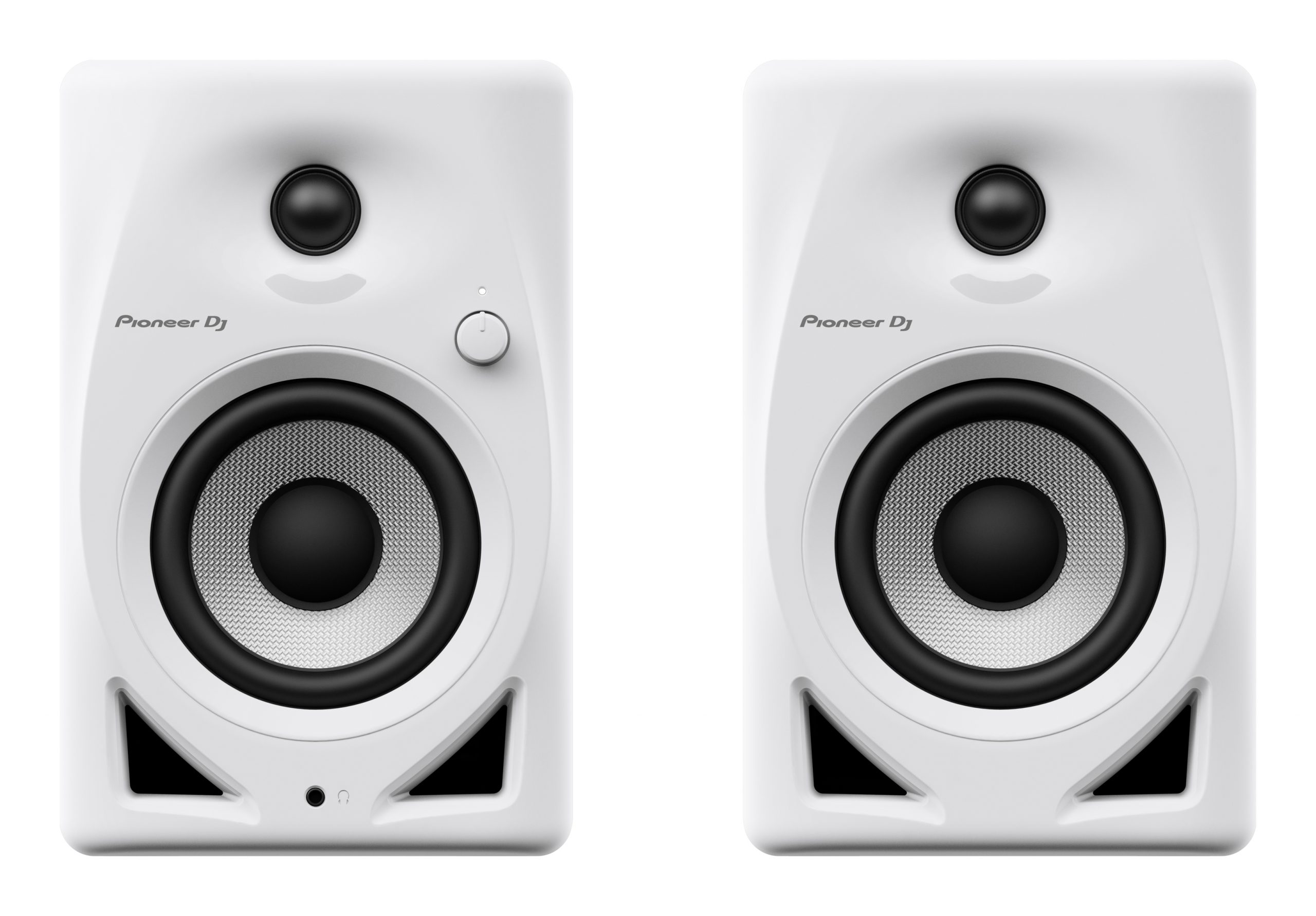

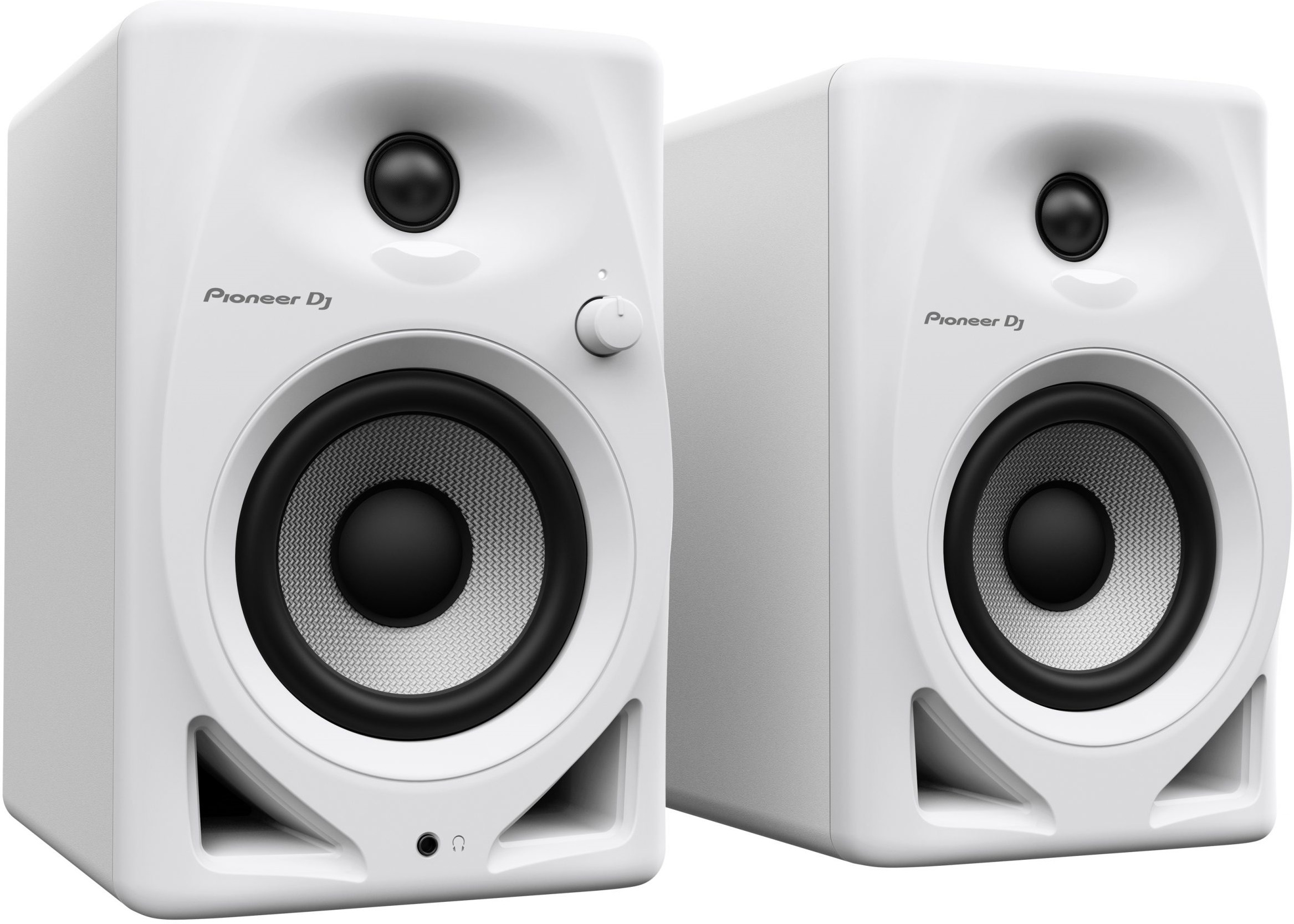

The Pioneer DJ DM-40D-w is a monitor speaker.
Each DM-40D speaker boasts a Class D amplifier with 96 kHz sampling
DSP, updated DECO convex diffusers, and a 4-inch woofer that’s perfectly aligned with the tweeter. As a result, the desktop monitor system produces pure, balanced bass sound, crystal-clear high
frequencies, and plenty of power when you need it.
Want to DJ or make your own music? Flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for
the task.
With RCA and mini jack input terminals, you can connect different
kinds of gear such as DJ controllers and mixers, or the laptop or
soundcard you use for producing your own music.
Each DM-40D speaker boasts a Class D amplifier with 96 kHz sampling
DSP, updated DECO convex diffusers, and a 4-inch woofer that’s perfectly aligned with the tweeter. As a result, the desktop monitor system produces pure, balanced bass sound, crystal-clear high
frequencies, and plenty of power when you need it.
Want to DJ or make your own music? Flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for
the task.
With RCA and mini jack input terminals, you can connect different
kinds of gear such as DJ controllers and mixers, or the laptop or
soundcard you use for producing your own music.
Lire la suite
Technical sheet
- Monitor color White
- Monitor conditioning One pair
- Type 2-way bass reflex, active monitor speakers
- Amplifier type Class D with DSP
- Amplifier output Lch: 19 W / 4 Ω, Rch: 19 W / 4 Ω

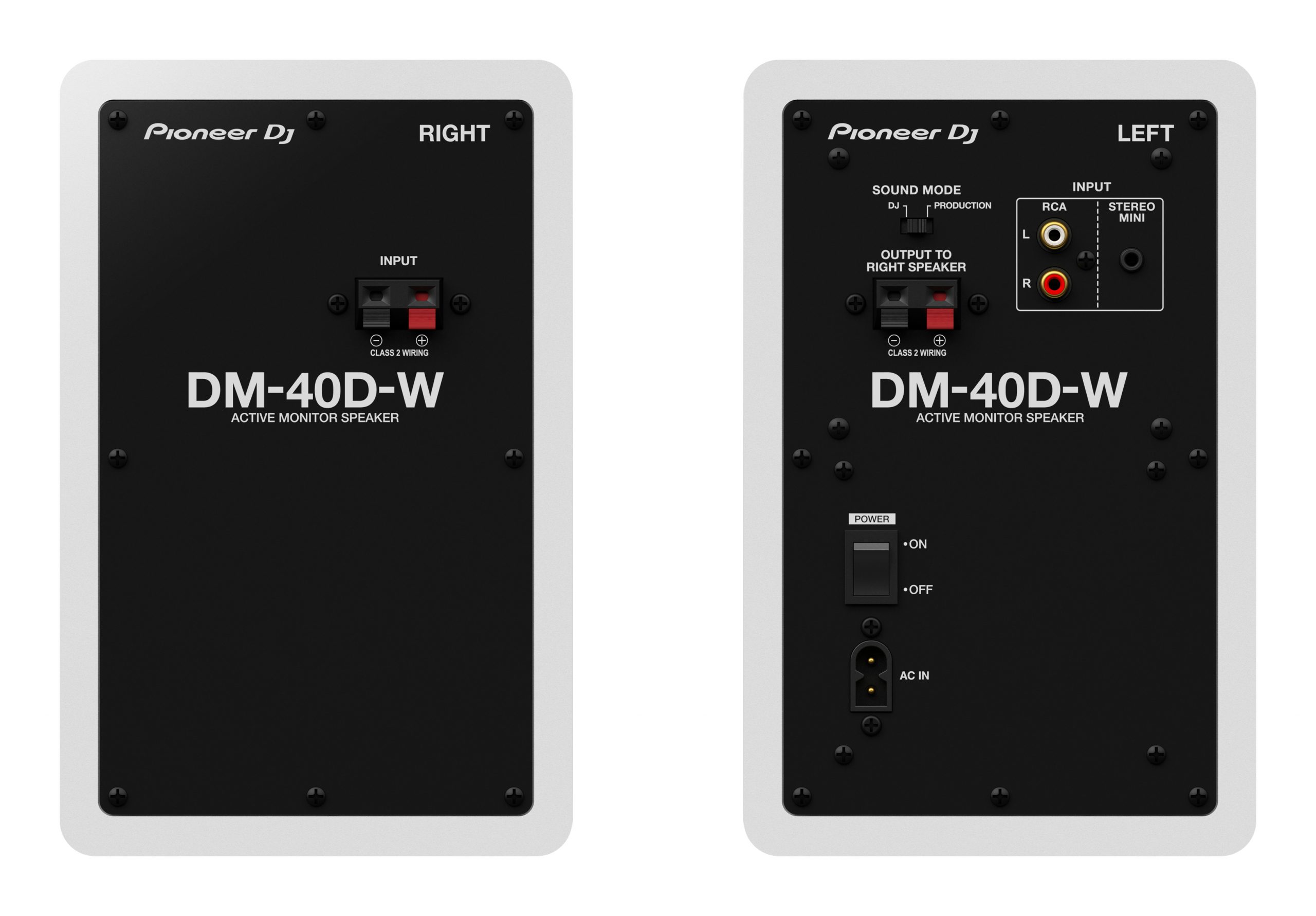

- Input terminals (unbalanced input) RCA pin jack x 1
- 3.5-mm stereo mini jack × 1
- Input impedance 10 kΩ
- Output terminal 3.5-mm stereo mini jack x 1
- Speaker
- Enclosure Bass reflex
- Enclosure material MDF vinyl laminate
- Woofer (LF driver) 4” (102 mm) fiberglass cones
- Tweeter (HF driver) 3/4” (19 mm) soft dome
- Power unit/other
- Supported voltages AC 110 V — 240 V, 50 Hz / 60 Hz
- Power consumption 20 W
- Power consumption during
- standby mode
- 0.3 W or less
- Max dimensions (W × D × H) Lch:
- 146 × 227 × 223 mm / 5.75” × 8.94” × 8.78”
- Rch:
- 146 × 227 × 212 mm / 5.75” × 8.94” × 8.35”
- Weight Lch: 2.5 kg / 5.5 lbs
- Rch: 2.2 kg / 4.9 lbs
- Accessories Power cord
- Audio converter cable (3.5 mm stereo mini plug
- to RCA)
- Speaker cord
- Bottom cushions
- Quick Start Guide
- Precautions for Use
- Warranty (for selected regions)
