Active subwoofer

Active subwoofer QSC Kla181.

Technical sheet

PA power speaker 601 to 1000 watts RMS
Type of PA speaker FOH speaker

1,000 watt power module
18" vented subwoofer
High acoustic output (135 dB SPL peak)
Frequency range down to 33 Hz (-10 dB)
Extensive DSP further enhances and protects performance
powerCON® Input and Thru connections
Threaded pole receptacle for free-standing applications (black models only)
Suspension made possible via M10 fittings or KLA12AF Array Frame

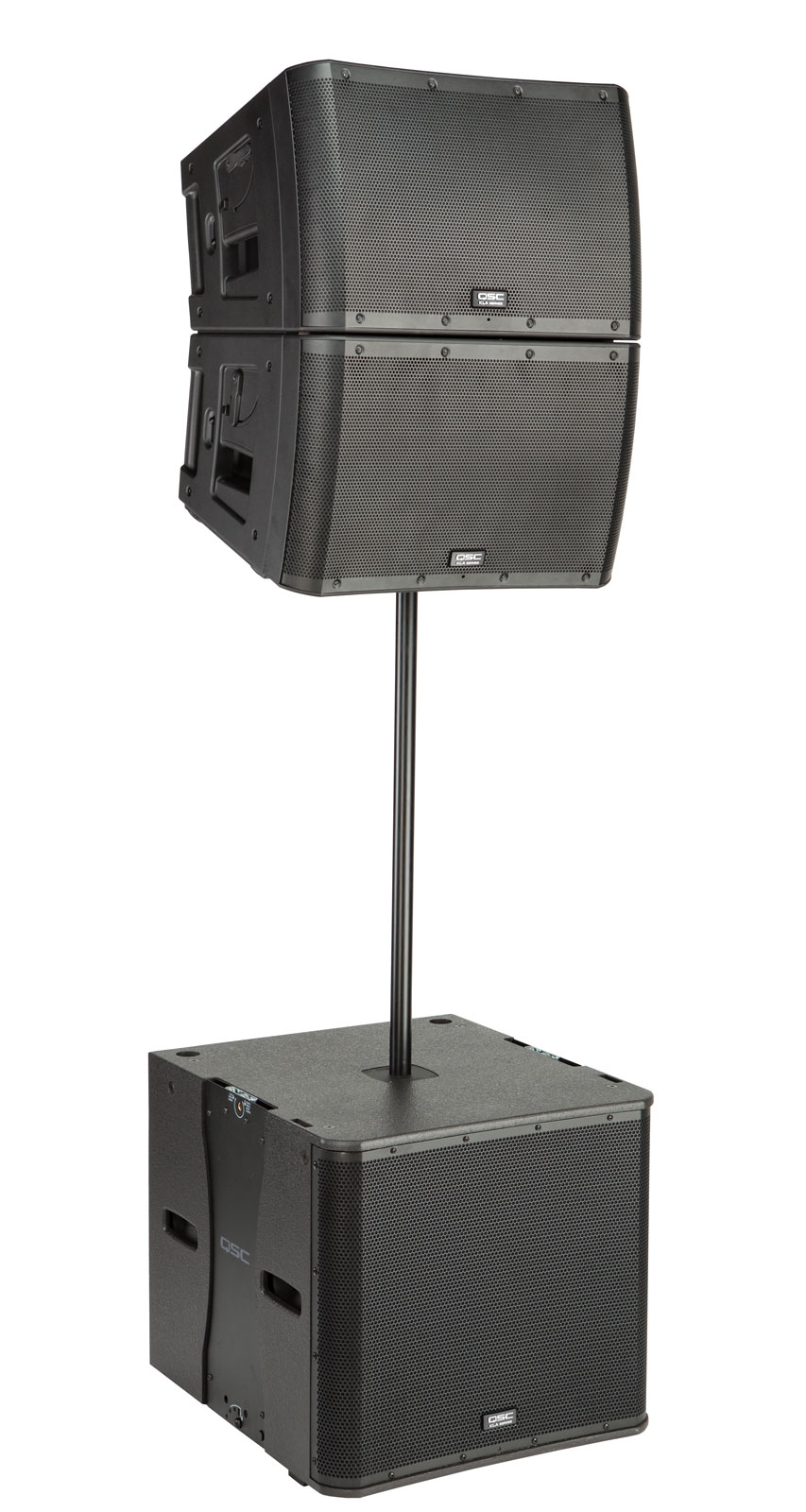

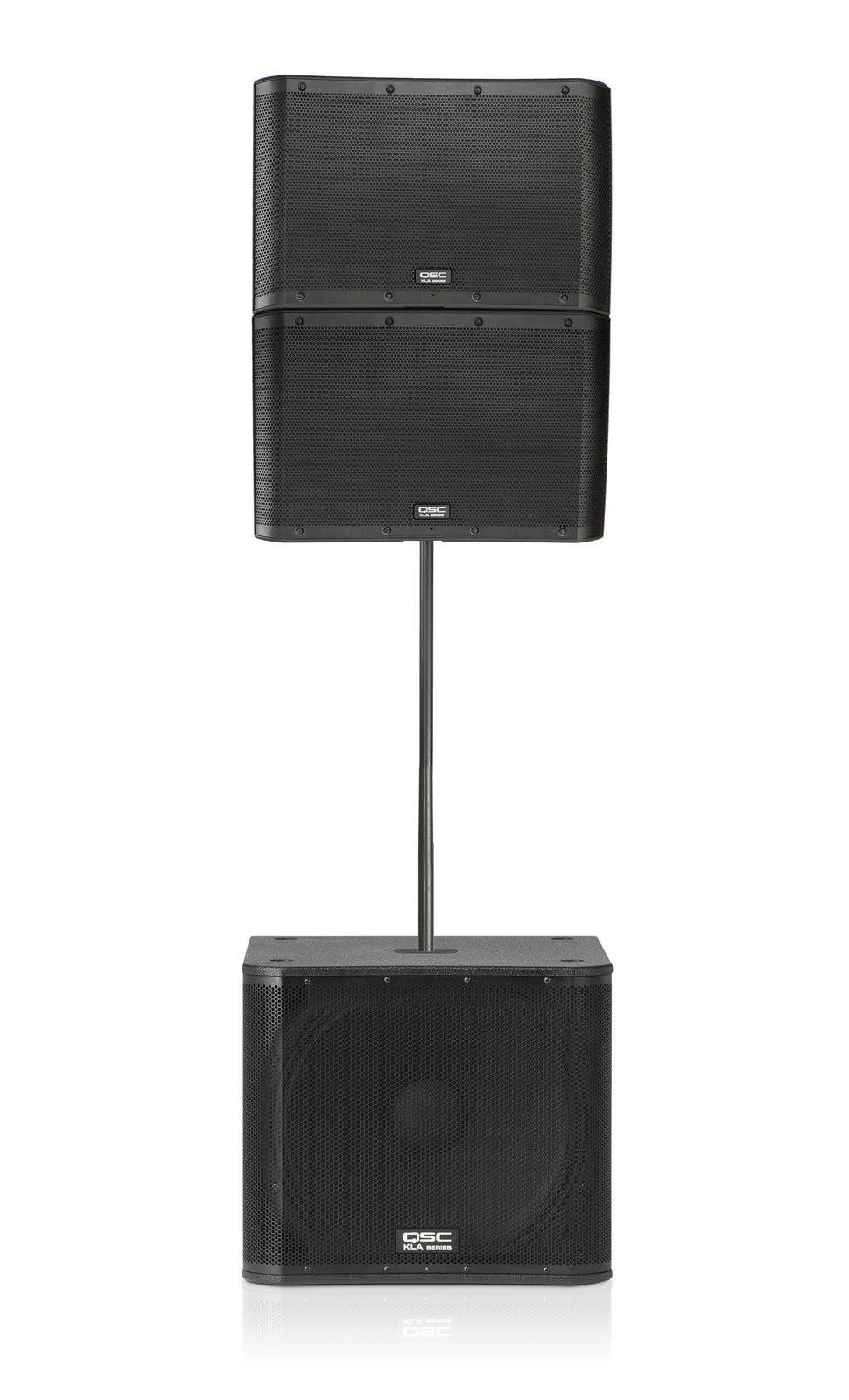

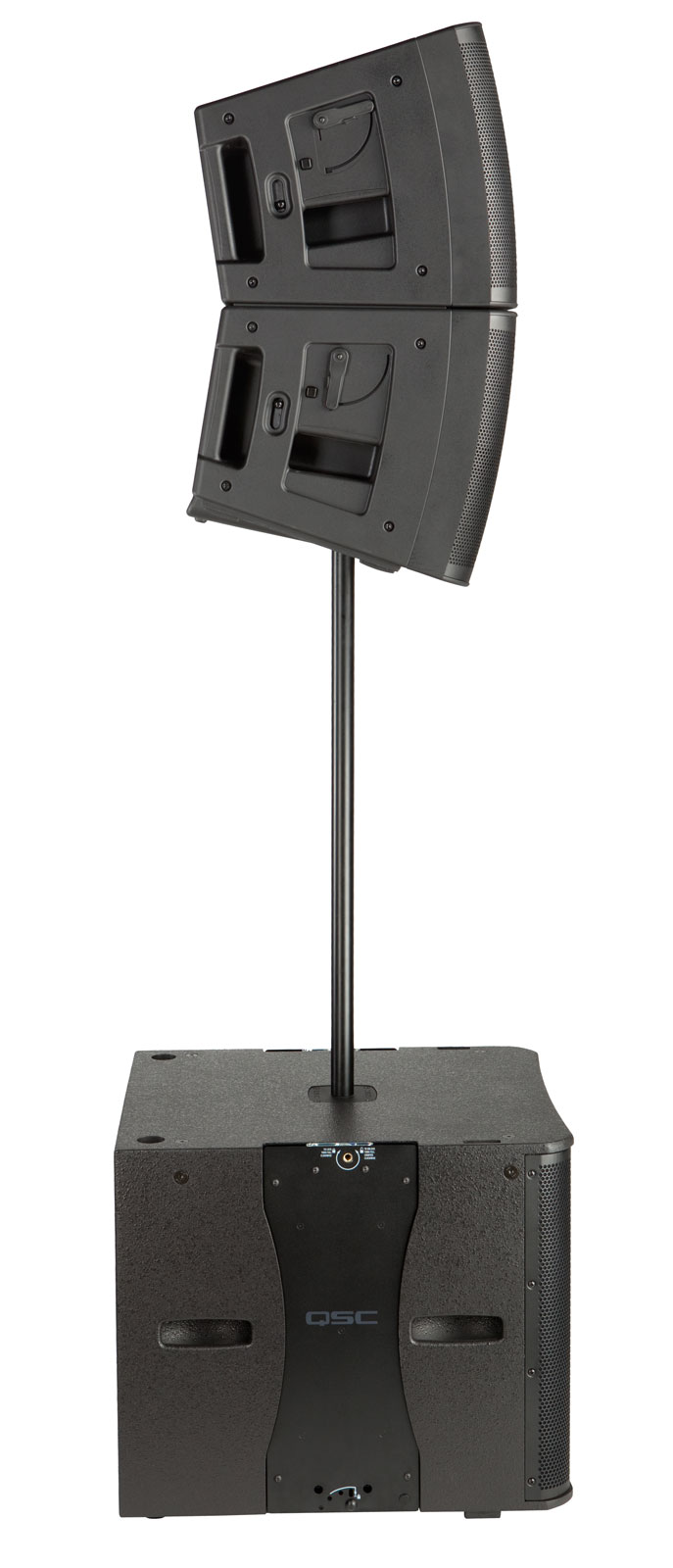

Integrated threaded pole mount supports up to two KLA12 enclosures (black models only)
Configuration : 18" subwoofer
Transducers (High Frequency / Low Frequency) : 18" cone transducer
Frequency Response (-6 dB) : 38 Hz
Frequency Range (-10 dB) : 33 Hz
Maximum SPL (1 meter) : 135 dB peak
Amplifiers
Power Output : 1000 W Class D continuous
Input Impedance : XLR: 40 kΩ balanced / 20 kΩ unbalanced
Controls : Power, Attenuation, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off)
Indicators : Power, Signal, Standby, Limit
Connectors : Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out
Cooling : On demand, 50 mm variable speed fan
Amplifier Protection : Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection : Thermal limiting, excursion limiting
AC Power Input : Universal power supply 100–240 VAC, 50 to 60 Hz
AC Power Consumption : 100 VAC, 2.3 A / 120 VAC, 2.01 A / 230 VAC, 1.13 A
Enclosure
Material : Painted birch plywood
Finish : Black textured paint
Grille : Black powder coated 16 gauge steel
Dimensions (HWD) inches : 21.6 × 23.1 × 25.7
Dimensions (HWD) mm : 547 x 586 x 633
Net Weight : 100 lb / 45.3 kg
