Active subwoofer

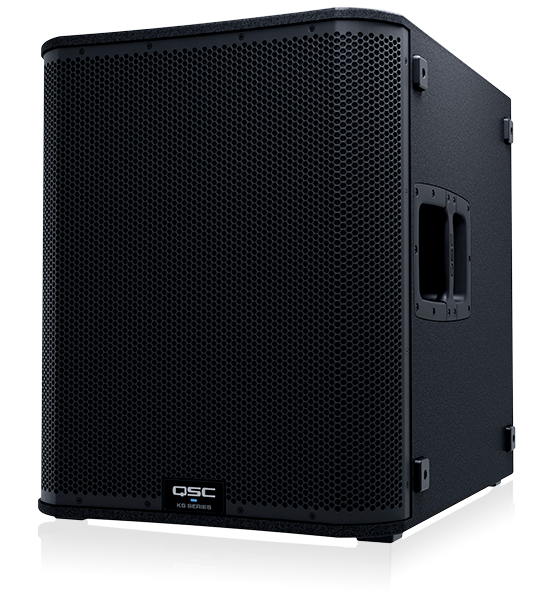

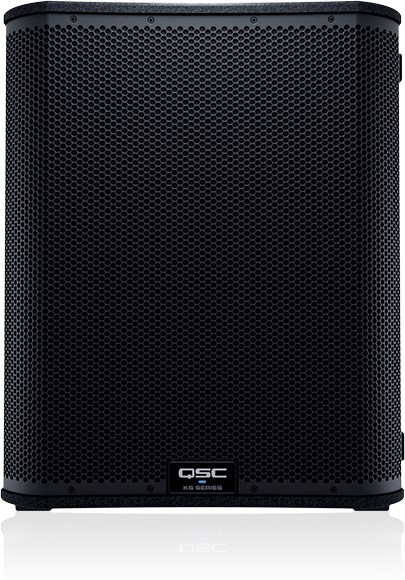

The Qsc Ks118 is an amplified cabinet with a power of 3600W.
The KS118 is a very high output active subwoofer producing impressive low frequencies for mobile entertainment, AV production, clubs and performance venues. Featuring an 18-inch direct radiating driver powered by a 3600 Watt Class D amplifier, the KS118 delivers high sound pressure levels with dynamic and musical sound reproduction of very low frequencies.

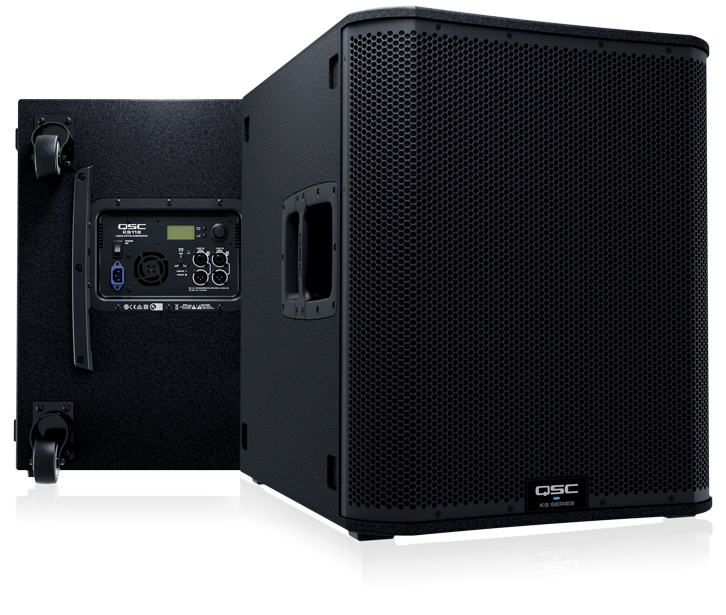

On-board DSP optimizes and protects system performance as well as offers advanced capabilities such as the ability to array two units in a cardioid arrangement. Highly transportable, the rugged enclosure features comfortable handles and four low noise casters. An M20 threaded pole receptacle accepts a 35 mm pole for easy vertical deployment with full-range loudspeakers.
The KS118 is a very high output active subwoofer producing impressive low frequencies for mobile entertainment, AV production, clubs and performance venues. Featuring an 18-inch direct radiating driver powered by a 3600 Watt Class D amplifier, the KS118 delivers high sound pressure levels with dynamic and musical sound reproduction of very low frequencies.
On-board DSP optimizes and protects system performance as well as offers advanced capabilities such as the ability to array two units in a cardioid arrangement. Highly transportable, the rugged enclosure features comfortable handles and four low noise casters. An M20 threaded pole receptacle accepts a 35 mm pole for easy vertical deployment with full-range loudspeakers.
Technical sheet
- PA power speaker 601 to 1000 watts RMS
- Type of PA speaker FOH speaker
- Configuration Direct Radiating
- LF Transducer 460 mm (18 in), Cone
- Frequency Response (-6 dB) 41 Hz - 98 Hz
- Frequency Range (-10 dB) 35 Hz - 111 Hz
- Nominal Coverage Angle: Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
- Maximum Rated SPL1 136 dB @ 1 m (peak)
- Amplifier Class D
- 3600W (peak)
- Cooling Low-noise, variable speed fan
- Speaker Dimensions (H×W×D) 640 × 520 × 785 mm
- 25.2 × 20.5 × 30.9 in
- Net Weight 47 kg / 104 lb (including casters)
- Included Accessories 4 × Low-Noise, Heavy Duty Casters
- Optional Accessories KS118-CVR Transport Cover, KS-LOC Lock-Out Cover
- SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole
