Description

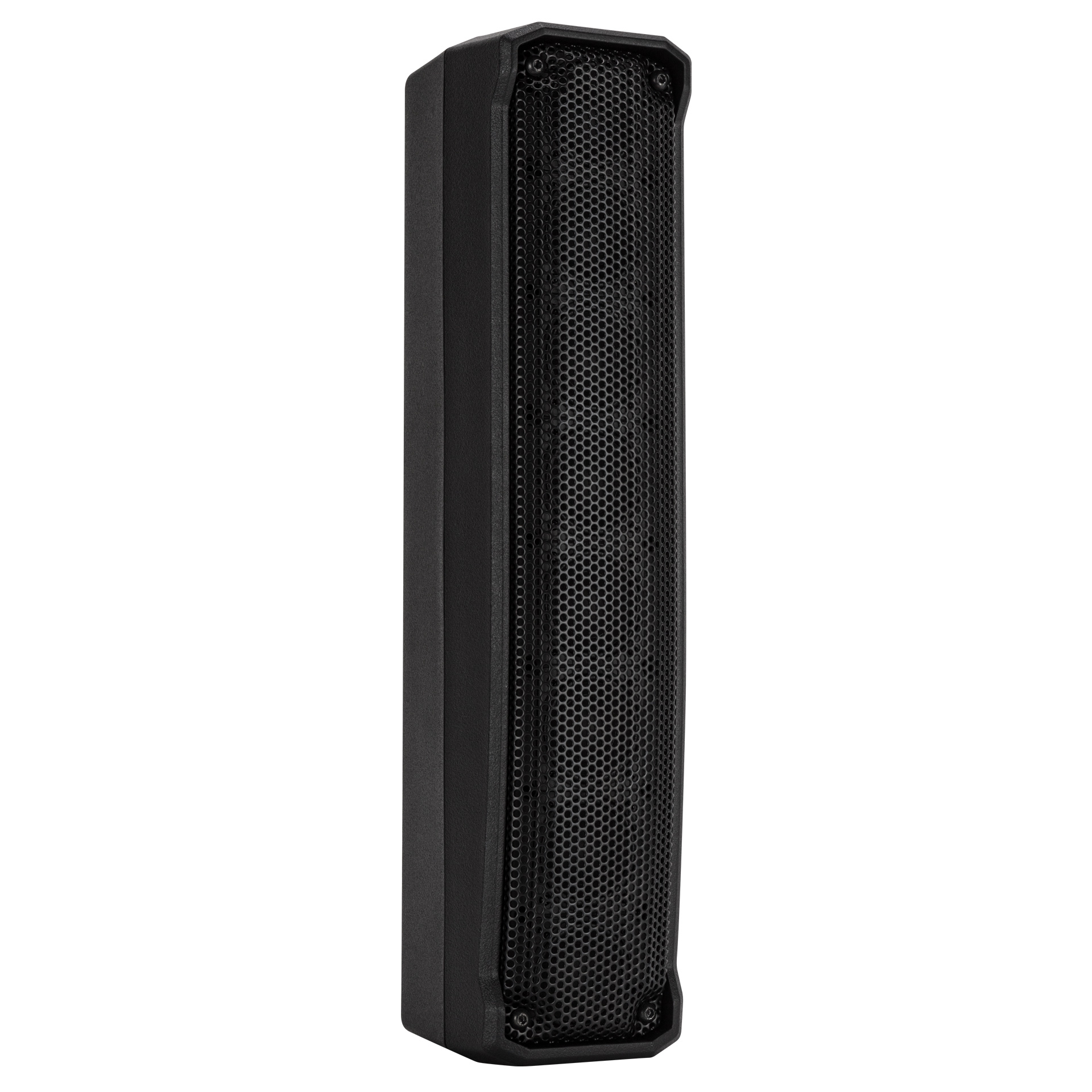

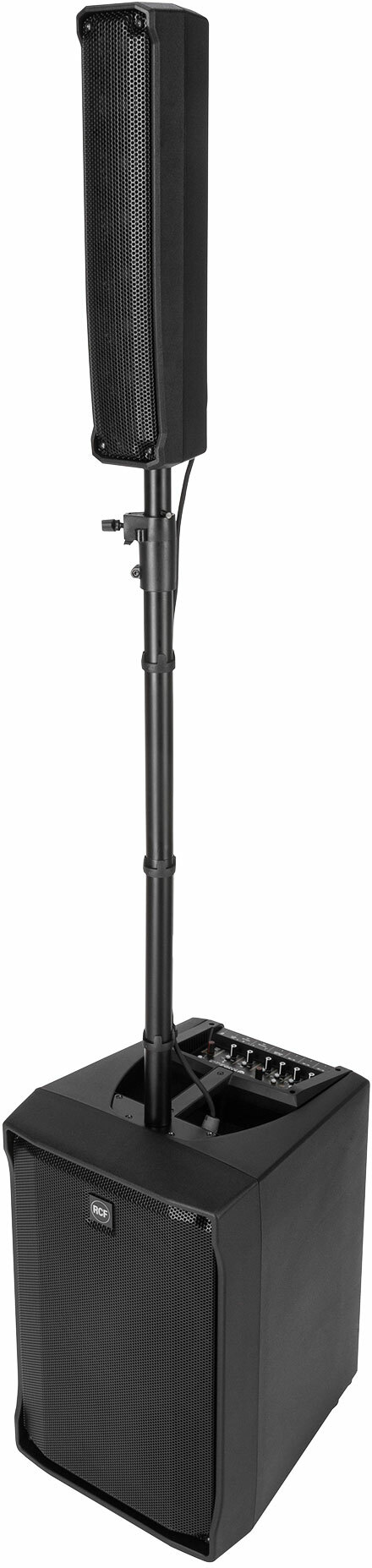

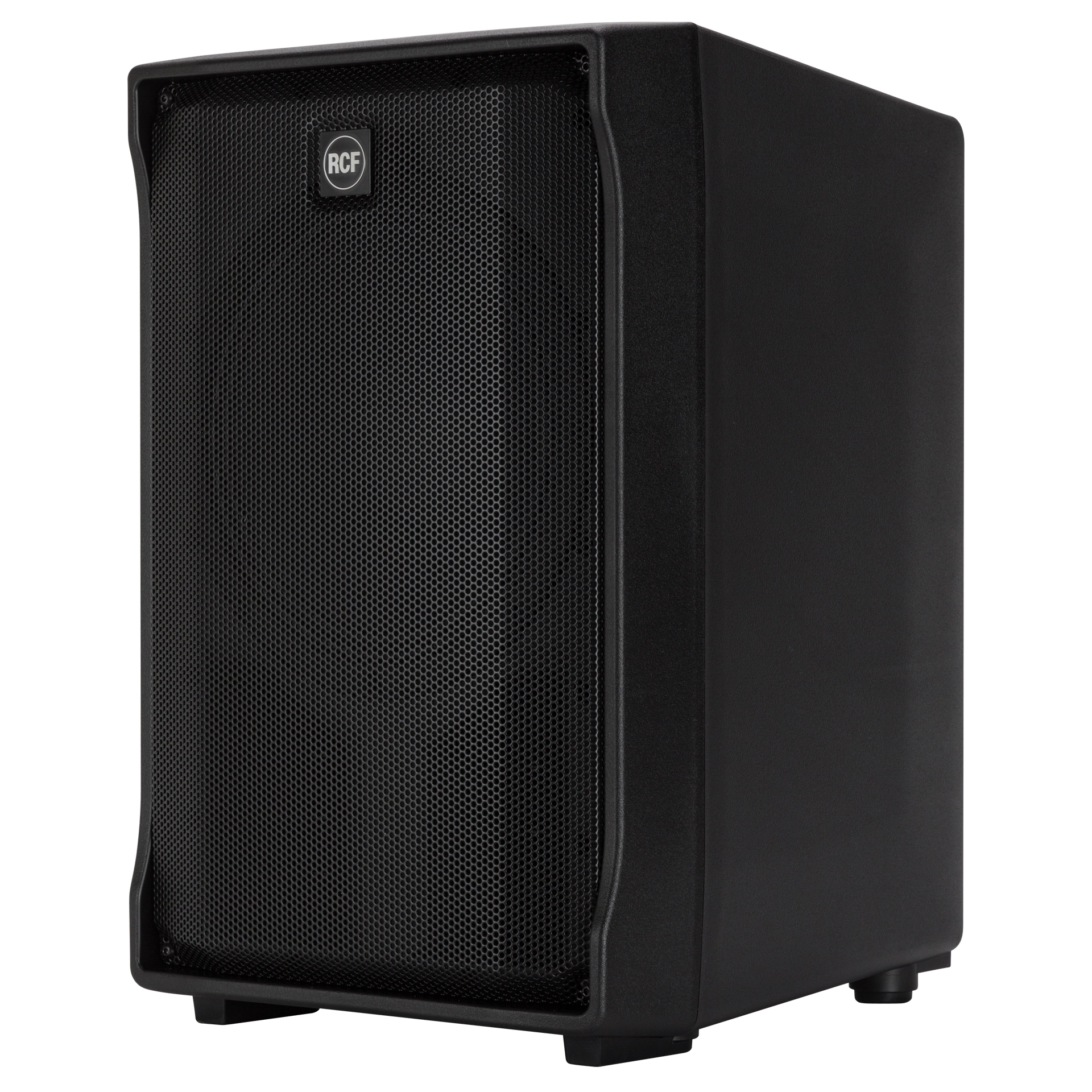

The RCf Evox Jmix8 is an amplified column system.
The innovative onboard Z.CORE DSP offers much more than complete mixing functions;
It also integrates high-end effects and amp simulation instruments. An EVOX app compatible with iOS and Android operating systems controls the JMIX8.
With the addition of a Bluetooth audio gateway and Hi-Z jack, the EVOX JMIX8 combines the quality and reliability of RCF amps and transducers with a powerful 8-track digital mixer with remote control capability.
spl max: 128 db
2-way power 1400 watts

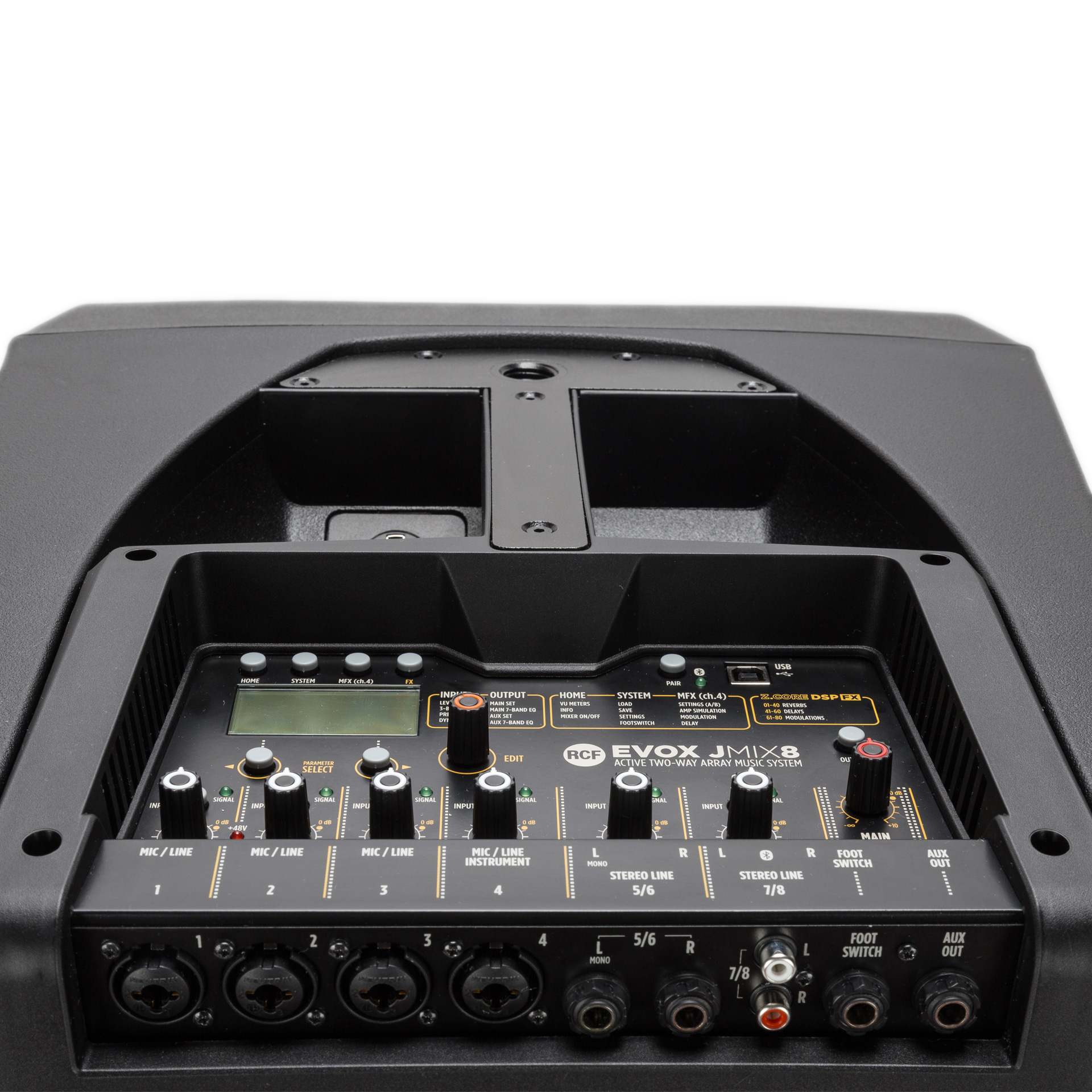

8-input digital mixer with multiple fx, amp simulator and remote control
dsp treatment with firphase
The innovative onboard Z.CORE DSP offers much more than complete mixing functions;
It also integrates high-end effects and amp simulation instruments. An EVOX app compatible with iOS and Android operating systems controls the JMIX8.
With the addition of a Bluetooth audio gateway and Hi-Z jack, the EVOX JMIX8 combines the quality and reliability of RCF amps and transducers with a powerful 8-track digital mixer with remote control capability.
spl max: 128 db
2-way power 1400 watts
8-input digital mixer with multiple fx, amp simulator and remote control
dsp treatment with firphase
Lire la suite
Technical sheet
- Specifications acoustiques
- RÉPONSE DE FRÉQUENCE :
- 40 Hz ÷ 20000 Hz
- ANGLE DE COUVERTURE HORIZONTALE :
- 120°
- SPL MAX. @ 1M :
- 128 dB
- ANGLE DE DÉTECTION VERTICAL :
- 30°
- Specifications electroniques
- RÉPONSE DE FRÉQUENCE :
- 20 Hz ÷ 20 Hz
- THD+N, GAIN 20 DB, 0DBU OUT (% A-PONDÉRÉ) :
- 0.004% A-Weighted
- Equalisation
- DESCRIPTION :
- 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequencyGraphic 7 Band EQ on Main Mix and AUX send.
- ÉGALISEUR DES CANAUX D’ENTRÉE :
- 1 Semi Parametric / 2 Shelving
- Taille
- PROFONDEUR :
- 460 mm / 18.11 inches
- HAUTEUR :
- 623 mm / 24.53 inches
- POIDS :
- 22.2 kg / 48.94 lbs
- LARGEUR :
- 400 mm / 15.75 inches
