More access for guitar effects

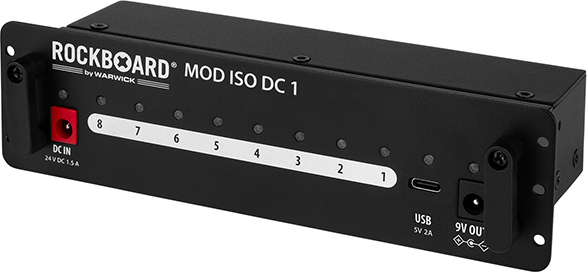

The Power MOD ISO DC 1 is a multiple power supply for effects pedals, offering up to 9 isolated and highly filtered 9 V DC electrical connections, plus a 5 V USB connection. It fits into a MOD slot on ROCKBOARD pedalboards, but thanks to its removable front plate, it can also be used as a power supply for other pedalboards.
Power MOD ISO DC 1 highlights
- Up to 9 isolated, highly filtered 9 V DC electrical connections.
- Adaptability to different pedalboards thanks to removable front plate.
- Sophisticated filter technology for noise-free power supply.
- Separate short-circuit protection for each power slot.
- Separate LED indicators to monitor the status of each connection.
Key features of the Power MOD ISO DC 1
Multiple power supplies for a complete pedalboard
The Power MOD ISO DC 1 provides reliable, noise-free power to up to 9 effects pedals simultaneously, allowing musicians to concentrate on their performance without interference.
Advanced filter technology
Equipped with state-of-the-art filter technology, the Power MOD ISO DC 1 effectively eliminates high-frequency noise, ensuring a clean, stable signal for optimum performance.
Short-circuit protection
Each power slot is equipped with short-circuit protection, ensuring the safety of your effects pedals and preventing the whole system from being affected by an individual problem.
LED indicators for visual control
Separate LEDs indicate the health of each connection. In the event of a short-circuit, the affected slot is automatically deactivated, preserving the rest of your effects in operation.
Flexible design for all pedalboards

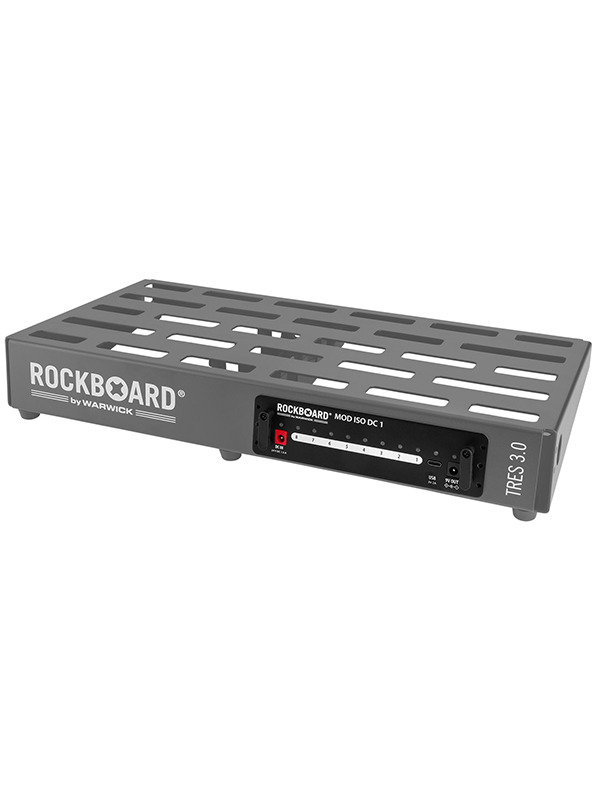

With a removable front plate, the Power MOD ISO DC 1 integrates perfectly into ROCKBOARD pedalboards while remaining adaptable for other installations.
Extended connectivity
Features a 5V USB connection in addition to the 9V DC connections, enabling powering of additional peripherals for versatile use.
Expert advice
- Stable power supply ideal for professional configurations.
- High-performance filtering technology for effective reduction of unwanted noise.
Lire la suite
Technical sheet
- Multiple power supplies for effects pedals
- Provides highly filtered, transformer-isolated power slots
- Fits MOD slots on RockBoard pedalboards
- Compatible with most other pedalboards

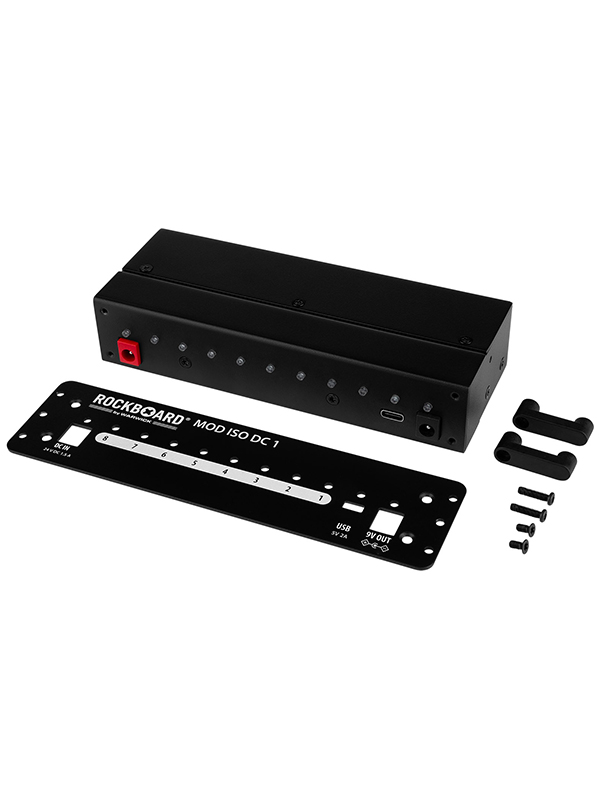

- Detachable front plate for mounting on or under pedalboards
- Advanced filter technology to prevent high-frequency noise
- External mains transformer to prevent low-frequency interference
- Reverse input polarity protection
- Individual status LEDs and short-circuit protection for all power slots
- 2 x cable ties for connected cables
- Input power supply
- 24 VDC / 1.5 A
- Outputs

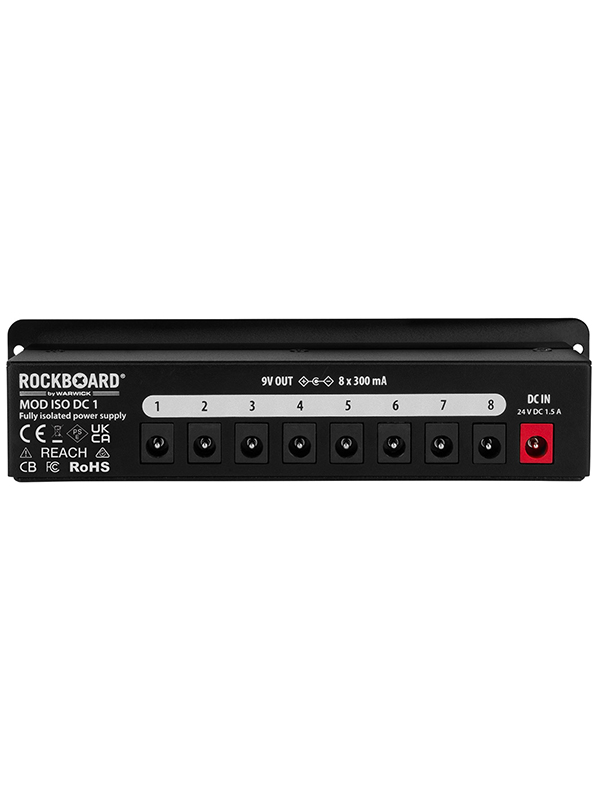

- 8 x 9 VDC, 300 mA each
- 1 x 9 VDC output, 500 mA
- 1 x USB-C 5 VDC, 2000 mA
- Included
- 1 x 24 VDC mains adapter (1.5 A) with interchangeable multi-regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240V AC
- 9 x flat RockBoard power cable, 60 cm (for connecting effect pedals)
- Dimensions (L x W x H)
- 175 x 85 x 47 mm (with front plate)
- 160 x 85 x 33 mm (without front plate)
- Weight
- 500 g
