Pedal power supply

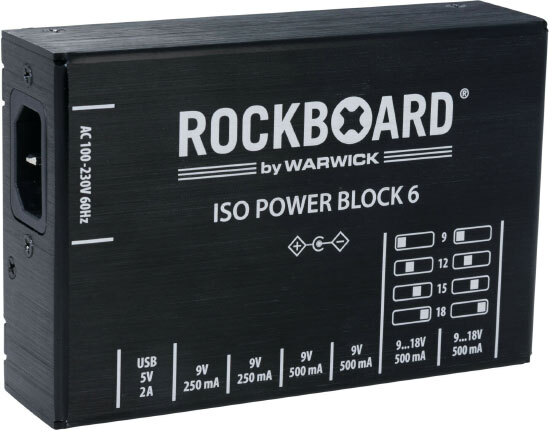

The RockBoard ISO Power Block 6 IEC is a multi-output effects pedal power supply featuring 6 isolated transformers and highly filtered power slots, as well as a single 5V USB output. This power supply has been designed to power up to 6 effects pedals simultaneously without generating noise. Advanced filtering technology used in the DC power slots prevents high-frequency noise. Built with individual short-circuit protection for each slot, connected effects pedals are protected in the event of a power surge. With a designated LED for each power supply slot indicating that the slot is functioning correctly, you can quickly identify any problems without losing power to the remaining pedals.
Lire la suite
Technical sheet
- Multi-output power supply for effects pedals
- 6 power supply slots with highly filtered, isolated transformers
- 1 USB output
- Designed to power up to 6 effects pedals simultaneously without generating noise
- Advanced filtering technology to prevent high-frequency noise
- 2 switchable power supply slots (9V DC, 500 mA / 12V DC, 375 mA / 15V DC, 300 mA / 18V DC, 250 mA), 2.1 x 5.5 mm cylindrical plug, center polarity (-)
- 2 slots for 9V DC power supply, 500 mA, 2.1 x 5.5 mm cylindrical plug, center polarity (-)
- 2 power supply slots, 9V DC, 250 mA, 2.1 x 5.5 mm cylindrical plug, polarity center (-)
- 1 USB-A output at 5V, 2,000 mA
- Individual status LEDs and short-circuit protection for all power supply slots
- International input voltage operation, compatible with supply voltages from 100 to 230V AC / 47 - 63 Hz
- Compact, robust aluminum housing

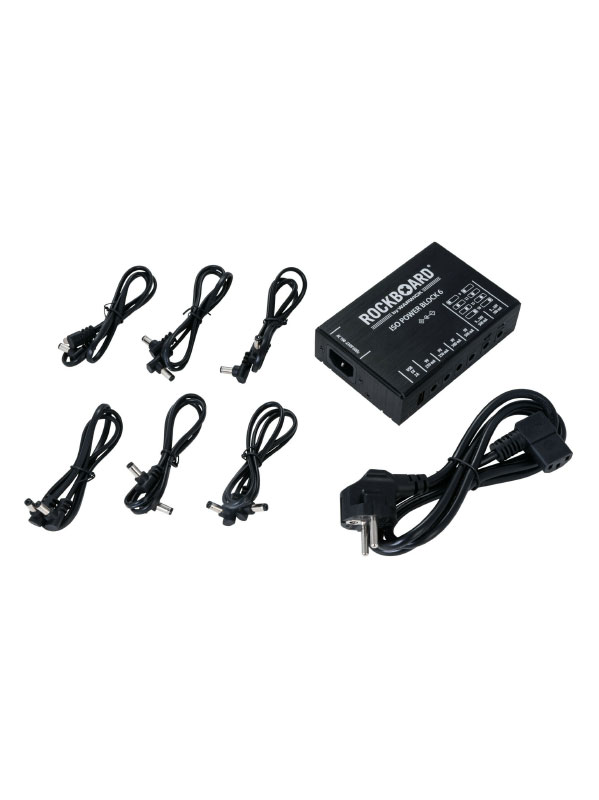

- Includes 6 flat 60 cm RockBoard power cables for connecting effects pedals
- Includes: 1 AC power cable, compatible with input voltage of 100 - 240V AC and 47 - 63 Hz
- Dimensions (L x W x H): 130 x 88 x 35 mm
- Weight: 386 g / 0.85 lbs
