Schoeps Minicmit Blue
- Read reviews (0)
- Related accessories
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 5 Years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
The brand Schoeps
Learn more about the Schoeps brand and discover the entire catalog.
Microphone buying guide
What microphone should you buy to record voice, guitar or drums? Everything is explained through this buying guide!
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Description

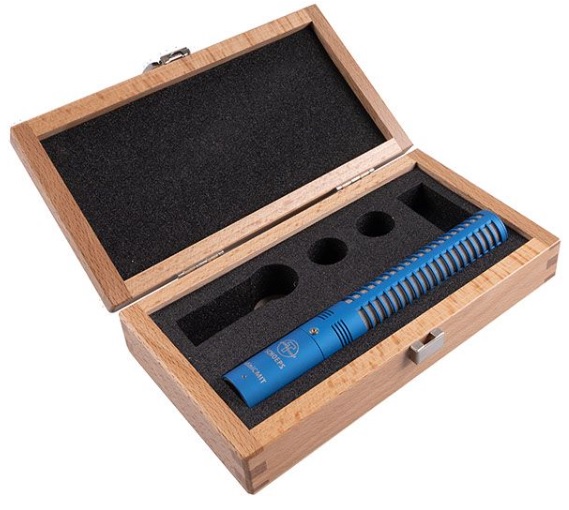

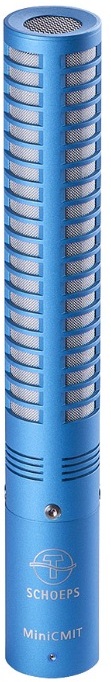

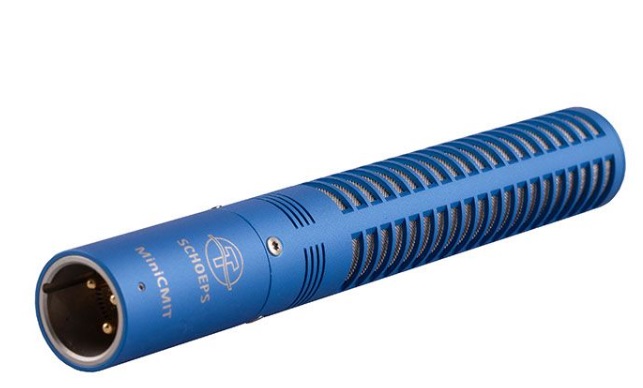

The Schoeps Mini CMIT Blue is a miniature shotgun microphone.
The MiniCMIT shotgun microphone offers the characteristics of a CMIT 5 in a more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. In addition, the MiniCMIT and CMIT 5 have similar circuitry characteristics, so the microphones can be interchanged without affecting the sound.
It is recommended that the MiniCMIT be used with digital transmitters such as the Audio Ltd. A10-TX for two reasons:
The MiniCMIT can use the P12, which is more energy efficient.
The MiniCMIT has the latest version of the Schoeps RFI shield, which has been specially developed and tested for this type of application.
The MiniCMIT shotgun microphone offers the characteristics of a CMIT 5 in a more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. In addition, the MiniCMIT and CMIT 5 have similar circuitry characteristics, so the microphones can be interchanged without affecting the sound.
It is recommended that the MiniCMIT be used with digital transmitters such as the Audio Ltd. A10-TX for two reasons:
The MiniCMIT can use the P12, which is more energy efficient.
The MiniCMIT has the latest version of the Schoeps RFI shield, which has been specially developed and tested for this type of application.
Technical sheet
- Sensor type
- Supercardioid / lobe
- Frequency range
- 60 Hz - 20 kHz
- Sensitivity
- -35 dB (V/Pa), 17 mV/Pa
- Equivalent noise level (A-weighted)
- 14 dB
- Equivalent noise level (CCIR)
- 24 dB
- Signal-to-noise ratio (A-weighted)
- 80 dB
- Maximum sound pressure level (THD < 0.5%)
- 130 dB-SPL (P48)
- 115 dB-SPL (P12)
- Maximum output voltage
- 1 V (0 dBV) with 2 kΩ load
- Low-cut filter
- fixed, 70 Hz, 24 dB/oct.
- Minimum recommended load impedance
- 2 kΩ
- Output impedance
- 100 Ω
- Maximum cable length
- >100 m
- SCHOEPS RFI shielding
- Yes
- Power supply standard / validity range
- P48 / >24 V
- P12 / >11 V
- Current consumption
- 2.3 mA (P48)
- Common mode rejection ratio (at 1 kHz)
- > 55 dB
- Output
- XLR-3M, analogue, 1 channel
- Length
- 151 mm
- Diameter
- 21 mm (0.6 in)
- Weight
- 78 g
- Surface finish
- blue
- custom colour :
- anthracite grey, chromatic green
