Description

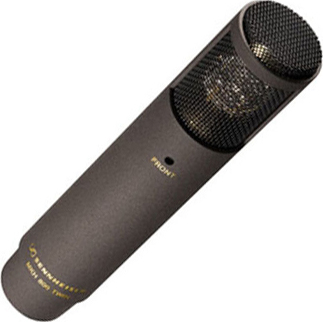

The MKH 800 TWIN is a universal studio condenser microphone of exceptional quality. It includes a dual capsule consisting of two symmetrical push-pull transducers with high linearity. This is a “side fire” microphone with the two cardioid pick-up patterns of the transducer aligned back-to-back across the axis of the microphone. The signals of both transducers are not combined in the microphone in order to generate differing pick-up patterns but are available separately as two channels at the microphone output. This allows the pick-up patterns of the MKH 800 TWIN to be remotely adjusted. The signals can be combined in any desired way in the mixing console in order to create all pick-up patterns from omni-directional to figure-8 with an infinite number of intermediate stages. Based on the legendary MKH 800, this microphone opens up to a new dimension of studio recordings.
Technical sheet
- Transducer principle RF condenser microphone
- Pick-up pattern omni-directional, cardioid, figure-of-eight
- Frequency response (microphone) 30Hz - 50kHz
- Sensitivity in free field, no load (1kHz) 40 mV/Pa (-28 dBV)
- Nominal impedance 100 Ohm
- Min. terminating impedance 2000 Ohm
- Equivalent noise level 12 dB (A)
- Equivalent noise level weighted as per CCIR 468-3 20 dB
- Maximum sound pressure level (passiv) 134 dB SPL
- Dynamic range 122 dB(A), 114 dB (CCIR)
- Phantom powering 48V +/- 4V
- Current consumption 2 x 3.1 mA
- Nextel coating
- Delivery includes MKH 800 TWIN studio condenser microphone, MZQ 80 microphone clamp, MZS80 shock mount, AC 20 adaptor cable (1 x XLR-5 socket to 2 x XLR-3 connector), user manual, aluminium transport case
