Synthesizer

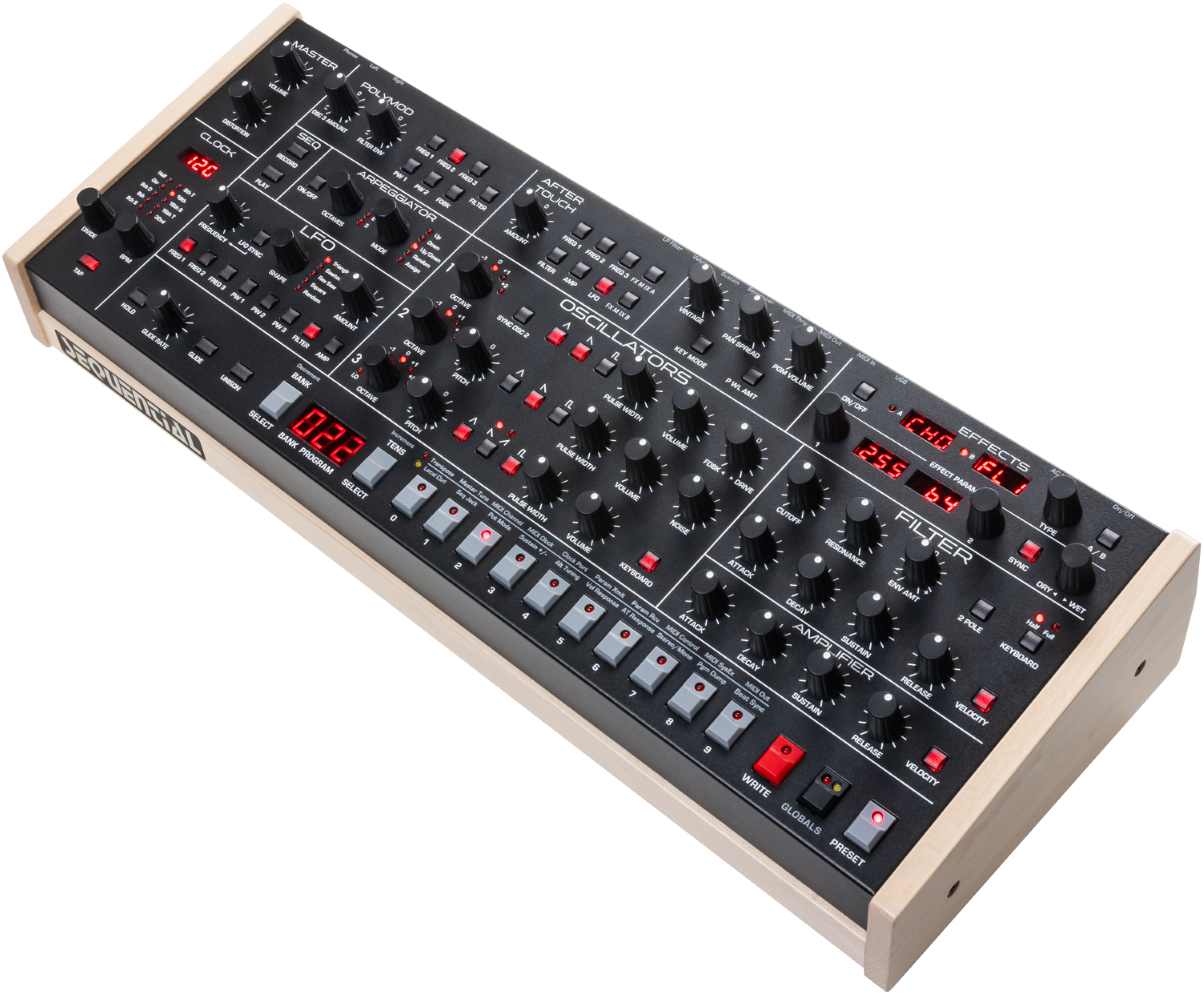

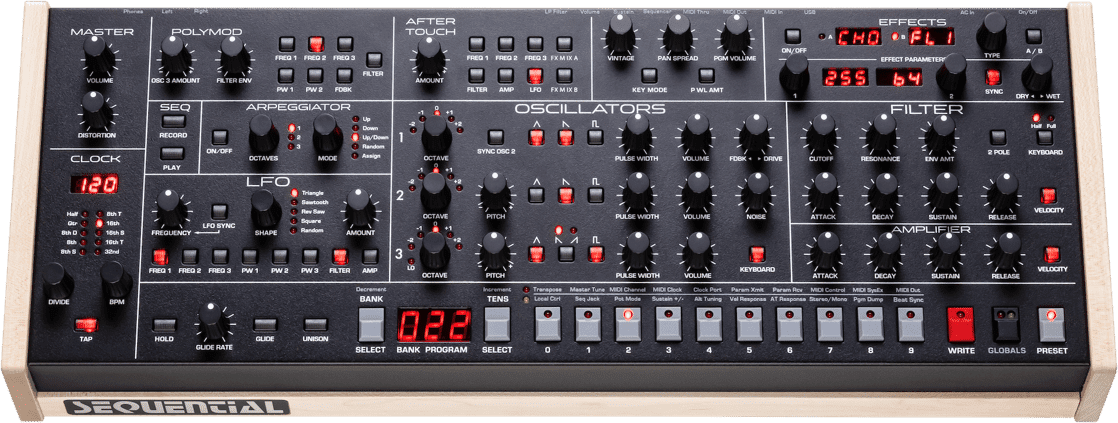

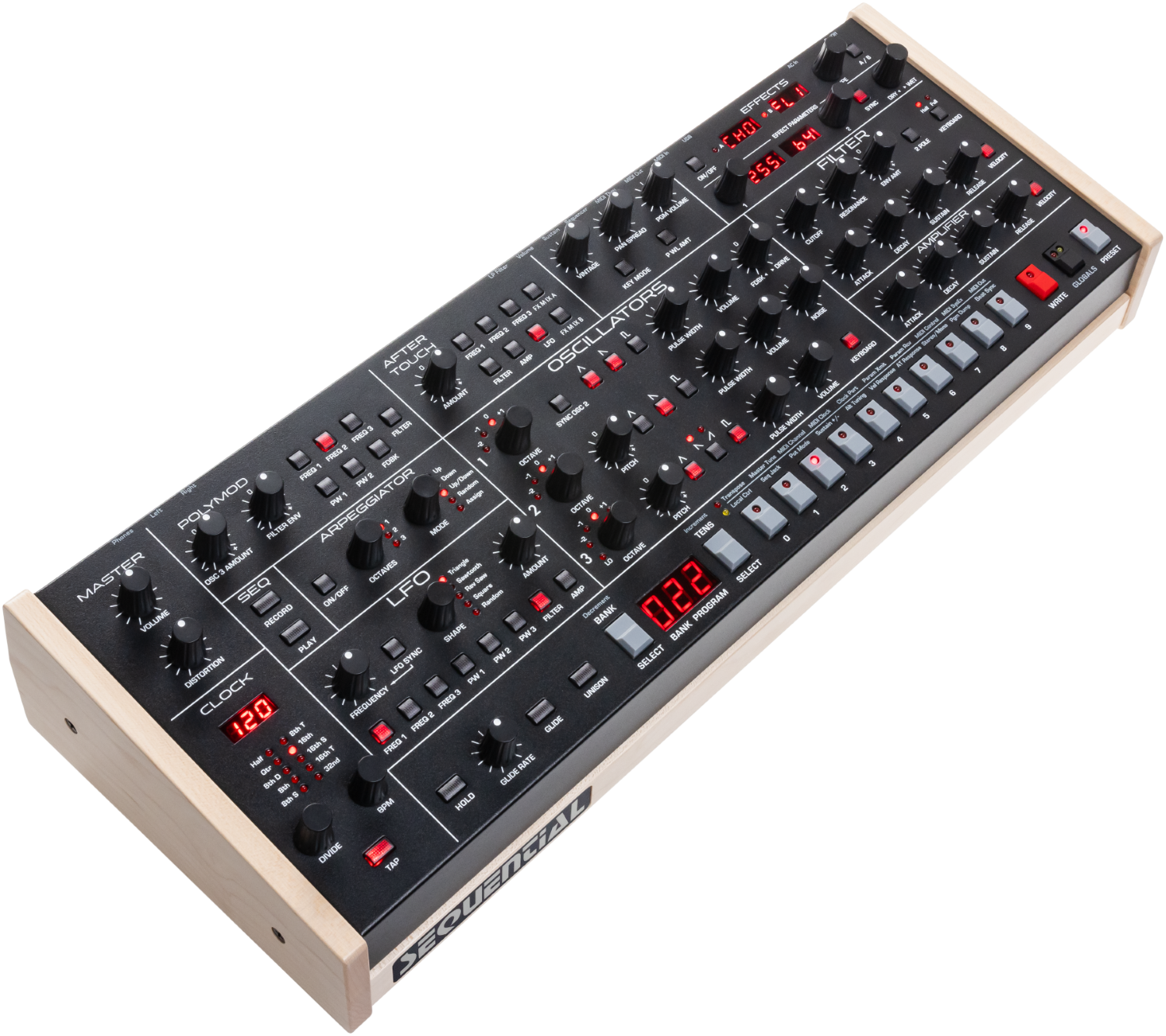

The Trigon-6 is a polyphonic analog synthesizer designed by Sequential, inspired by the classic, powerful sounds of the 70s and 80s, with a modern twist.

Trigon-6 highlights

Thick, creamy analog sound thanks to a ladder filter and three voltage-controlled oscillators.
2/4-pole filter with drive and feedback for a wide sound palette, from soft to rough.
6-voice polyphony, four-octave semi-weighted keyboard with velocity and aftertouch.
Dual effects section with reverb, BBD delay, chorus, phaser, ring mod and stereo analog distortion.
500 factory presets and 500 user slots for sonic flexibility.

Trigon-6 Key Features

Classic sound reinvented

The Trigon-6 draws on a rich sonic heritage to offer a polyphonic version of classic analog sound. Thanks to its ladder filter and three oscillators, it delivers a powerful, familiar sound, perfect for any musical style.

Expressive filtering

Sequential's 2/4-pole ladder filter offers total control over timbre. With drive and feedback options, switch instantly from a silky sound to a rougher, more aggressive texture.

Polyphony and expressivity

The Trigon-6 features 6 voices of polyphony, a semi-weighted keyboard with velocity and aftertouch for expressive, intuitive playability. Ideal for both live and studio use.

Accessible controls

One button per function: the Trigon-6 is designed for direct interaction with all parameters, making sound programming simple, fast and creative.

Advanced modulation

With the revamped Poly Mod section, explore powerful and creative modulation possibilities. Modify oscillator frequency, pulse width or filter with precision.

Integrated effects

Two blocks of digital effects including reverbs, standard and BBD delays, chorus, phaser and ring modulation. Independent analog distortion adds warmth and grit to your sounds.

Unison and vintage mode

Unison mode superimposes up to 18 oscillators for massive sounds. The Vintage button adds character and organic imperfection for an even more authentic sound.

Sequencer and arpeggiator

The Trigon-6 features a built-in polyphonic step sequencer and arpeggiator, to enrich your playing and compositions with dynamic rhythmic patterns.

Expert opinions

Analog synthesizer that's both modern and faithful to the vintage sound tradition.
Clear, straightforward user interface, ideal for demanding musicians.
A warm, versatile sound that fits perfectly into any production setup.

Technical sheet

Number of keys Less than 49 keys
Touch Semi-light touch
Type of synthesizer Analog

Oscillators
- Three discrete VCOs per voice
- Cumulative waveforms: triangle, sawtooth, inverted sawtooth and pulse
- Pulse width per oscillator
- Hard sync: oscillator 1 can be synchronized to oscillator 2
- Activation/deactivation of keyboard tracking (oscillator 3)
Low-pass filter
- Discrete ladder filter, resonant, low-pass, 2 or 4 poles per voice
- Can be pushed to self-oscillation with resonance control
- Keyboard tracking: off, half, full
Filter envelope
- Four-stage envelope generator (ADSR)
- Velocity-modulated envelope level
Amplifier envelope
- Four-stage envelope generator (ADSR)
- Velocity-modulated envelope level
Low-frequency oscillator (LFO)
- Five waveforms: sine, sawtooth, inverted sawtooth, square and random (Sample & Hold)
- Tempo synchronization
- Initial level
- Modulation destinations: oscillator frequency and pulse width, filter cutoff frequency, amplifier (VCA)
Poly Mod
- Sources: oscillator 3 (bipolar), filter envelope (bipolar)
- Destinations: oscillator frequency and pulse width, filter cutoff frequency, feedback level
Vintage potentiometer
- Simulates the behavior of a vintage synth with component variations between voices.
Aftertouch
- Mono aftertouch with bipolar quantity
- Destinations: oscillator frequency, LFO, envelopes, effects mixing
Clock
- Main clock with tap tempo
- Tempo control and display
- MIDI clock synchronization
Arpeggiator
- Rhythmic divisions: sixteenth note, triplet, eighth note, dotted eighth note, quarter note
- Range: 1, 2 or 3 octaves
- Modes: ascending, descending, ascending/descending, random, order played
Sequencer
- Polyphonic step-by-step sequencer up to 64 steps with rests
Effects
- Stereo analog distortion
- Two 24-bit/48 kHz digital effects: reverb, delay, chorus, flanger, phaser, ring modulator
- Delay synchronization
- Full bypass for 100% analog signal path
Playing controls
- Semi-weighted 4 octave keyboard, full-size keys, with velocity and aftertouch
- Backlit pitch and modulation wheel
- Spring-loaded pitch, adjustable range (±1 to ±12 semitones)
- Transposition up to 8 octaves
- Hold switch
- Polyphonic portamento
- Unison (1 to 6 voices), chord memory, play modes
- Preset mode can be deactivated for direct access to front panel
Patch memory
- 500 factory programs + 500 user programs
- 10 banks of 100 programs
- Direct access to 10 active programs

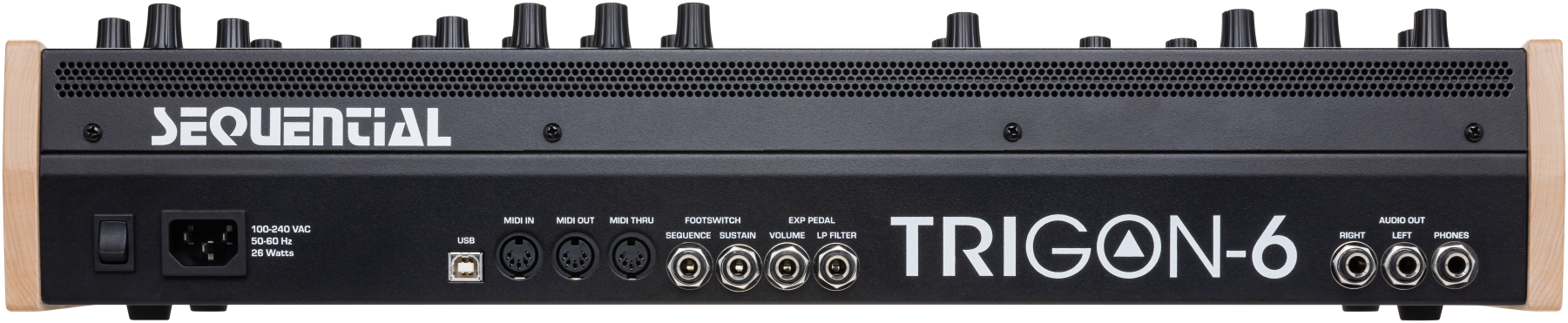

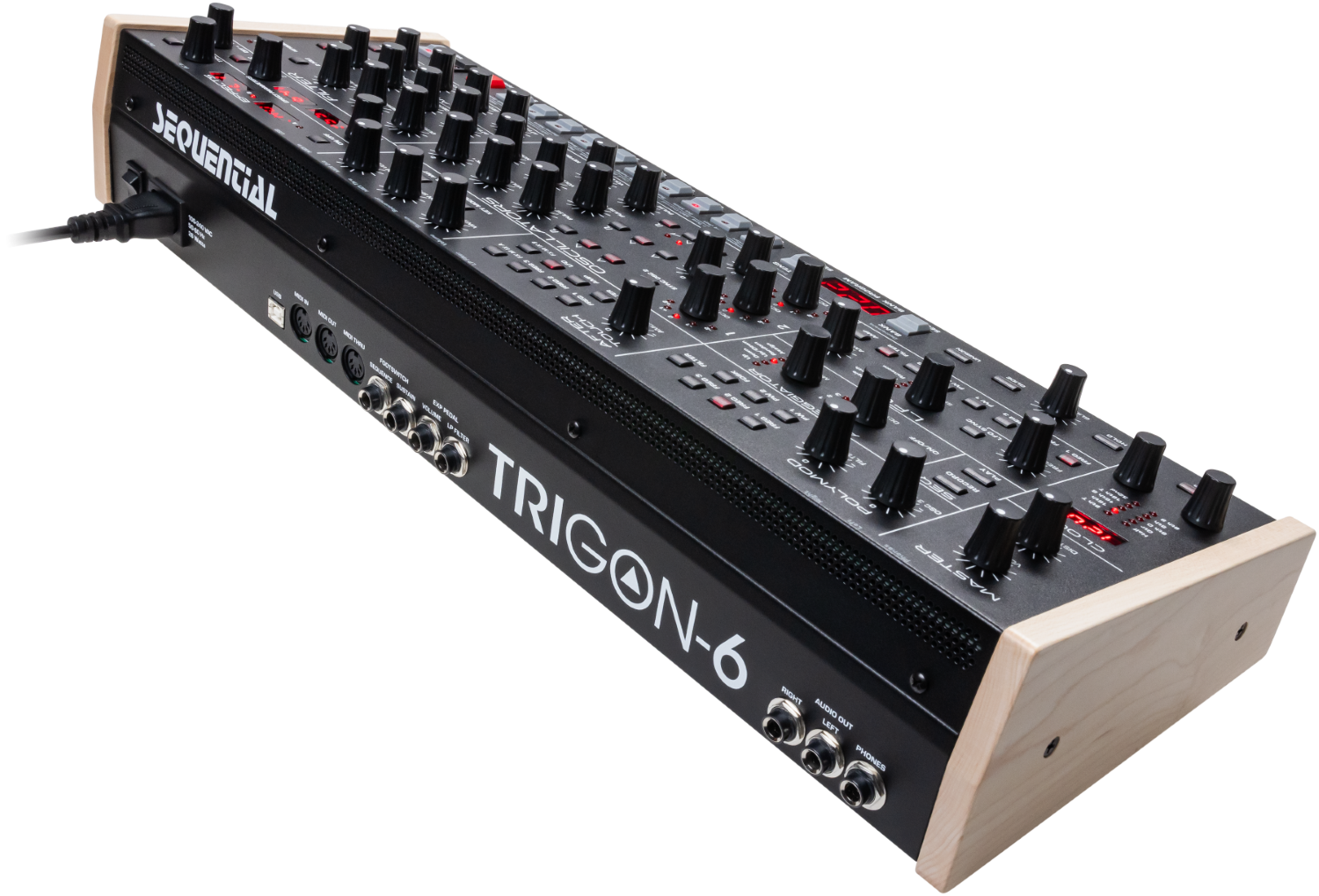

Inputs/outputs
- L/MONO and R audio outputs (6.35 mm jacks)
- Stereo headphone output
- MIDI IN/OUT/THRU
- USB MIDI bidirectional
- Pedal inputs: expression (filter), expression (volume), sustain, footswitch
Power supply
- IEC mains socket
- 100-240 V, 50/60 Hz, max consumption 30W
Physical specifications
- Dimensions: 80.7 x 32.3 x 11.7 cm (31.8" x 12.7" x 4.6")
- Weight: 9.5 kg (20.0 lbs)

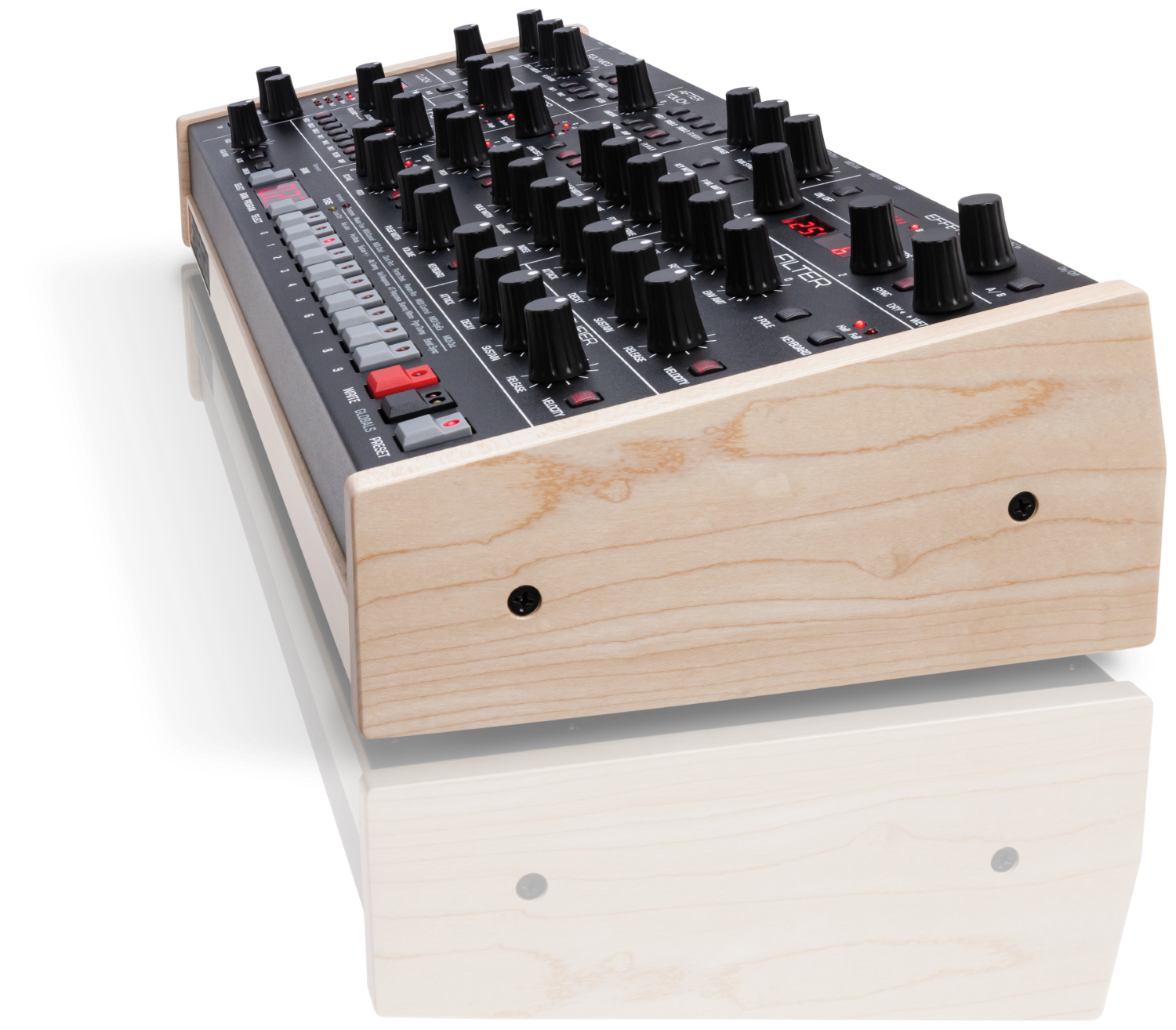

- Maple sides
