Source audio Neuro Hub V1

  • Read reviews (0)
  • Related accessories
  • Similar products

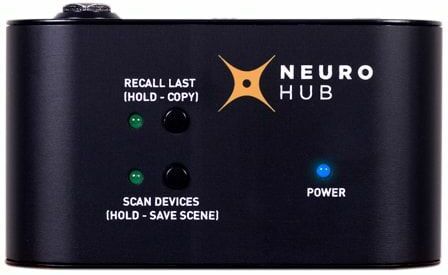

  • Source Audio Neuro Hub V1 Sa160 - Switch pedal - Main picture
  • Source Audio Neuro Hub V1 Sa160 - Switch pedal - Variation 1
154.80 €
119,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 102332
In stock
deliverable in 24 hours
Stock in store
See availability. Store
Star's Music Paris

The brand Source audio

Learn more about the Source audio brand and discover the entire catalog.

The largest network of independent stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Switch pedal

The Source Audio Neuro Hub brings full MIDI functionality to all of Source Audio's One Series and Soundblox 2 pedals. Connect the Hub to as many as five pedals and combine them into a thoroughly integrated multi-pedal system. This breakthrough in effect technology introduces Source Audio’s new scene saving functionality, enabling the creation of up to 128 single or multi-pedal presets (i.e. “scenes”), each recallable via MIDI Program Change messages. Simply dial in your One Series and Soundblox 2 effects as you would any traditional pedalboard, then hit SAVE on the Hub and your pedal settings are captured! Enjoy the power of one-step scene recall without the headache of navigating a complicated multi-effects processor.
Lire la suite

SPECIFICATIONS

  • Standard 5-pin MIDI IN and OUT/THRU
  • Passive Expression Pedal input, and Hot Hand®Sensor Input
  • Connect up to 5 One Series and Soundbox 2 pedals via the Multi-Function ports
  • Save and Recall up to 128 multi-pedal “Scenes” via MIDI Program Changes.
  • Access, Edit, and Save pedal presets and scenes via USB port to Mac or PC.
  • Compatible (no Scene Saving) with Soundblox 1 and Soundblox Pro.
  • Weight: 6 oz.
  • Dimensions: 3.8 in. (W) x 2.1 in. (L) x 1.4 in. (H)
  • Power requirements: 9 Volts DC @ 40mA (up to 80mA with Hot Hand accessories).
  • Power plug size: 2.1mm (inner dia.), 5.5mm (outer dia.) center negative, barrel positive.
  • Expression Pedal input: Stereo 1/4 in. plug, tip hot, 10k-50k Ohm resistance. Linear type.
  • Multi-Function connector: 4 conductor, 3.5mm plug.
  • Minimum System Requirements Windows: Windows 10
  • Minimum System Requirements Mac: MacOS 10.10
