Preamp

The P8 is a fully analog 8-channel microphone preamplifier, designed to deliver exceptional audio quality thanks to a discrete architecture with no integrated circuits (ICs).

Each channel is equipped with discrete components, ensuring neutral, open and transparent sound reproduction, ideal for capturing the finest nuances of vocal and instrumental performances.

Each preamplifier features individual controls, including :

48 V phantom power

Attenuator (PAD) -20 dB

Phase inversion

High-pass filter at 80 Hz (6 dB/octave)

The SPL P8 is also available with an optional analog-to-digital converter (ADC) board, offering an 8-channel ADAT output for seamless digital integration with modern audio interfaces.

Technical sheet

Type of preamp Tube

Preamplifiers
- Adjustable gain: +8 dB to +62 dB
- Maximum input level: 13.5 dBu (33.5 dBu with PAD activated)
- Input impedance: 10 kΩ
- Output impedance: 75 kΩ
- Frequency range: 15 Hz - 200 kHz
- Equivalent input noise (EIN) : -124 dBu
- Signal-to-noise ratio (A-weighted, gain 30 dB) : -94 dBu
- Signal-to-noise ratio (A-weighted, gain 62 dB) : -66 dBu
- Common-mode rejection (CMRR, 1 kHz): < 78 dB
- THD+N (1 kHz, 30 dB gain): 0.003
- THD+N (1 kHz, 62 dB gain): 0.022%.

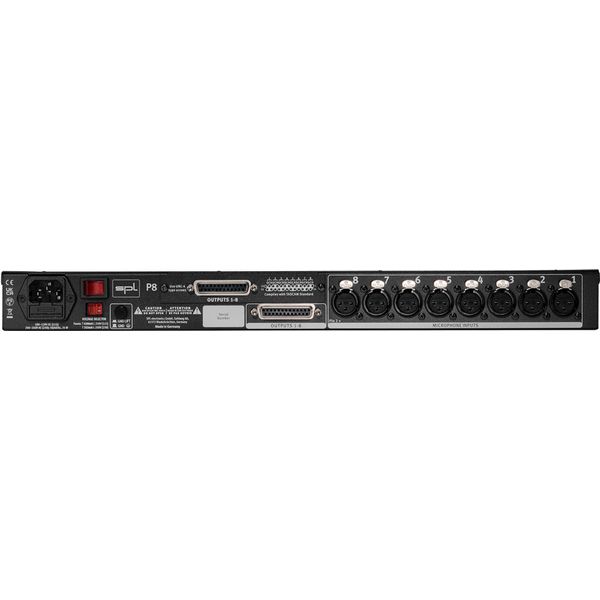

Connectivity
- Analog inputs: 8 x XLR balanced (Neutrik, gold-plated contacts)
- Analog outputs: 2 x DB25 (8 channels each)
- Digital outputs (with optional ADC): 2 x optical ADAT (TOSLINK)
- USB port: 1 x Type B (for maintenance only)
- Digital clock: Word Clock input/output via BNC
Power supply
- Supply voltage: 100-120 V AC / 200-240 V AC, 50/60 Hz (selectable)
- Power consumption: Max. 27 VA
- Fuse (230 V) : T 315 mA
- Fuse (115 V) : T 630 mA
Construction & Dimensions
- Chassis: High-grade steel, black powder coating
- Front panel: 4 mm black anodized aluminum
- Dimensions (W x H x D): 482 x 44 x 237 mm (19" x 1.73" x 9.33")
- Net weight: 4.15 kg
- Weight with packaging: 5.4 kg
