Spl SMC 7.1

  • Read reviews (0)
  • Related accessories
  • Similar products

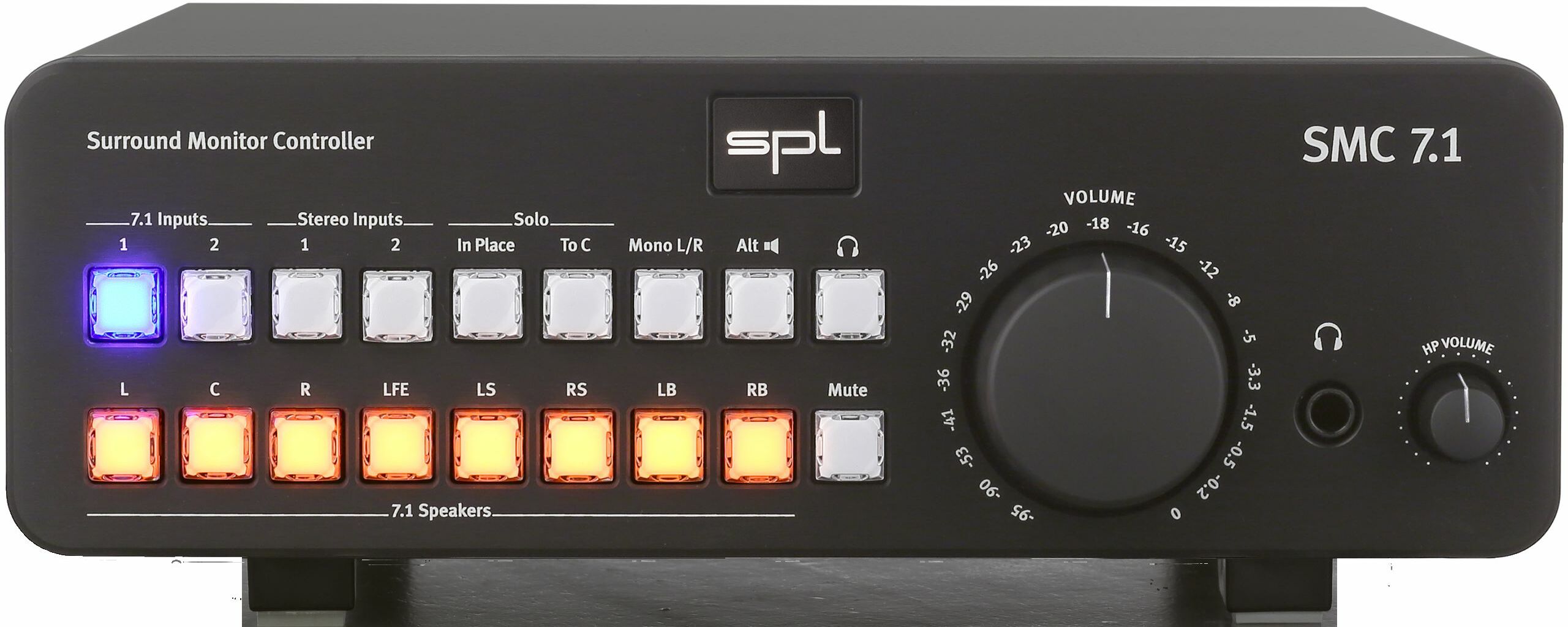

  • Spl Smc 7.1 - Monitor Controller - Main picture

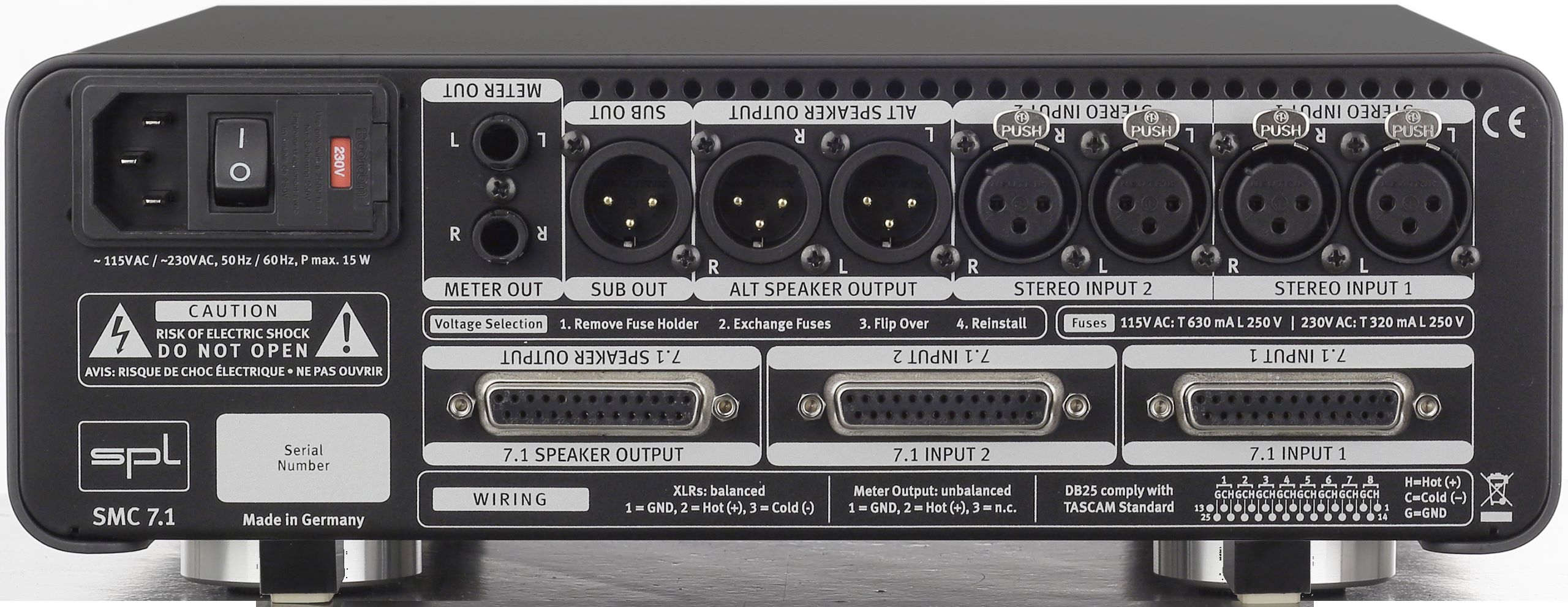

  • Spl Smc 7.1 - Monitor Controller - Variation 1
1777,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 111638
Pre-order
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Spl

Learn more about the Spl brand and discover the entire catalog.

Monitor speaker buying guide

Consult this guide to make sure you don't go wrong when buying monitoring speakers!

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Monitor controller

The SMC 7.1 is a controller offered by the SPL brand.

The SMC 7.1 Surround Monitor Controller is an analog studio monitor controller designed for 7.1 and stereo sources.
Either of the two 7.1 balanced inputs as well as the two balanced stereo inputs can be routed to the 7.1 balanced output.
L/R signals from the active input can also be routed to an alternative stereo output.

Equipped with a high-quality headphone amplifier, you can not only listen to the L/R signal of the active input, but also individual channels of the 7.1 inputs.
The eight-group potentiometer allows direct volume control of all channels, without the need for control circuits such as VCAs.

The SMC 7.1 is manufactured to high-quality analog standards, ensuring linear frequency response up to 100 kHz and exceptional dynamic range.
Lire la suite

Technical sheet

  • Main Features
    • Two balanced 7.1 inputs
    • Two balanced stereo inputs
    • Balanced stereo output with sub-output
    • Extended routing options
    • Solo in Place / Solo to Center
    • High-quality headphone amplifier
    • Dedicated Analog Output for Analog Meter
    • 7.1 Balanced Output
    • Internal power supply
    • Made in Germany
  • Inputs
    • Sub-D-25 Input/Output
    • Sub-D-25 (TASCAM Standard)
    • Impedance: 20 kOhms
    • CMR: -82 dB
    • Max. Input Level: +22 dB
    • XLR Input
    • Neutrik XLR, balanced, pin 2 = (+)
    • Impedance: 20 kOhms
    • CMR: -82 dB
    • Max. Input Level: +22 dB
  • Outputs
    • Sub-D-25 Output
    • Sub-D-25 (TASCAM Standard)
    • Frequency Range: 10 Hz to 150 kHz (-3 dB)
    • Crosstalk at 1 kHz: -92 dB
    • THD & N: 0.001% (0 dBu, 1 kHz, 100 kOhm load)
    • Noise (A-weighted): -93 dB
    • Dynamic Range: 115 dB
    • XLR Output
    • Neutrik XLR, balanced, pin 2 = (+)
    • Frequency Range: 10 Hz to 150 kHz (-3 dB)
    • Crosstalk at 1 kHz: -92 dB
    • THD & N: 0.001% (0 dBu, 1 kHz, 100 kOhm load)
    • Noise (A-weighted): -93 dB
    • Dynamic Range: 115 dB
    • Headphone Output
    • TRS 6.35 mm Connector
    • Pin Wiring: Tip = Left, Ring = Right, Sleeve = GND
    • Impedance: 22 kOhms
    • Frequency Range: 10 Hz to 80 kHz (-3 dB)
    • Crosstalk at 1 kHz: -70 dB
    • THD & N: 0.001% (0 dBu, 1 kHz, 40 kOhm load)
    • Noise (A-weighted): -93 dB
    • Dynamic Range: 113 dB
    • Internal Operating Voltages
    • Analog: +/- 18 V Power Supply
    • Mains Voltage (Switchable): 230 V AC / 50Hz or 115 V AC / 60Hz
    • Fuses: 230 V = T 500 mA; 115 V = T 1 A
    • Power Consumption: max 25 VA
