Spl Transient Designer 4 Mk2

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Spl Transient Designer 4 Mk2 - Kompressor Limiter Gate - Main picture
  • Spl Transient Designer 4 Mk2 - Kompressor Limiter Gate - Variation 1
  • Spl Transient Designer 4 Mk2 - Kompressor Limiter Gate - Variation 2
1199.00 €
1168,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 111627
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Spl

Learn more about the Spl brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Kompressor limiter gate

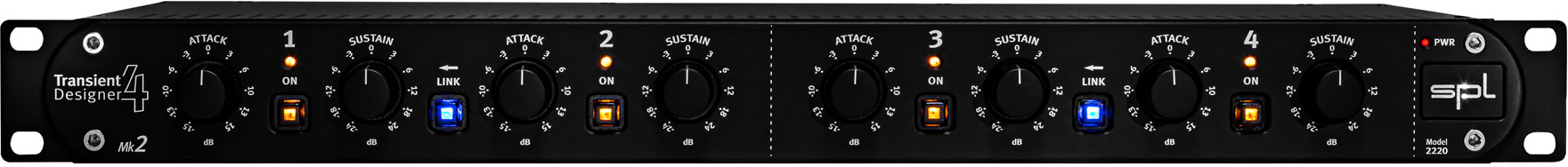

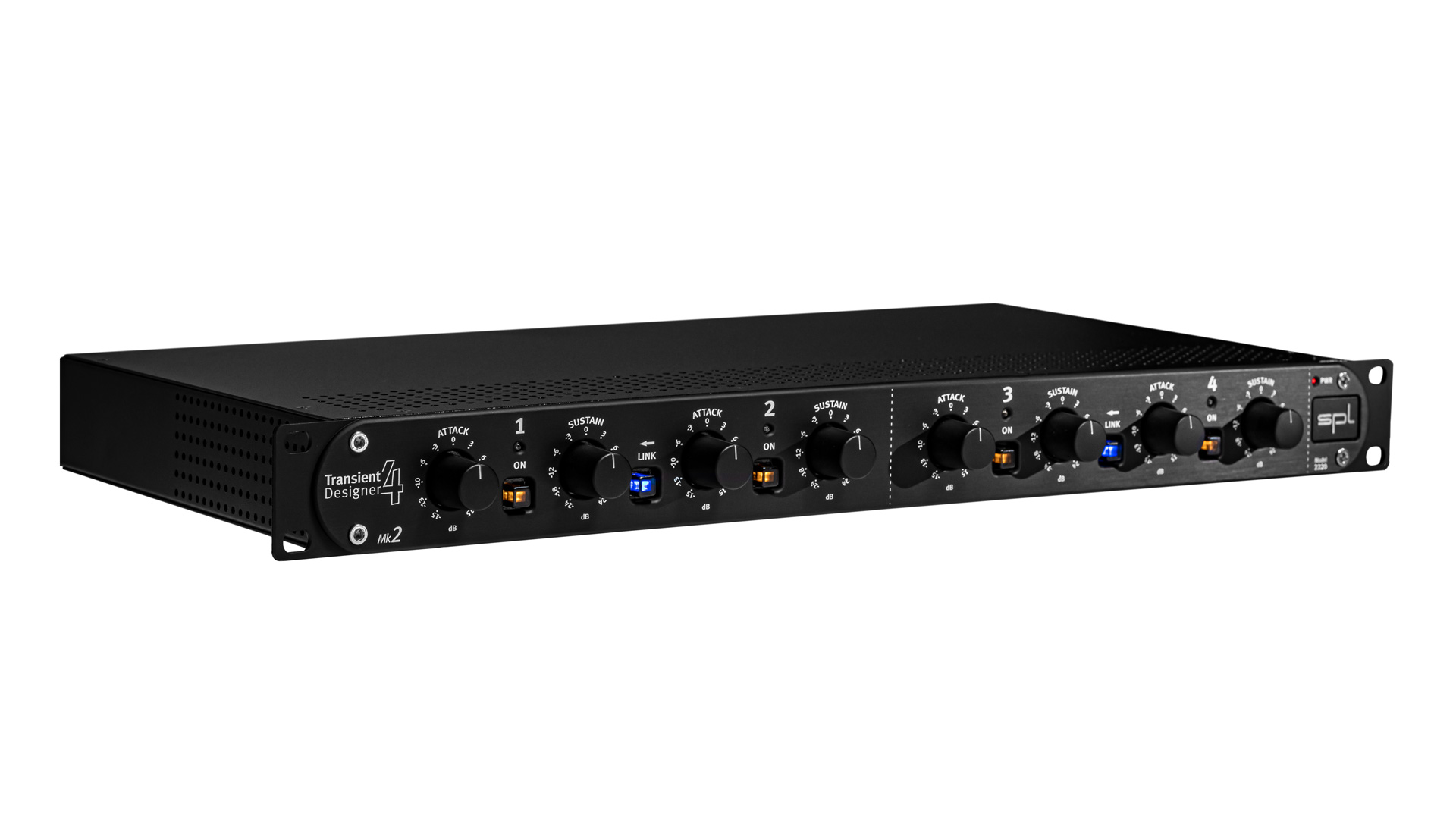

The Transient Designer 4 Mk2 is a peripheral offered by the SPL brand.

The all-new generation of Transient Designer 4 retains the processing qualities that made its predecessor famous, while featuring a revisited design and solid aluminum buttons for an even more comfortable grip. The Transient Designer 4 Mk2 integrates four Transient Designer channels into a single 19" format device.

In 1998, SPL's Transient Designer ushered in a new era in dynamic processors. By allowing independent control of the attack level and sustain of audio signals, it has profoundly transformed music production.
Lire la suite

Technical sheet

  • With differential envelope technology
    • For processing audio signal envelopes independent of level
    • Attack: The attack phase of a signal can be amplified or reduced by up to 15 dB
    • Sustain: The decay phase of a signal can be increased or reduced by up to 24 dB
    • Link function for stereo signal processing
  • Levels
    • Maximum input level: 21 dBu
    • Maximum output level: 21 dBu
  • Performance
    • Frequency response (-3 dB): 10 - 100000 Hz
    • THD + N (0 dBu, 10 Hz - 22 kHz): 0.021%
  • Dimensions
    • Dimensions (L x H x D): 482 x 44 x 237 mm
  • Weight
    • Weight: 3.3 kg
