Accessories set for recorder

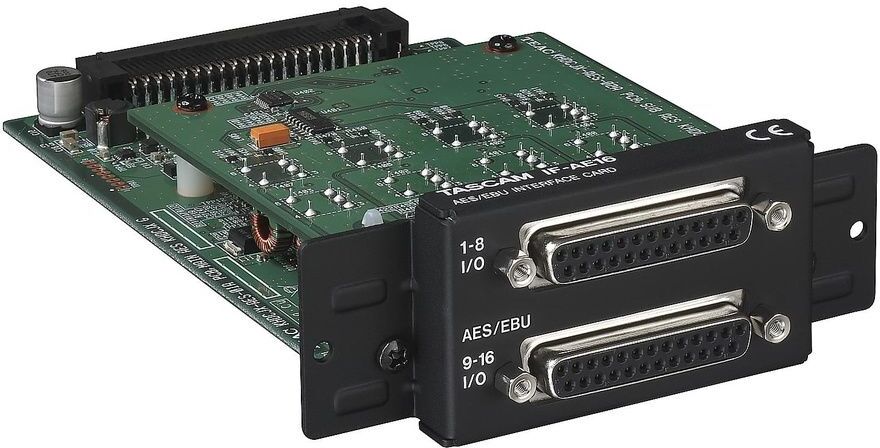

AES/EBU I/O Audio Interface Card for DA-6400/DA-6400dp Digital Multitrack Recorders
16 input and output channels at 44.1/48/88.2/96 kHz in 16-bit or 24-bit
Up to 32 AES input and output channels using two IF-AE16 cards
Built-in sample rate converter for inputs with support for input frequencies from 32 to 192 kHz
* Settings can be made for each pair of channels
Two 25-pin D-sub connectors for channels 1-8 and 9-16
S/PDIF also supported as an input data format
Input/output connector pin assignment* complies with AES59-2012
* AES59-2012, used by many professional audio devices, uses the "TASCAM standard" pinout.
16 input and output channels at 44.1/48/88.2/96 kHz in 16-bit or 24-bit
Up to 32 AES input and output channels using two IF-AE16 cards
Built-in sample rate converter for inputs with support for input frequencies from 32 to 192 kHz
* Settings can be made for each pair of channels
Two 25-pin D-sub connectors for channels 1-8 and 9-16
S/PDIF also supported as an input data format
Input/output connector pin assignment* complies with AES59-2012
* AES59-2012, used by many professional audio devices, uses the "TASCAM standard" pinout.
Lire la suite
Technical sheet
- AES/EBU expansion card for Tascam DA-6400
- AES/EBU: I/O 1-8 and I/O 9-16
