Cartridge

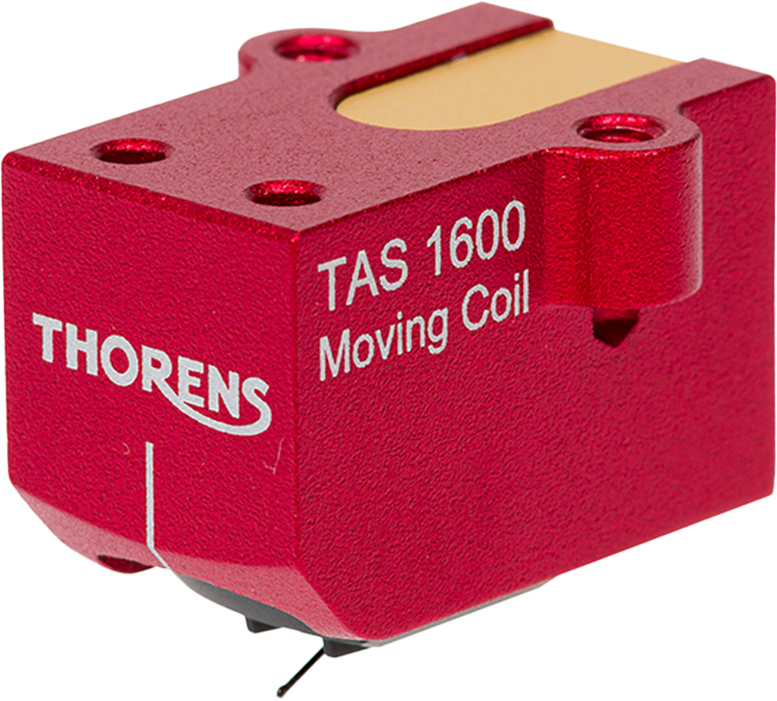

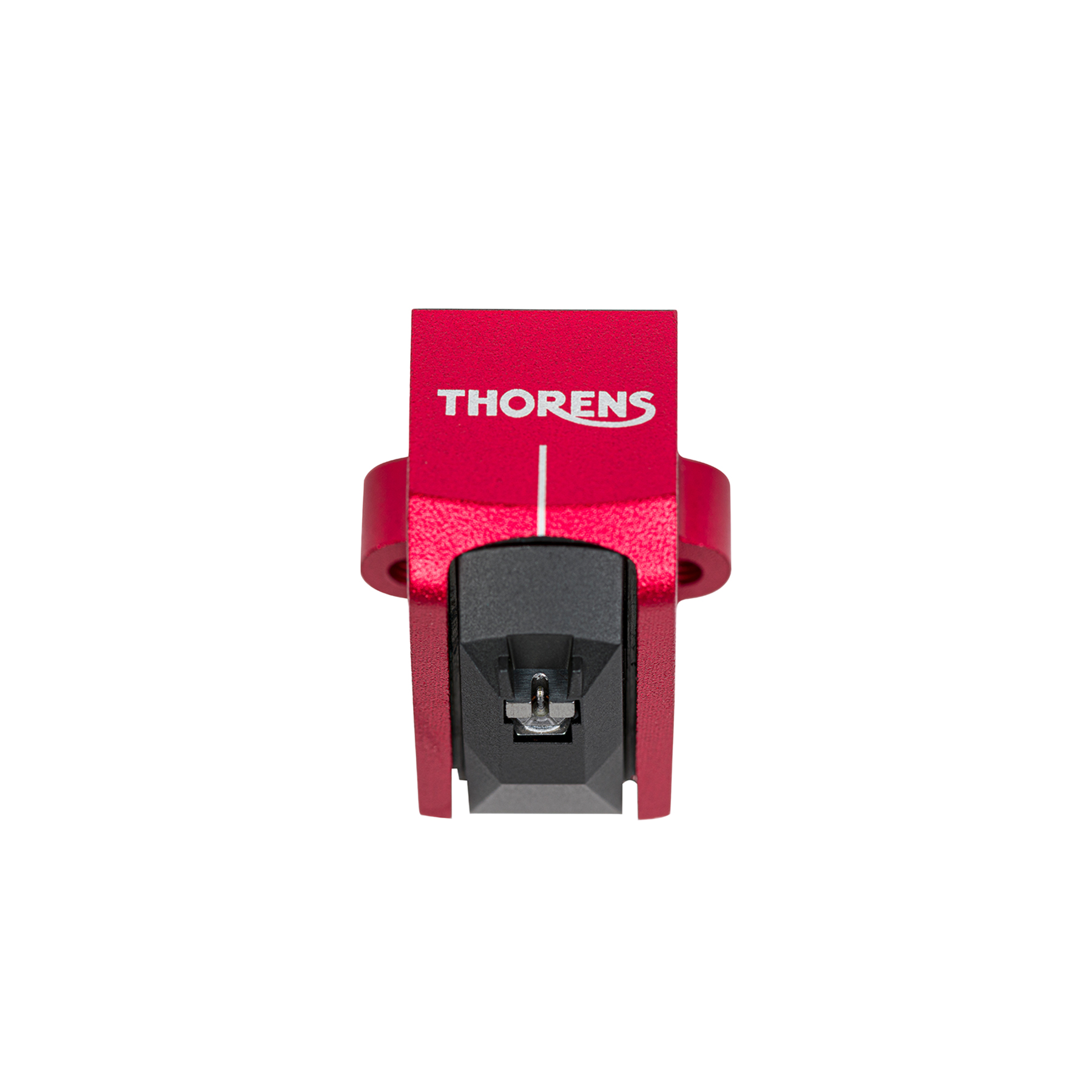

The Thorens TAS 1600 is an Ortofon Hifi Cartridge for TD 1600 & TD 1601.
Designed specifically for the TD 1600 and TD 1601 models, the TAS 1600 moving coil cartridge is one of the highlights of these vinyl turntables. This low-efficiency MC provides good power with an output voltage of 0.4 millivolts (5.5 cm/s), as well as an internal resistance of 12 omhs, which makes it compatible with common phono preamplifiers. The precision of the sound is also there, thanks to a fine Line Contact diamond that transmits the slightest sonic subtlety.
Designed specifically for the TD 1600 and TD 1601 models, the TAS 1600 moving coil cartridge is one of the highlights of these vinyl turntables. This low-efficiency MC provides good power with an output voltage of 0.4 millivolts (5.5 cm/s), as well as an internal resistance of 12 omhs, which makes it compatible with common phono preamplifiers. The precision of the sound is also there, thanks to a fine Line Contact diamond that transmits the slightest sonic subtlety.
Lire la suite
Technical sheet
- Moving coil cell
- Diamond Line Bare Contact
- 1/2" mounting format
- Frequency response: 20 - 50,000 Hz
- PCOCC coil (Ohno Continuous Cast Copper)
- Aluminium body
- Brass connection pins
- Channel separation: 28 dB (1 kHz)
- Output channel balance: 0.5 dB (1 kHz)
- Output voltage: 0.4 mV (1 kHz, 5 cm/sec)
- Vertical tracking angle: 20 degrees
- Recommended contact force: 1.8 to 2.2 g (standard 2.0 g)
- Diamond size: 1.5 x 0.28 mil
- 0.28 mm boron cantilever
- Coil Impedance: 12 Ohms (1 kHz)
- Coil inductance: 25 ?H (1 kHz)
- DC resistance: 12 Ohms
- Static compliance: 22 x 10 - 6 cm / dyne
- Dynamic compliance: 18 x 10 - 6 cm / dyne (100 Hz)
- Recommended load impedance: min 100 Ohms
- Cell weight: 8.2 g
