Udo audio Super 6 ST49 Blue

Read reviews (0)
Related accessories
Similar products

2969.00 €
Ref : 116042

2899,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty

Pre-order

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

Variation(s) of this product.

The brand Udo audio

Learn more about the Udo audio brand and discover the entire catalog.

Discover

Synthetizer and drum machine buying guide

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Synthesizer

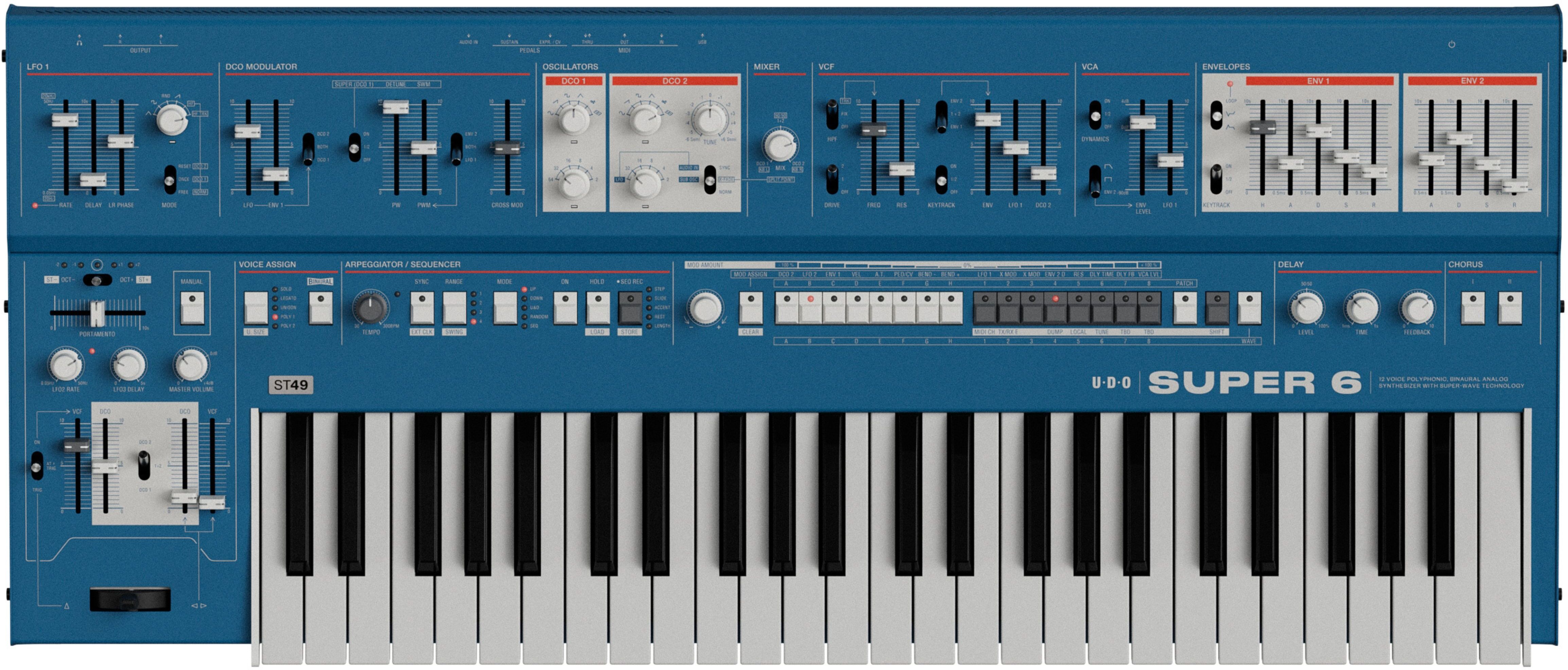

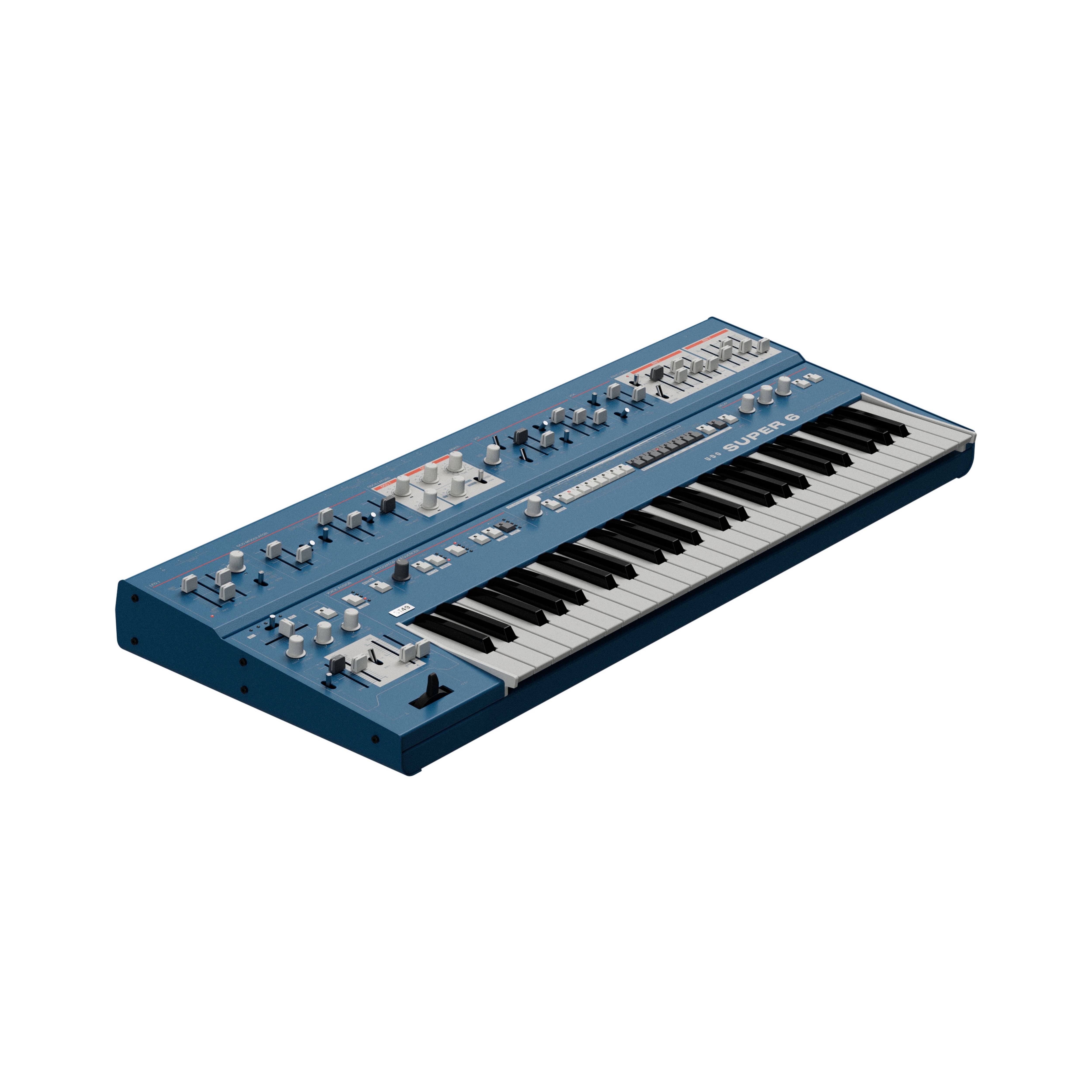

The Super 6 ST49 Blue is a synthesizer offered by the UDO Audio brand.

New version with integrated ST-49 SuperTouch keyboard (poly-aftertouch).

The Super 6 is a hybrid analog-digital binaural synthesizer with 12 polyphonic voices. It combines advanced digital oscillators on FPGA with voltage-controlled analog technology, offering remarkable flexibility, power and expressiveness.

Its unique Super-Wavetable engine allows you to create rich and evolving textures, shaped by a binaural analog signal and a versatile modulation system.

Compact, robust and designed for intuitive handling, it seduces with its responsiveness, fluidity and precise touch, inviting sound exploration.

Technical sheet

Number of keys 49 keys
Touch Heavy touch
Type of synthesizer Analog

Keyboard
- 49 semi-weighted velocity-sensitive keys and polyphonic aftertouch
Signal path
- Binaural analog
Oscillators
- 2 digital oscillators (based on FPGA circuitry)
- Oscillator 1: sine, sawtooth, square, triangular, noise and wavetable waveforms
- Oscillator 2: sine, sawtooth, square, triangular, noise and pulse-width modulation waveforms
- Oscillator synchronization and cross modulation available
Filters
- Analog low-pass filter with resonance
- Static high-pass filter
- Switchable overdrive
Amplification
- Analog VCA
Envelopes
- 2 ADSR envelopes
LFO
- Extended frequency range (0.05 - 20000 Hz)
- "Keyboard tracking for FM sounds
Modulation matrix
- Flexible for new sound designs
Arpeggiator & Sequencer
- 64 steps with MIDI synchronization
Effects
- Delay and chorus
Control section
- Assignable bender
- Portamento fader
- Octave switch
Connections
- Audio input on 6.3 mm jack
- Sustain/expression pedal inputs on 2x 6.3 mm jacks
- Stereo output on 2x 6.3 mm jacks
- Stereo headphone output on 6.3 mm jack
- MIDI In/Out/Thru
- USB-B port
Dimensions & Weight
- 830 x 350 x 90 mm
- Weight: 8 kg
Color
- Blue
