United UT Vintage Direct

  • Read reviews (0)
  • Related accessories
  • Similar products

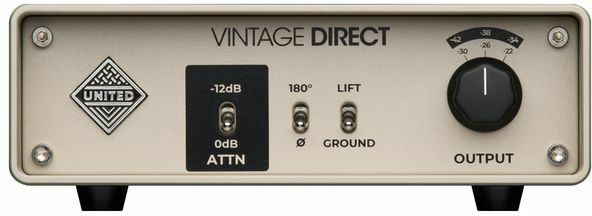

  • United Ut Vintage Direct - DI Box - Main picture

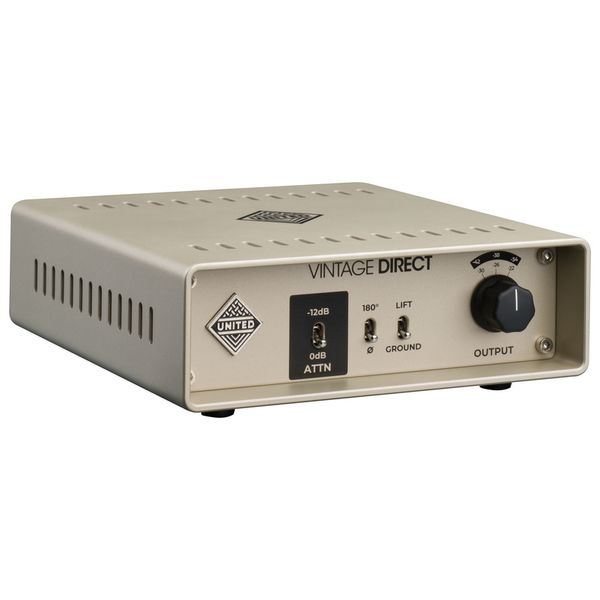

  • United Ut Vintage Direct - DI Box - Variation 1
  • 589.00 €
  • Ref : 112759
473,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand United

Learn more about the United brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Di box

The UT Vintage Direct is a DI box offered by the United Studio Technologies brand.

United's Vintage Direct bridges the gap between classic tape operators and modern recorders. When the most demanding sound engineer seeks excellence, the Vintage Direct delivers massive sound thanks to its imposing transformer. Its circuitry is designed to eliminate any components that could cause loss of tone, as is often found in lower quality DI boxes.
Lire la suite

Technical sheet

  • Transformer
    • Generous dimensions transformer
  • Sound
    • Rich sound with sufficient headroom
  • Signal
    • Pure signal with low noise and wide frequency response
  • 5078 Transformer
    • United 5078 Transformer
  • Attenuation switch
    • 0 dB, -12 dB
  • Switches
    • Ground lift switch and phase inversion switch
  • Output gain level
    • -42, -38, -34, -30, -26, -22 dB
  • Max input level
    • +10 dB
  • Frequency response
    • 20 - 20000 Hz (+/-0.5 dB)
  • Input impedance
    • 80 kOhm
  • Output impedance
    • 50 - 250 Ohm (depending on setting)
  • Instrument/line input
    • 1 unbalanced instrument/line input on 6.3 mm jack
  • Passive Thru socket
    • 1 passive Thru socket on 6.3 mm jack
  • Instrument/line output
    • 1 balanced instrument/line output on 3-pin XLR
  • Enclosure
    • Stage-ready aluminum enclosure
  • Dimensions
    • 149 x 52 x 155 mm
  • Weight
    • 950 g
