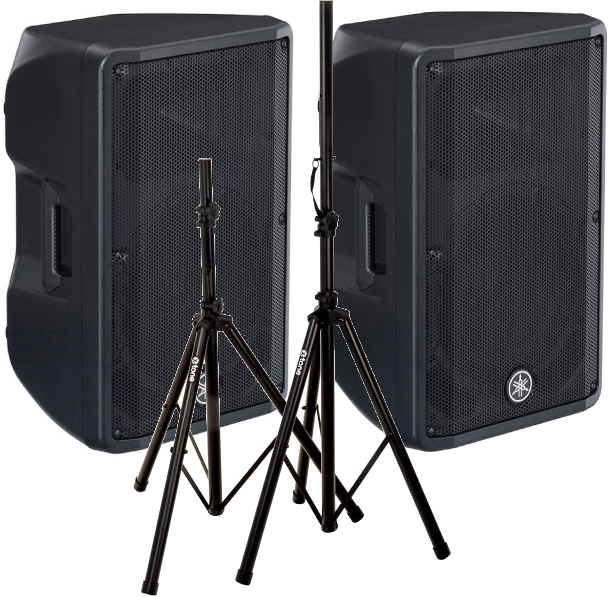

Yamaha 2 x DBR12 + Stand X-tone
- Read reviews (0)
- Related accessories
- Similar products
- Low prices guaranteed
- Satisfied or refunded
- 4 Years warranty
- Ref : 109097
In stock
deliverable in 24 hours
Stock in store
Not available in store
The brand Yamaha
Learn more about the Yamaha brand and discover the entire catalog.
How to choose your PR System Buying guide
Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Complete pa system
Active full-range speaker YAMAHA Dbr12.
Lire la suite
Technical sheet
- PA power speaker 601 to 1000 watts RMS
- Type of PA speaker Stage & FOH monitor
- 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB) 52Hz – 20kHz
- Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
- Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
- Maximum output level (1m; on axis) 131dB SPL
- I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipation Fan cooling, 4 speeds
- Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption 74W(1/8 Power Consumption), 18W(Idle)
- Cabinet material Plastic
- Finish Black
- Handle Side x 2
- Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
- Pole socket 35mm (Bottom x 1)
