Yamaha DHR 12

The DHR 12 is a speaker from Yamaha.

The DHR12 is a 2-way bi-amplified loudspeaker featuring a 12" bass driver and a 1.4" HF driver, perfect for front-of-house use. Combining 1000W amplification and high-performance DSP with the same multi-ply construction as the top-of-the-range Yamaha DZR series, the DHR12 offers unparalleled sound reproduction and longevity in its class.

DHR 12 highlights

• Multi-ply cabinet for precise sound with minimum vibration
• Compact plywood cabinet with polyurea coating for a robust, scratch-resistant surface
• Compact design featuring a 12" woofer with excellent low-frequency response
• Can be installed in a horizontal or vertical configuration, with a rotating HF horn offering the flexibility needed for installation in a wide range of environments
• Optional UB-DXRDHR10 lyre allows both vertical and horizontal use
• Double well allows 0° or -7° downward tilt
• Anchor points for use with eyebolts
• Exclusive FIR-X™ technology offering FIR filtering and equalization correction, minimizing phase distortion

DHR 12 Key Features

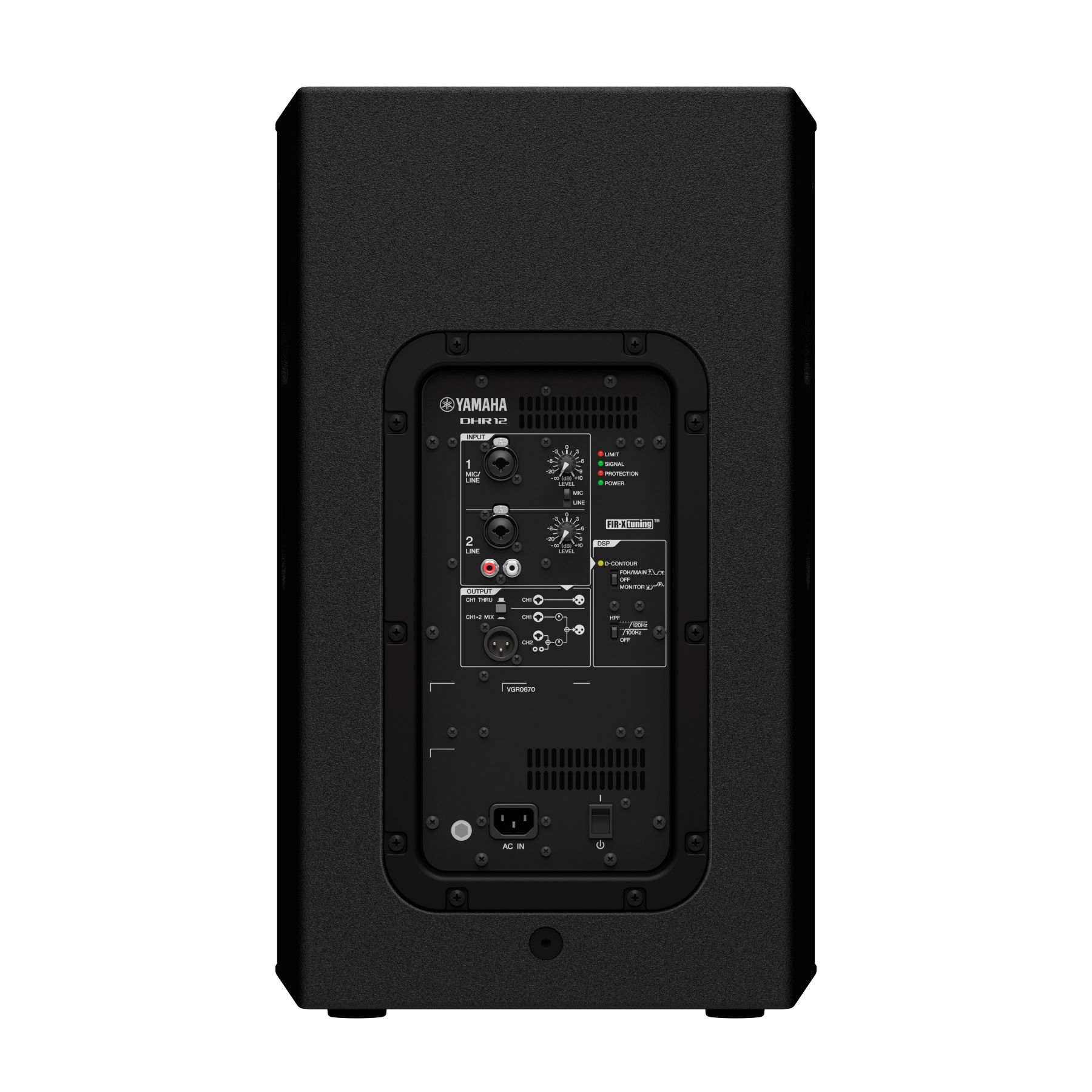

Convenient integrated 2-channel mixer

DHR series loudspeakers feature two input channels. The CH1 channel is equipped with a Combo jack accepting mic or line level input signals, with XLR or TRS jack connectivity. Channel CH2 offers two input options: a Combo jack and two RCA plugs for line-level stereo sources. The integrated output allows you to transmit the signals from channels 1 and 2 (CH1+2 MIX) or just the signal from channel 1 (CH1 THRU).

High-efficiency Class D amplification up to 1000W

The amplification built into the DHR series speakers delivers up to 1000 W*, providing a maximum sound pressure level (SPL) of 131 dB. This guarantees outstanding clarity and dynamic characteristics.

Custom-designed transducers

Boomers deliver powerful, well-defined bass with minimal distortion, while the 1.4"* precision compression driver produces accurate mid and high frequencies.

A sturdy, easy-to-transport cabinet

The DHR series features multi-ply cabinets, similar to those of Yamaha's top-of-the-range DZR loudspeakers, offering durability and outstanding acoustic performance.

Expert opinions

• The Yamaha DHR 12 loudspeaker is a popular choice among audio professionals and musicians for its exceptional blend of power, sonic clarity and durability. This active loudspeaker is designed to meet the needs of live applications, fixed installations and DJs.
• The Yamaha DHR 12 is renowned for its exceptional sound performance. Thanks to its powerful amplifier and high-quality components, it offers a wide frequency response and minimal distortion. Whether for vocals, instruments or DJ tracks, the DHR 12 ensures faithful, detailed sound reproduction.
