Complete pa system

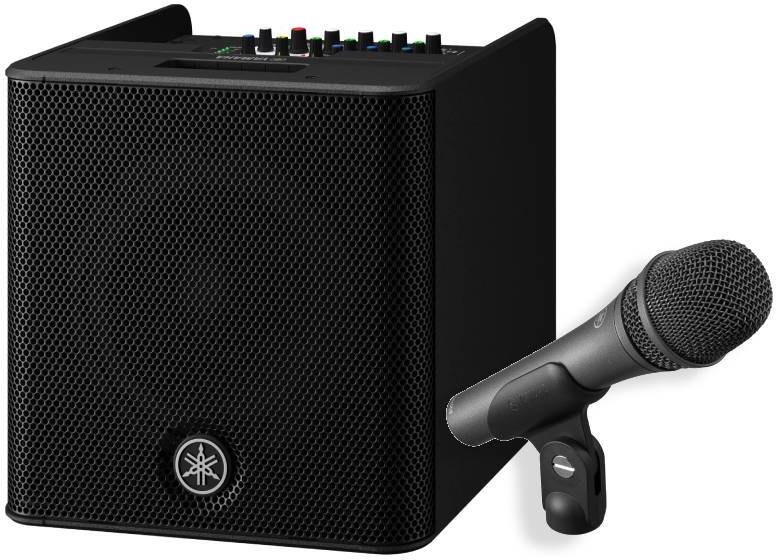

Pack including 1 stagepas 200 + Micro Ydm 505 from Yamaha.
Lire la suite
Technical sheet
- PA power speaker 601 to 1000 watts RMS
- Type of PA speaker Stage & FOH monitor
- System type
- Compact 2-way PA system
- Max. sound pressure level: 125 dB SPL
- Amplification
- Biamplification class D 180W (LF: 150W, HF: 30W)
- Natural cooling
- Speakers
- Coaxial compression driver
- LF: 8
- HF: 1.4
- Integrated mixer
- 5-channel digital mixer with feedback filter
- 3 mic/line inputs with phantom power
- 1 mono/stereo line input
- 1-knob EQ/Comp per channel
- Integrated ducker
- Effects
- SPX digital reverb
- Delay
- Chorus
- Multiband compressor on main output
- Connectivity
- High-impedance Hi-Z inputs
- Monitor/Link output
- Audio playback via Bluetooth 5.0
- Control
- Remote control via STAGEPAS Controller app (iOS/Android)
- Accessories and options
- Brackets supplied (30° or 60° tilt)
- 35 mm well for tripod
- BTR-STP200 lithium-ion battery (optional)
- CASE-STP200 wheeled carrying case (optional)
- Dimensions
- 300 x 308 x 301 mm
- Weight
- 12 kg
