Active subwoofer

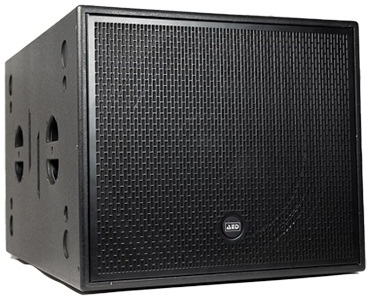

The Multi Sub is an amplified sound box from AED.
The MULTISUB is a state-of-the-art amplified subwoofer designed to work with the MULTI12 to deliver exceptional sound quality and versatile performance. It features a robust 18" ferrite driver, guaranteeing deep, powerful bass. Frequency response ranges from 35 Hz to 120 Hz at -6 dB, and extends from 30 Hz to 140 Hz at -10 dB. This subwoofer can reach a maximum sound pressure level of 134 dB, making it suitable for the most demanding audio environments. Its Class D amplifier is capable of delivering 500 W RMS and 1200 W peak, providing ample power for sustained performance.
The MULTISUB is a state-of-the-art amplified subwoofer designed to work with the MULTI12 to deliver exceptional sound quality and versatile performance. It features a robust 18" ferrite driver, guaranteeing deep, powerful bass. Frequency response ranges from 35 Hz to 120 Hz at -6 dB, and extends from 30 Hz to 140 Hz at -10 dB. This subwoofer can reach a maximum sound pressure level of 134 dB, making it suitable for the most demanding audio environments. Its Class D amplifier is capable of delivering 500 W RMS and 1200 W peak, providing ample power for sustained performance.
Lire la suite
Technical sheet
- PA power speaker 601 to 1000 watts RMS
- Type of PA speaker FOH speaker
- LF transducer 1x 18 " ferrite
- Frequency response -6 dB 35 Hz - 120 Hz
- Frequency response -10dB 30 Hz - 140 Hz
- Coverage angle 90° x 60
- Maximum sound pressure level 134 dB
- Class D amplifier | 500W RMS - 1,200W peak
- Power input AC 220V/240V - 1.5A - 50 Hz / 60 Hz
- TrueCon power connector
- Cooling Speed-controlled fan
- Controls Power - Sleep mode
- Indicators Power - Signal - Clip

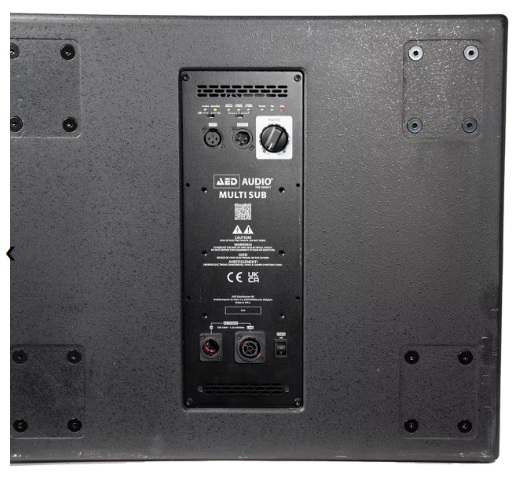

- Connectors 1x XLR/F - 1x XLR/M loop through
- Housing Aluminum - Wood
- Handles 4x plastic handles
- Color Black (RAL 9011)
- Grille Powder-coated steel with grille cloth
- Dimensions (WxHxD) 585 x 500 x 750 mm - 23.03 x 19.68 x 29.53 in
- Net weight 40 kg - 88.2 lb
- Mounting Internal rigging - mast mount ø 35mm
- 3 performance modes Concert - Club - Vocal
- Optional accessories MULTI STAND - MULTISUB COVER - TOURING DOLLY - VERTICAL COUPLER
- Power cable included
- CE - UKCA - cETL certified
