Description

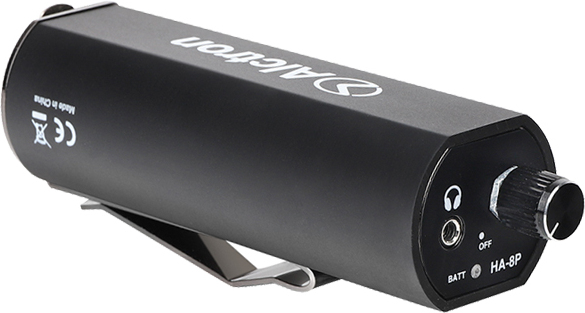

The HA-8P is an ultra-compact active headphone amplifier designed for in-ear monitoring.

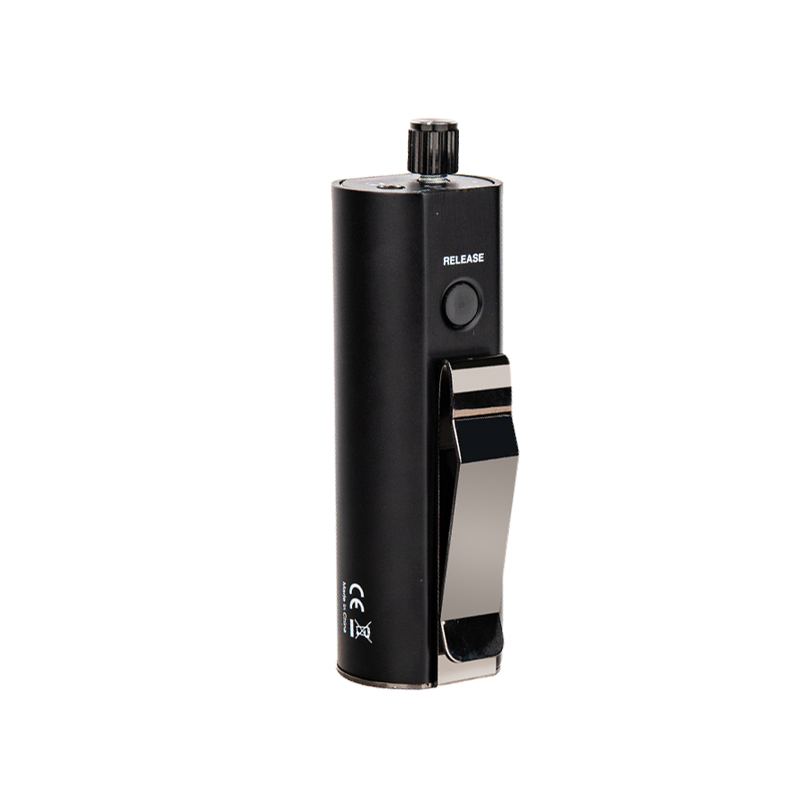

It features a clip for attaching it to your belt.
The volume control allows for intuitive adjustment of the sound level.
Lightweight and very easy to use, this amplifier is designed to effectively support you on stage or in the studio.
It features a clip for attaching it to your belt.
The volume control allows for intuitive adjustment of the sound level.
Lightweight and very easy to use, this amplifier is designed to effectively support you on stage or in the studio.
Lire la suite
Technical sheet
- Type
- Active headphone amplifier for in-ear systems
- Operating mode
- Stereo/mono source switch
- Input

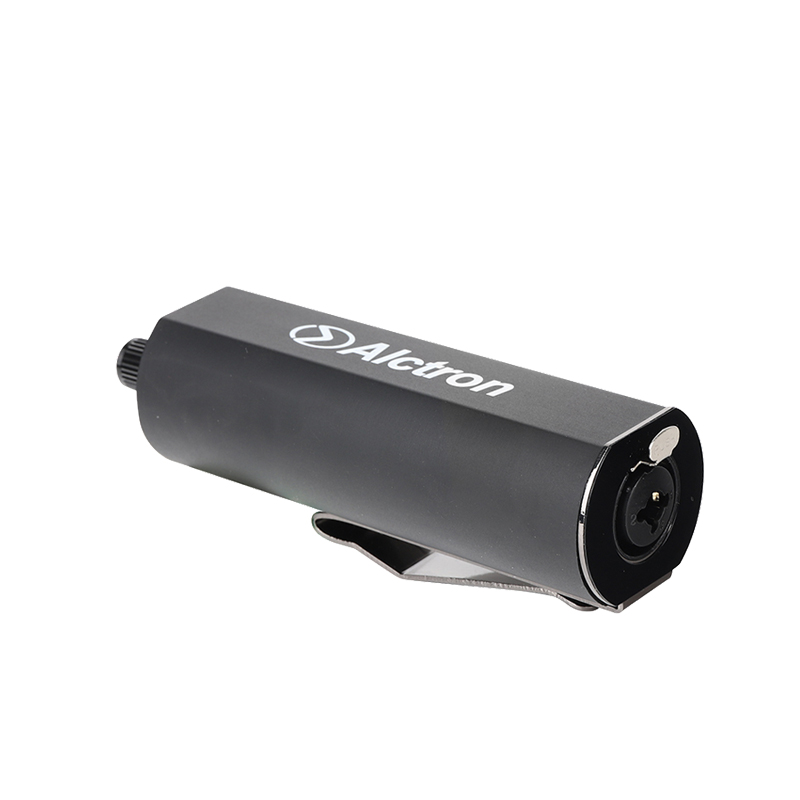

- 1 XLR/jack combo input
- Output
- 1 3.5 mm jack output
- Frequency response
- 20 Hz to 20 kHz
- Input impedance
- XLR: 20 kΩ
- TRS jack: 10 kΩ
- Output impedance
- 10 Ω
- Maximum gain
- 14 dB
- Output power
- @16 Ω: 1.2 V / 90 mW x2
- @32 Ω: 1.4 V / 61 mW x2
- @62 Ω: 1.7 V / 43 mW x2
- @100 Ω: 1.8 V / 32 mW x2
- Distortion
- < 1%
- Signal-to-noise ratio
- > -70 dB
- Power supply
- 2 1.5 V batteries
- Indicator
- Battery level indicator
- Mounting
- Built-in belt clip
- Color
- Black
- Dimensions
- Length: 40 mm
- Depth: 40 mm
- Height: 120 mm
- Weight
- 0.200 kg
