Description

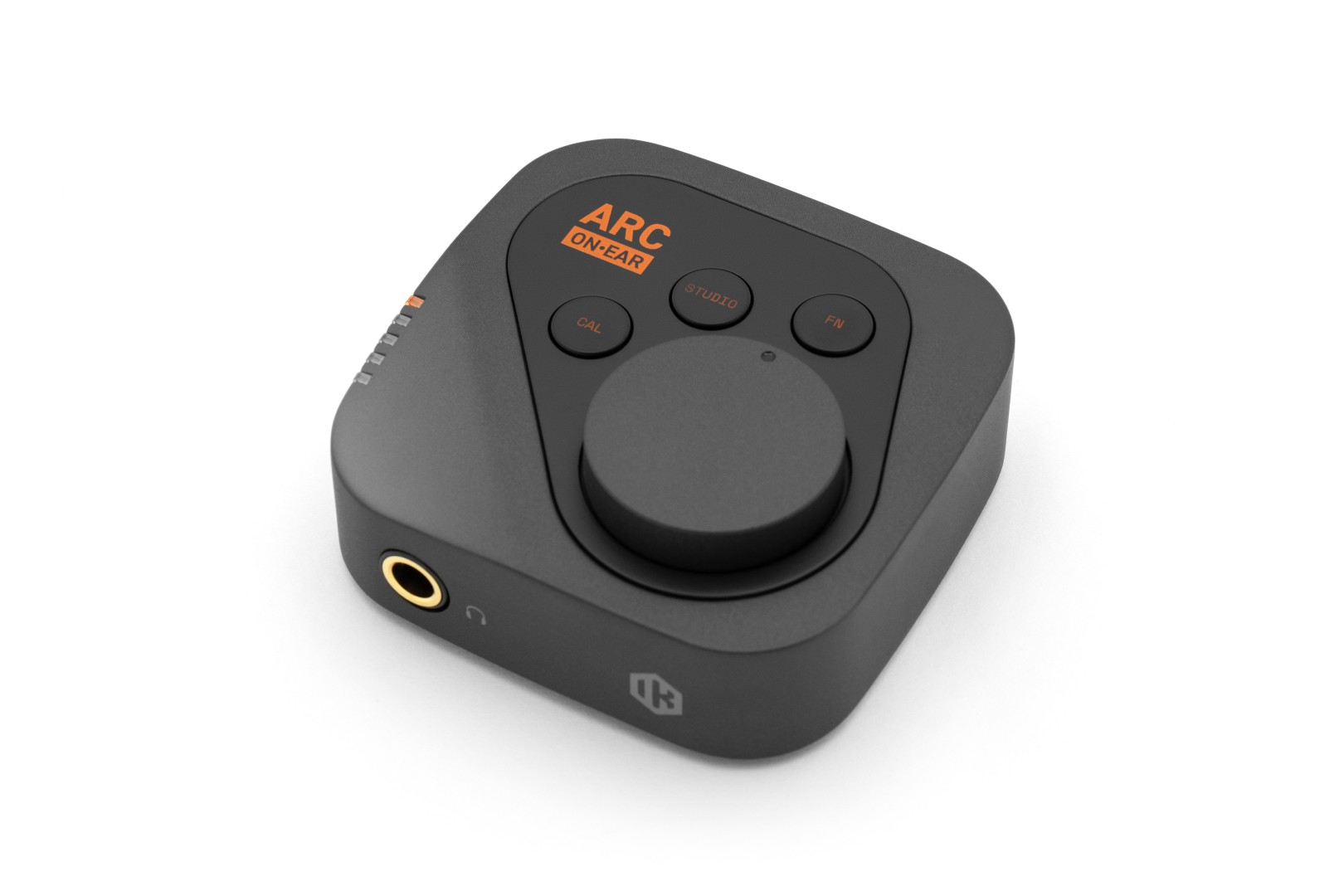

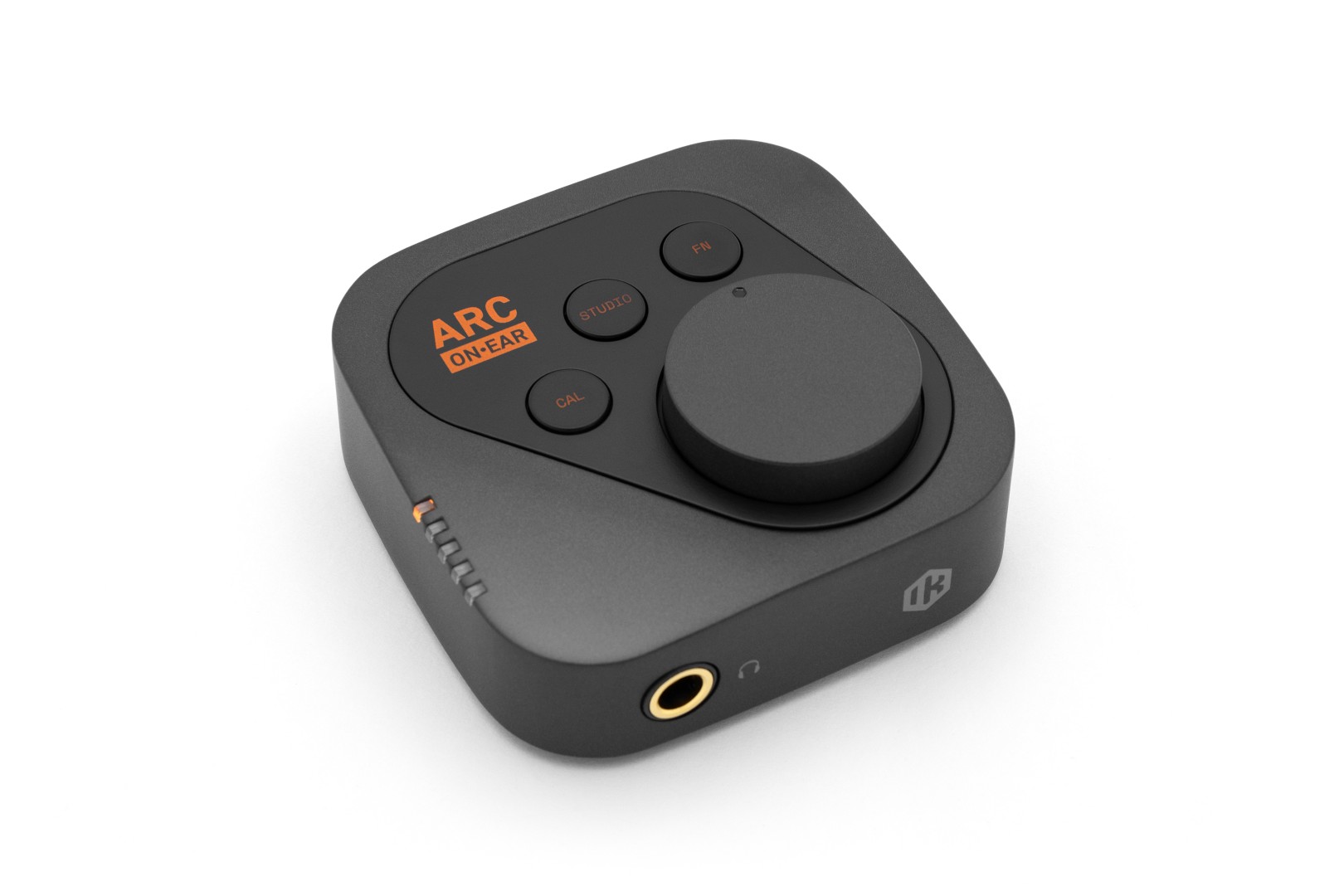

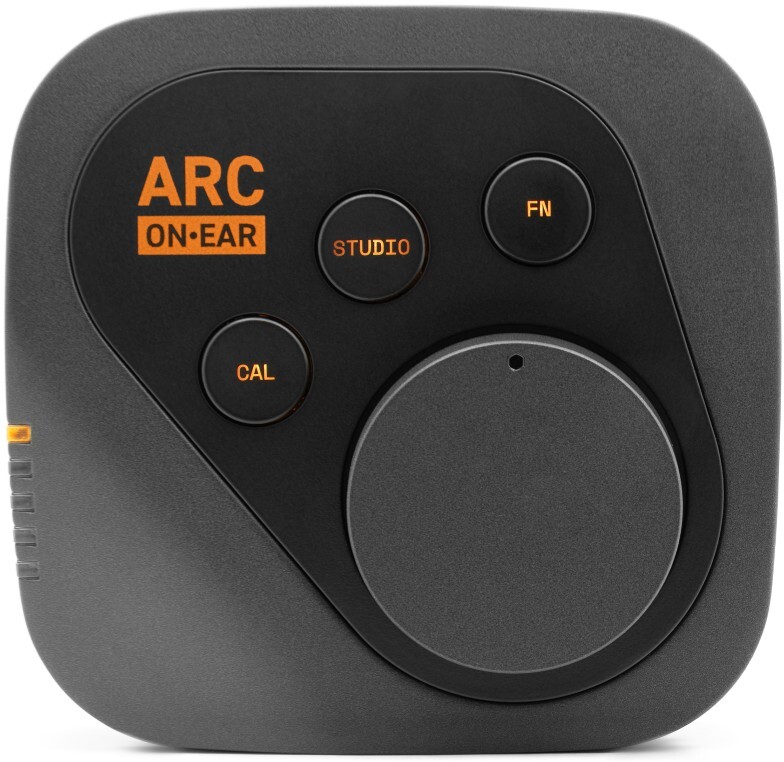

ARC On Ear is an acoustic correction system for headphones.
Supported sampling frequencies: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Frequency response: 11 Hz to 77,000 Hz (-1 dB)
Output power: 200 mW (100 mW per channel)
Latency (phase alignment off): 1.35 ms
Latency (phase alignment on): ~21.0 ms (variable depending on headphone model selected).
Supported sampling frequencies: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Frequency response: 11 Hz to 77,000 Hz (-1 dB)
Output power: 200 mW (100 mW per channel)
Latency (phase alignment off): 1.35 ms
Latency (phase alignment on): ~21.0 ms (variable depending on headphone model selected).
Lire la suite
Technical sheet
- Category
- DAC converter & headphone amplifier
- Main functions
- Integrated DAC and headphone amplifier
- Calibration curves for over 250 headphone models
- Switchable 3-band EQ for individual adjustment of the frequency curve
- Studio Simulation with crossfeed algorithm for realistic stereo imaging
- Virtual Speakers simulate different reference loudspeakers
- 5 memory presets (headphones/EQ settings, Virtual Speakers, Studio Simulation)
- User-assignable FN button (Mute, Dim, A/B switching, etc.)
- Operation via ARC ON EAR control application
- Conversion & audio
- ES9290 studio-quality DAC
- Dynamic range: 116 dB
- Harmonic distortion: -110 dB THD+N
- Digitally controlled analog volume control (optimized bit depth at low volumes)
- Headphone amplifier
- Output power: 200 mW

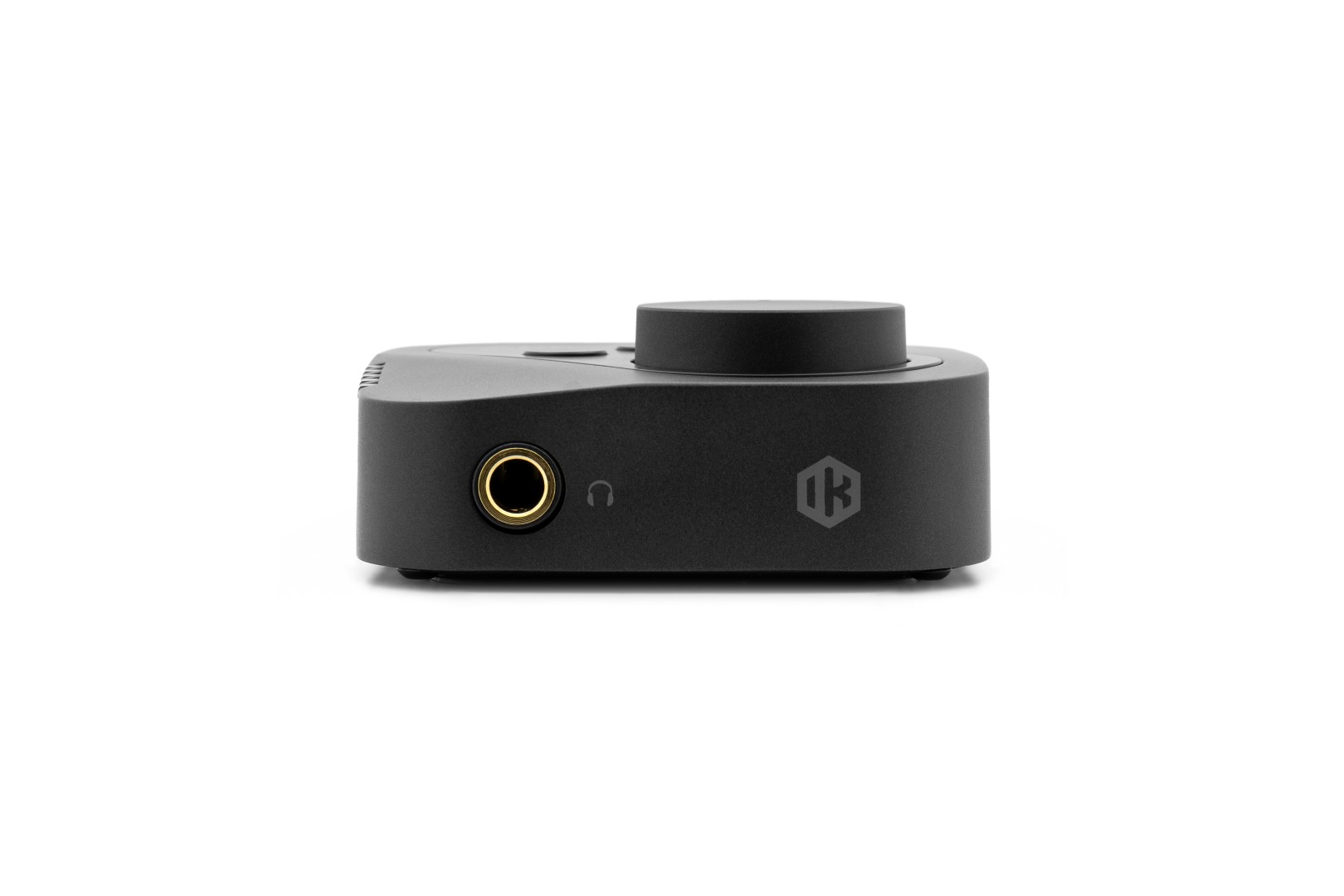

- Headphone output on 6.3 mm stereo jack

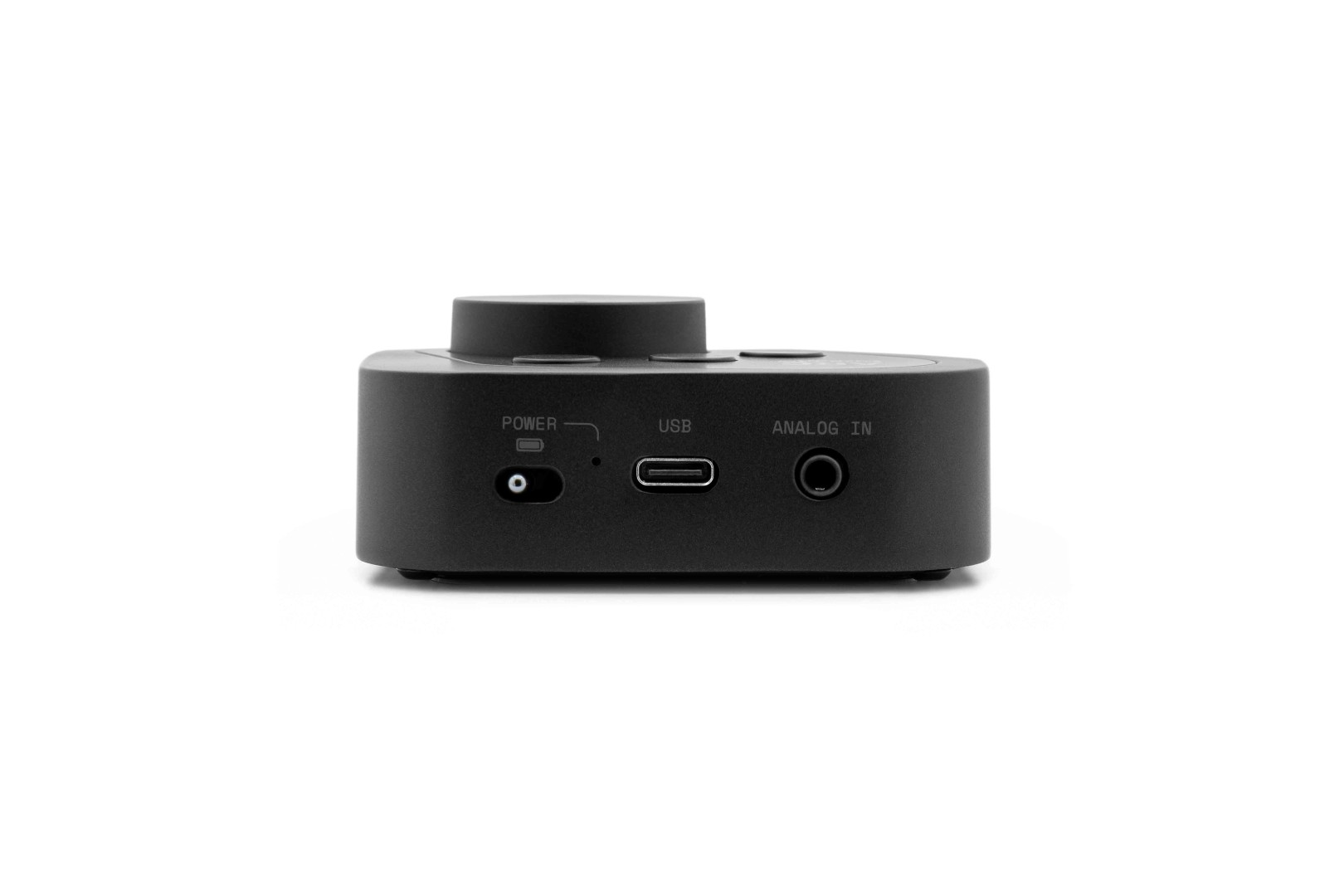

- Connectivity
- USB-C port for audio and power supply
- Analog input on 3.5 mm TRS mini-jack
- Power supply
- Integrated lithium battery, up to 4 h autonomy
- Construction
- Robust aluminum case
- Dimensions
- 79 x 77 x 35 mm (W x D x H)
- Weight
- 0.17 kg

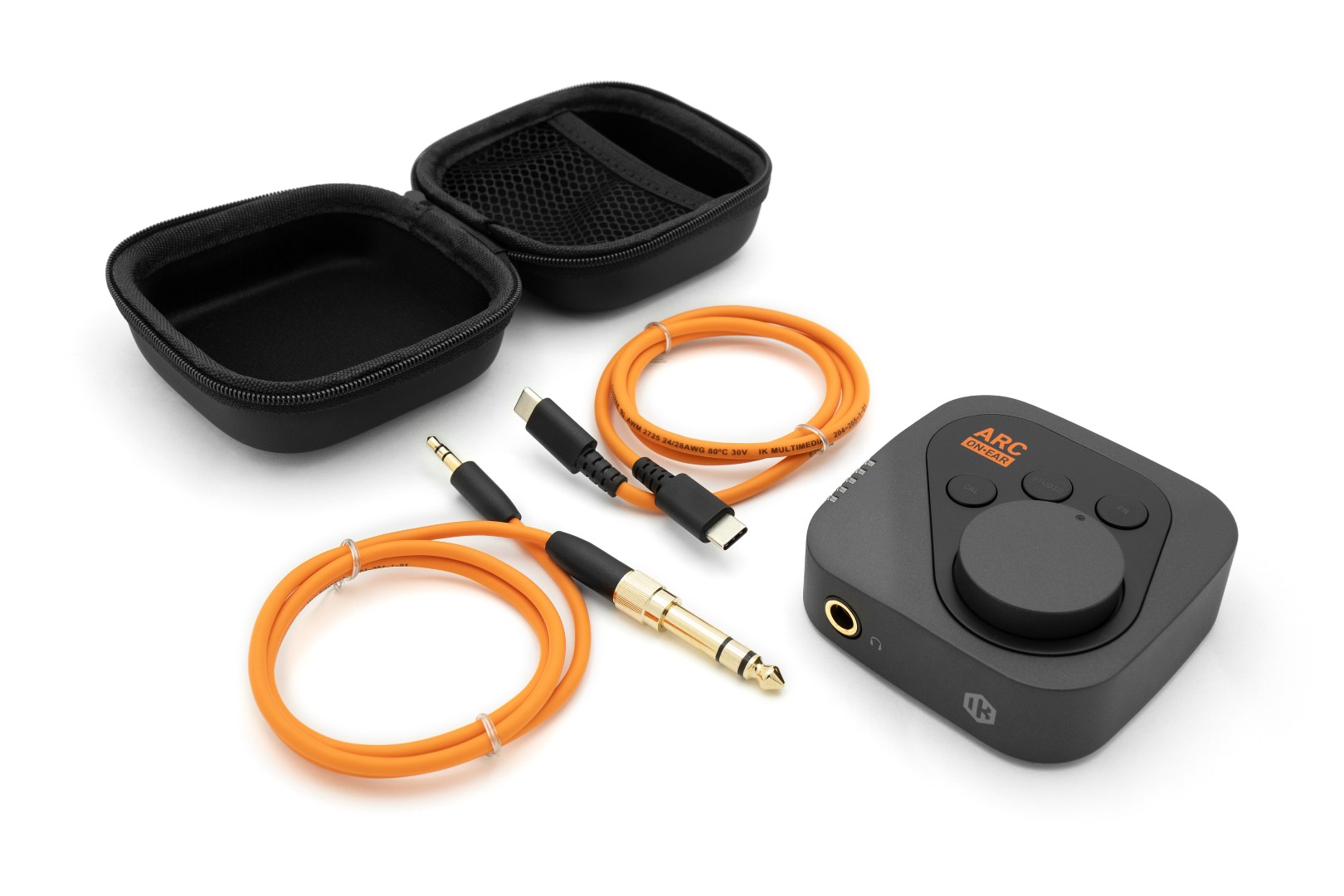

- Included accessories

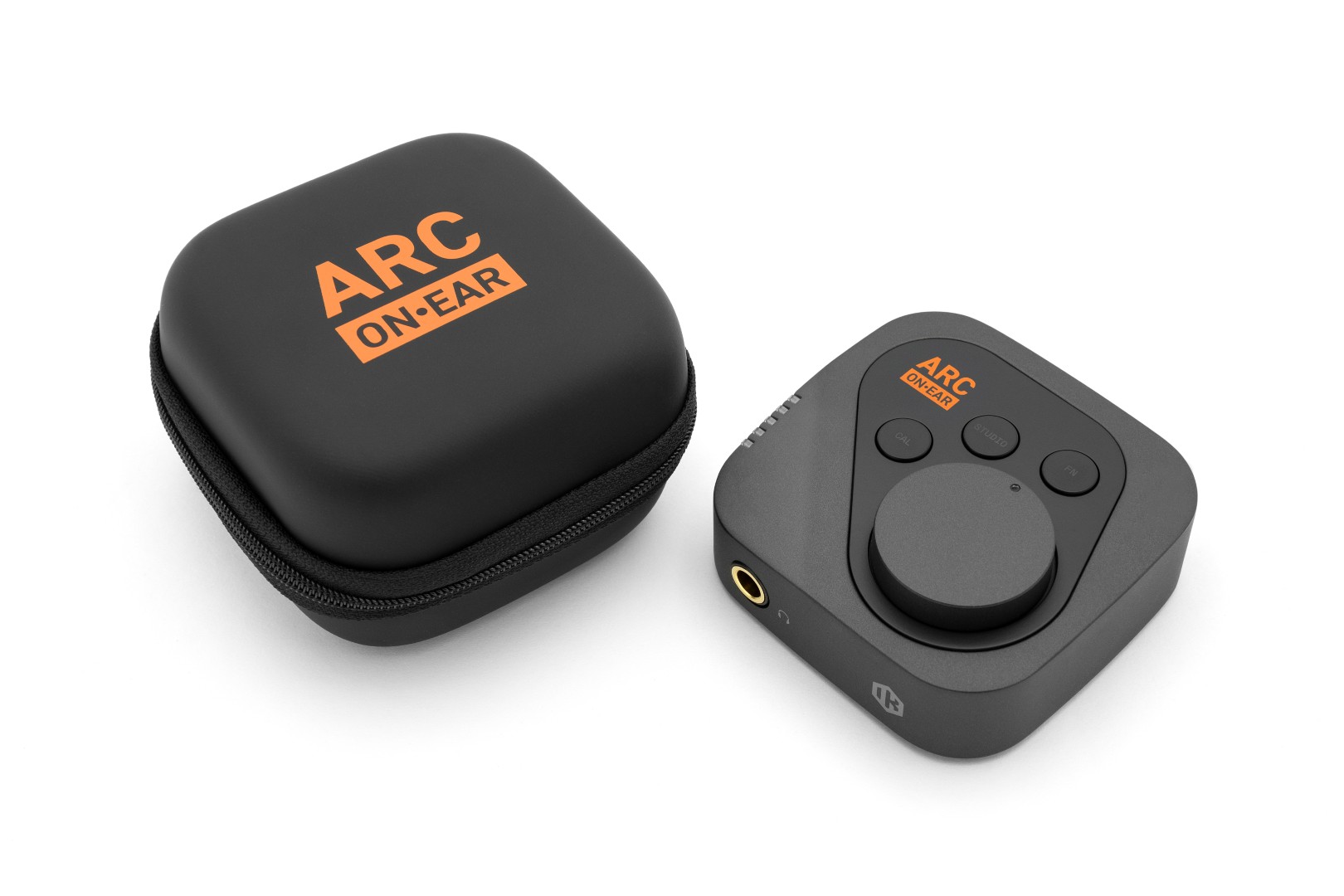

- Travel case
- 0.6 m USB-C cable
- 0.6 m audio cable (mini-Jack 3.5 mm ? mini-Jack TRS 3.5 mm)
- Adapter mini-Jack 3.5 mm ? Jack TRS 6.3 mm
