Algam lighting MH 200

What could be more complete? Algam Lighting's MH200 combines all three essential effects effects - Beam, Spot and Wash - in a single, compact and powerful powerful lyre. Designed for contractors, DJs, stage managers or demanding fixed locations, this adaptability while maintaining a professional level of performance thanks to a performance thanks to a 200W LED, motorized optics and numerous visual effects.

What kind of lighting effects can you achieve with the MH200?

• Beam: ultra-precise beam for striking aerial effects.
• Spot: projection of sharp patterns with 2 gobo wheels (fixed and rotating).
• Wash: homogeneous coverage to color the scenic space.

High-level light output

Thanks to its 200W white LED, the MH200 delivers a beam of 39,000 Lux at 5 meters, making the lighting effect perfectly visible even in large halls or outdoors. The system includes:

• 2 gobo wheels: 9 fixed and 7 rotating
• 1 color wheel: 9 colors + white
• 1 rotating 3-facet prism
• 1 frost effect to soften the beam

Smooth movements and precise control

The motorized head rotates PAN (540°) and TILT (270°) quickly and smoothly. fluid. This ensures perfect responsiveness to the music or ambience being created, with total control over every position. with total control over every position.

A robust design for professionals

Algam Lighting has designed an exclusive chassis for the MH200: elegant, reliable and suited to intensive use. It features side handles for easy handling and an Omega mounting system for secure attachment. The product's reflects a high level of quality and durability.

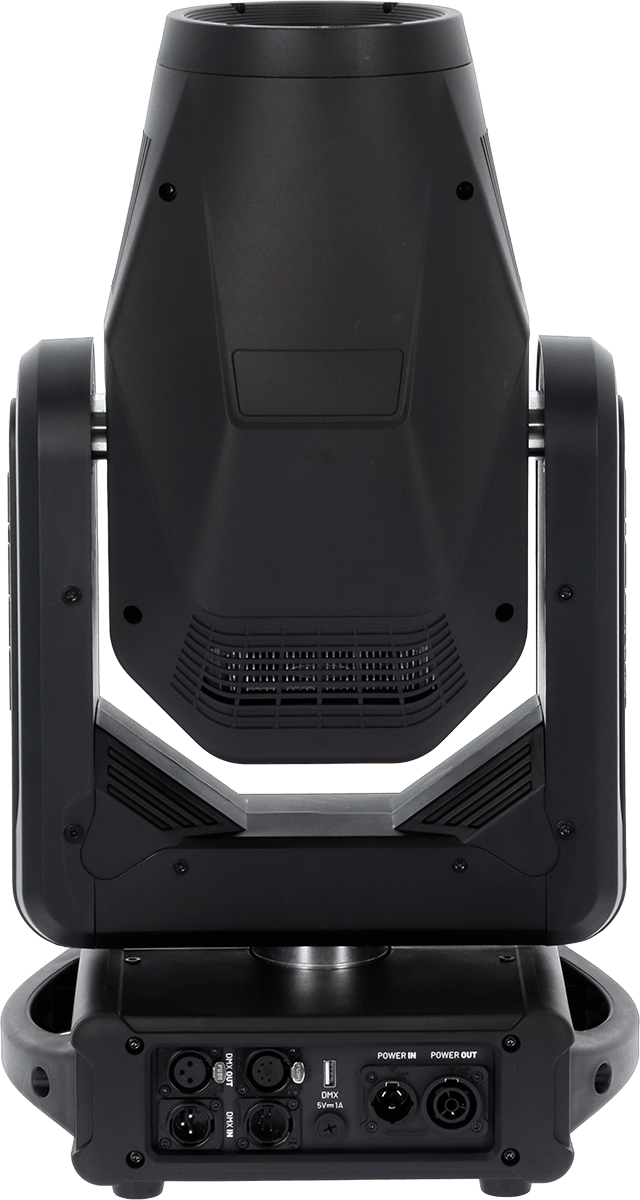

Comprehensive connectivity and pro compatibility

The MH200 integrates perfectly into all types of configuration:

• 3 and 5-pin DMX inputs/outputs
• PowerCon In/Out connectors for secure power supply and chaining
• 5V USB port for wireless DMX receiver
• Modes: DMX 16 or 20 channels, auto, musical, master/slave, RDM

Intuitive front panel control

A display and 5 buttons let you quickly configure the lyre even without a DMX CONTROLLER. Ideal for temporary installations or contractors on the move.

FAQ

• Who is the MH200 designed for? Lighting professionals, mobile DJs technical contractors and venues looking for flexible, powerful powerful, flexible equipment.
• What's the difference between Beam, Spot and Wash modes? The Beam mode produces a very tight beam, the Spot mode projects sharp shapes gobos, and Wash diffuses a wider light to cover a stage.
• Can I control the MH200 without a DMX console? Yes, thanks to the automatic automatic, musical and master/slave modes. But for fine-tuned programming, the use of a DMX controller is recommended.
• Is the lyre compatible with a wireless DMX receiver? Yes, A dedicated 5V USB port is provided for this purpose.
• What zoom angle is available? From 4° to 35°, enabling from a tight Beam effect to a wide Wash.
