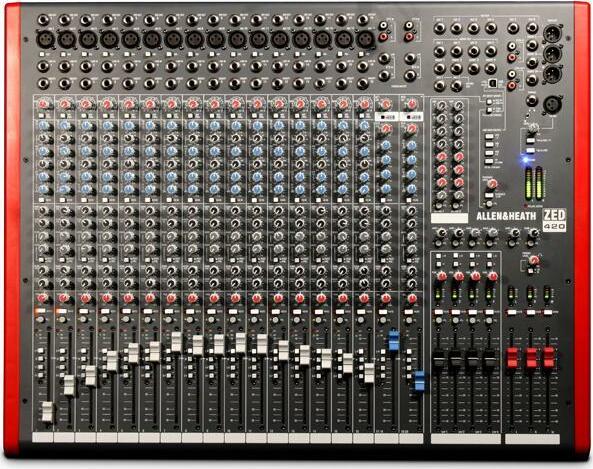

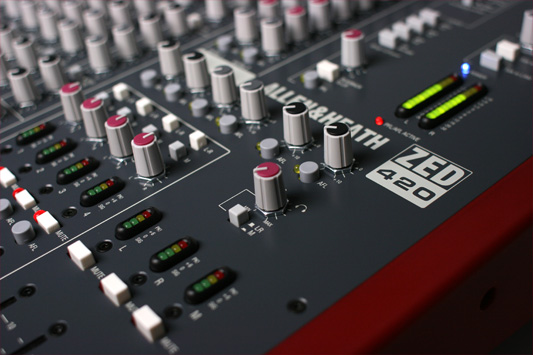

Allen & heath ZED-420

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Allen & Heath Zed-420 - Analog mixing desk - Main picture
  • Allen & Heath Zed-420 - Analog mixing desk - Variation 1
1877,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 13924
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
Other version(s) or associated product(s)

The brand Allen & heath

Learn more about the Allen & heath brand and discover the entire catalog.
Logo Allen & heath

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

The Allen & Heath 4 Bus Mixer for Live Sound and Recording ZED-420 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock. ZED-420 has Configurable USB audio in/out makes it easy to capture stereo recordings, 16 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.
Lire la suite

Technical sheet

  • Mixer connectivity USB
  • Number of channel mixing desk 10 to 22 channels
  • Number of channel mixing desk : 10 to 22 channels
  • Mixer connectivity : Usb
  • 16 mono channels
  • 2 dual stereo inputs with 4-band EQ
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • Channel insert
  • Super wide gain ‘DuoPre’ mic line input
  • 4-band EQ with 2 swept mids and in/out switch
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
  • 4 sub groups fed from each channel
  • All inputs with level control
  • 12 bar meters
  • L, R and M main mix outputs
  • 2 matrix sections available; can send output to USB
  • Individual channel 48V phantom power
  • Direct output on every mono channel
  • Peak and signal indication on every channel
  • Configurable USB stereo audio in/out
  • Master level controls on all outputs
  • Easy to use layout – all connections and controls on top surface
