Allen & heath CQ-20B

  • Read reviews (0)
  • Related accessories
  • Similar products

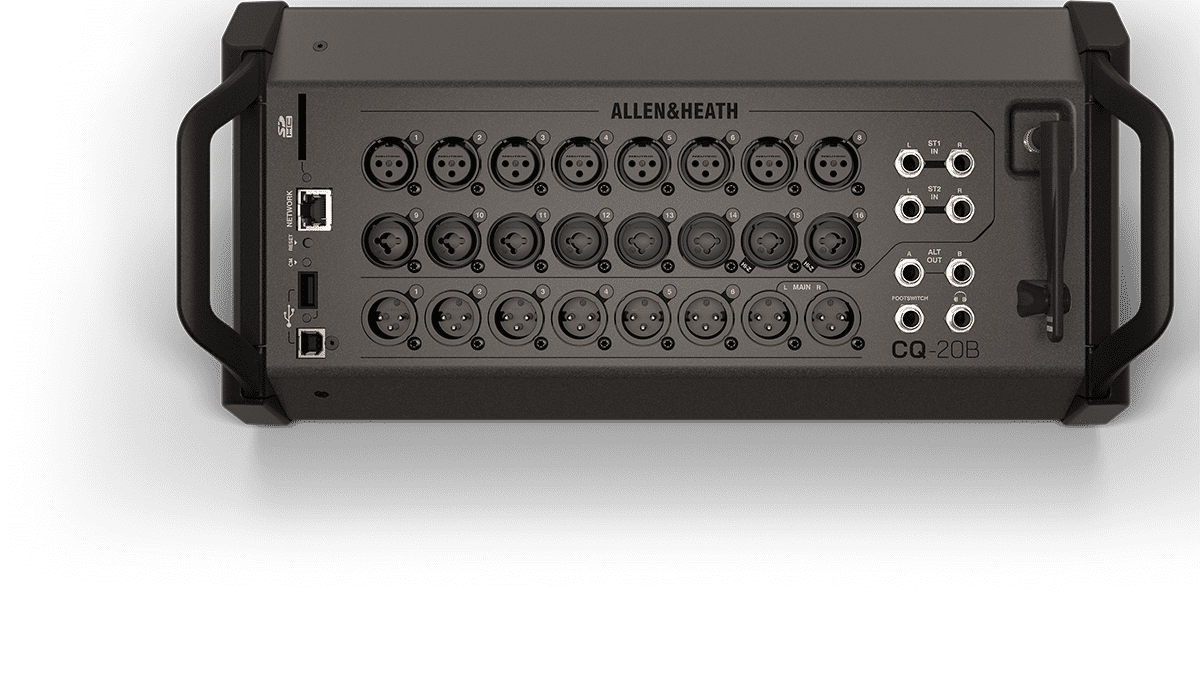

  • Allen & Heath Cq-20b - Digital mixing desk - Main picture

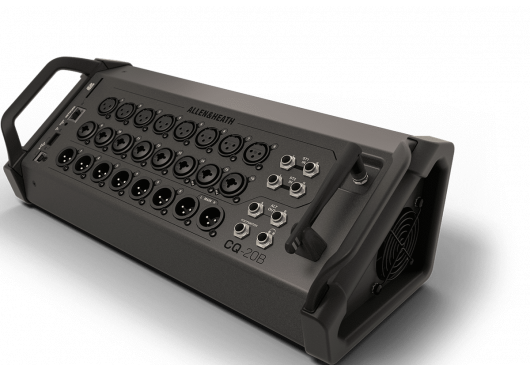

  • Allen & Heath Cq-20b - Digital mixing desk - Variation 1

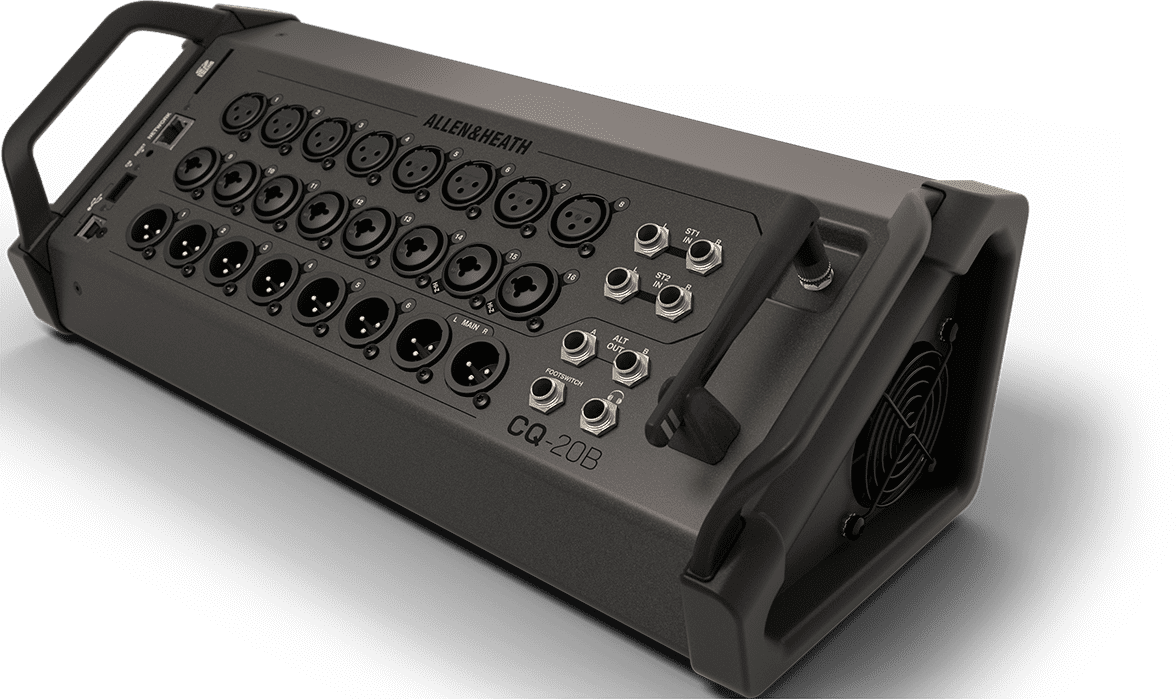

  • Allen & Heath Cq-20b - Digital mixing desk - Variation 2

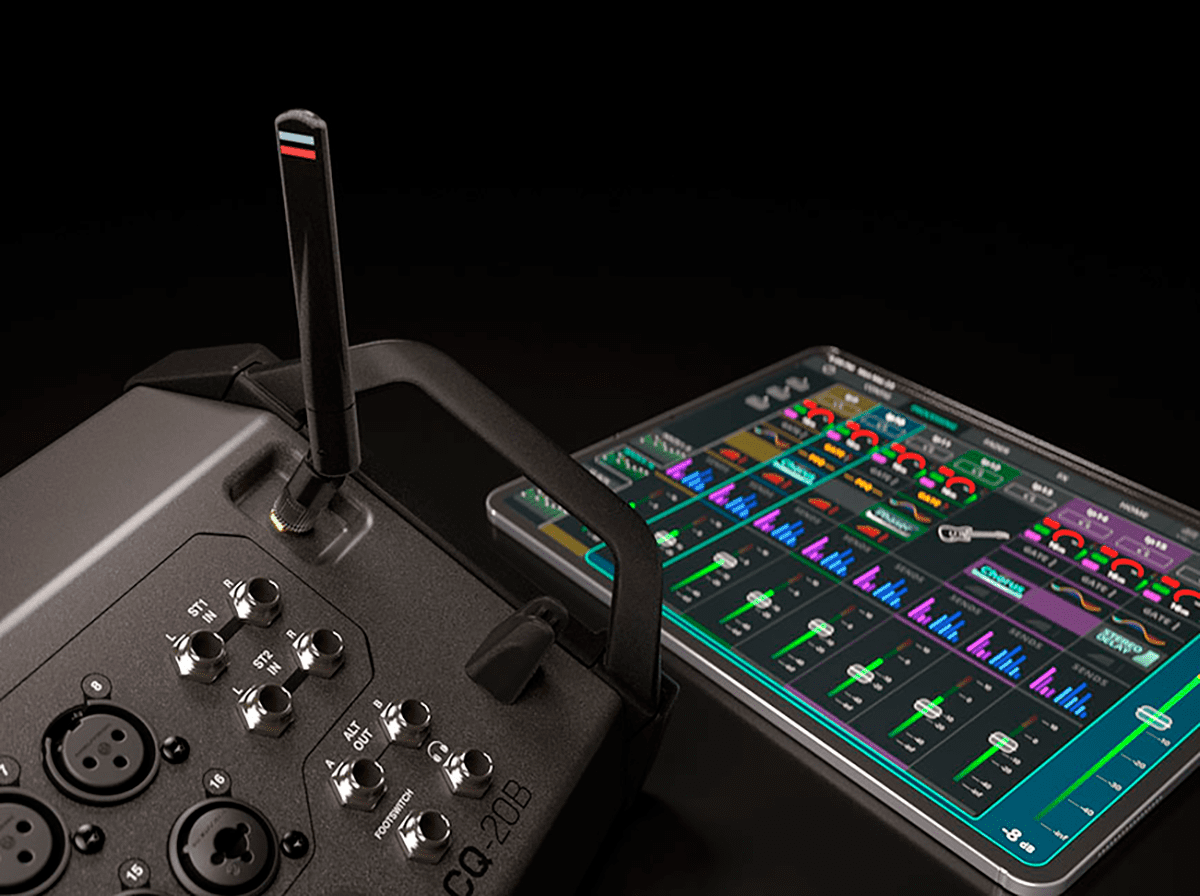

  • Allen & Heath Cq-20b - Digital mixing desk - Variation 3

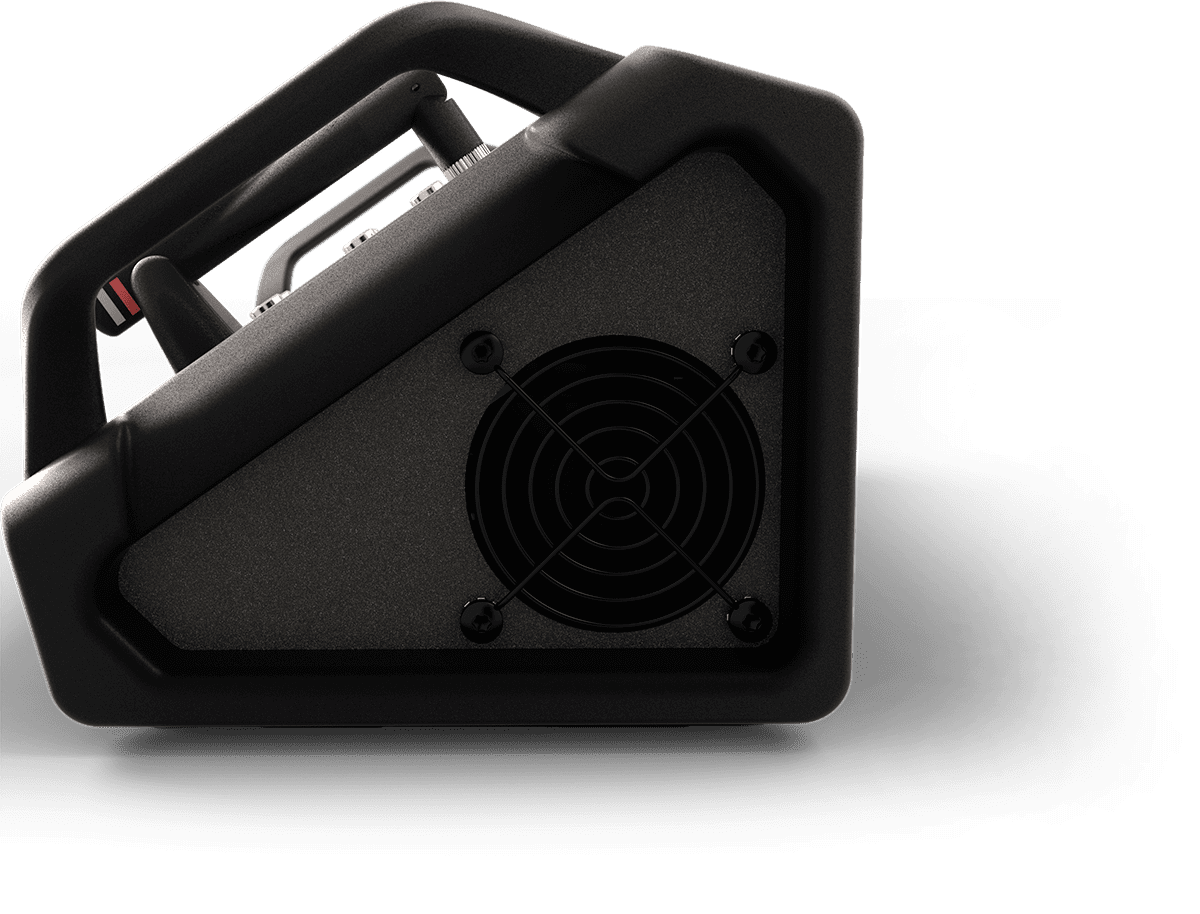

  • Allen & Heath Cq-20b - Digital mixing desk - Variation 4
989.00 €
899,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 108280
shipped under 2024/05/03
Stock in store
Not available in store
I want to be notified by email

The brand Allen & heath

Learn more about the Allen & heath brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Digital mixing desk

The Allen & Heath CQ-20B is a 20-channel, Bluetooth, rack-mounted digital console.

The CQ-20B is an ultra-compact, intuitive and efficient rack-mountable digital mixing console, featuring 20 channels managed by the brand's powerful 96 kHz FPGA processing circuit. Presented in a compact Stagebox format that can be installed on stage or in a rack cabinet, the CQ-20B represents the ideal solution for live performances or integration. With its integrated WiFi interface, combined with the numerous mixing aids and remote control applications, mix as you wish, wherever you want.
The power and audio quality of the brand's flagship products.
The experience and know-how of Allen & Heath in designing high-level mixing consoles, deployed at numerous events with the Qu, SQ, Avantis and dLive ranges, is undeniable. The CQ-20B, an ultra-compact 20-input (with Bluetooth) digital mixing console, inherits this unmatched expertise by offering musicians and sound engineers the power of Allen & Heath's famous 96 kHz FPGA technology and new intelligent tools and effects to effortlessly achieve high-quality mixing.
Don't miss out on your mixing anymore.
The CQ-20B includes numerous aids to make your mixing experience more enjoyable. As true guardians of your sound, the Gain Assistant saves you valuable time by automatically and precisely adjusting the preamplifier gain, avoiding unpleasant signal peaks and clipping, while the Feedback Assistant allows you to find and remove feedback frequencies during setup in Fixed mode, and then monitor the risk frequencies throughout the performance on all outputs in Live mode. For easy hosting of debates and conferences, an automatic microphone mixer (AMM) is available on each input, improving the clarity and intelligibility of the discussion.

Enjoy always well-balanced and well-integrated effects in your mix with the FX Assist engines, which incorporate new adaptive reverb and delay functions that dynamically respond to the signal.
Lire la suite


  • Number of channel mixing desk : 10 to 22 channels
  • Additional specifications:
  • 16 micro/line preamps, 8x XLR + 8x combo XLR/TRS
  • 2 symmetrical stereo line inputs, 4x TRS
  • Main LR output, 2x XLR
  • 6x mix aux outputs, 6x XLR
  • Assignable stereo line output, 2x TRS
  • Assignable headphone output, 6.35 mm TRS
  • USB-B interface 24x24
  • SD recording/playback 24x24
  • Stereo USB recording/playback with dedicated input channel
  • Stereo Bluetooth playback with dedicated input channel
  • 4 FX Assist engines
  • Dual footswitch input
  • Built-in dual-band 2.4G/5G AC Wi-Fi with automatic channel selection
  • Weight and dimensions: 2.6 kg, 372 x 153 x 133 mm
Lire la suite
