Description

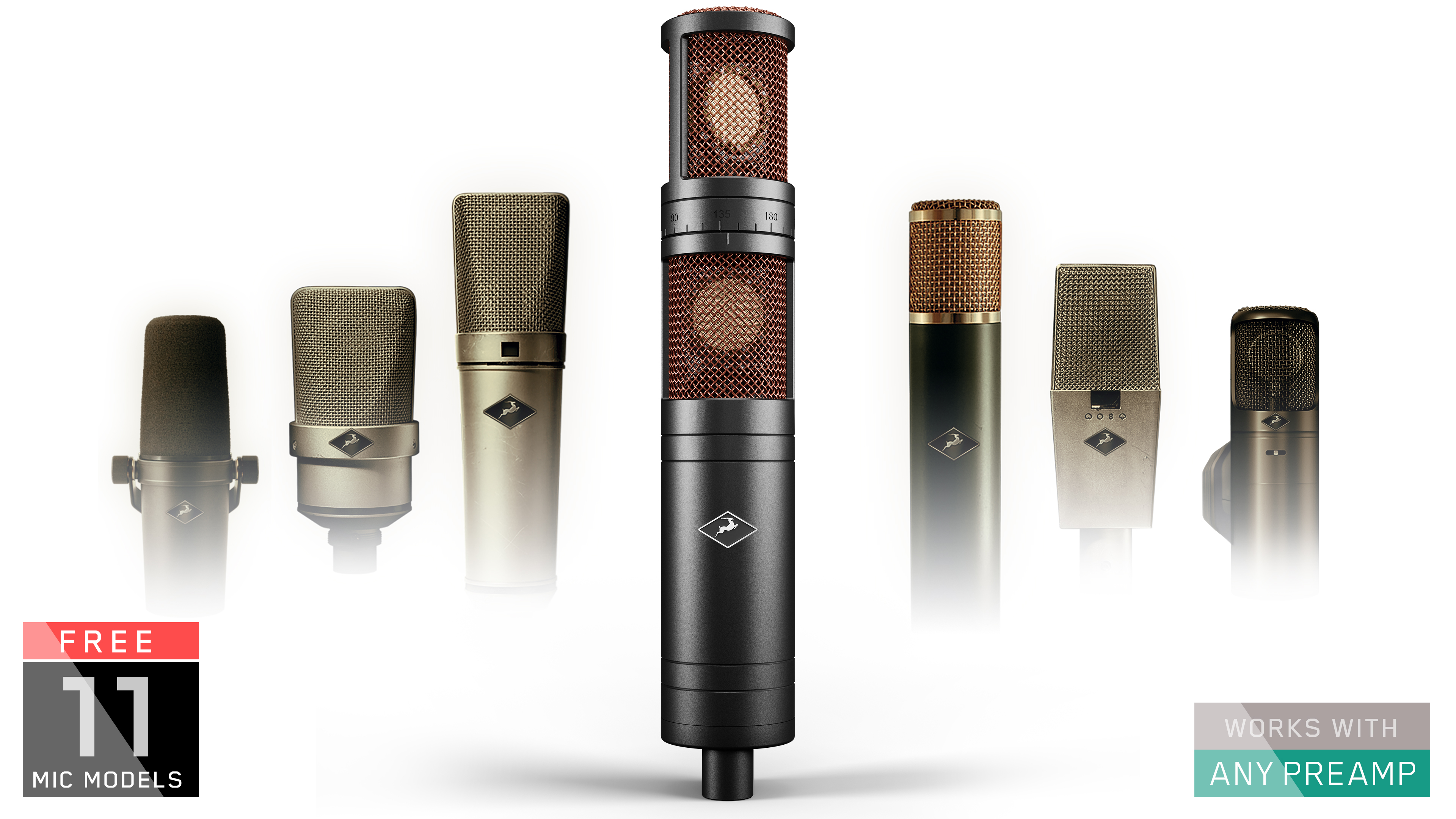

The Edge Quadro is a modeling microphone from Antelope.
Edge Quadro is Antelope Audio's most advanced modeling microphone. This Quadrosonic microphone incorporates two rotating heads with a large dual-diaphragm capsule in each.
With four independent outputs that can be independently processed and recombined, it allows stereo pickup techniques such as M/S, X/Y or Blumlein pair.
Edge Quadro is the only microphone you'll ever need for stereo or 360-degree recordings.
Edge Quadro is based on a rich and ever-growing collection of classic microphone emulations, with 11 legendary microphone models already available and 7 more to come.

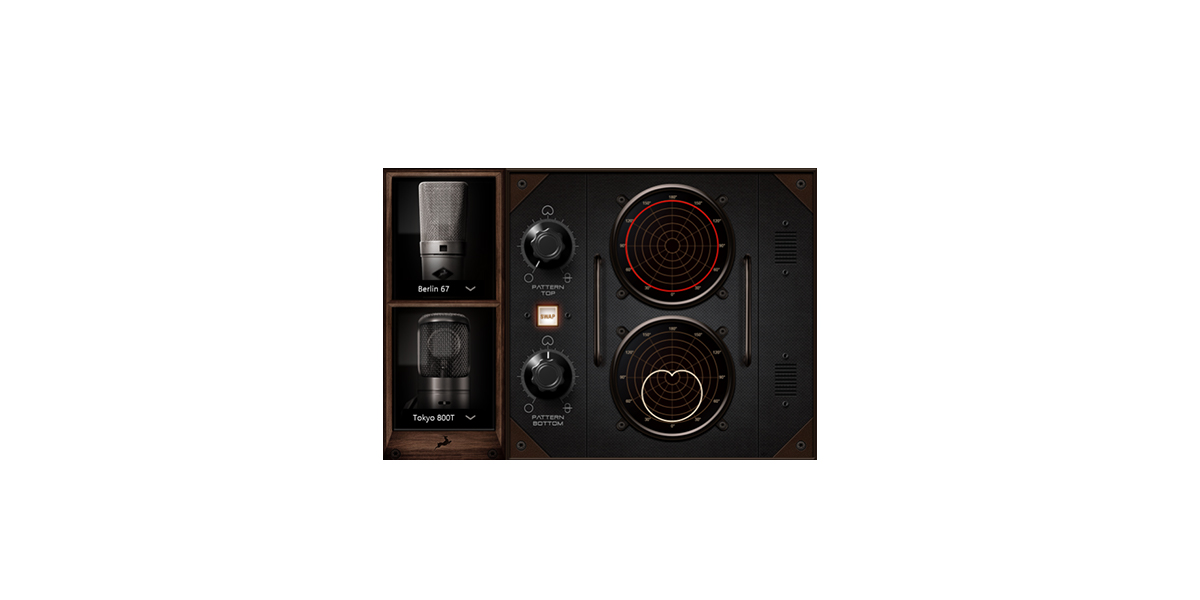

The well-designed graphical user interface allows the user to choose two different microphone emulations simultaneously, one for each head.
Edge Quadro not only sounds amazing, it looks great too!
This unique microphone comes with a special luxurious shock absorbing suspension and two deoxygenated copper Y-cables. The microphone is protected by an elegant custom-made wooden case that adds another level of protection to its solid and durable construction.
- Unique Quadrosonic modeling microphone
- Two large capsule rotary heads with double diaphragm condenser
- Output split into four independent channels for maximum control
- Selectable directionalities: cardioid, figure of 8, omnidirectional and all intermediate positions
- Individual microphone emulation and directivity selection for each head
- Unlimited upper head rotation for maximum flexibility
- Totally symmetrical lower and upper heads with very low reflections
- Extensive library of vintage microphone emulations
- Luxurious special suspension with two special Y-cables made of deoxygenated copper included
- Hand made custom made wooden box
Microphone emulations:
Berlin 47 FT
Berlin 49T
Berlin 57
Berlin 87
Berlin 67
Berlin M103
Vienna 12
Vienna 414
Tokyo 800T
Oxford 4038
Sacramento 121R
Berlin K86 (coming soon)
Berlin 47 TU (coming soon)
Berlin V563 (coming soon)
Berlin/Halske M25 (coming soon)
Berlin M251 (coming soon)
Minnesota 20 (coming soon)
Illinois 7B (coming soon)
Edge Quadro is Antelope Audio's most advanced modeling microphone. This Quadrosonic microphone incorporates two rotating heads with a large dual-diaphragm capsule in each.
With four independent outputs that can be independently processed and recombined, it allows stereo pickup techniques such as M/S, X/Y or Blumlein pair.
Edge Quadro is the only microphone you'll ever need for stereo or 360-degree recordings.
Edge Quadro is based on a rich and ever-growing collection of classic microphone emulations, with 11 legendary microphone models already available and 7 more to come.
The well-designed graphical user interface allows the user to choose two different microphone emulations simultaneously, one for each head.
Edge Quadro not only sounds amazing, it looks great too!
This unique microphone comes with a special luxurious shock absorbing suspension and two deoxygenated copper Y-cables. The microphone is protected by an elegant custom-made wooden case that adds another level of protection to its solid and durable construction.
- Unique Quadrosonic modeling microphone
- Two large capsule rotary heads with double diaphragm condenser
- Output split into four independent channels for maximum control
- Selectable directionalities: cardioid, figure of 8, omnidirectional and all intermediate positions
- Individual microphone emulation and directivity selection for each head
- Unlimited upper head rotation for maximum flexibility
- Totally symmetrical lower and upper heads with very low reflections
- Extensive library of vintage microphone emulations
- Luxurious special suspension with two special Y-cables made of deoxygenated copper included
- Hand made custom made wooden box
Microphone emulations:
Berlin 47 FT
Berlin 49T
Berlin 57
Berlin 87
Berlin 67
Berlin M103
Vienna 12
Vienna 414
Tokyo 800T
Oxford 4038
Sacramento 121R
Berlin K86 (coming soon)
Berlin 47 TU (coming soon)
Berlin V563 (coming soon)
Berlin/Halske M25 (coming soon)
Berlin M251 (coming soon)
Minnesota 20 (coming soon)
Illinois 7B (coming soon)
Lire la suite
Technical sheet
- Microphone type: Quadrosonic static condenser microphone
- Diaphragm: a large 34mm double layer capsule with 6 micron gold coated membranes in each independent rotating head
- Directionality: multi-directional (cardioid, figure of 8, omnidirectional and all intermediate positions, M/S, X/Y, Blumlein pair)
- Frequency response: 20Hz-20kHz
- Sensitivity: -35dB|18mV/Pa (-1 to +3dB)
- THD+N: -116dB
- Self-noise: 19dB (A)
- SNR: 75dB (A)
- Output impedance: 50 Ohms
- Power supply: 48 volt phantom
- Output Connector: XLR male 5-pin
- Colour: matt black
- Connecting cable: two high quality deoxygenated copper cables, length 5m, XLR 5-pin female to double XLR 3-pin male
- Suspension: with specific shock absorption
- Transport box: Custom handmade wooden box made by hand
