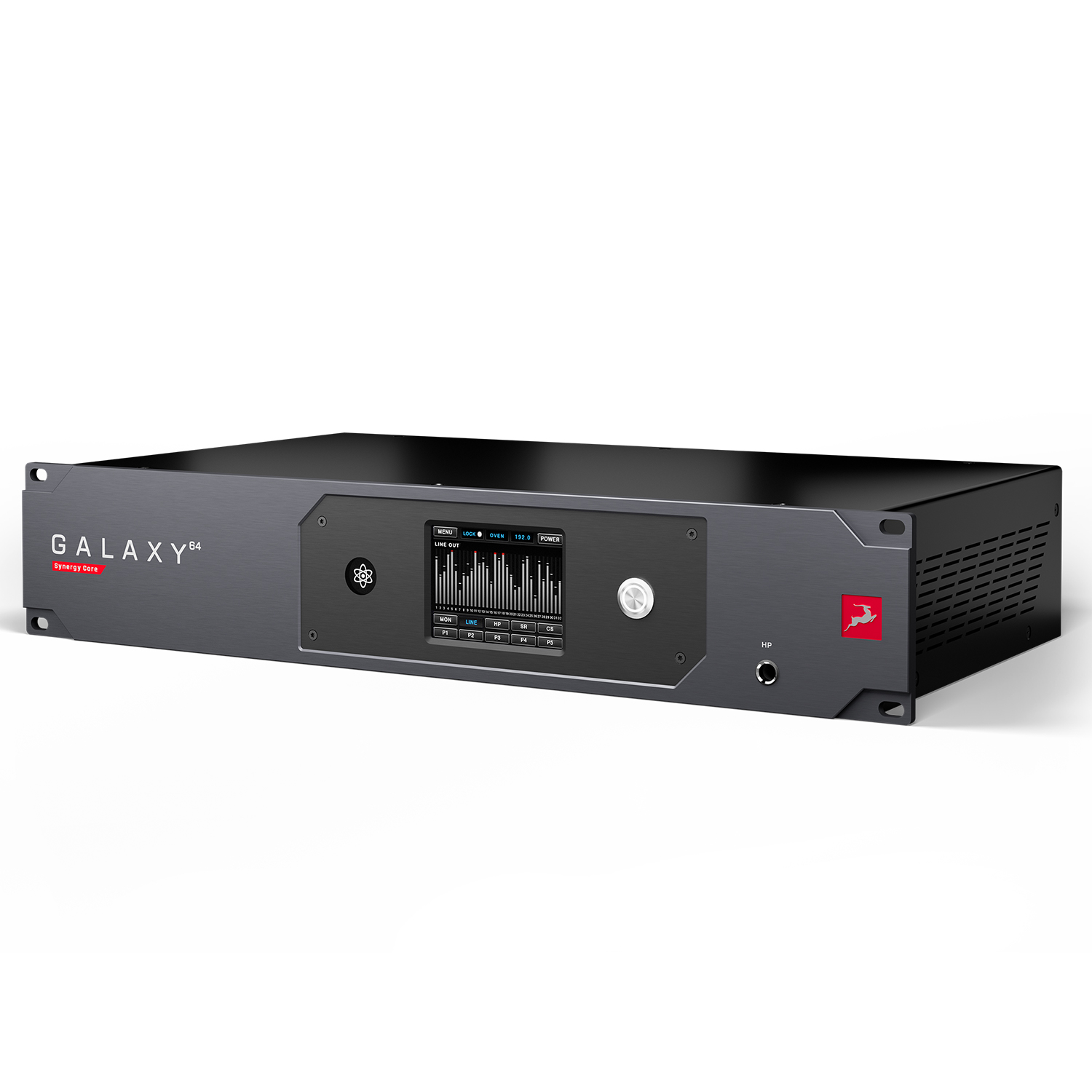

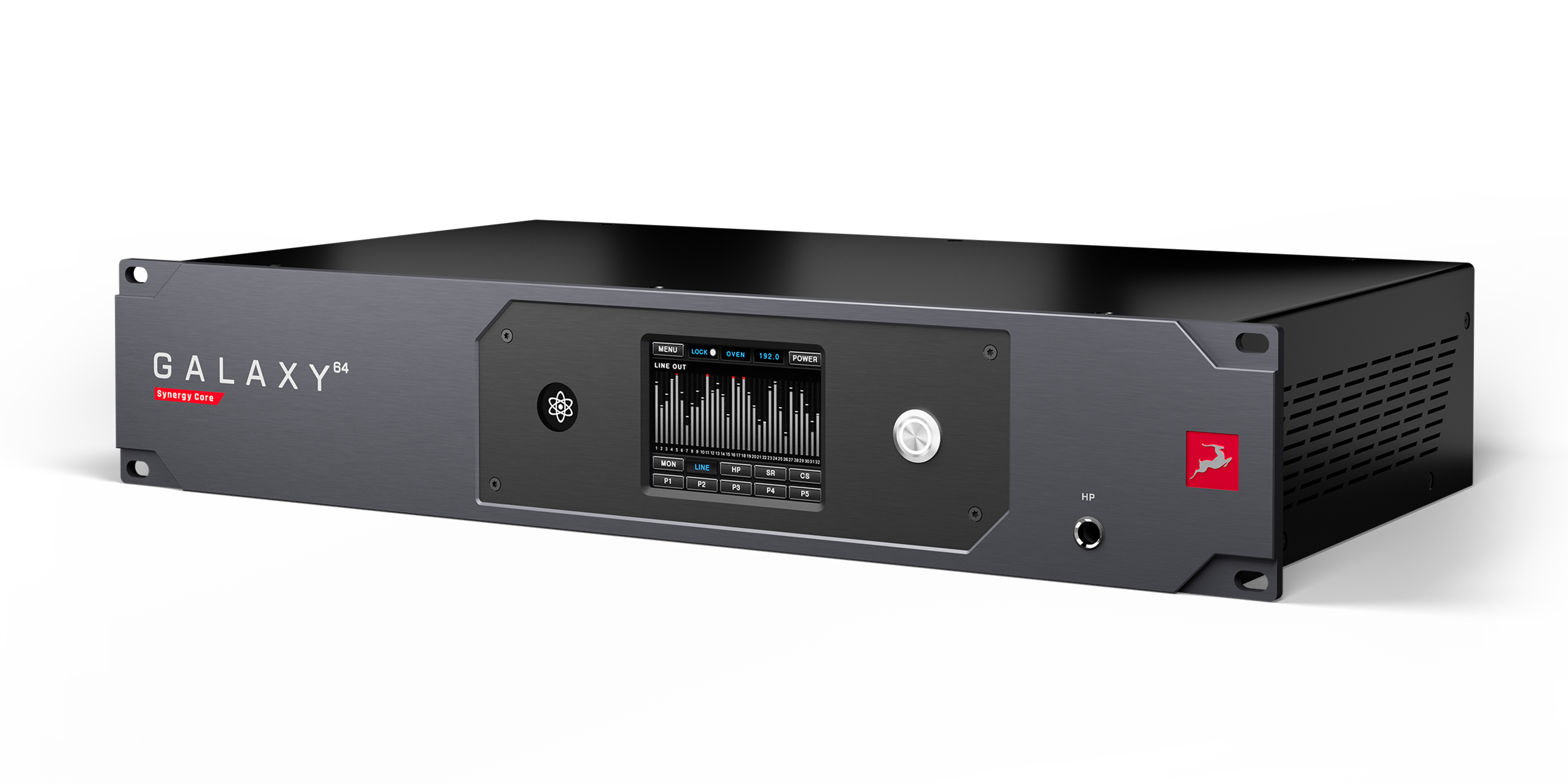

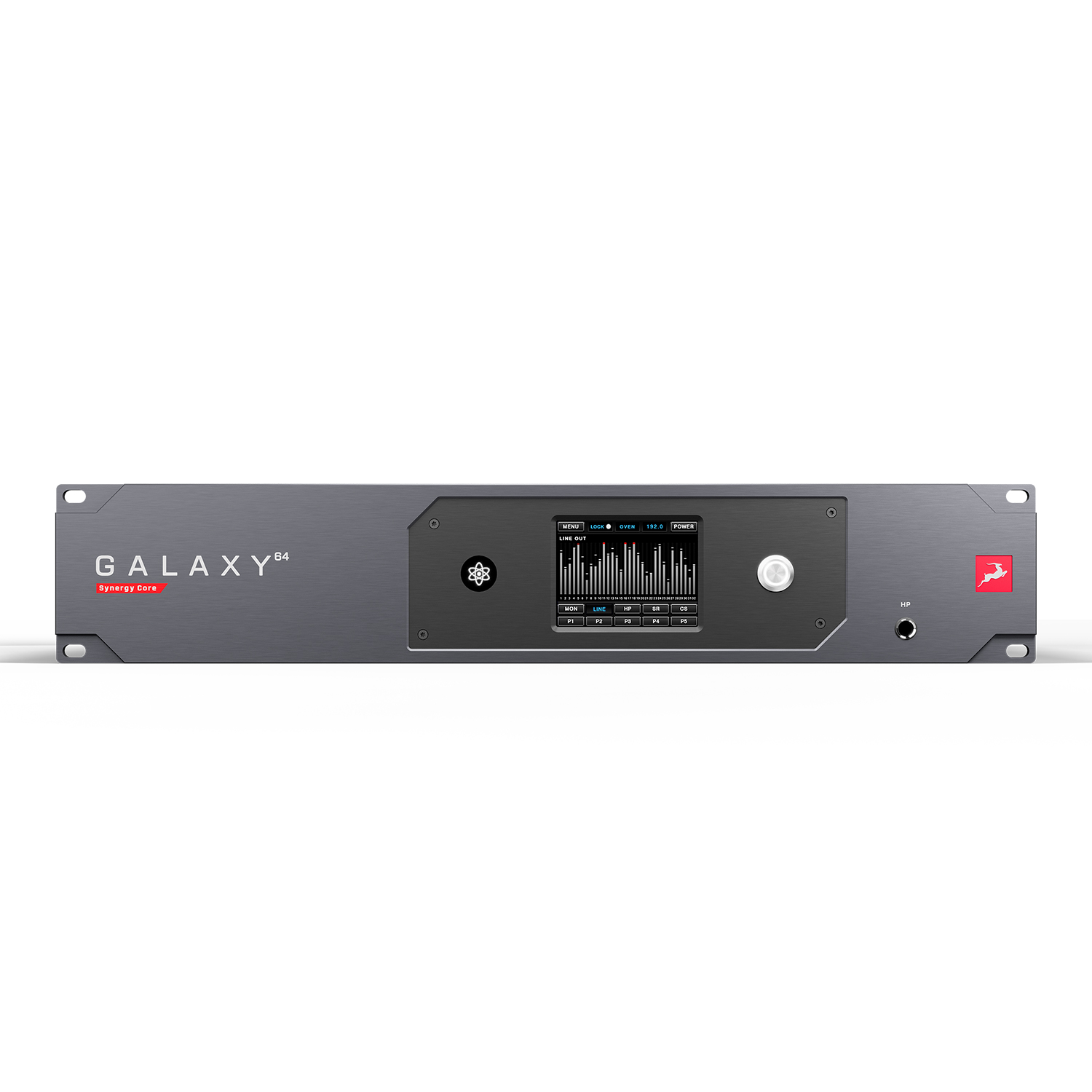

Antelope audio Galaxy 64 Synergy Core

Others formats (madi, dante, pci...)
8995.00 €
+
-
ON ORDER - contact us
INFORM ME OF ITS ENTRY IN STOCK
BIEN REÇU, MERCI!
OK
Please enter a valid email address
  • Need help +33 1 81 930 900

  • Fast delivery

  • Guarantee : 3-years warranty

    days refund guarantee : within 30 days

Share

Description

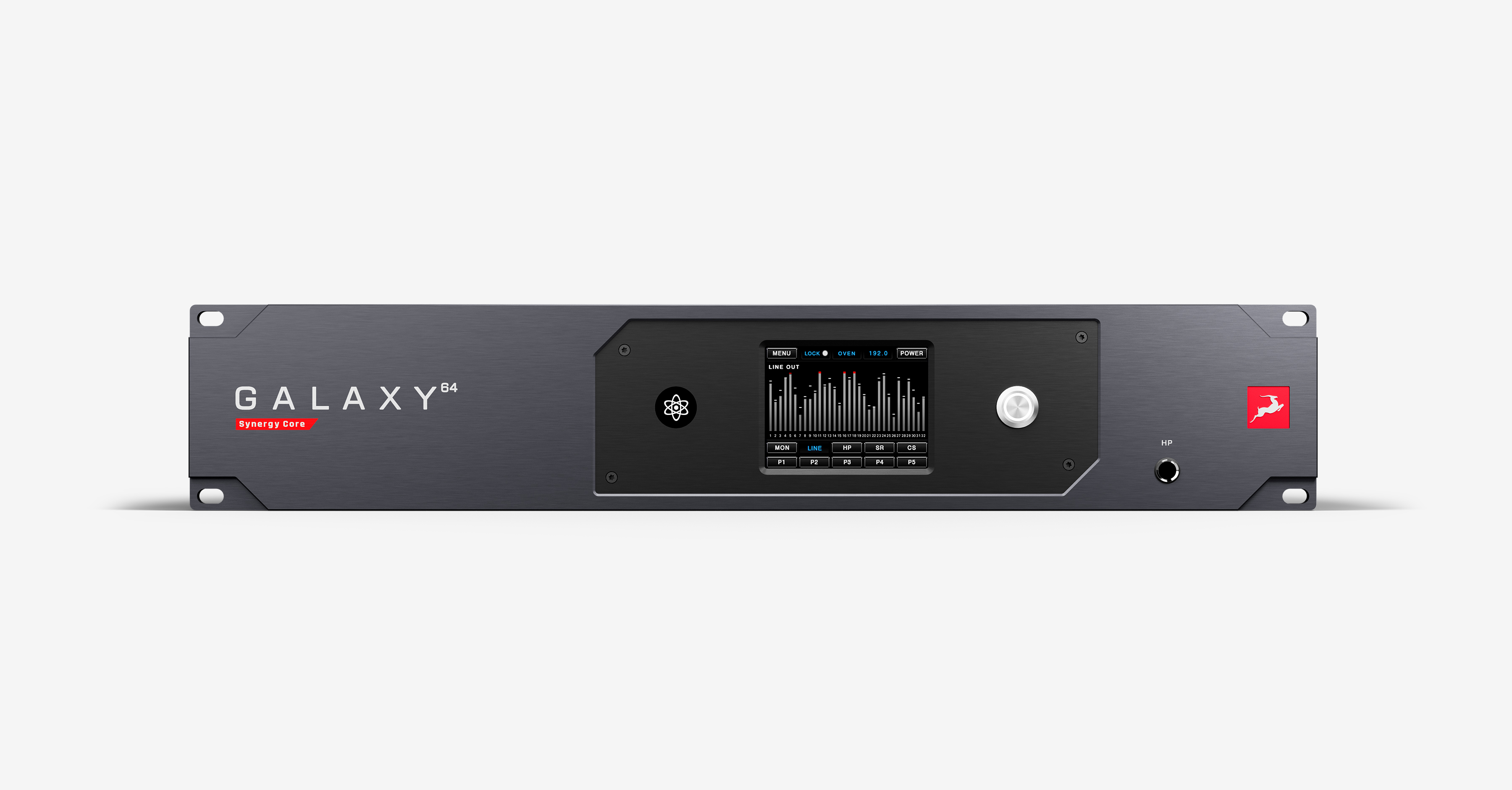

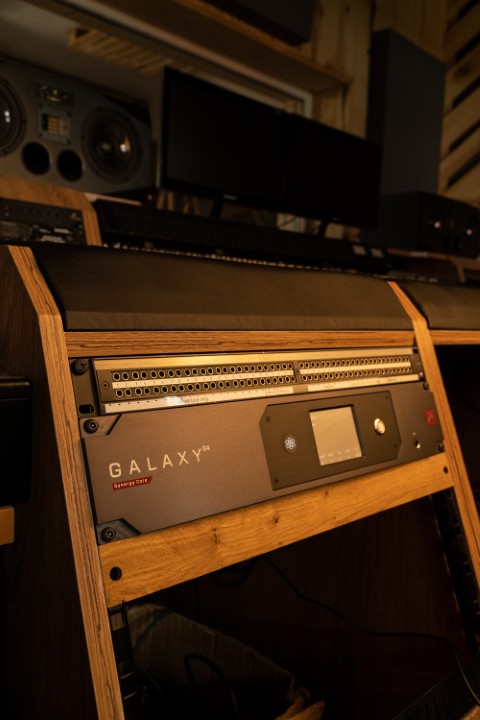

Galaxy 64 Synergy Core is a high-end recording system that connects your entire studio in a 2U rack space while providing high fidelity audio and integrated plugin processing for the most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world's first 64-channel AD / DA converter offers unbeatable flexibility to dispatcher audio within your high-level production facility, on stage, in broadcast or beyond. business applications. The interface is designed to be the center of your entire recording environment, eliminating the need for external modules and expansion cards, centralizing your entire setup.

Galaxy 64 Synergy Core is the only interface to offer two Dante ports for audio networking, four HDX ports for up to 128 channels at 192kHz sample rate in Pro Tools, and Thunderbolt connectivity. These options can be used simultaneously with multiple systems for easy adaptation to different workflows with your favorite DAWs. This is all made possible by Antelope’s proprietary FPGA configuration and powerful digital routing.

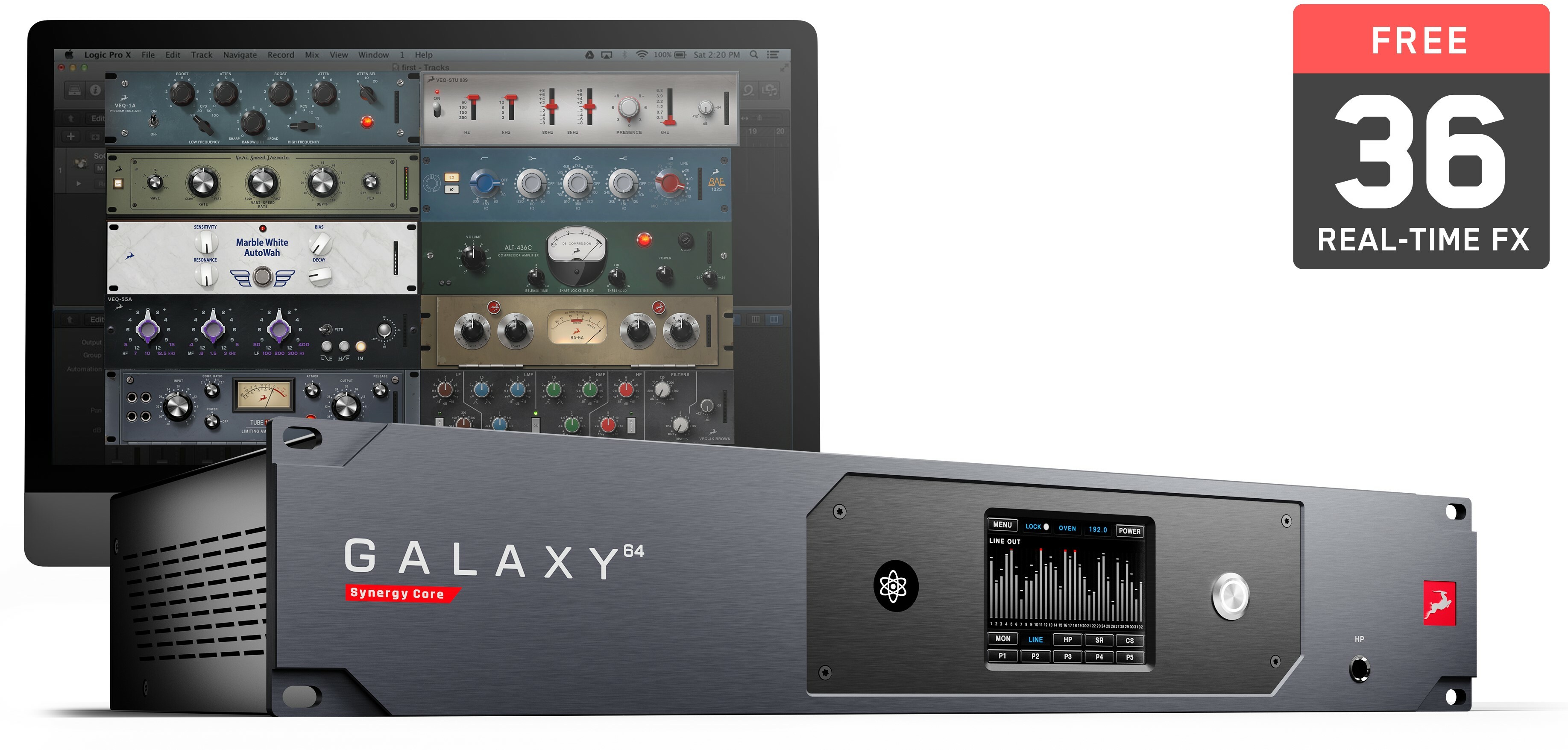

The interface comes with 36 real-time plugins from a collection consisting largely of software emulations of vintage analog gear found in some of the world's most renowned facilities. The on-board Synergy Core processor takes care of all the processing while enabling real-time monitoring with plugins with no perceived latency - a feature widely used in live performances.

Characteristics

Ref : 97689
- Dsp : yes

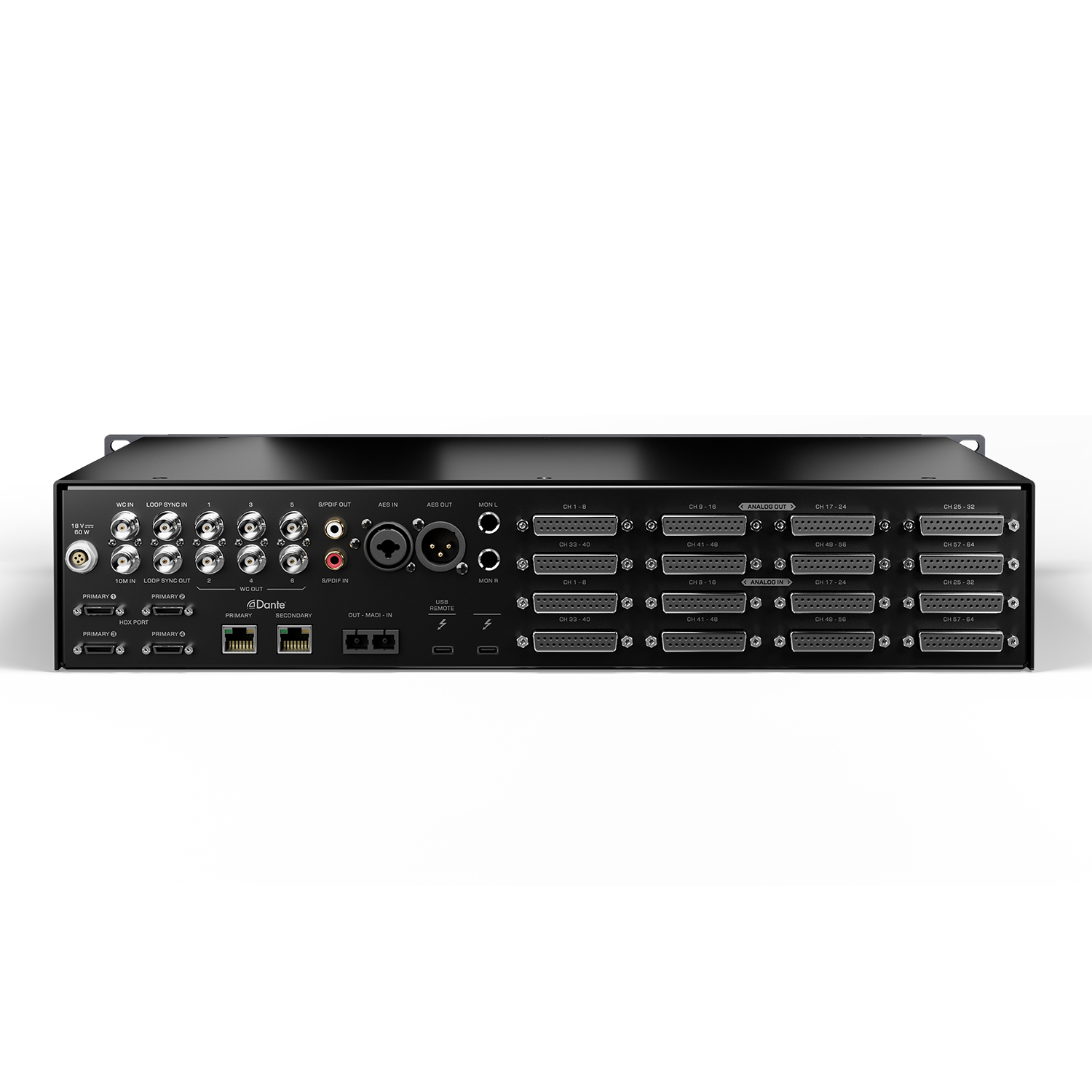

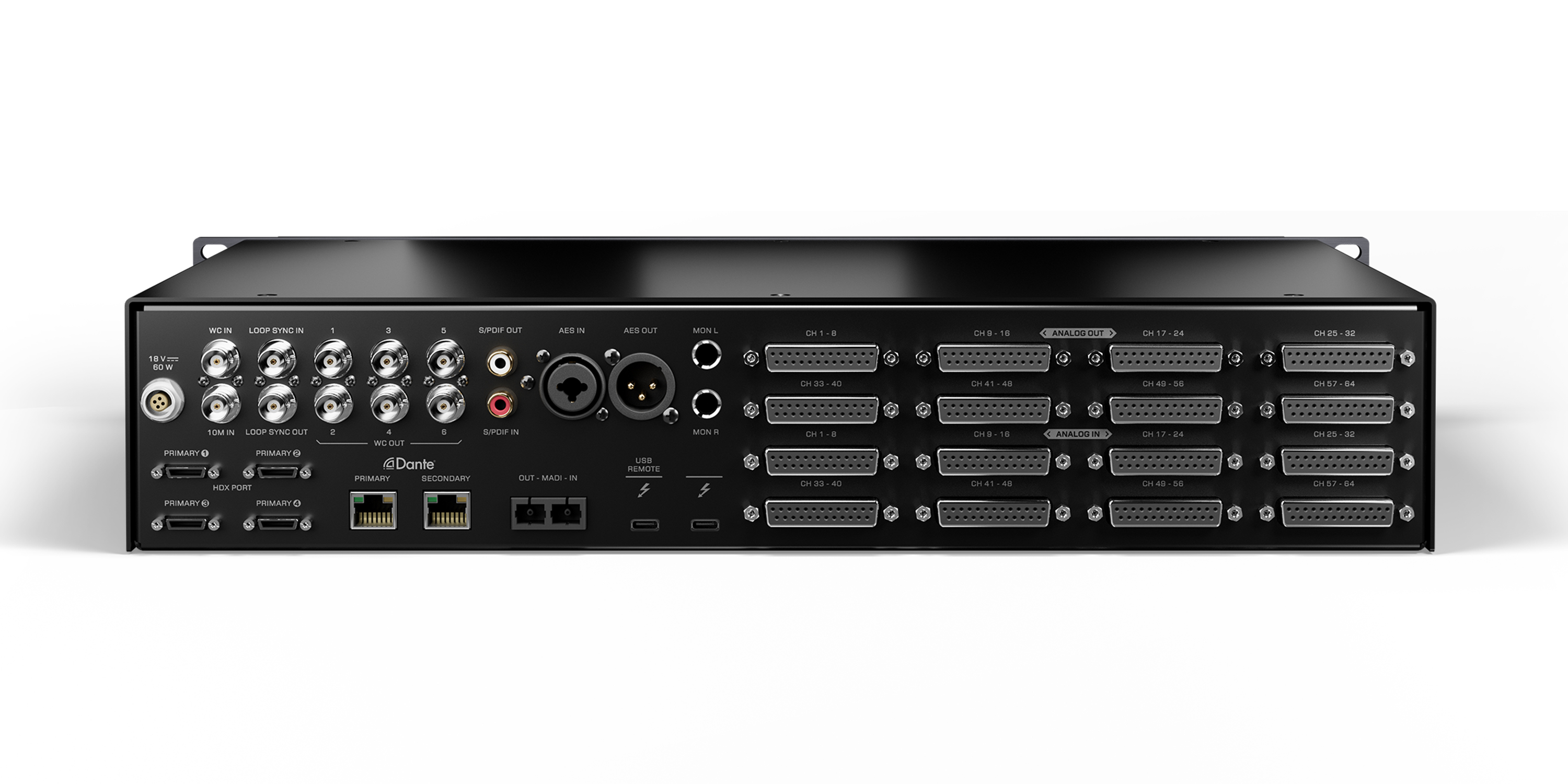

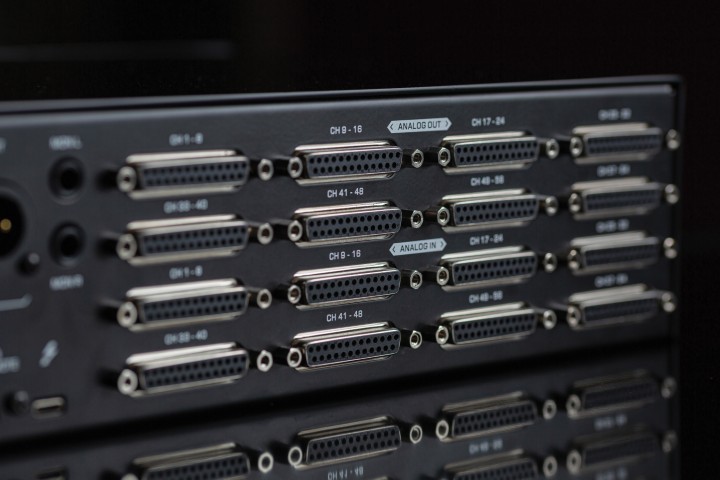

- 64 analogue input channels on 8 DSUB-25 connectors with AC / DC coupling switch (TASCAM standard).
- 64 analog output channels on 8 D-Sub 25 connectors coupled with direct current (TASCAM standard).
- Dante audio over IP with primary / secondary port for audio transfer over long distances.
- Four HDX ports: Up to 128 I / O channels for Pro Tools HD / HDX integration.
- Two Thunderbolt ™ 3 ports with custom macOS and Windows drivers for native DAWs.
- Digital inputs / outputs: AES / EBU, S / PDIF and 64 optical MADI channels.
- AD converter dynamics: 124 dB, AD converter dynamics: 128 dB for recording sessions without artefacts.
- Mastering quality monitoring converter with dynamic range of 130 dB for critical listening without coloration or degradation of the signal.
- Proprietary Acoustically Focused Clocking technology and 64-bit processor-based jitter management algorithm provide increased width, separation and detail in musical performance.
- Collection of 69 Synergy Core analog modeling plugins;
- Proprietary Synergy Core real-time processing platform integrated with 12 × DSP and 2 × FPGA.
- Up to 256 instances of plugins loaded simultaneously on 64 individual virtual racks.

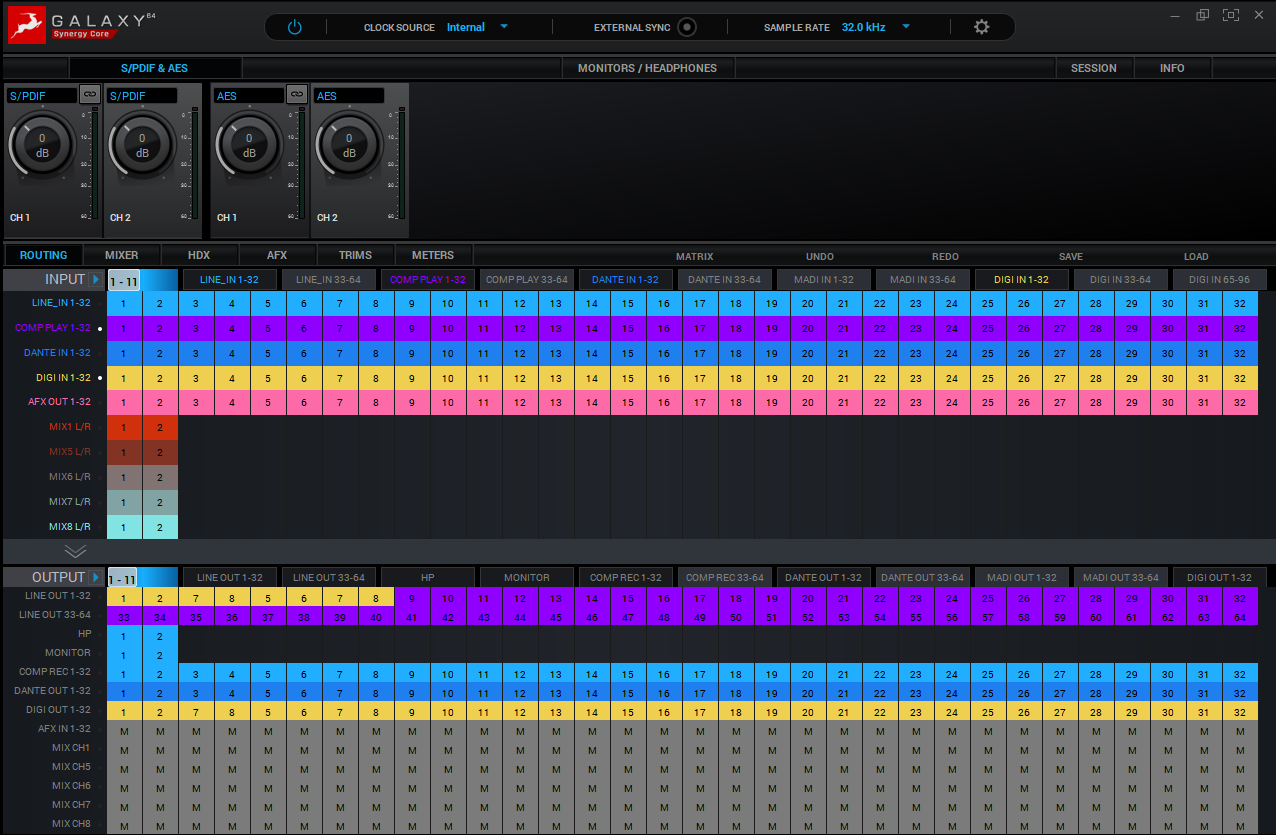

- Advanced digital routing matrix allowing the creation of complex configurations by simple drag and drop functionality.
- 8 low latency 32 channel mixers which can be split into individual mixes and submixes while applying panning, stereo link, reverb or other plugins.
- Customizable presets with signal routing, level settings, mix and downmix settings.
- Direct listening with plugins in real time without noticeable latency.

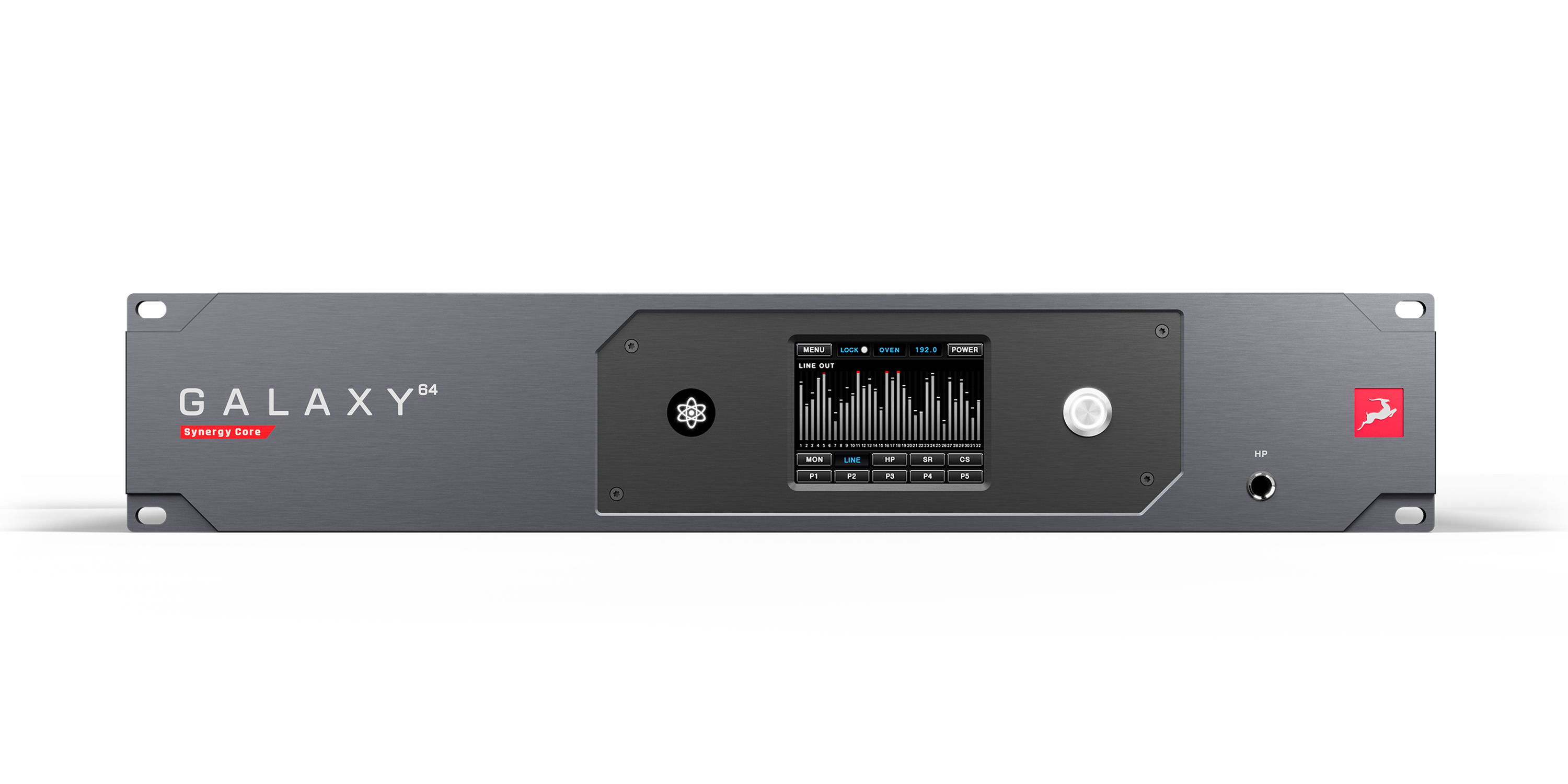

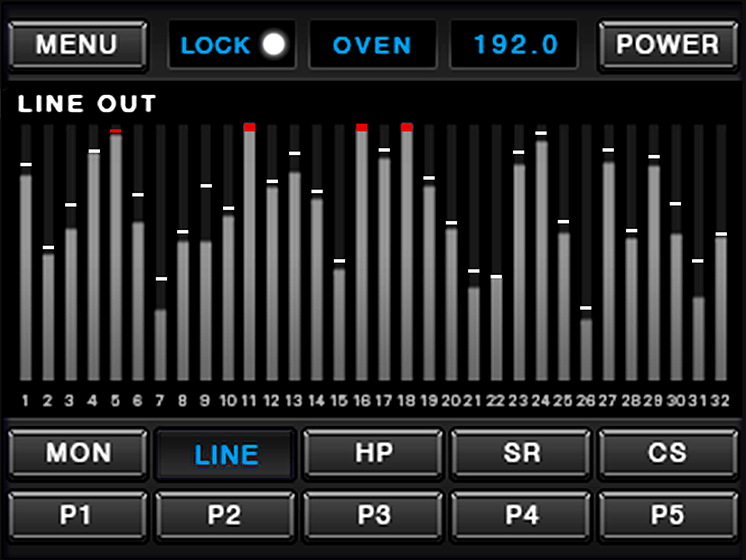

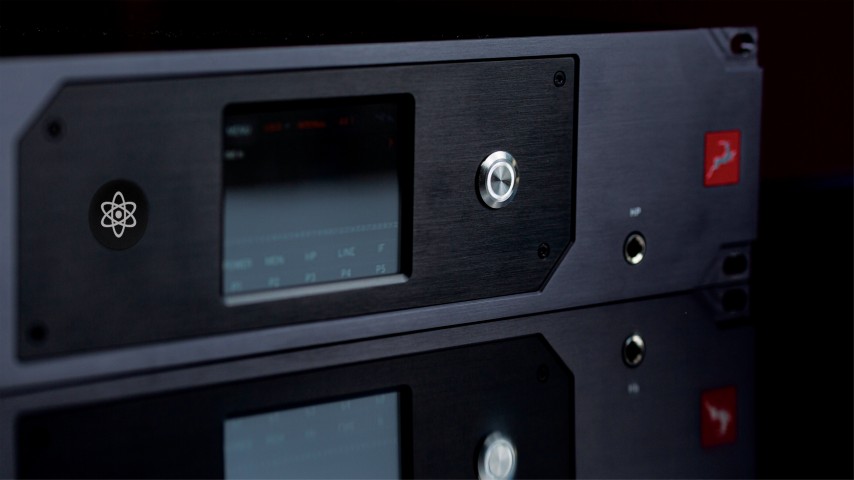

- Intuitive touchscreen interface with recall of presets
- Serial connection via Thunderbolt 3 and remote control via USB Type-C;
- Ability to work without being connected to a computer (autonomous operation);
- Wireless control of software features from a separate computer connected to the same network.

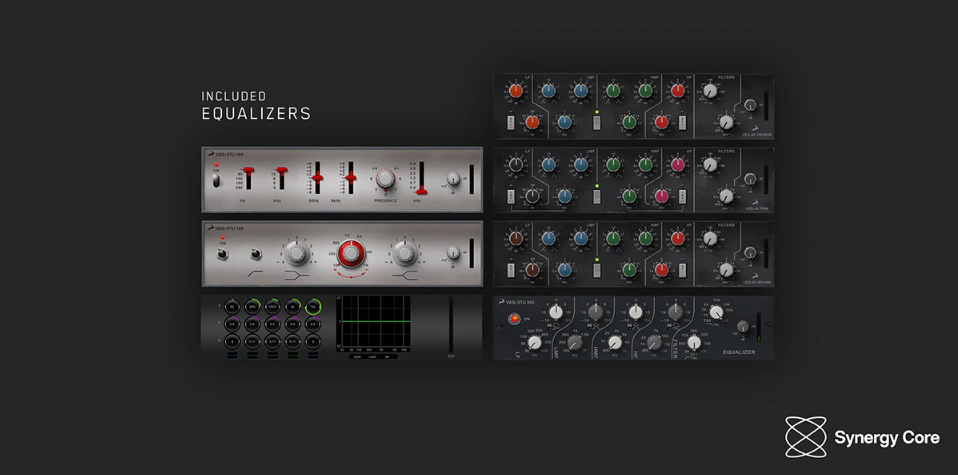

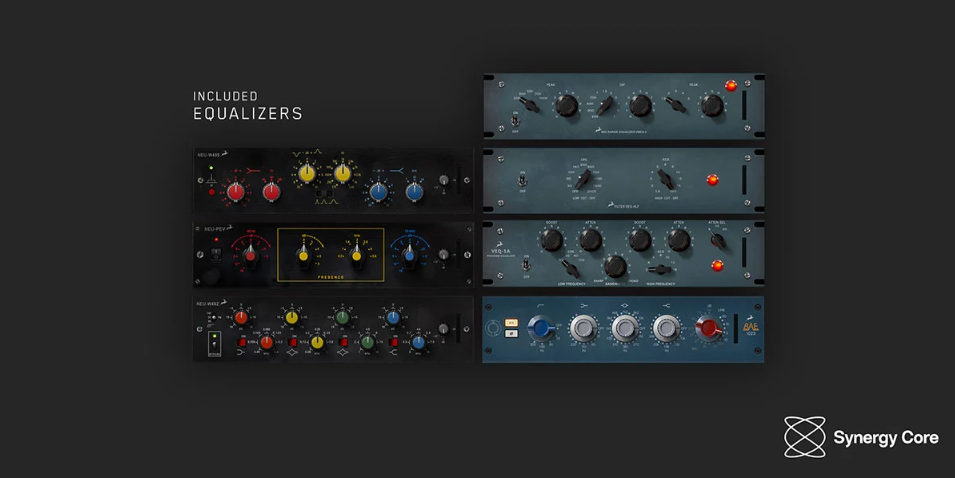

- 18 equalizers (including BAE-1023, VEQ-STU 089, VEQ-4K BLACK and more)

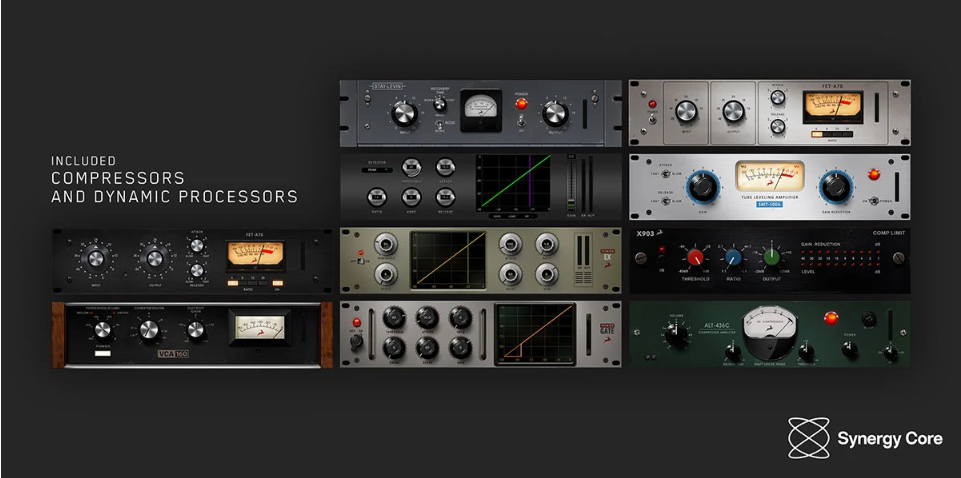

- 12 compressors and limiters (Stay-Levin, FET-A76, BAE 10DCF and more)

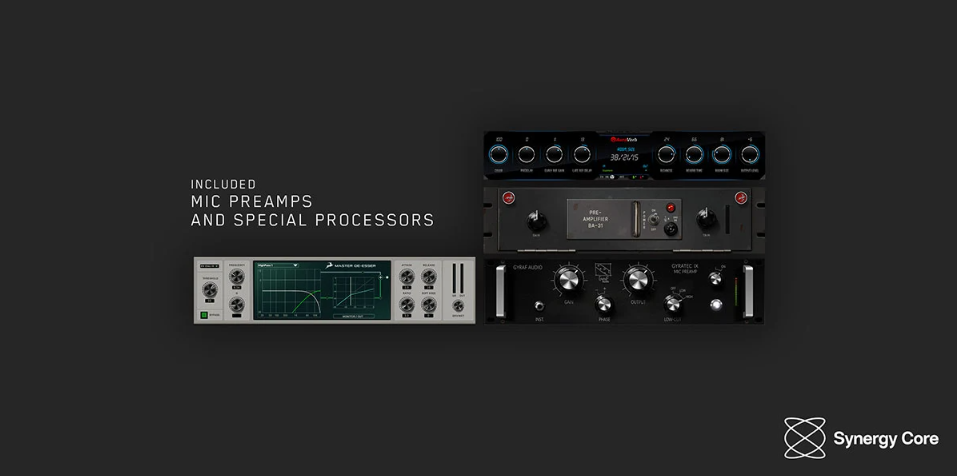

- 2 BA-31 preamps, Gyraf Gyratec IX.
- 4 special processing plugins (Marble White AutoWah, Vari-Speed ??Tremolo, Master De-Esser, Auraverb)
- Dimensions: 482 x 270 x 88 mm
- Weight: 6.4 kg
