Antelope audio Pure 2

Converter
2999.00 € 2495.00 €
+
-
ON ORDER - contact us
INFORM ME OF ITS ENTRY IN STOCK
BIEN REÇU, MERCI!
OK
Please enter a valid email address
  • Need help +33 1 81 930 900

  • Fast delivery

  • Guarantee : 3-years warranty

    days refund guarantee : within 30 days

Share

Description

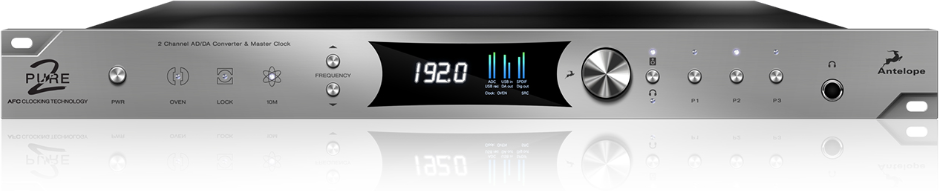

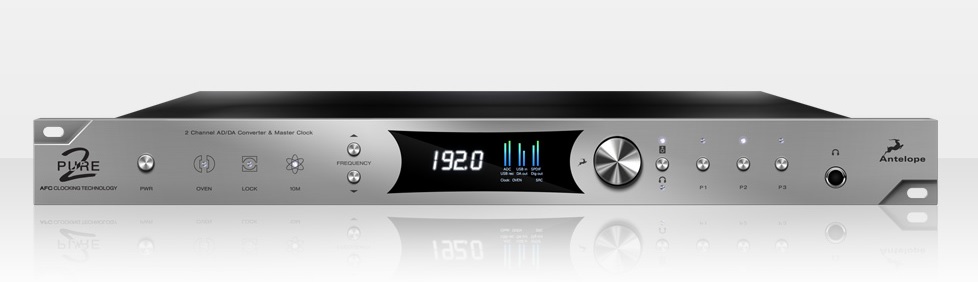

Pure2 Is A High-End Mastering Converter, Powered By Antelope Audio’s Legendary Clocking And Pristine Analog Circuitry

Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio’s world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.

Characteristics

Ref : 61251

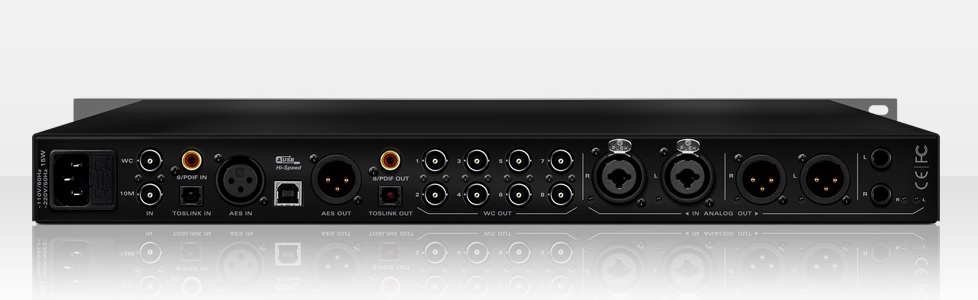

Analog Inputs
2 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu

Digital Inputs
1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
1 x TOSLINK on optical fiber: up to 96kHz

Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Analog Outputs
1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu and user adjustable from 8dBu to 26dBu
1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS)
1 x 1/4 TRS Front Headphones 20dBu

Digital Outputs
1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
1 x TOSLINK on optical fiber: up to 96kHz

Word Clock Outputs
8 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

USB I/O
USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz,
4 channels I/O playback/record, Type B

External Reference Clock
1 x 10M Atomic Clock Input @ 75 Ohms 1Vpp on BNC
1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

A/D Converter
Dynamic Range: 122dB
THD+N: -105dB

D/A Converters
Main DAC Dynamic Range 127dB; THD+N -107dB
Monitor DAC Dynamic Range 120dB; THD+N -103dB
Headphones DAC Dynamic Range 120dB; THD+N -100dB

Clock Specifications
