Arturia RACKBRUTE 3U Black

The Arturia RackBrute is a powered enclosure designed to house and transport your Eurorack-format synthesis modules. Designed to create a reliable modular system, it combines a protective chassis, a dedicated power supply, and a mounting mechanism compatible with several instruments in the Brute series. It’s ideal for both studio setups and configurations used regularly on stage. Discover how its design makes it easy to integrate, use, and transport your modules.

Overview

The Arturia RackBrute expands the ecosystem of Brute analog synthesizers, alongside the MiniBrute, MiniBrute 2, MiniBrute 2S, MatrixBrute, and PolyBrute. Unlike these instruments, it does not produce sound directly: it serves as a powered chassis for building a Eurorack modular setup. It stands out for its aluminum frame with wooden side panels, its protected power supply, and its Link System, which allows it to be connected to another RackBrute or certain MiniBrute models. However, the manufacturer’s description does not specify the model’s height or its available width in HP.

Who is the Arturia RackBrute designed for?

The Arturia RackBrute is primarily intended for modular musicians who want to install their modules in a rigid chassis equipped with a power supply capable of delivering up to 1600 mA on the +12 V or -12 V lines. It also meets the needs of MiniBrute 2 or MiniBrute 2S owners who want to integrate their synthesizer with modules using the Link System. Finally, it’s ideal for live performers who transport a pre-wired setup, as its mounting system leaves sufficient space between the units once they’re folded down.

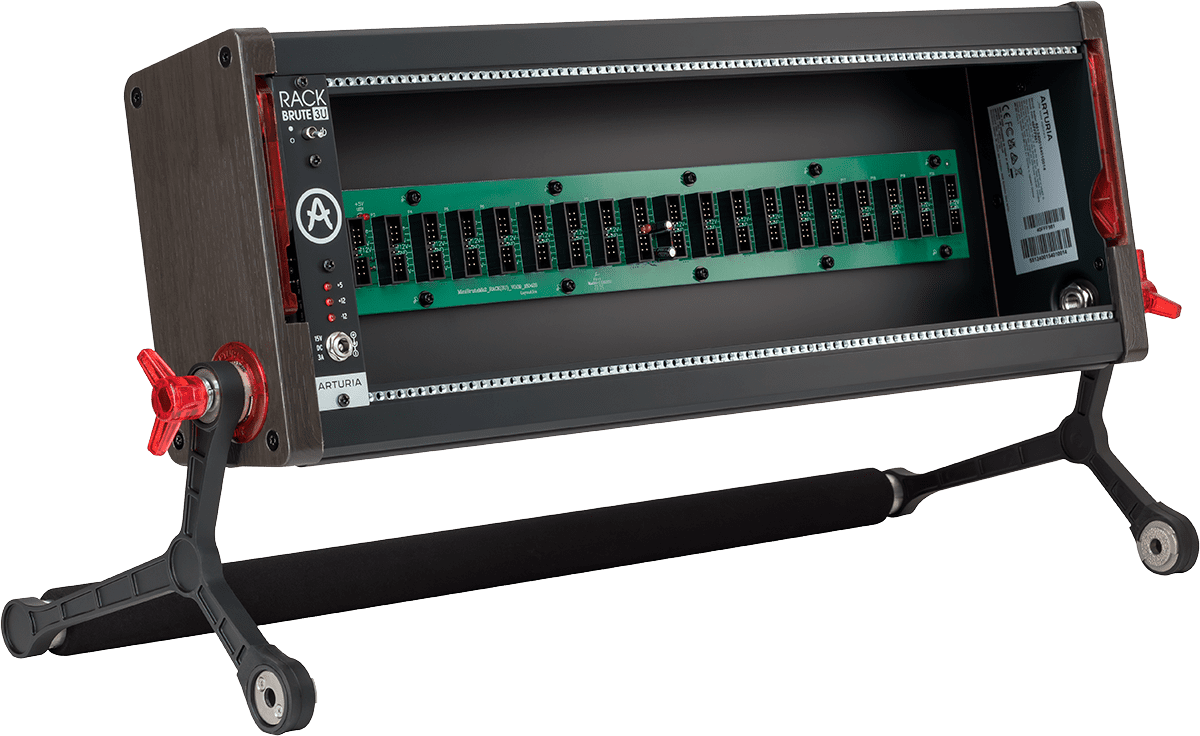

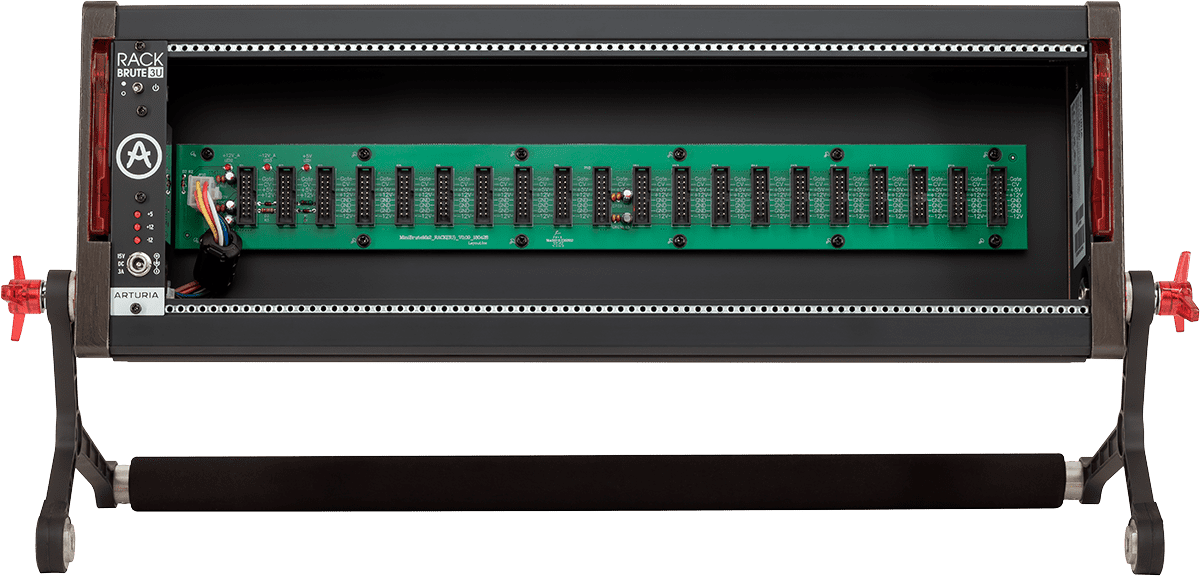

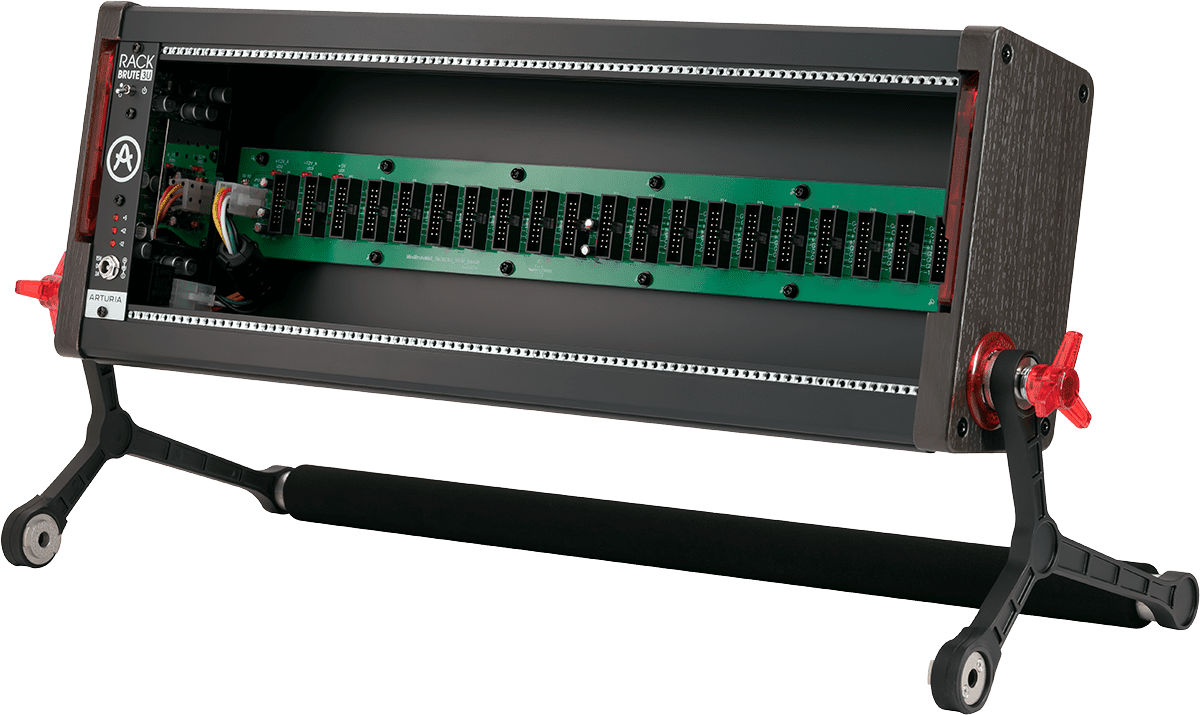

An aluminum frame and wooden side panels to protect your modules

The RackBrute is built on a rigid aluminum frame attached to wooden side panels to support and protect the installed modules. Its HP mounting rail is integrated into a rigid rod, which minimizes mechanical stress when you regularly reconfigure your system. Compared to a lightweight Eurorack case designed primarily to stay in the studio, this structure is built to withstand more frequent handling. This allows you to replace or move your modules without risking easy deformation of the frame.

A power supply delivering up to 1600 mA to power a demanding modular setup

The RackBrute’s power supply delivers up to 1600 mA on the +12 V or -12 V lines, as well as 900 mA on the 5 V line. These values allow you to accurately assess the electrical compatibility of your modules before installation—a critical consideration in a Eurorack setup comprising multiple digital and analog circuits. The connectors are clearly labeled and feature polarized pins to minimize connection errors. Whether in the studio or on stage, you’ll have a power distribution system designed to remain stable even when multiple modules are operating simultaneously.

The Link System for connecting the RackBrute to a MiniBrute 2 or a second rack

The Link System allows you to attach the RackBrute to a MiniBrute 2, a MiniBrute 2S, or another RackBrute. This mechanical connection creates a cohesive setup in which the synthesizer, sequencer, and modules remain grouped together on a single frame. Unlike multiple standalone Eurorack cases that must be positioned separately, the connected components can be tilted to improve accessibility. This allows you to position your controls and patch points facing you, whether you’re working on a sequence in the studio or tweaking a sound during a performance.

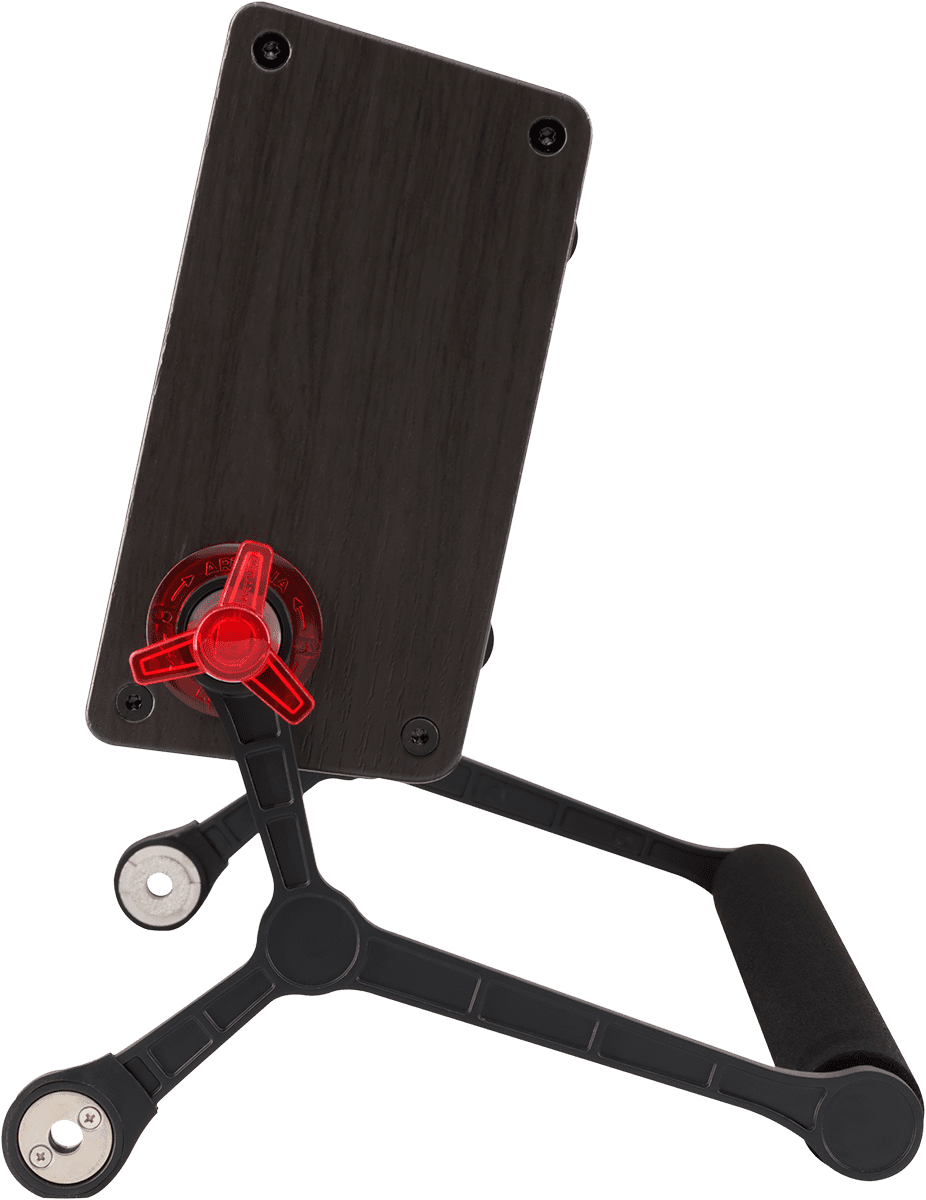

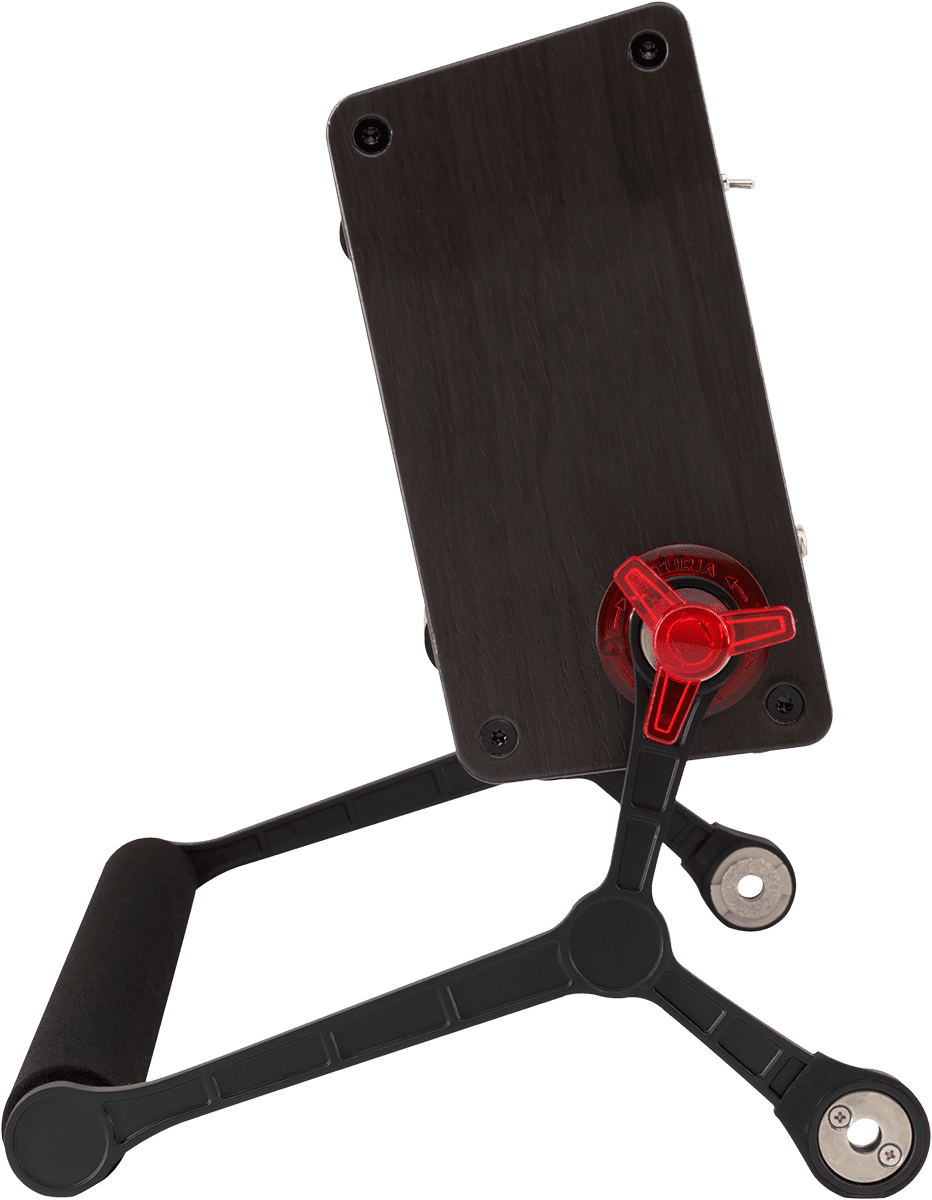

A foldable structure that transforms the rack into a carrying handle

Once the units are connected via the Link System, their angle can be adjusted until they fold together face-to-face. The stand used to hold the setup in playing position then becomes a carrying handle. This design makes the RackBrute feel more like an integrated modular system than a simple Eurorack case sitting on a table. For a rehearsal or concert, you can fold up your setup, move it, and quickly set it up again without having to transport each component separately.

Transport without unplugging your setup’s patch cables

The side brackets and the geometry of the Y-shaped mounting bracket maintain sufficient distance between the modules when the RackBrute is folded. This design allows you to keep the patch cables connected during transport, whereas a conventional case may require you to completely disconnect the wiring before each move. Your routing and modulation settings therefore remain in place as you move between the studio, rehearsal space, and stage. Upon arrival, you can unfold the system, power it on, and quickly restore the setup you prepared in advance.
