Cartridge

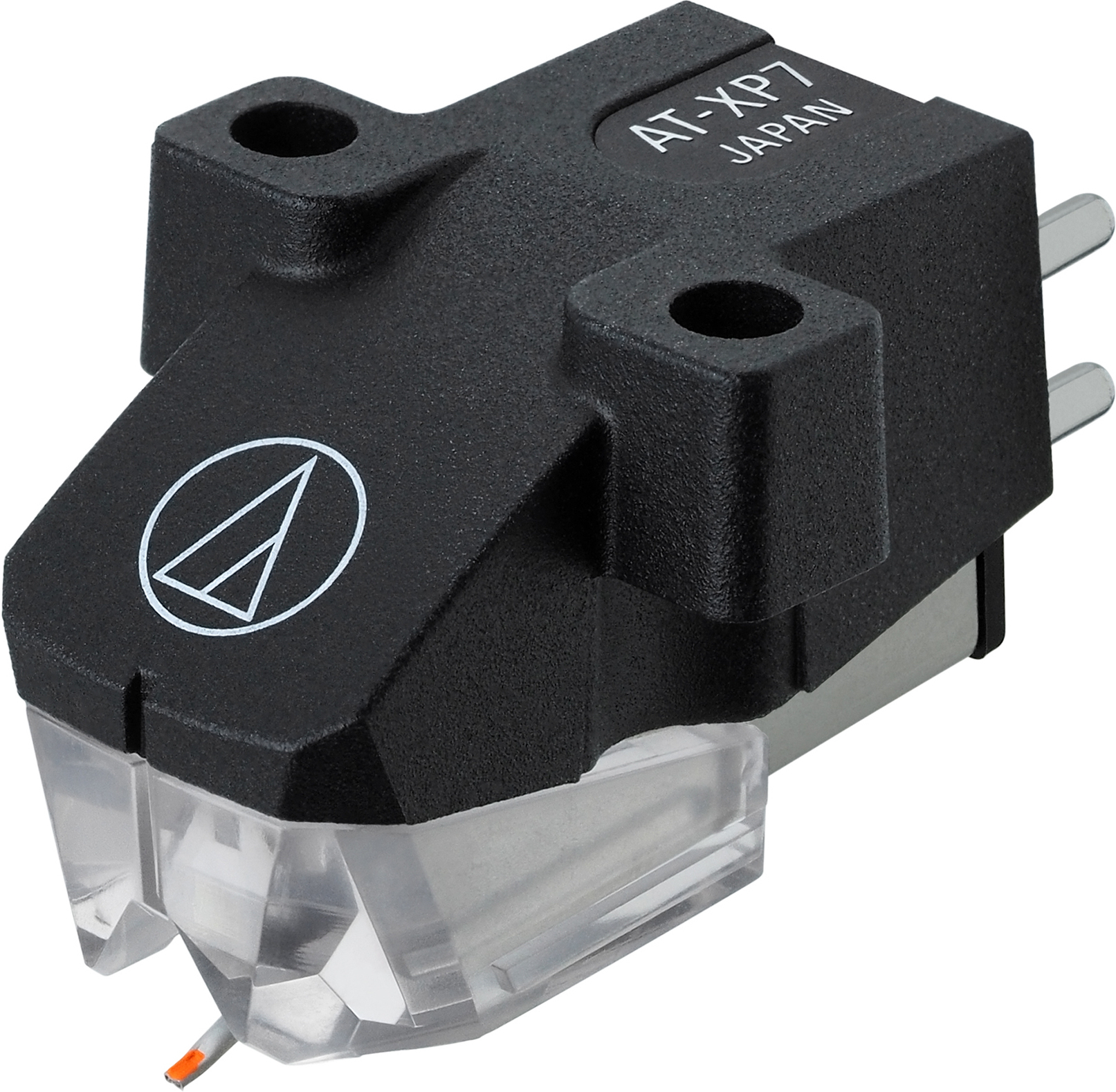

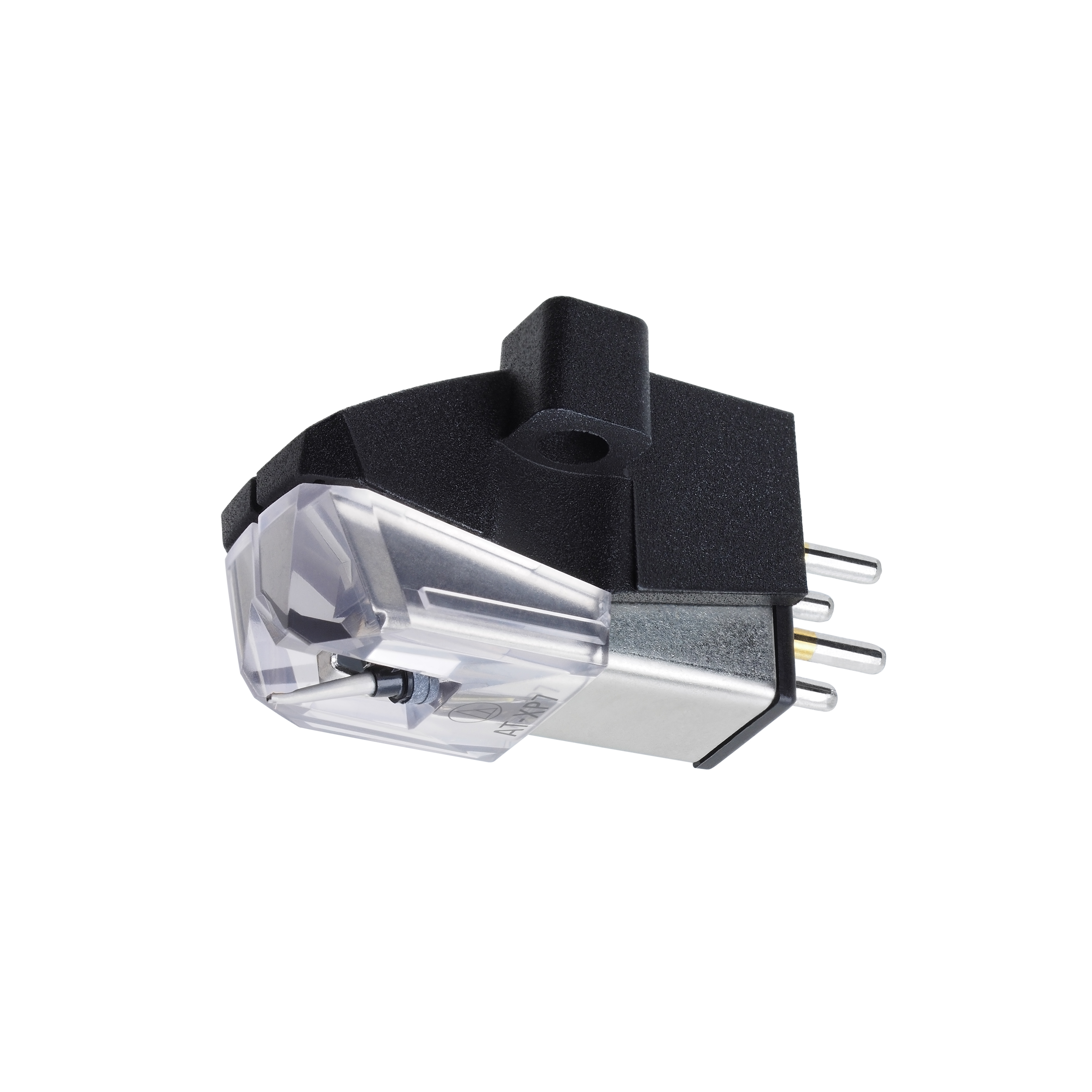

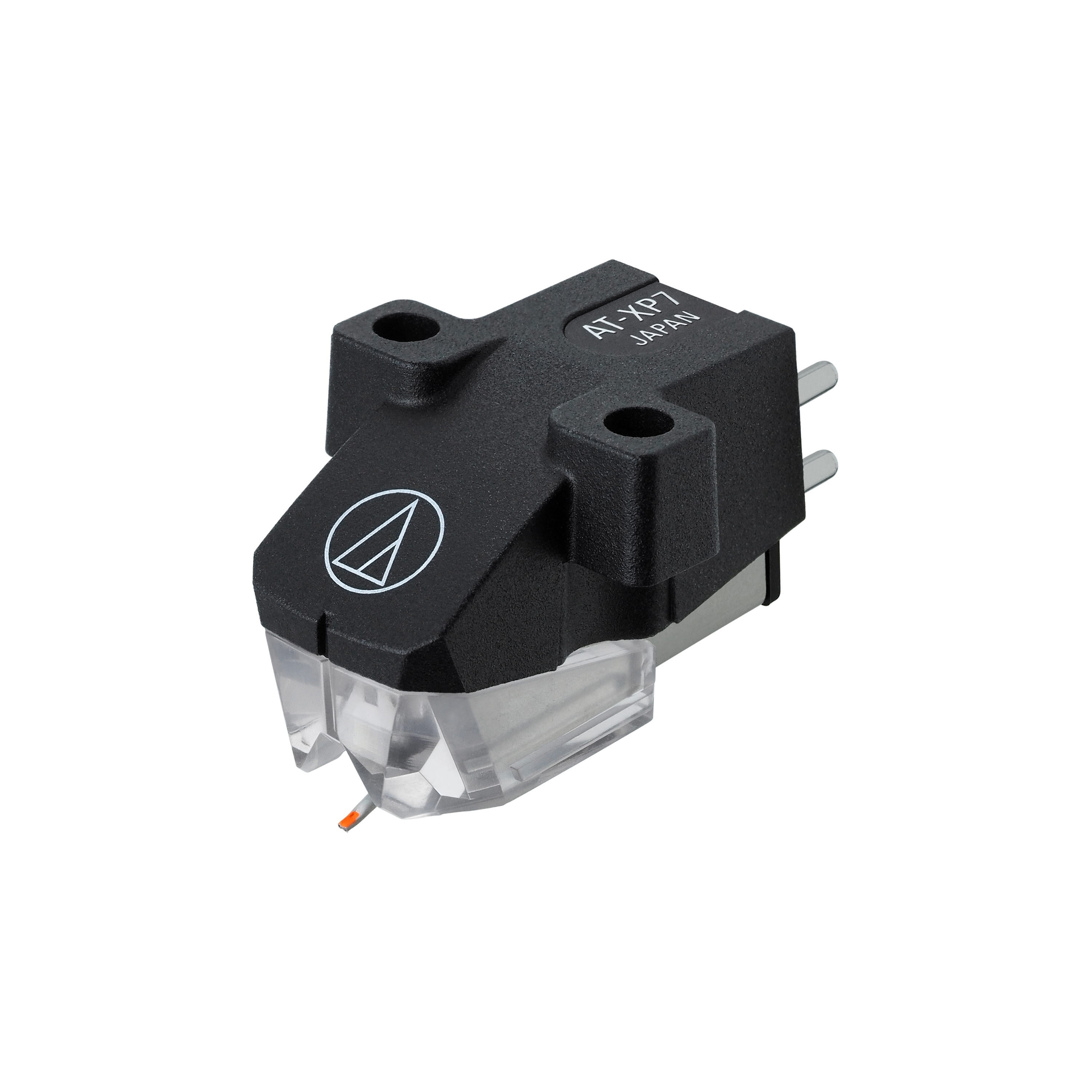

The AudioTechnica AT-XP7 is a cell for DJ turntables.
The AT-XP7 is specifically designed for the needs of DJs.
it also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical stylus follows the recording groove with great accuracy for outstanding audio reproduction. In addition, the cartridge is specifically designed to provide maximum visibility of the tip of the stylus.
The AT-XP7 is specifically designed for the needs of DJs.
it also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical stylus follows the recording groove with great accuracy for outstanding audio reproduction. In addition, the cartridge is specifically designed to provide maximum visibility of the tip of the stylus.
Technical sheet
- Frequency Response 20-20,000 Hz
- Channel Separation 22 (dB at 1 kHz)
- Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
- Stylus Construction Bonded round shank
- Recommended Load Impedance 47,000 ohms
- Output 6.0 mV (1 kHz, 5 cm/sec.)
- Channel Balance 2.0 dB (1 kHz)

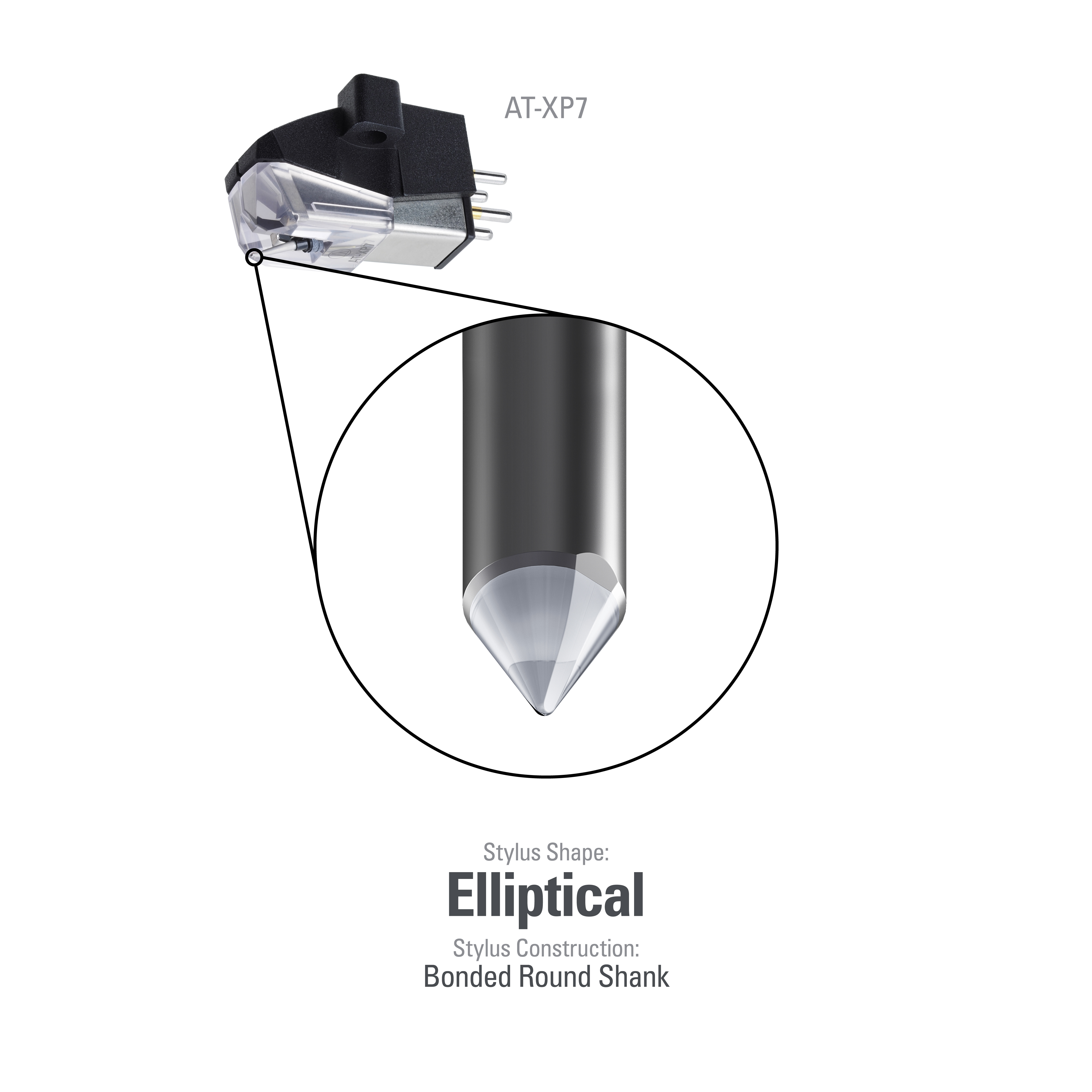

- Stylus Shape 0.3 x 0.7 mil elliptical
- Cantilever Aluminum tapered pipe
- Mount Half-inch
- Replacement Stylus ATN-XP7
- Coil impedance: 6.7 k ohms (1 kHz)
- DC resistance: 990 ohms
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 1.0 H (1 kHz)
- Vertical tracking angle: 20°
- Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
- Weight: 6.2 g (0.22 oz)
