Audio technica AT-XP5

  • Read reviews (1)
  • Related accessories
  • Similar products
  • Audio Technica At-xp5 - Cartridge - Main picture
  • Audio Technica At-xp5 - Cartridge - Variation 1
  • Audio Technica At-xp5 - Cartridge - Variation 2
90,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 79690
In stock
shipped under 2/4 days
Stock in store
See availability. Store
Star's Music Paris
Other version(s) or associated product(s)

The brand Audio technica

Learn more about the Audio technica brand and discover the entire catalog.

DJ cartridge buying guide

Follow our DJ cartridge buying guide to find a reference that meets your expectations: audiophile listening, mix, scratch

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Cartridge

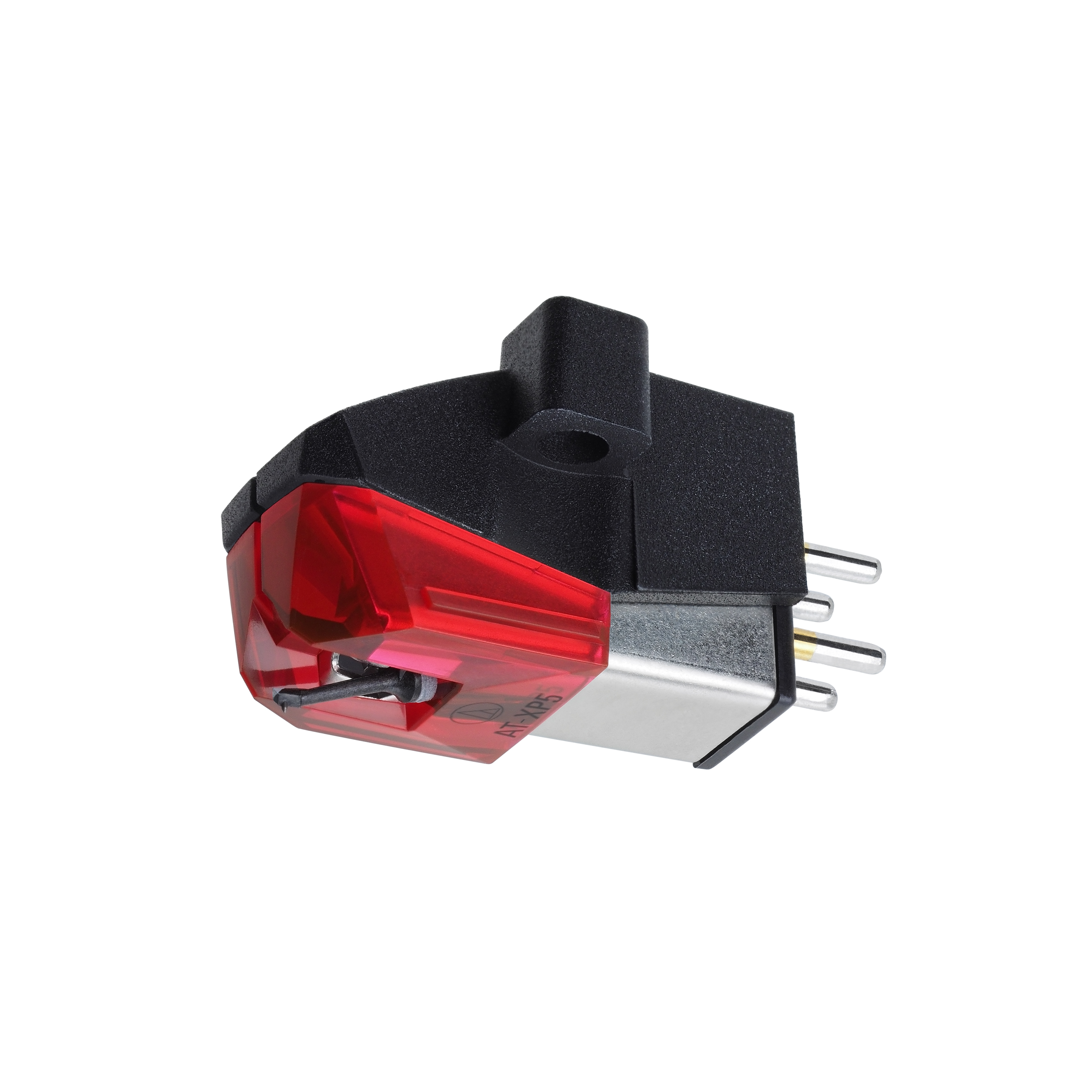

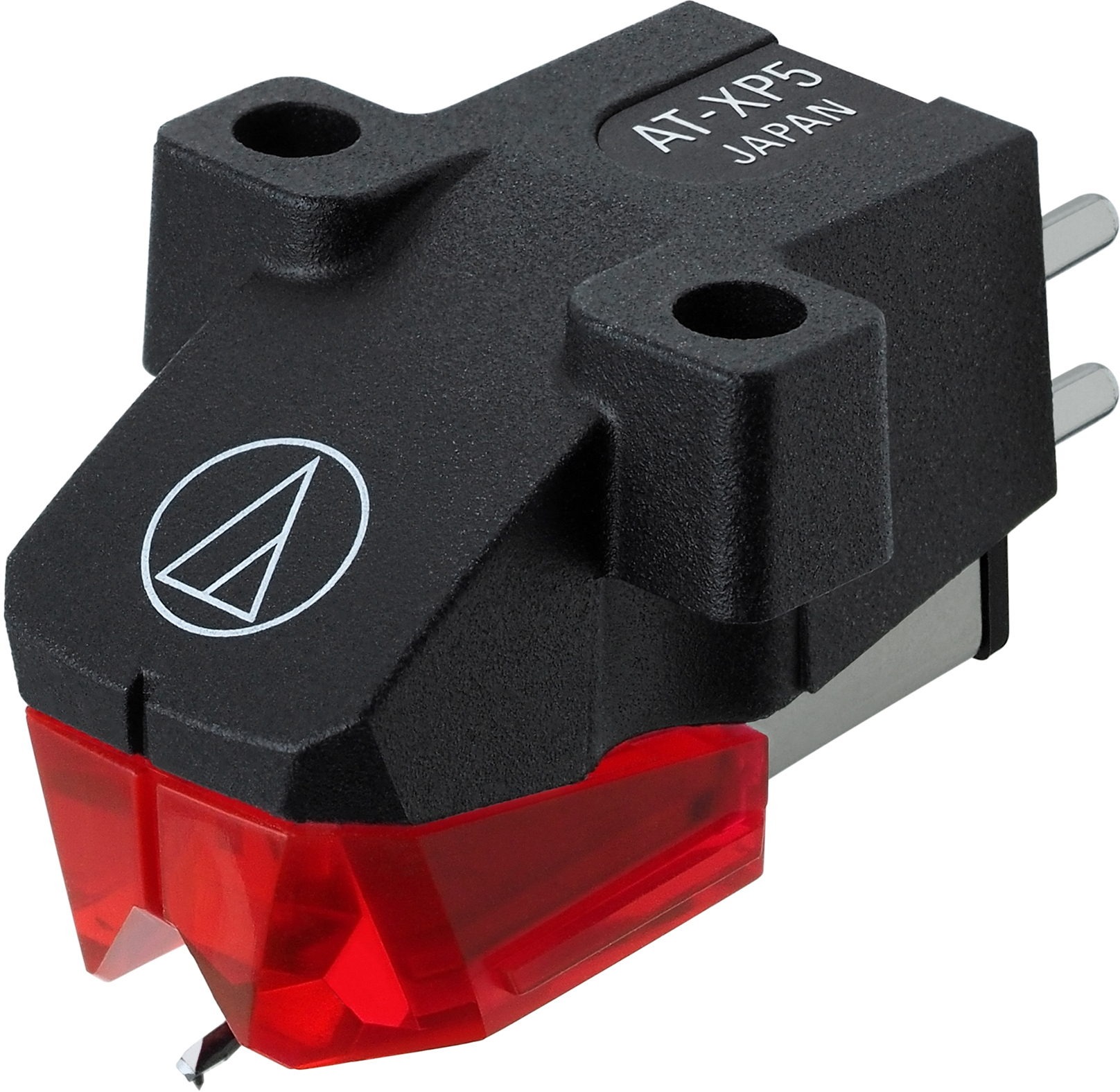

The AT-XP5 is specially designed for the needs of DJs.

This cartridge features a highly-rigid polyphenylene sulfide (PPS) / glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Lire la suite

Technical sheet

  • Frequency response 20-18 000 Hz
  • Channel separation 20 (dB at 1 kHz)
  • 2.0-4.0g vertical tracking force (3.0g standard)
  • Charging impedance recommended 47,000 ohms
  • Output 5.5 mV (1 kHz, 5 cm / sec.)
  • Channel balance 2.0 dB (1 kHz)

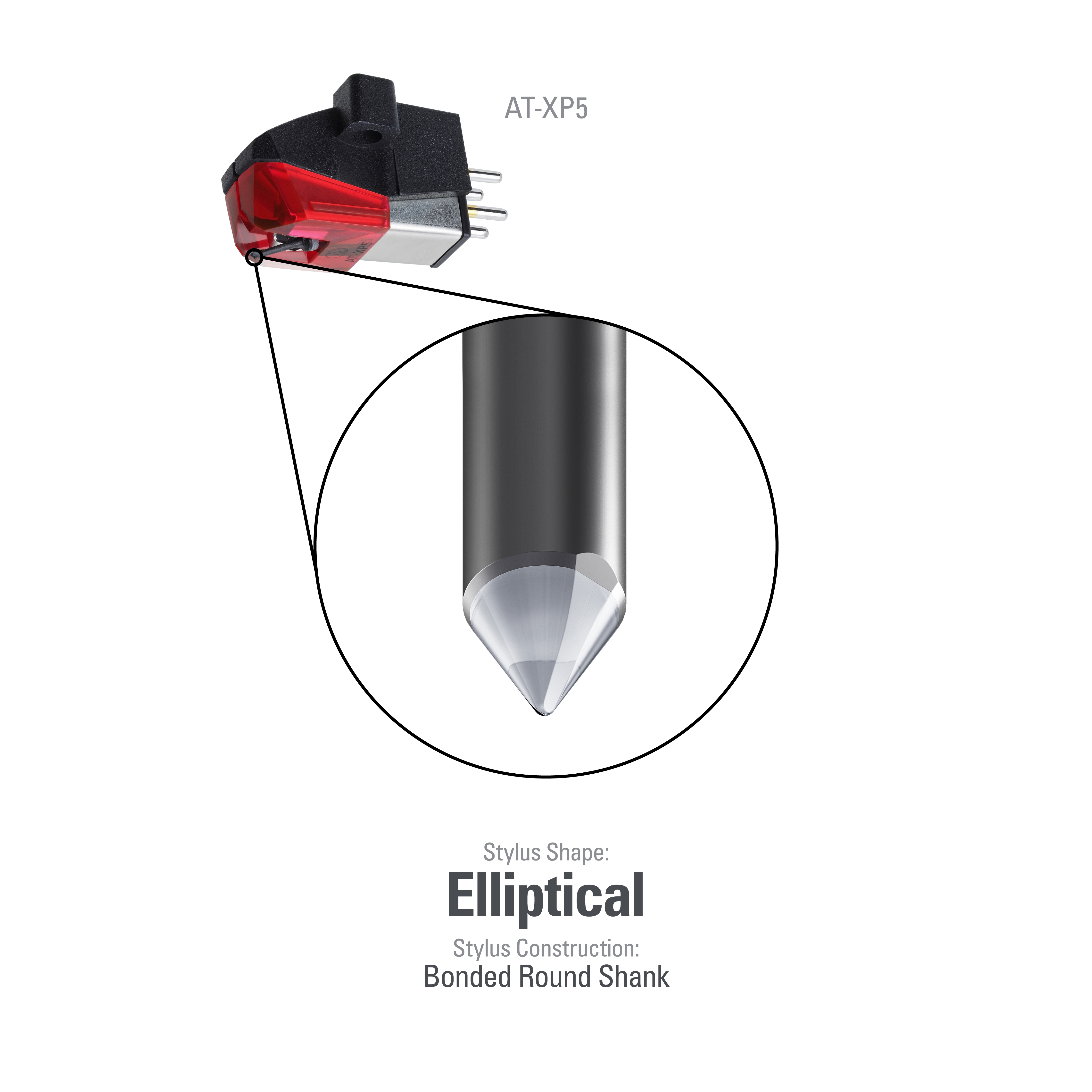

  • Stylus shape 0.3 x 0.7 mil elliptical
  • ABS cantilever reinforced carbon fiber
  • Half inch thumb
  • Replacement stylus ATN-XP5
  • Coil impedance: 6.7 k ohms (1 kHz)
  • DC resistance: 990 ohms
  • Recommended load capacity: 100 to 200 pF
  • Coil inductance: 1.0 H (1 kHz)
  • Vertical tracking angle: 20 °
  • Dimensions: 17.2 mm (0.68 ") H × 17.8 mm (0.67") W × 28.3 mm (1.20 ") D
  • Weight: 6.2 g (0.22 oz)
