Overdrive, distortion & fuzz effect pedal

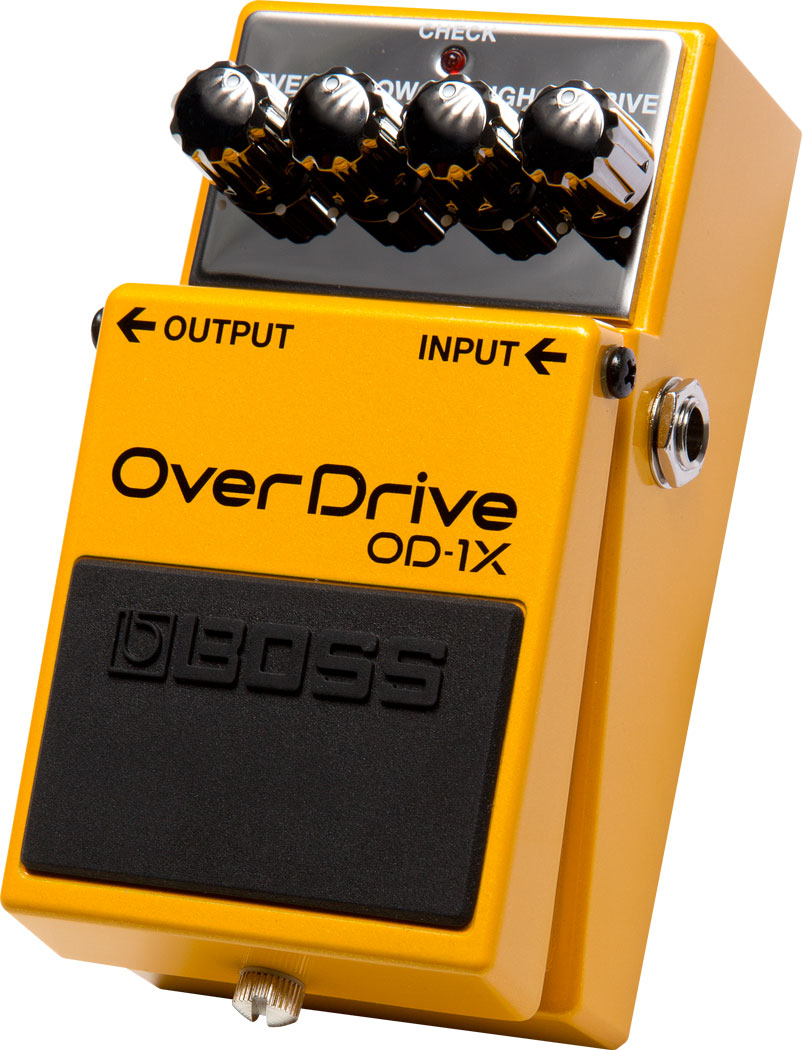

The BOSS OD-1X delivers overdrive unlike any pedal ever made, with an all-new dimension of sound quality, clarity, and tonal range. Thanks to BOSS’ magical MDP technology, every note on the fretboard sounds flawless, with fat tones when riffing leads and a smooth, transparent grind when playing chords. At every setting, you’re welcomed with wide-range sounds and a complex, refined presence that’s both cutting and smooth. The sound character and overdrive amount naturally follow your picking dynamics, putting a world of subtle tonal changes under your fingers.
Lire la suite
Technical sheet
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Controls
- Pedal switch
- LEVEL knob
- LOW knob
- HIGH knob
- DRIVE knob
- Indicator: CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack
- OUTPUT jack
- AC adaptor jack (DC 9 V)
- Power Supply:
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
- AC adaptor (sold separately)
- Current Draw: 45 mA
- Expected battery life under continuous use
- - Alkaline: Approx. 9 hours
- - Carbon: Approx. 2.5 hours
- * These figures will vary depending on the actual conditions of use.
- Accessories
- Owner's Manual
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
- Alkaline battery (9V, 6LR61)
- Option (sold separately): AC adaptor (PSA series)
