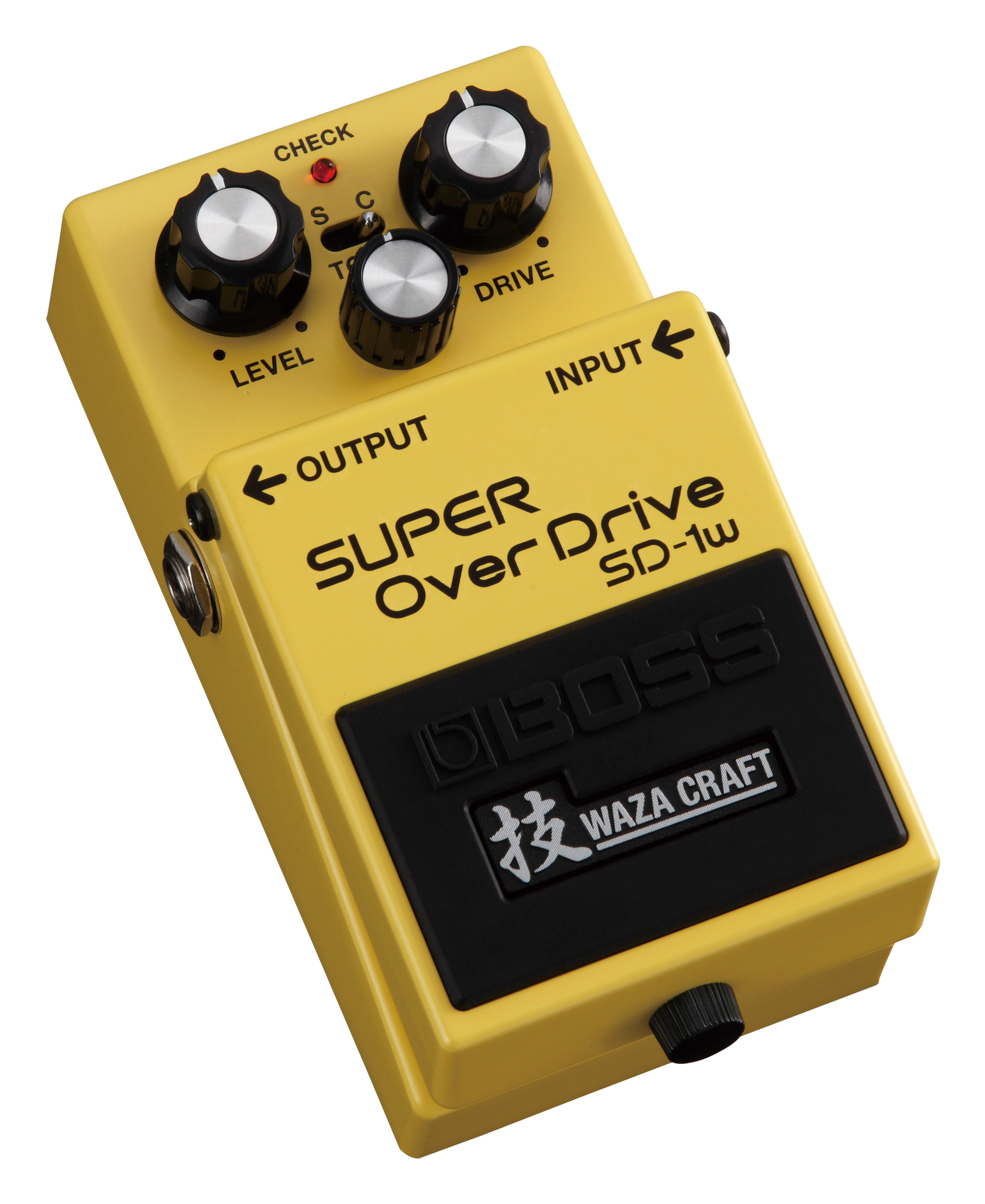

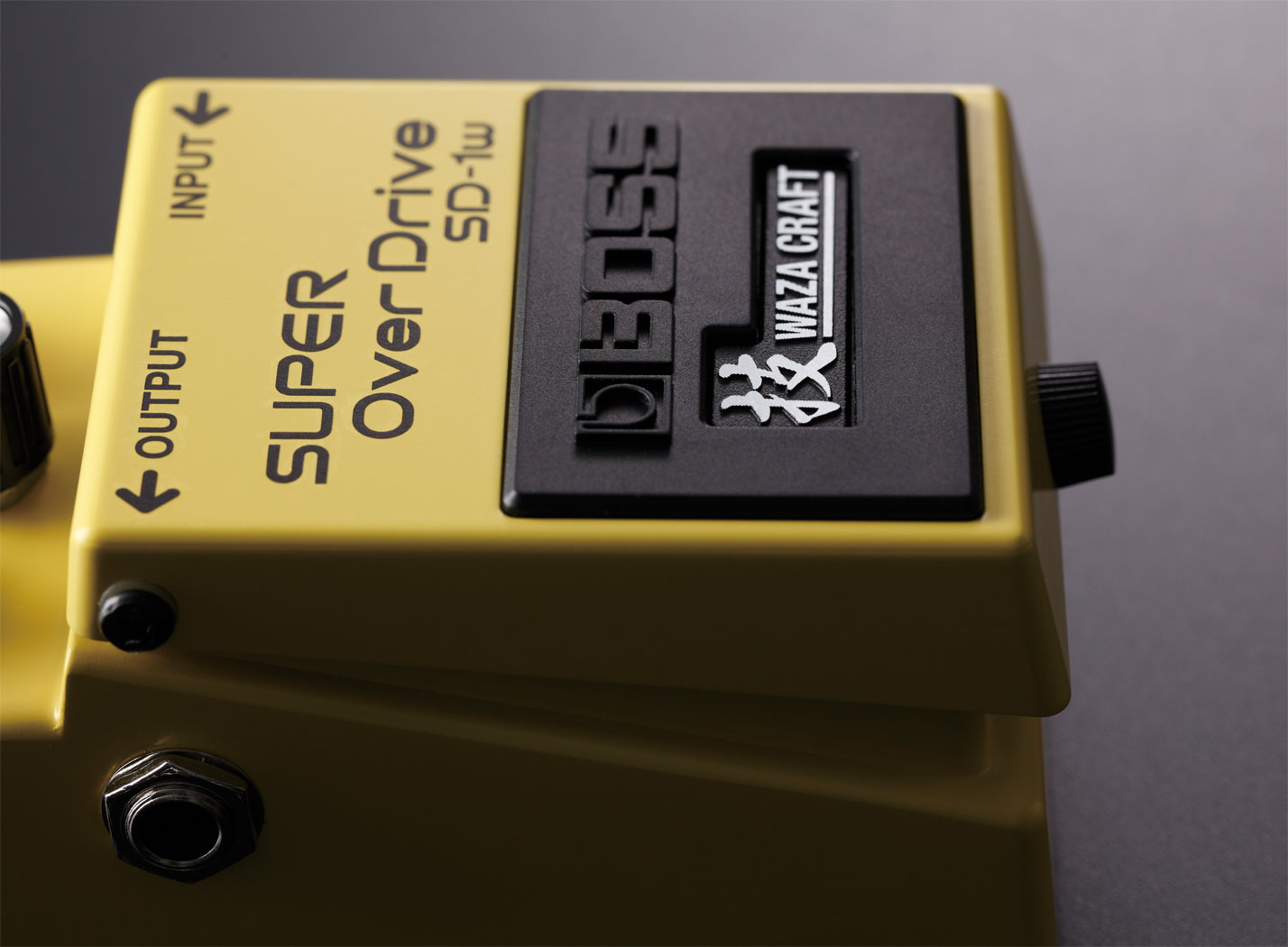

The BOSS SD-1W Super overdrive Special edition Waza Craft pedal delivers the ultimate BOSS tone experience, with its premium sound based on the legendary SD-1 Super Overdrive.
Along with newly revised, all-analog discrete amplifier circuit, standard and custom sound modes, this pedal is the one you need.
Characteristics
Ref : 37534
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
Controls:
- Pedal switch
- Mode switch
- LEVEL knob
- TONE knob
- DRIVE knob
Indicator
- CHECK indicator (Serves also as battery check indicator)
Connectors:
- INPUT jack
- OUTPUT jack
- DC IN jack
Power Supply:
- Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
- AC adaptor (sold separately)
- Current Draw: 15 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.):
- Carbon: Approx. 25 hours
- Alkaline: Approx. 42 hours
Accessories:
- Owner's Manual
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
- Carbon-zinc battery (9 V, 6F22)
- Option (sold separately): AC adaptor (PSA series)
