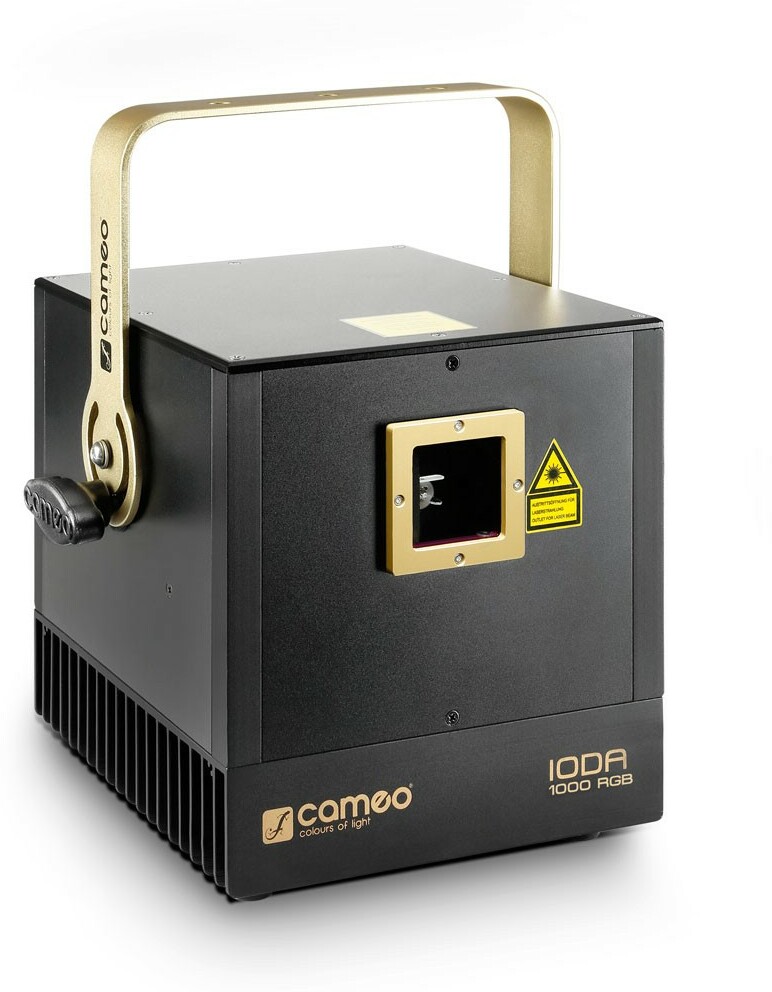

Cameo Ioda 1000 RGB - noir
- Read reviews (0)
- Related accessories
VIDEO
VIDEO
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
- Ref : 77748
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
The brand Cameo
Learn more about the Cameo brand and discover the entire catalog.
How to choose your DJ Lights Buying guide
Lighting as a whole includes many devices such as projectors, effects machines, moving heads,LED scanners ... Each of them has a very precise use, and we will try, through this guide, to enlighten you
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Description
IODA 1000 RGB has a high power of 1000 mW.
It incorporates diode lasers and DPSS , giving the colors red, green and blue, its diameter of the radius is 3 mm, with an extremely reduced divergence of 1.3 mrad.
Thanks to its analog modulation , the Ioda Series Professional Laser Show offers up to 16 million color shades and spectacular, high-precision graphics projections.
The red LED with a wavelength of 638mm has a much higher brightness than conventional 650nm diodes and makes the IODA1000 RGB a perfect choice for professional laser shows.

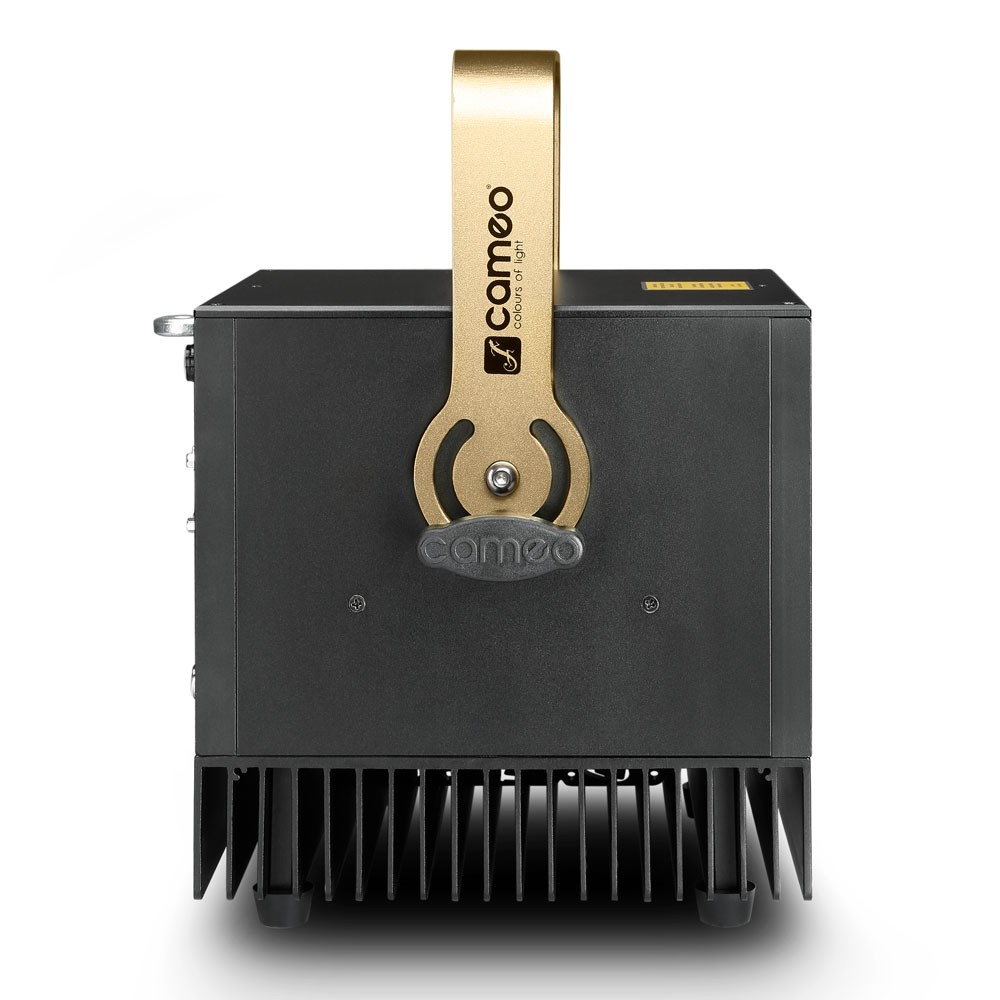

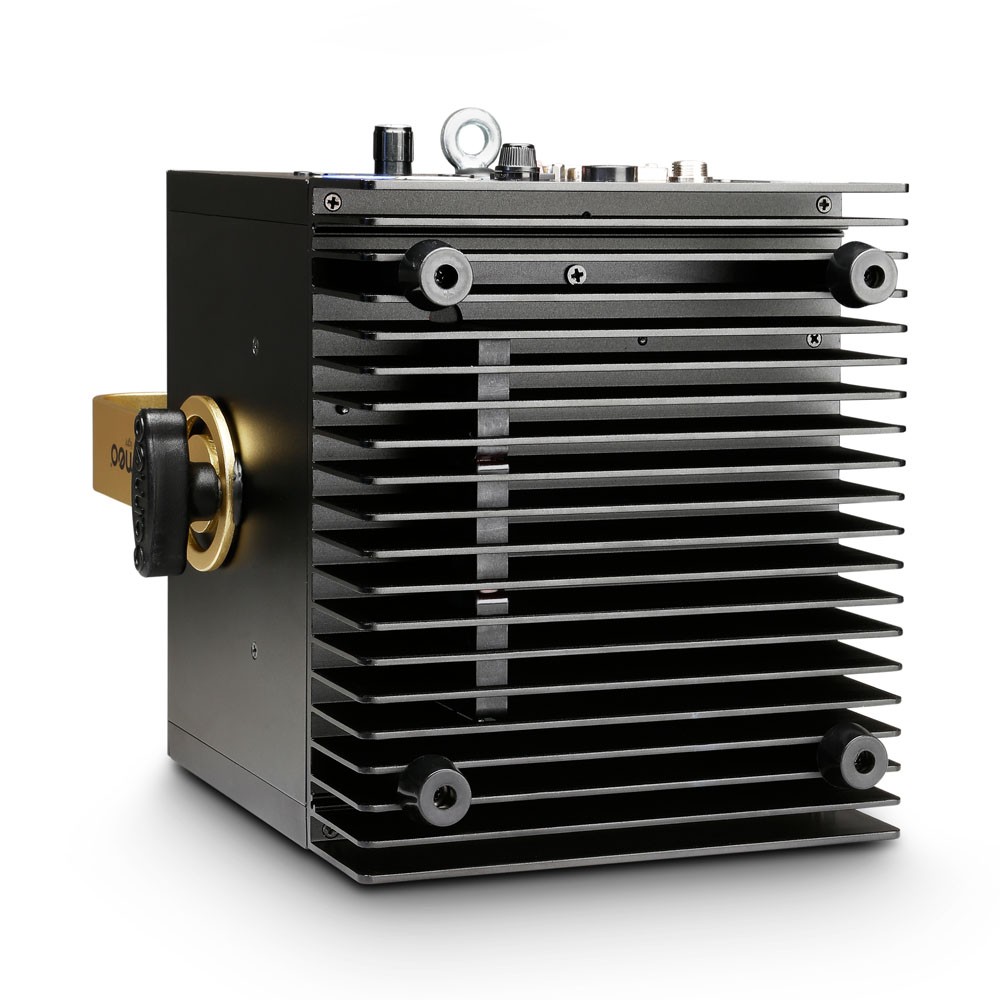

The aluminum cabinet is dustproof and built in two parts.
It separates the optical components from the power / fan section, ensuring optimal performance and low maintenance costs.

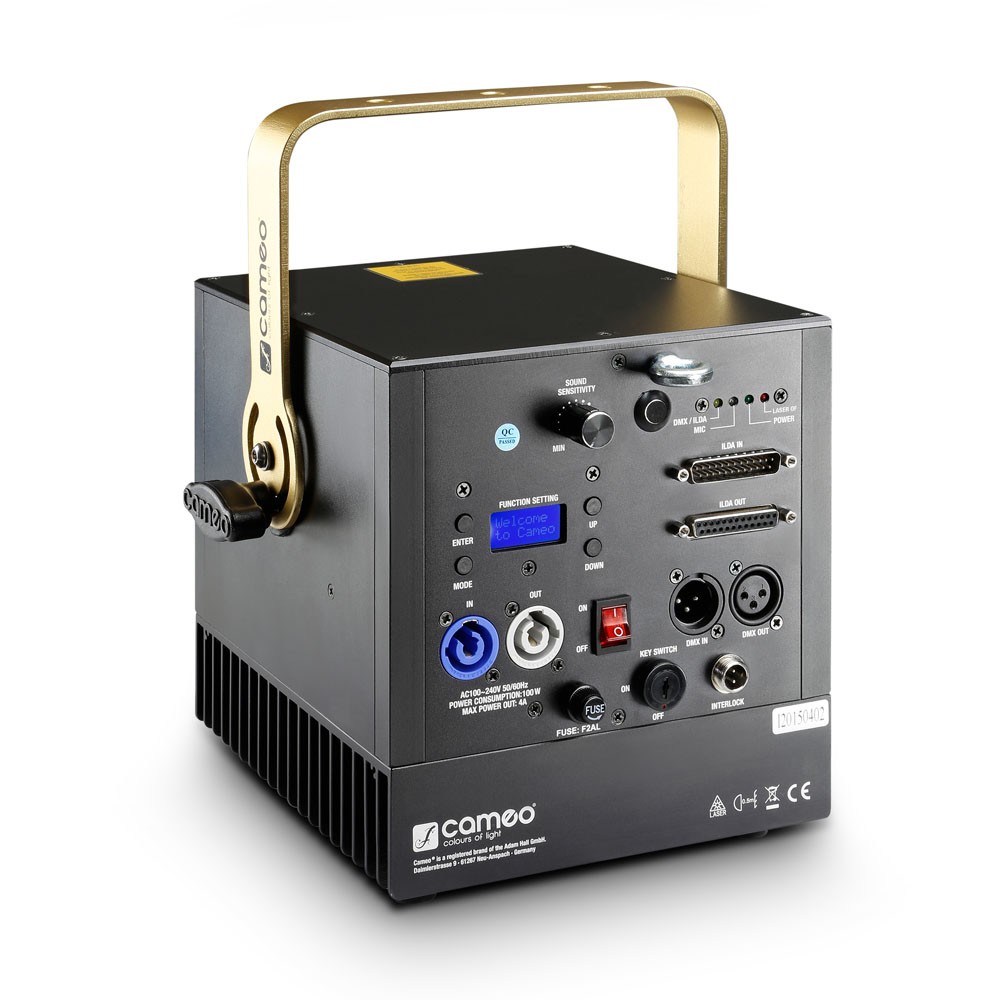

It is equipped with ultra fast galvanometers with 30 Kpps at 8 ° ILDA, 60 ° Scan and 128 Presets spectacular, has an interface ILDA (International Laser Display Association) on 25-pin Sub-D port for computer control.
Its DMX control is on 4 channels or 11 channels, with an integrated microphone whose sensitivity we can adjust, for the control by the music.
IODA 1000 RGB can also be used in Master, Slave and Standalone modes with its silent fan that ensures a moderate operating temperature.
3-point header connections Neutrik powerCon then a key switch to prevent unauthorized use.
For better protection of the public, lasers of the Ioda Series have a security system in case of failure of the Scan system.
Important clarification :
The Ioda Series and Luke Series lasers are equipped with identical presets, and are compatible with Master / Slave applications. With switchable Master and Slave status inversion for configuration, even more impressive laser effects can be achieved.
It incorporates diode lasers and DPSS , giving the colors red, green and blue, its diameter of the radius is 3 mm, with an extremely reduced divergence of 1.3 mrad.
Thanks to its analog modulation , the Ioda Series Professional Laser Show offers up to 16 million color shades and spectacular, high-precision graphics projections.
The red LED with a wavelength of 638mm has a much higher brightness than conventional 650nm diodes and makes the IODA1000 RGB a perfect choice for professional laser shows.
The aluminum cabinet is dustproof and built in two parts.
It separates the optical components from the power / fan section, ensuring optimal performance and low maintenance costs.
It is equipped with ultra fast galvanometers with 30 Kpps at 8 ° ILDA, 60 ° Scan and 128 Presets spectacular, has an interface ILDA (International Laser Display Association) on 25-pin Sub-D port for computer control.
Its DMX control is on 4 channels or 11 channels, with an integrated microphone whose sensitivity we can adjust, for the control by the music.
IODA 1000 RGB can also be used in Master, Slave and Standalone modes with its silent fan that ensures a moderate operating temperature.
3-point header connections Neutrik powerCon then a key switch to prevent unauthorized use.
For better protection of the public, lasers of the Ioda Series have a security system in case of failure of the Scan system.
Important clarification :
The Ioda Series and Luke Series lasers are equipped with identical presets, and are compatible with Master / Slave applications. With switchable Master and Slave status inversion for configuration, even more impressive laser effects can be achieved.
Lire la suite
Technical sheet
- Laser color Multi-color
- Multipoint & gobo Yes
- -Type of laser product
- -Power total 1000 mW
- -RGB color spectrum
- -Wavelength 447 nm, 532 nm, 638 nm
- -Features Radius diameter 3 mm / divergence 1.5 mrad
- Laser diode laser sources, DPSS
- -Laser class 4
- -Scanner galvanometer, high power, 30 kpps at 8 ° ILDA
- -Maximum Scan Angle 60 °
- -Isd User Modes, Auto Programs, DMX 512 Protocol, Sound Control
- -DMX input 3-pin male XLR connector
- -DMX output 3-pin female XLR connector
- -Input ILDA 25-pin Sub-D connector male
- -Index output 25-pin female D-sub connector
- DMX 11 channels, 4 channels
- -Entry Settings, Mode, Value Down, Value Up
- -Mains voltage 100 - 240 V, 50 - 60 Hz
- -100 W power consumption
- -Embase sector Neutrik powerCON
- -Aluminium case material
- -Color black box
- -Width 188 mm
- -Height (mm) 201 mm
- -Depth 210 mm
- -Weight 6.5 kg
